schema location: | C:\dev\isis\application.xsd |
attribute form default: | unqualified |

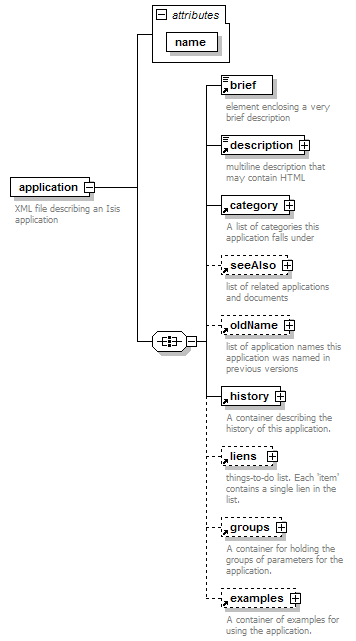

element form default: | qualified |
diagram | ![]() |
||||||||||||
properties |
|
||||||||||||
children | brief description category seeAlso oldName history liens groups examples | ||||||||||||
attributes |
|
||||||||||||
annotation |
|
||||||||||||
source | <xs:element name="application"> <xs:annotation> <xs:documentation>XML file describing an Isis application</xs:documentation> </xs:annotation> <xs:complexType> <xs:all> <xs:element ref="brief"/> <xs:element ref="description"/> <xs:element ref="category"/> <xs:element ref="seeAlso" minOccurs="0"/> <xs:element ref="oldName" minOccurs="0"/> <xs:element ref="history"/> <xs:element ref="liens" minOccurs="0"/> <xs:element ref="groups" minOccurs="0"/> <xs:element ref="examples" minOccurs="0"/> </xs:all> <xs:attribute name="name" type="xs:string" use="required"/> </xs:complexType> </xs:element> |
type | xs:string | ||||
properties |
|
||||
source | <xs:attribute name="name" type="xs:string" use="required"/> |
diagram | ![]() |
||||
used by |
|
||||
annotation |
|
||||
source | <xs:element name="brief"> <xs:annotation> <xs:documentation>element enclosing a very brief description</xs:documentation> </xs:annotation> </xs:element> |
diagram | ![]() |
||
properties |
|
||
children | categoryItem missionItem | ||
used by |
|
||
annotation |
|
||

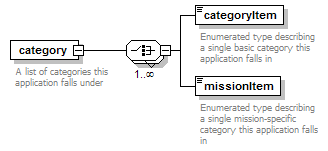

source | <xs:element name="category"> <xs:annotation> <xs:documentation>A list of categories this application falls under</xs:documentation> </xs:annotation> <xs:complexType> <xs:choice maxOccurs="unbounded"> <xs:element name="categoryItem" type="categoryItem_type"> <xs:annotation> <xs:documentation>Enumerated type describing a single basic category this application falls in</xs:documentation> </xs:annotation> </xs:element> <xs:element name="missionItem" type="missionItem_type"> <xs:annotation> <xs:documentation>Enumerated type describing a single mission-specific category this application falls in</xs:documentation> </xs:annotation> </xs:element> </xs:choice> </xs:complexType> </xs:element> |
diagram | ![]() |
||||||||||||||||||||||||||||||||
type | categoryItem_type | ||||||||||||||||||||||||||||||||
properties |
|
||||||||||||||||||||||||||||||||
facets |
|
||||||||||||||||||||||||||||||||
annotation |
|
||||||||||||||||||||||||||||||||
source | <xs:element name="categoryItem" type="categoryItem_type"> <xs:annotation> <xs:documentation>Enumerated type describing a single basic category this application falls in</xs:documentation> </xs:annotation> </xs:element> |
diagram | ![]() |
||||||||||||||||||||||||||||||||||||||||||||||||||||
type | missionItem_type | ||||||||||||||||||||||||||||||||||||||||||||||||||||
properties |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||
facets |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||
annotation |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||
source | <xs:element name="missionItem" type="missionItem_type"> <xs:annotation> <xs:documentation>Enumerated type describing a single mission-specific category this application falls in</xs:documentation> </xs:annotation> </xs:element> |
diagram | ![]() |
||||||||||||
properties |
|
||||||||||||
used by |
|
||||||||||||
attributes |
|
||||||||||||
annotation |
|
||||||||||||
source | <xs:element name="count"> <xs:annotation> <xs:documentation>The number of items in the list or array if this parameter takes a list or array</xs:documentation> </xs:annotation> <xs:complexType> <xs:attribute name="size" type="xs:integer" use="required"/> </xs:complexType> </xs:element> |
type | xs:integer | ||||
properties |
|
||||
source | <xs:attribute name="size" type="xs:integer" use="required"/> |
diagram | ![]() |
||||||||||||
properties |
|
||||||||||||
children | brief description parameterName | ||||||||||||
used by |
|
||||||||||||
attributes |
|
||||||||||||
annotation |
|
||||||||||||
source | <xs:element name="dataFile"> <xs:annotation> <xs:documentation>Container describing an input or output file other than an image used in the example.</xs:documentation> </xs:annotation> <xs:complexType> <xs:all> <xs:element ref="brief"/> <xs:element ref="description"/> <xs:element ref="parameterName" minOccurs="0"/> </xs:all> <xs:attribute name="path" type="xs:anyURI" use="required"/> </xs:complexType> </xs:element> |
type | xs:anyURI | ||||
properties |
|
||||
source | <xs:attribute name="path" type="xs:anyURI" use="required"/> |
diagram | ![]() |
||
properties |
|
||
children | dataFile | ||
used by |
|
||
annotation |
|
||
source | <xs:element name="dataFiles"> <xs:annotation> <xs:documentation>A container of dataFiles for this example.</xs:documentation> </xs:annotation> <xs:complexType> <xs:sequence> <xs:element ref="dataFile" maxOccurs="unbounded"/> </xs:sequence> </xs:complexType> </xs:element> |
diagram | ![]() |
||
properties |
|
||
children | item | ||
used by |
|
||
annotation |
|
||
source | <xs:element name="default"> <xs:annotation> <xs:documentation>The default value or array/list of values</xs:documentation> </xs:annotation> <xs:complexType> <xs:sequence> <xs:element ref="item" maxOccurs="unbounded"/> </xs:sequence> </xs:complexType> </xs:element> |
diagram | ![]() |
||||
properties |
|
||||
used by |
|
||||
annotation |
|
||||
source | <xs:element name="description"> <xs:annotation> <xs:documentation>multiline description that may contain HTML</xs:documentation> </xs:annotation> <xs:complexType mixed="true"> <xs:sequence> <xs:any namespace="##any" processContents="skip" minOccurs="0" maxOccurs="unbounded"/> </xs:sequence> </xs:complexType> </xs:element> |
diagram | ![]() |
||
properties |
|
||
children | title source author publisher pages date | ||
used by |
|
||
annotation |
|
||
source | <xs:element name="document"> <xs:annotation> <xs:documentation>container describing a document</xs:documentation> </xs:annotation> <xs:complexType> <xs:all> <xs:element ref="title"/> <xs:element ref="source" minOccurs="0"/> <xs:element name="author" minOccurs="0"> <xs:annotation> <xs:documentation>author (or authors) of the document</xs:documentation> </xs:annotation> </xs:element> <xs:element name="publisher" minOccurs="0"> <xs:annotation> <xs:documentation>publisher information (name, city, etc.)</xs:documentation> </xs:annotation> </xs:element> <xs:element name="pages" minOccurs="0"> <xs:annotation> <xs:documentation>pages in document refered to by this reference</xs:documentation> </xs:annotation> </xs:element> <xs:element name="date" minOccurs="0"> <xs:annotation> <xs:documentation>publication date</xs:documentation> </xs:annotation> </xs:element> </xs:all> </xs:complexType> </xs:element> |
diagram | ![]() |
||||||
properties |
|
||||||
annotation |
|
||||||
source | <xs:element name="author" minOccurs="0"> <xs:annotation> <xs:documentation>author (or authors) of the document</xs:documentation> </xs:annotation> </xs:element> |
diagram | ![]() |
||||||
properties |
|
||||||
annotation |
|
||||||
source | <xs:element name="publisher" minOccurs="0"> <xs:annotation> <xs:documentation>publisher information (name, city, etc.)</xs:documentation> </xs:annotation> </xs:element> |
diagram | ![]() |
||||||
properties |
|
||||||
annotation |
|
||||||
source | <xs:element name="pages" minOccurs="0"> <xs:annotation> <xs:documentation>pages in document refered to by this reference</xs:documentation> </xs:annotation> </xs:element> |
diagram | ![]() |
||||||
properties |
|
||||||
annotation |
|
||||||
source | <xs:element name="date" minOccurs="0"> <xs:annotation> <xs:documentation>publication date</xs:documentation> </xs:annotation> </xs:element> |
diagram | ![]() |
||
properties |
|
||
children | brief description terminalInterface guiInterfaces dataFiles inputImages outputImages | ||
used by |
|
||
annotation |
|
||

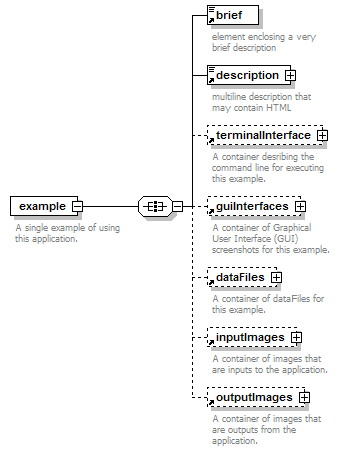

source | <xs:element name="example"> <xs:annotation> <xs:documentation>A single example of using this application.</xs:documentation> </xs:annotation> <xs:complexType> <xs:all> <xs:element ref="brief"/> <xs:element ref="description"/> <xs:element ref="terminalInterface" minOccurs="0"/> <xs:element ref="guiInterfaces" minOccurs="0"/> <xs:element ref="dataFiles" minOccurs="0"/> <xs:element ref="inputImages" minOccurs="0"/> <xs:element ref="outputImages" minOccurs="0"/> </xs:all> </xs:complexType> </xs:element> |
diagram | ![]() |
||
properties |
|
||
children | example | ||
used by |
|
||
annotation |
|
||
source | <xs:element name="examples"> <xs:annotation> <xs:documentation>A container of examples for using the application.</xs:documentation> </xs:annotation> <xs:complexType> <xs:sequence> <xs:element ref="example" maxOccurs="unbounded"/> </xs:sequence> </xs:complexType> </xs:element> |
diagram | ![]() |
||
properties |
|
||
children | item | ||
used by |
|
||
annotation |
|
||
source | <xs:element name="exclusions"> <xs:annotation> <xs:documentation>List of parameters to exclude if this parameter is used</xs:documentation> </xs:annotation> <xs:complexType> <xs:sequence> <xs:element ref="item" maxOccurs="unbounded"/> </xs:sequence> </xs:complexType> </xs:element> |
diagram | ![]() |
||
used by |
|
||
annotation |
|
||
source | <xs:element name="filename"> <xs:annotation> <xs:documentation>Filename of a resource with no path specified</xs:documentation> </xs:annotation> </xs:element> |
diagram | ![]() |
||||||||||||
properties |
|
||||||||||||
children | parameter | ||||||||||||
used by |
|
||||||||||||
attributes |
|
||||||||||||
annotation |
|
||||||||||||
source | <xs:element name="group"> <xs:annotation> <xs:documentation>A container of parameters for an application.</xs:documentation> </xs:annotation> <xs:complexType> <xs:sequence> <xs:element ref="parameter" maxOccurs="unbounded"/> </xs:sequence> <xs:attribute name="name" type="xs:string" use="required"/> </xs:complexType> </xs:element> |
type | xs:string | ||||
properties |
|
||||
source | <xs:attribute name="name" type="xs:string" use="required"/> |
diagram | ![]() |
||
properties |
|
||
children | group | ||
used by |
|
||
annotation |
|
||
source | <xs:element name="groups"> <xs:annotation> <xs:documentation>A container for holding the groups of parameters for the application.</xs:documentation> </xs:annotation> <xs:complexType> <xs:sequence> <xs:element ref="group" maxOccurs="unbounded"/> </xs:sequence> </xs:complexType> </xs:element> |
diagram | ![]() |
||
properties |
|
||
children | image | ||
used by |
|
||
annotation |
|
||

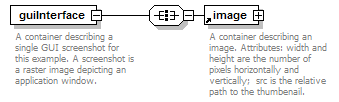

source | <xs:element name="guiInterface"> <xs:annotation> <xs:documentation>A container describing a single GUI screenshot for this example. A screenshot is a raster image depicting an application window.</xs:documentation> </xs:annotation> <xs:complexType> <xs:all> <xs:element ref="image"/> </xs:all> </xs:complexType> </xs:element> |
diagram | ![]() |
||
properties |
|
||
children | guiInterface | ||
used by |
|
||
annotation |
|
||

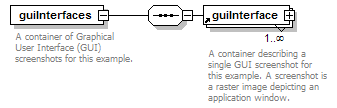

source | <xs:element name="guiInterfaces"> <xs:annotation> <xs:documentation>A container of Graphical User Interface (GUI) screenshots for this example.</xs:documentation> </xs:annotation> <xs:complexType> <xs:sequence> <xs:element ref="guiInterface" maxOccurs="unbounded"/> </xs:sequence> </xs:complexType> </xs:element> |
diagram | ![]() |
||
properties |
|
||
children | helper | ||
used by |
|
||
annotation |
|
||
source | <xs:element name="helpers"> <xs:annotation> <xs:documentation>defines a set of 'helper' functions that provide advanced options or other assistance</xs:documentation> </xs:annotation> <xs:complexType> <xs:sequence> <xs:element name="helper" maxOccurs="unbounded"> <xs:annotation> <xs:documentation>defines a 'helper' function that provides advanced options or other assistance</xs:documentation> </xs:annotation> <xs:complexType> <xs:all> <xs:element name="function"> <xs:annotation> <xs:documentation>name of function to call that implements the helper</xs:documentation> </xs:annotation> </xs:element> <xs:element ref="brief"/> <xs:element ref="description"/> <xs:element name="icon" minOccurs="0"> <xs:annotation> <xs:documentation>icon file to display for this helper</xs:documentation> </xs:annotation> </xs:element> </xs:all> <xs:attribute name="name" type="xs:string" use="required"> <xs:annotation> <xs:documentation>name of the helper</xs:documentation> </xs:annotation> </xs:attribute> </xs:complexType> </xs:element> </xs:sequence> </xs:complexType> </xs:element> |
diagram | ![]() |
||||||||||||||
properties |
|
||||||||||||||
children | function brief description icon | ||||||||||||||
attributes |
|
||||||||||||||
annotation |
|
||||||||||||||

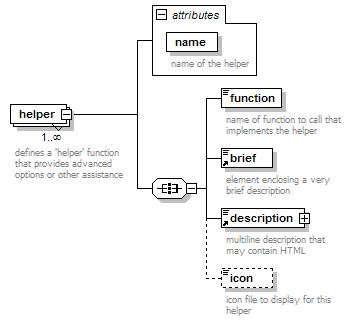

source | <xs:element name="helper" maxOccurs="unbounded"> <xs:annotation> <xs:documentation>defines a 'helper' function that provides advanced options or other assistance</xs:documentation> </xs:annotation> <xs:complexType> <xs:all> <xs:element name="function"> <xs:annotation> <xs:documentation>name of function to call that implements the helper</xs:documentation> </xs:annotation> </xs:element> <xs:element ref="brief"/> <xs:element ref="description"/> <xs:element name="icon" minOccurs="0"> <xs:annotation> <xs:documentation>icon file to display for this helper</xs:documentation> </xs:annotation> </xs:element> </xs:all> <xs:attribute name="name" type="xs:string" use="required"> <xs:annotation> <xs:documentation>name of the helper</xs:documentation> </xs:annotation> </xs:attribute> </xs:complexType> </xs:element> |
type | xs:string | ||||
properties |
|
||||
annotation |
|
||||
source | <xs:attribute name="name" type="xs:string" use="required"> <xs:annotation> <xs:documentation>name of the helper</xs:documentation> </xs:annotation> </xs:attribute> |
diagram | ![]() |
||
properties |
|
||
annotation |
|
||
source | <xs:element name="function"> <xs:annotation> <xs:documentation>name of function to call that implements the helper</xs:documentation> </xs:annotation> </xs:element> |
diagram | ![]() |
||||||
properties |
|
||||||
annotation |
|
||||||
source | <xs:element name="icon" minOccurs="0"> <xs:annotation> <xs:documentation>icon file to display for this helper</xs:documentation> </xs:annotation> </xs:element> |
diagram | ![]() |
||
properties |
|
||
children | change | ||
used by |
|
||
annotation |
|
||
source | <xs:element name="history"> <xs:annotation> <xs:documentation>A container describing the history of this application.</xs:documentation> </xs:annotation> <xs:complexType> <xs:sequence> <xs:element name="change" maxOccurs="unbounded"> <xs:annotation> <xs:documentation>A single 'change' in the history of this class. Attribute 'name' is the author's full name; attribute 'date' is the change date in YYYY-MM-DD format. The element contains a free text description of the changes made.</xs:documentation> </xs:annotation> <xs:complexType mixed="true"> <xs:attribute name="name" type="xs:string" use="required"/> <xs:attribute name="date" type="xs:date" use="required"/> <xs:attribute name="hidden" use="optional" default="false"> <xs:simpleType> <xs:restriction base="xs:string"> <xs:enumeration value="yes"/> <xs:enumeration value="no"/> <xs:enumeration value="true"/> <xs:enumeration value="false"/> </xs:restriction> </xs:simpleType> </xs:attribute> </xs:complexType> </xs:element> </xs:sequence> </xs:complexType> </xs:element> |
diagram | ![]() |
||||||||||||||||||||||||
properties |
|
||||||||||||||||||||||||
attributes |
|
||||||||||||||||||||||||
annotation |
|
||||||||||||||||||||||||
source | <xs:element name="change" maxOccurs="unbounded"> <xs:annotation> <xs:documentation>A single 'change' in the history of this class. Attribute 'name' is the author's full name; attribute 'date' is the change date in YYYY-MM-DD format. The element contains a free text description of the changes made.</xs:documentation> </xs:annotation> <xs:complexType mixed="true"> <xs:attribute name="name" type="xs:string" use="required"/> <xs:attribute name="date" type="xs:date" use="required"/> <xs:attribute name="hidden" use="optional" default="false"> <xs:simpleType> <xs:restriction base="xs:string"> <xs:enumeration value="yes"/> <xs:enumeration value="no"/> <xs:enumeration value="true"/> <xs:enumeration value="false"/> </xs:restriction> </xs:simpleType> </xs:attribute> </xs:complexType> </xs:element> |
type | xs:string | ||||
properties |
|
||||
source | <xs:attribute name="name" type="xs:string" use="required"/> |
type | xs:date | ||||
properties |
|
||||
source | <xs:attribute name="date" type="xs:date" use="required"/> |
type | restriction of xs:string | ||||||||
properties |
|
||||||||
facets |
|
||||||||
source | <xs:attribute name="hidden" use="optional" default="false"> <xs:simpleType> <xs:restriction base="xs:string"> <xs:enumeration value="yes"/> <xs:enumeration value="no"/> <xs:enumeration value="true"/> <xs:enumeration value="false"/> </xs:restriction> </xs:simpleType> </xs:attribute> |
diagram | ![]() |
||||||||||||||||||||||||

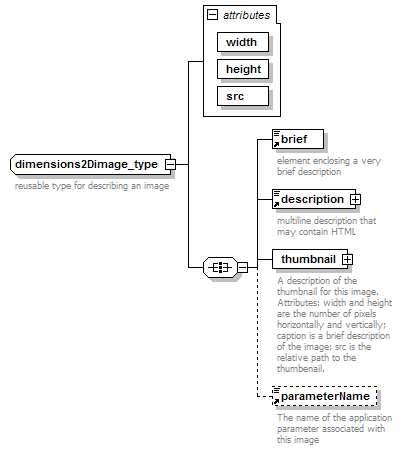

type | dimensions2Dimage_type | ||||||||||||||||||||||||
properties |
|
||||||||||||||||||||||||
children | brief description thumbnail parameterName | ||||||||||||||||||||||||
used by |
|
||||||||||||||||||||||||
attributes |
|
||||||||||||||||||||||||
annotation |
|
||||||||||||||||||||||||

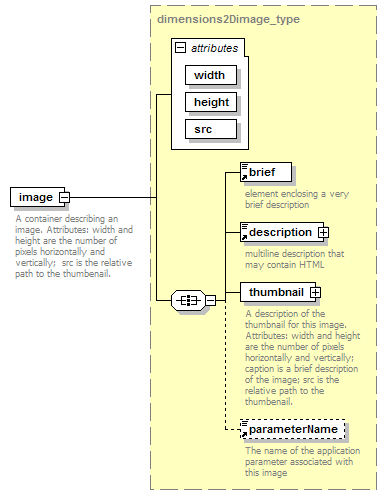

source | <xs:element name="image" type="dimensions2Dimage_type"> <xs:annotation> <xs:documentation>A container describing an image. Attributes: width and height are the number of pixels horizontally and vertically; src is the relative path to the thumbenail.</xs:documentation> </xs:annotation> </xs:element> |
diagram | ![]() |
||
properties |
|
||
children | item | ||
used by |
|
||
annotation |
|
||
source | <xs:element name="inclusions"> <xs:annotation> <xs:documentation>List of parameters that must be used if this one is used.</xs:documentation> </xs:annotation> <xs:complexType> <xs:sequence> <xs:element ref="item" maxOccurs="unbounded"/> </xs:sequence> </xs:complexType> </xs:element> |
diagram | ![]() |
||
properties |
|
||
children | image | ||
used by |
|
||
annotation |
|
||

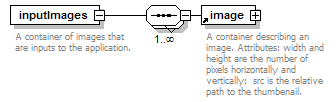

source | <xs:element name="inputImages"> <xs:annotation> <xs:documentation>A container of images that are inputs to the application.</xs:documentation> </xs:annotation> <xs:complexType> <xs:sequence maxOccurs="unbounded"> <xs:element ref="image"/> </xs:sequence> </xs:complexType> </xs:element> |
diagram | ![]() |
||
type | xs:string | ||
properties |
|
||
used by |
|
||
annotation |
|
||
source | <xs:element name="internalDefault" type="xs:string"> <xs:annotation> <xs:documentation>Description of a calculated default (depended on input files or other variables)</xs:documentation> </xs:annotation> </xs:element> |
diagram | ![]() |
||
type | xs:string | ||
properties |
|
||
used by |
|
||
annotation |
|
||
source | <xs:element name="item" type="xs:string"> <xs:annotation> <xs:documentation>An item in a list</xs:documentation> </xs:annotation> </xs:element> |
diagram | ![]() |
||
properties |
|
||
children | item | ||
used by |
|
||
annotation |
|
||
source | <xs:element name="liens"> <xs:annotation> <xs:documentation>things-to-do list. Each 'item' contains a single lien in the list.</xs:documentation> </xs:annotation> <xs:complexType> <xs:sequence> <xs:element ref="item" maxOccurs="unbounded"/> </xs:sequence> </xs:complexType> </xs:element> |
diagram | ![]() |
||
used by |
|
||
annotation |
|
||
source | <xs:element name="combo"> <xs:annotation> <xs:documentation>List of options displayed as combo/choice box</xs:documentation> </xs:annotation> </xs:element> |
diagram | ![]() |
||
properties |
|
||
children | option | ||
used by |
|
||
annotation |
|
||
source | <xs:element name="list"> <xs:annotation> <xs:documentation>list of possible values</xs:documentation> </xs:annotation> <xs:complexType> <xs:sequence> <xs:element ref="option" minOccurs="2" maxOccurs="unbounded"/> </xs:sequence> </xs:complexType> </xs:element> |
diagram | ![]() |
||
properties |
|
||
children | item | ||
used by |
|
||
annotation |
|
||
source | <xs:element name="oldName"> <xs:annotation> <xs:documentation>list of application names this application was named in previous versions</xs:documentation> </xs:annotation> <xs:complexType> <xs:sequence> <xs:element ref="item" maxOccurs="unbounded"/> </xs:sequence> </xs:complexType> </xs:element> |
diagram | ![]() |
||||||||||||
properties |
|
||||||||||||
children | brief description exclusions inclusions | ||||||||||||
used by |
|
||||||||||||
attributes |
|
||||||||||||
annotation |
|
||||||||||||
source | <xs:element name="option"> <xs:annotation> <xs:documentation>Describes an option in a list. Brief child element will be used as the text next to the radio button for the optiion.</xs:documentation> </xs:annotation> <xs:complexType> <xs:all> <xs:element ref="brief"/> <xs:element ref="description"/> <xs:element ref="exclusions" minOccurs="0"/> <xs:element ref="inclusions" minOccurs="0"/> </xs:all> <xs:attribute name="value" type="xs:string" use="required"/> </xs:complexType> </xs:element> |
type | xs:string | ||||
properties |
|
||||
source | <xs:attribute name="value" type="xs:string" use="required"/> |
diagram | ![]() |
||
properties |
|
||
children | image | ||
used by |
|
||
annotation |
|
||

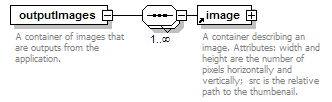

source | <xs:element name="outputImages"> <xs:annotation> <xs:documentation>A container of images that are outputs from the application.</xs:documentation> </xs:annotation> <xs:complexType> <xs:sequence maxOccurs="unbounded"> <xs:element ref="image"/> </xs:sequence> </xs:complexType> </xs:element> |
diagram | ![]() |
||||||||||||
properties |
|
||||||||||||
children | type fileMode defaultPath brief description count default internalDefault list minimum maximum greaterThan greaterThanOrEqual lessThan lessThanOrEqual notEqual odd filter exclusions inclusions pixelType helpers | ||||||||||||
used by |
|
||||||||||||
attributes |
|
||||||||||||
annotation |
|
||||||||||||

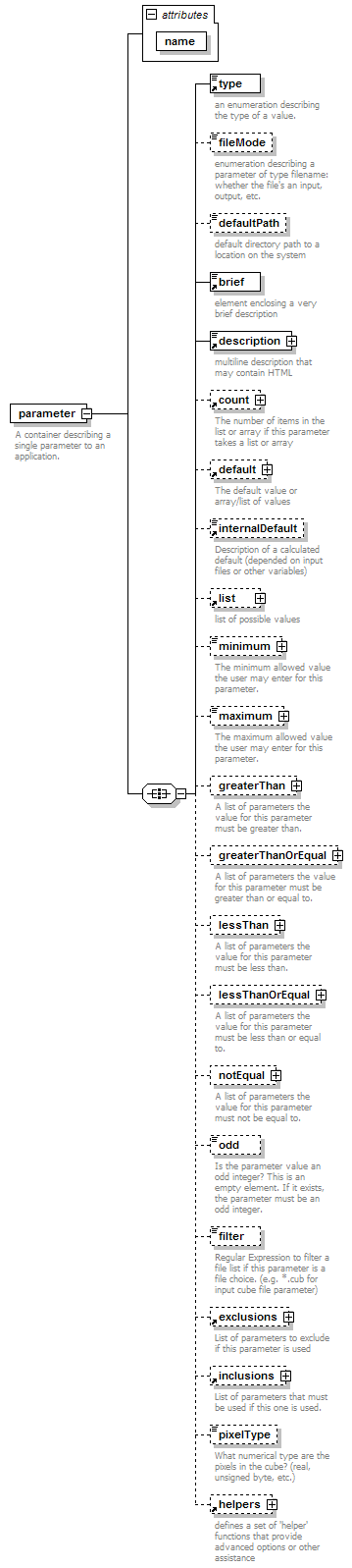

source | <xs:element name="parameter"> <xs:annotation> <xs:documentation>A container describing a single parameter to an application.</xs:documentation> </xs:annotation> <xs:complexType> <xs:all> <xs:element ref="type"/> <xs:element name="fileMode" type="filemode_type" minOccurs="0"> <xs:annotation> <xs:documentation>enumeration describing a parameter of type filename: whether the file's an input, output, etc.</xs:documentation> </xs:annotation> </xs:element> <xs:element name="defaultPath" minOccurs="0"> <xs:annotation> <xs:documentation>default directory path to a location on the system</xs:documentation> </xs:annotation> </xs:element> <xs:element ref="brief"/> <xs:element ref="description"/> <xs:element ref="count" minOccurs="0"/> <xs:element ref="default" minOccurs="0"/> <xs:element ref="internalDefault" minOccurs="0"/> <xs:element ref="list" minOccurs="0"/> <xs:element name="minimum" minOccurs="0"> <xs:annotation> <xs:documentation>The minimum allowed value the user may enter for this parameter.</xs:documentation> </xs:annotation> <xs:complexType> <xs:simpleContent> <xs:extension base="xs:string"> <xs:attribute name="inclusive" type="inclusion_type" use="required"/> </xs:extension> </xs:simpleContent> </xs:complexType> </xs:element> <xs:element name="maximum" minOccurs="0"> <xs:annotation> <xs:documentation>The maximum allowed value the user may enter for this parameter.</xs:documentation> </xs:annotation> <xs:complexType> <xs:simpleContent> <xs:extension base="xs:string"> <xs:attribute name="inclusive" type="inclusion_type" use="required"/> </xs:extension> </xs:simpleContent> </xs:complexType> </xs:element> <xs:element name="greaterThan" minOccurs="0"> <xs:annotation> <xs:documentation>A list of parameters the value for this parameter must be greater than.</xs:documentation> </xs:annotation> <xs:complexType> <xs:sequence> <xs:element ref="item" maxOccurs="unbounded"/> </xs:sequence> </xs:complexType> </xs:element> <xs:element name="greaterThanOrEqual" minOccurs="0"> <xs:annotation> <xs:documentation>A list of parameters the value for this parameter must be greater than or equal to.</xs:documentation> </xs:annotation> <xs:complexType> <xs:sequence> <xs:element ref="item" maxOccurs="unbounded"/> </xs:sequence> </xs:complexType> </xs:element> <xs:element name="lessThan" minOccurs="0"> <xs:annotation> <xs:documentation>A list of parameters the value for this parameter must be less than.</xs:documentation> </xs:annotation> <xs:complexType> <xs:sequence> <xs:element ref="item" maxOccurs="unbounded"/> </xs:sequence> </xs:complexType> </xs:element> <xs:element name="lessThanOrEqual" minOccurs="0"> <xs:annotation> <xs:documentation>A list of parameters the value for this parameter must be less than or equal to.</xs:documentation> </xs:annotation> <xs:complexType> <xs:sequence> <xs:element ref="item" maxOccurs="unbounded"/> </xs:sequence> </xs:complexType> </xs:element> <xs:element name="notEqual" minOccurs="0"> <xs:annotation> <xs:documentation>A list of parameters the value for this parameter must not be equal to.</xs:documentation> </xs:annotation> <xs:complexType> <xs:sequence> <xs:element ref="item" maxOccurs="unbounded"/> </xs:sequence> </xs:complexType> </xs:element> <xs:element name="odd" minOccurs="0"> <xs:annotation> <xs:documentation>Is the parameter value an odd integer? This is an empty element. If it exists, the parameter must be an odd integer.</xs:documentation> </xs:annotation> </xs:element> <xs:element name="filter" minOccurs="0"> <xs:annotation> <xs:documentation>Regular Expression to filter a file list if this parameter is a file choice. (e.g. *.cub for input cube file parameter)</xs:documentation> </xs:annotation> </xs:element> <xs:element ref="exclusions" minOccurs="0"/> <xs:element ref="inclusions" minOccurs="0"/> <xs:element name="pixelType" type="pixelType_type" minOccurs="0"> <xs:annotation> <xs:documentation>What numerical type are the pixels in the cube? (real, unsigned byte, etc.)</xs:documentation> </xs:annotation> </xs:element> <xs:element ref="helpers" minOccurs="0"/> </xs:all> <xs:attribute name="name" type="xs:string" use="required"/> </xs:complexType> </xs:element> |
type | xs:string | ||||
properties |
|
||||
source | <xs:attribute name="name" type="xs:string" use="required"/> |
diagram | ![]() |
||||||||
type | filemode_type | ||||||||
properties |
|
||||||||
facets |
|
||||||||
annotation |
|
||||||||
source | <xs:element name="fileMode" type="filemode_type" minOccurs="0"> <xs:annotation> <xs:documentation>enumeration describing a parameter of type filename: whether the file's an input, output, etc.</xs:documentation> </xs:annotation> </xs:element> |
diagram | ![]() |
||||||
properties |
|
||||||
annotation |
|
||||||
source | <xs:element name="defaultPath" minOccurs="0"> <xs:annotation> <xs:documentation>default directory path to a location on the system</xs:documentation> </xs:annotation> </xs:element> |
diagram | ![]() |
||||||||||||
type | extension of xs:string | ||||||||||||
properties |
|
||||||||||||
attributes |
|
||||||||||||
annotation |
|
||||||||||||
source | <xs:element name="minimum" minOccurs="0"> <xs:annotation> <xs:documentation>The minimum allowed value the user may enter for this parameter.</xs:documentation> </xs:annotation> <xs:complexType> <xs:simpleContent> <xs:extension base="xs:string"> <xs:attribute name="inclusive" type="inclusion_type" use="required"/> </xs:extension> </xs:simpleContent> </xs:complexType> </xs:element> |
type | inclusion_type | ||||||||
properties |
|
||||||||
facets |
|
||||||||
source | <xs:attribute name="inclusive" type="inclusion_type" use="required"/> |
diagram | ![]() |
||||||||||||
type | extension of xs:string | ||||||||||||
properties |
|
||||||||||||
attributes |
|
||||||||||||
annotation |
|
||||||||||||
source | <xs:element name="maximum" minOccurs="0"> <xs:annotation> <xs:documentation>The maximum allowed value the user may enter for this parameter.</xs:documentation> </xs:annotation> <xs:complexType> <xs:simpleContent> <xs:extension base="xs:string"> <xs:attribute name="inclusive" type="inclusion_type" use="required"/> </xs:extension> </xs:simpleContent> </xs:complexType> </xs:element> |
type | inclusion_type | ||||||||
properties |
|
||||||||
facets |
|
||||||||
source | <xs:attribute name="inclusive" type="inclusion_type" use="required"/> |
diagram | ![]() |
||||||||
properties |
|
||||||||
children | item | ||||||||
annotation |
|
||||||||
source | <xs:element name="greaterThan" minOccurs="0"> <xs:annotation> <xs:documentation>A list of parameters the value for this parameter must be greater than.</xs:documentation> </xs:annotation> <xs:complexType> <xs:sequence> <xs:element ref="item" maxOccurs="unbounded"/> </xs:sequence> </xs:complexType> </xs:element> |
diagram | ![]() |
||||||||
properties |
|
||||||||
children | item | ||||||||
annotation |
|
||||||||
source | <xs:element name="greaterThanOrEqual" minOccurs="0"> <xs:annotation> <xs:documentation>A list of parameters the value for this parameter must be greater than or equal to.</xs:documentation> </xs:annotation> <xs:complexType> <xs:sequence> <xs:element ref="item" maxOccurs="unbounded"/> </xs:sequence> </xs:complexType> </xs:element> |
diagram | ![]() |
||||||||
properties |
|
||||||||
children | item | ||||||||
annotation |
|
||||||||
source | <xs:element name="lessThan" minOccurs="0"> <xs:annotation> <xs:documentation>A list of parameters the value for this parameter must be less than.</xs:documentation> </xs:annotation> <xs:complexType> <xs:sequence> <xs:element ref="item" maxOccurs="unbounded"/> </xs:sequence> </xs:complexType> </xs:element> |
diagram | ![]() |
||||||||
properties |
|
||||||||
children | item | ||||||||
annotation |
|
||||||||
source | <xs:element name="lessThanOrEqual" minOccurs="0"> <xs:annotation> <xs:documentation>A list of parameters the value for this parameter must be less than or equal to.</xs:documentation> </xs:annotation> <xs:complexType> <xs:sequence> <xs:element ref="item" maxOccurs="unbounded"/> </xs:sequence> </xs:complexType> </xs:element> |
diagram | ![]() |
||||||||
properties |
|
||||||||
children | item | ||||||||
annotation |
|
||||||||
source | <xs:element name="notEqual" minOccurs="0"> <xs:annotation> <xs:documentation>A list of parameters the value for this parameter must not be equal to.</xs:documentation> </xs:annotation> <xs:complexType> <xs:sequence> <xs:element ref="item" maxOccurs="unbounded"/> </xs:sequence> </xs:complexType> </xs:element> |
diagram | ![]() |
||||||
properties |
|
||||||
annotation |
|
||||||
source | <xs:element name="odd" minOccurs="0"> <xs:annotation> <xs:documentation>Is the parameter value an odd integer? This is an empty element. If it exists, the parameter must be an odd integer.</xs:documentation> </xs:annotation> </xs:element> |
diagram | ![]() |
||||||
properties |
|
||||||
annotation |
|
||||||
source | <xs:element name="filter" minOccurs="0"> <xs:annotation> <xs:documentation>Regular Expression to filter a file list if this parameter is a file choice. (e.g. *.cub for input cube file parameter)</xs:documentation> </xs:annotation> </xs:element> |
diagram | ![]() |
||||||||
type | pixelType_type | ||||||||
properties |
|
||||||||
facets |
|
||||||||
annotation |
|
||||||||
source | <xs:element name="pixelType" type="pixelType_type" minOccurs="0"> <xs:annotation> <xs:documentation>What numerical type are the pixels in the cube? (real, unsigned byte, etc.)</xs:documentation> </xs:annotation> </xs:element> |
diagram | ![]() |
||||
used by |
|
||||
annotation |
|
||||
source | <xs:element name="parameterName"> <xs:annotation> <xs:documentation>The name of the application parameter associated with this image</xs:documentation> </xs:annotation> </xs:element> |
diagram | ![]() |
||
used by |
|
||
annotation |
|
||
source | <xs:element name="path"> <xs:annotation> <xs:documentation>Relative path or URL path to a file without a filename specified. If this element is not specified, stylesheets may assume a default location other than the current working directory.</xs:documentation> </xs:annotation> </xs:element> |
diagram | ![]() |
||
properties |
|
||
children | documents applications | ||
used by |
|
||
annotation |
|
||
source | <xs:element name="seeAlso"> <xs:annotation> <xs:documentation>list of related applications and documents</xs:documentation> </xs:annotation> <xs:complexType> <xs:all> <xs:element name="documents" minOccurs="0"> <xs:annotation> <xs:documentation>A list of related documents. Each item should contain the directory name for a particular document stored in the 'documents' directory.</xs:documentation> </xs:annotation> <xs:complexType> <xs:sequence> <xs:element ref="document" maxOccurs="unbounded"/> </xs:sequence> </xs:complexType> </xs:element> <xs:element name="applications" minOccurs="0"> <xs:annotation> <xs:documentation>A list of related applications. Each item should contain the proper Isis application name.</xs:documentation> </xs:annotation> <xs:complexType> <xs:sequence> <xs:element ref="item" maxOccurs="unbounded"/> </xs:sequence> </xs:complexType> </xs:element> </xs:all> </xs:complexType> </xs:element> |
diagram | ![]() |
||||||||
properties |
|
||||||||
children | document | ||||||||
annotation |
|
||||||||
source | <xs:element name="documents" minOccurs="0"> <xs:annotation> <xs:documentation>A list of related documents. Each item should contain the directory name for a particular document stored in the 'documents' directory.</xs:documentation> </xs:annotation> <xs:complexType> <xs:sequence> <xs:element ref="document" maxOccurs="unbounded"/> </xs:sequence> </xs:complexType> </xs:element> |
diagram | ![]() |
||||||||
properties |
|
||||||||
children | item | ||||||||
annotation |
|
||||||||
source | <xs:element name="applications" minOccurs="0"> <xs:annotation> <xs:documentation>A list of related applications. Each item should contain the proper Isis application name.</xs:documentation> </xs:annotation> <xs:complexType> <xs:sequence> <xs:element ref="item" maxOccurs="unbounded"/> </xs:sequence> </xs:complexType> </xs:element> |
diagram | ![]() |
||
properties |
|
||
children | filename path | ||
used by |
|
||
annotation |
|
||
source | <xs:element name="source"> <xs:annotation> <xs:documentation>full path or URL to a resource including the filename</xs:documentation> </xs:annotation> <xs:complexType> <xs:all> <xs:element ref="filename"/> <xs:element ref="path" minOccurs="0"/> </xs:all> </xs:complexType> </xs:element> |
diagram | ![]() |
||
properties |
|
||
children | commandLine description | ||
used by |
|
||
annotation |
|
||
source | <xs:element name="terminalInterface"> <xs:annotation> <xs:documentation>A container desribing the command line for executing this example.</xs:documentation> </xs:annotation> <xs:complexType> <xs:all> <xs:element name="commandLine" type="xs:string"> <xs:annotation> <xs:documentation>The full command line that will execute this example and render the result.</xs:documentation> </xs:annotation> </xs:element> <xs:element ref="description"/> </xs:all> </xs:complexType> </xs:element> |
diagram | ![]() |
||||
type | xs:string | ||||
properties |
|
||||
annotation |
|
||||
source | <xs:element name="commandLine" type="xs:string"> <xs:annotation> <xs:documentation>The full command line that will execute this example and render the result.</xs:documentation> </xs:annotation> </xs:element> |
diagram | ![]() |
||
used by |
|
||
annotation |
|
||
source | <xs:element name="title"> <xs:annotation> <xs:documentation>title of an application, document, or resource</xs:documentation> </xs:annotation> </xs:element> |
diagram | ![]() |
||||||||||||||
type | paramType_type | ||||||||||||||
properties |
|
||||||||||||||
used by |
|
||||||||||||||
facets |
|
||||||||||||||
annotation |
|
||||||||||||||
source | <xs:element name="type" type="paramType_type"> <xs:annotation> <xs:documentation>an enumeration describing the type of a value. </xs:documentation> </xs:annotation> </xs:element> |
diagram | ![]() |
||||||||||||||||||||||||||||||
used by |
|
||||||||||||||||||||||||||||||
attributes |
|
||||||||||||||||||||||||||||||
annotation |
|
||||||||||||||||||||||||||||||
source | <xs:complexType name="dimension2Dthumbnail_type"> <xs:annotation> <xs:documentation>reusable type for describing a thumbnail image</xs:documentation> </xs:annotation> <xs:attribute name="width" type="xs:integer" use="required"/> <xs:attribute name="height" type="xs:integer" use="required"/> <xs:attribute name="caption" type="xs:string" use="required"/> <xs:attribute name="src" type="xs:string" use="required"/> </xs:complexType> |
type | xs:integer | ||||
properties |
|
||||
source | <xs:attribute name="width" type="xs:integer" use="required"/> |
type | xs:integer | ||||
properties |
|
||||
source | <xs:attribute name="height" type="xs:integer" use="required"/> |
type | xs:string | ||||
properties |
|
||||
source | <xs:attribute name="caption" type="xs:string" use="required"/> |
type | xs:string | ||||
properties |
|
||||
source | <xs:attribute name="src" type="xs:string" use="required"/> |
diagram | ![]() |
||||||||||||||||||||||||
children | brief description thumbnail parameterName | ||||||||||||||||||||||||
used by |
|
||||||||||||||||||||||||
attributes |
|
||||||||||||||||||||||||
annotation |
|
||||||||||||||||||||||||
source | <xs:complexType name="dimensions2Dimage_type"> <xs:annotation> <xs:documentation>reusable type for describing an image</xs:documentation> </xs:annotation> <xs:all> <xs:element ref="brief"/> <xs:element ref="description"/> <xs:element name="thumbnail" type="dimension2Dthumbnail_type"> <xs:annotation> <xs:documentation>A description of the thumbnail for this image. Attributes: width and height are the number of pixels horizontally and vertically; caption is a brief description of the image; src is the relative path to the thumbenail.</xs:documentation> </xs:annotation> </xs:element> <xs:element ref="parameterName" minOccurs="0"/> </xs:all> <xs:attribute name="width" type="xs:integer" use="required"/> <xs:attribute name="height" type="xs:integer" use="required"/> <xs:attribute name="src" type="xs:anyURI" use="required"/> </xs:complexType> |
type | xs:integer | ||||
properties |
|
||||
source | <xs:attribute name="width" type="xs:integer" use="required"/> |
type | xs:integer | ||||
properties |
|
||||
source | <xs:attribute name="height" type="xs:integer" use="required"/> |
type | xs:anyURI | ||||
properties |
|
||||
source | <xs:attribute name="src" type="xs:anyURI" use="required"/> |
diagram | ![]() |
||||||||||||||||||||||||||||||
type | dimension2Dthumbnail_type | ||||||||||||||||||||||||||||||
properties |
|
||||||||||||||||||||||||||||||
attributes |
|
||||||||||||||||||||||||||||||
annotation |
|
||||||||||||||||||||||||||||||

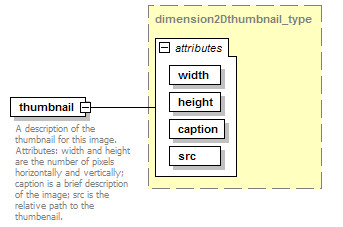

source | <xs:element name="thumbnail" type="dimension2Dthumbnail_type"> <xs:annotation> <xs:documentation>A description of the thumbnail for this image. Attributes: width and height are the number of pixels horizontally and vertically; caption is a brief description of the image; src is the relative path to the thumbenail.</xs:documentation> </xs:annotation> </xs:element> |
type | restriction of xs:string | ||||||||||||||||||||||||||||||||
properties |
|
||||||||||||||||||||||||||||||||
used by |
|
||||||||||||||||||||||||||||||||
facets |
|
||||||||||||||||||||||||||||||||
annotation |
|
||||||||||||||||||||||||||||||||
source | <xs:simpleType name="categoryItem_type" final="restriction"> <xs:annotation> <xs:documentation>enumeration for basic Application categorizations</xs:documentation> </xs:annotation> <xs:restriction base="xs:string"> <xs:enumeration value="Cameras"/> <xs:enumeration value="Control Networks"/> <xs:enumeration value="Display"/> <xs:enumeration value="Fourier Domain"/> <xs:enumeration value="Filters"/> <xs:enumeration value="Geometry"/> <xs:enumeration value="Import and Export"/> <xs:enumeration value="Map Projection"/> <xs:enumeration value="Math and Statistics"/> <xs:enumeration value="Radiometric and Photometric Correction"/> <xs:enumeration value="Registration and Pattern Matching"/> <xs:enumeration value="Scripting"/> <xs:enumeration value="System"/> <xs:enumeration value="Topography"/> <xs:enumeration value="Trim and Mask"/> <xs:enumeration value="Utility"/> </xs:restriction> </xs:simpleType> |
type | restriction of xs:string | ||||
properties |
|
||||
used by |
|
||||
facets |
|
||||
annotation |
|
||||
source | <xs:simpleType name="filemode_type" final="restriction"> <xs:annotation> <xs:documentation>enumeration describing if a file (parameter) is input, output, etc.</xs:documentation> </xs:annotation> <xs:restriction base="xs:string"> <xs:enumeration value="input"/> <xs:enumeration value="output"/> </xs:restriction> </xs:simpleType> |
type | restriction of xs:string | ||||||||
properties |
|
||||||||
used by |
|
||||||||
facets |
|
||||||||
annotation |
|
||||||||
source | <xs:simpleType name="inclusion_type" final="restriction"> <xs:annotation> <xs:documentation>enumeration for inclusion types - boolean values</xs:documentation> </xs:annotation> <xs:restriction base="xs:string"> <xs:enumeration value="yes"/> <xs:enumeration value="no"/> <xs:enumeration value="true"/> <xs:enumeration value="false"/> </xs:restriction> </xs:simpleType> |
type | restriction of xs:string | ||||||||||||||||||||||||||||||||||||||||||||||||||||
properties |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||
used by |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||
facets |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||
annotation |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||
source | <xs:simpleType name="missionItem_type" final="restriction"> <xs:annotation> <xs:documentation>enumeration for mission specific Application categorizations</xs:documentation> </xs:annotation> <xs:restriction base="xs:string"> <xs:enumeration value="Apollo"/> <xs:enumeration value="Cassini"/> <xs:enumeration value="Chandrayaan 1"/> <xs:enumeration value="Clementine"/> <xs:enumeration value="Dawn"/> <xs:enumeration value="Galileo"/> <xs:enumeration value="Hayabusa"/> <xs:enumeration value="Hayabusa2"/> <xs:enumeration value="Kaguya"/> <xs:enumeration value="Lunar Orbiter"/> <xs:enumeration value="Lunar Reconnaissance Orbiter"/> <xs:enumeration value="Mariner"/> <xs:enumeration value="Mars Exploration Rover"/> <xs:enumeration value="Mars Express"/> <xs:enumeration value="Mars Global Surveyor"/> <xs:enumeration value="Mars Odyssey"/> <xs:enumeration value="Mars Reconnaissance Orbiter"/> <xs:enumeration value="Messenger"/> <xs:enumeration value="Near Earth Asteroid Rendezvous"/> <xs:enumeration value="New Horizons"/> <xs:enumeration value="OSIRIS-REx"/> <xs:enumeration value="Robotic Lunar Observatory"/> <xs:enumeration value="Rosetta"/> <xs:enumeration value="Small Missions for Advanced Research and Technology 1"/> <xs:enumeration value="Viking"/> <xs:enumeration value="Voyager"/> </xs:restriction> </xs:simpleType> |
type | restriction of xs:string | ||||||||||||||
properties |
|
||||||||||||||
used by |
|
||||||||||||||
facets |
|
||||||||||||||
annotation |
|
||||||||||||||
source | <xs:simpleType name="paramType_type" final="restriction"> <xs:annotation> <xs:documentation>enumerations for types of parameters</xs:documentation> </xs:annotation> <xs:restriction base="xs:string"> <xs:enumeration value="combo"/> <xs:enumeration value="filename"/> <xs:enumeration value="integer"/> <xs:enumeration value="double"/> <xs:enumeration value="string"/> <xs:enumeration value="boolean"/> <xs:enumeration value="cube"/> </xs:restriction> </xs:simpleType> |
type | restriction of xs:string | ||||||
properties |
|
||||||
used by |
|
||||||
facets |
|
||||||
annotation |
|
||||||
source | <xs:simpleType name="pixelType_type" final="restriction"> <xs:annotation> <xs:documentation>enumeration describing a cube's pixel digital number type</xs:documentation> </xs:annotation> <xs:restriction base="xs:string"> <xs:enumeration value="real"/> <xs:enumeration value="unsignedByte"/> <xs:enumeration value="signedWord"/> </xs:restriction> </xs:simpleType> |
