ISIS Application Documentation


mar102isis

Printer Friendly View | TOC | Home

Convert Mariner10 images to Isis cubes.

Overview Parameters Example 1

Description

Converts raw mariner10 images to Isis cubes. This includes converting labels and adding the group reseaus, and which encounter the image is specific to.

Categories


Related Objects and Documents

Applications


History

Jeff Anderson2009-06-01 Original version
Mackenzie Boyd2009-08-03 Made several additions to labels including reseaus, and NaifFrameCode, added to repository.
Travis Addair2009-12-22 Added compatibility for importing Isis 2 cubes.
Travis Addair2009-12-23 Fixed consistency errors between RAW and Isis2 imports.
Tracie Sucharski2010-02-03 Changed SpacecraftName from Mariner10 to Mariner_10.
Mackenzie Boyd2010-08-03 Moved original labels to correct location in cube, removed cout.

Parameter Groups

Files

Name Description
FROM Input file to be converted to an Isis cube
TO Output cube
X

Files: FROM


Description

The raw Mariner10 image to be converted to an Isis cube with complete labels.

Type filename
File Mode input
Close Window
X

Files: TO


Description

The resultant cube containing the Mariner10 image.

Type cube
File Mode output
Filter *.cub
Close Window

Example 1

Mariner10 image imported

Description

This example shows the simple process of importing a Mariner10 image.

Command Line

mar102isis from=MVE_002.117 to=imported.cub
The command line argument needed to execut an import of a Mariner10 image.

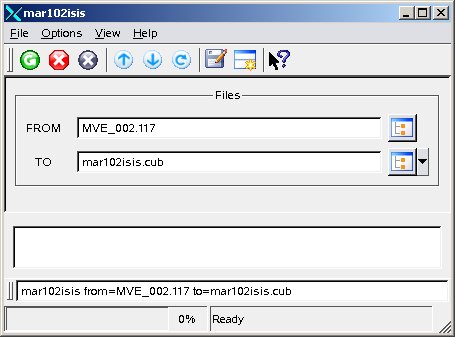

GUI Screenshot

mar102isis Gui

Example Gui

Screenshot of GUI with parameters filled in to with a mariner10 raw image as input and a cube as output.

Data File

Links open in a new window.
A raw Mariner10 image This is a raw Mariner10 image to be imported.

Output Image

Output image showing results of import program.

The imported ouput

Parameter Name: TO

This is the Mariner10 image, now imported and in cube format.
