This is the base class for advanced stretches. More...

#include <StretchType.h>

Inheritance diagram for Isis::StretchType:

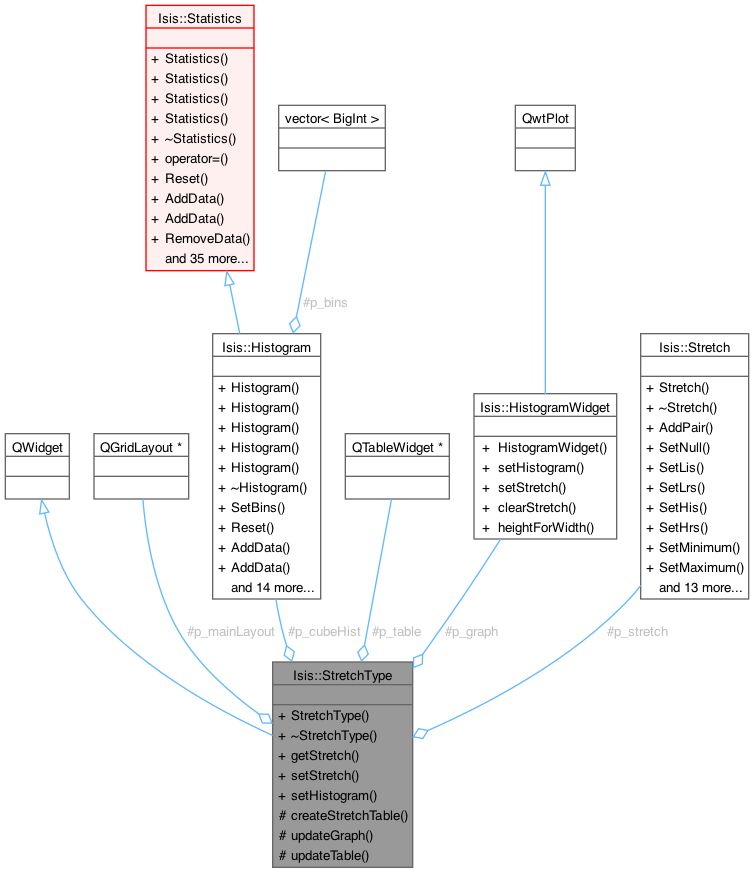

Collaboration diagram for Isis::StretchType:

Signals
void	saveToCube ()
	Emitted when a new Stretch object is available.

void	deleteFromCube ()

void	stretchChanged ()

void	loadStretch ()

Public Member Functions
	StretchType (const Histogram &hist, const Stretch &stretch, const QString &name, const QColor &color)
	This constructs a stretch type.

virtual	~StretchType ()
	Destructor.

virtual CubeStretch	getStretch ()
	Returns the current stretch object.

virtual void	setStretch (Stretch)=0
	Children must re-implement this to update their stretch pairs and GUI elements appropriately.

virtual void	setHistogram (const Histogram &)
	This should be called when the visible area changes.

Protected Slots
void	updateGraph ()
	This updates the graph with the current stretch object.

void	updateTable ()
	This updates the table with the current stretch pairs.

Protected Member Functions
QTableWidget *	createStretchTable ()
	This creates the stretch pairs table.

Protected Attributes
QGridLayout *	p_mainLayout
	Main layout.

Histogram *	p_cubeHist
	Visible area histogram.

QTableWidget *	p_table
	Pairs table.

HistogramWidget *	p_graph
	Histogram graph.

Stretch *	p_stretch
	Current stretch pairs stored here.

Detailed Description

This is the base class for advanced stretches.

This has the common functionality between the advanced stretch types. It provides a histogram, the stretch table, and layouts. It also stores the stretch pairs. Using this should keep all of the advanced stretch interfaces similar and uniformly accessible from the stretch tool.

Author: 2010-05-20 Steven Lambright

Constructor & Destructor Documentation

◆ StretchType()

Isis::StretchType::StretchType	(	const Histogram &	hist,
		const Stretch &	stretch,
		const QString &	name,
		const QColor &	color )

This constructs a stretch type.

It provides a main layout, sizing policies, and a few widgets. Children should insert themselves at the main layout grid row 1 column 0.

Parameters

hist
stretch
name
color

References createStretchTable(), deleteFromCube(), loadStretch(), p_cubeHist, p_graph, p_mainLayout, p_stretch, p_table, saveToCube(), Isis::HistogramWidget::setHistogram(), stretchChanged(), updateGraph(), and updateTable().

◆ ~StretchType()

Isis::StretchType::~StretchType ( )

virtual

Destructor.

References p_cubeHist, and p_stretch.

Member Function Documentation

◆ createStretchTable()

QTableWidget * Isis::StretchType::createStretchTable ( )

protected

This creates the stretch pairs table.

Returns: QTableWidget*

Referenced by StretchType().

◆ deleteFromCube

void Isis::StretchType::deleteFromCube ( )

signal

Referenced by StretchType().

◆ getStretch()

CubeStretch Isis::StretchType::getStretch ( )

virtual

Returns the current stretch object.

Returns: Stretch

Reimplemented in Isis::BinaryStretchType, Isis::LinearStretchType, Isis::ManualStretchType, and Isis::SawtoothStretchType.

References p_stretch.

Referenced by updateTable().

◆ loadStretch

void Isis::StretchType::loadStretch ( )

signal

Referenced by StretchType().

◆ saveToCube

void Isis::StretchType::saveToCube ( )

signal

Emitted when a new Stretch object is available.

Referenced by StretchType().

◆ setHistogram()

void Isis::StretchType::setHistogram ( const Histogram & hist )

virtual

This should be called when the visible area changes.

It updates the graph and calls setStretch() so that the children have a chance to update their GUI elements too.

Parameters

hist

References p_cubeHist, p_graph, p_stretch, Isis::HistogramWidget::setHistogram(), and setStretch().

◆ setStretch()

virtual void Isis::StretchType::setStretch ( Stretch )

pure virtual

Children must re-implement this to update their stretch pairs and GUI elements appropriately.

This could be called with a different histogram but not a different stretch.

Implemented in Isis::BinaryStretchType, Isis::LinearStretchType, Isis::ManualStretchType, and Isis::SawtoothStretchType.

Referenced by setHistogram().

◆ stretchChanged

void Isis::StretchType::stretchChanged ( )

signal

Referenced by Isis::ManualStretchType::ManualStretchType(), Isis::BinaryStretchType::setStretch(), Isis::LinearStretchType::setStretch(), Isis::ManualStretchType::setStretch(), Isis::SawtoothStretchType::setStretch(), and StretchType().

◆ updateGraph

void Isis::StretchType::updateGraph ( )

protectedslot

This updates the graph with the current stretch object.

References p_graph, p_stretch, and Isis::HistogramWidget::setStretch().

Referenced by StretchType().

◆ updateTable

void Isis::StretchType::updateTable ( )

protectedslot

This updates the table with the current stretch pairs.

References getStretch(), Isis::Stretch::Input(), Isis::Stretch::Output(), p_table, and Isis::Stretch::Pairs().

Referenced by Isis::ManualStretchType::ManualStretchType(), Isis::ManualStretchType::setStretch(), and StretchType().

Member Data Documentation

◆ p_cubeHist

Histogram* Isis::StretchType::p_cubeHist

protected

Visible area histogram.

Referenced by Isis::BinaryStretchType::BinaryStretchType(), Isis::SawtoothStretchType::SawtoothStretchType(), setHistogram(), Isis::BinaryStretchType::setStretch(), Isis::LinearStretchType::setStretch(), Isis::SawtoothStretchType::setStretch(), StretchType(), and ~StretchType().

◆ p_graph

HistogramWidget* Isis::StretchType::p_graph

protected

Histogram graph.

Referenced by setHistogram(), StretchType(), and updateGraph().

◆ p_mainLayout

QGridLayout* Isis::StretchType::p_mainLayout

protected

Main layout.

Referenced by Isis::BinaryStretchType::BinaryStretchType(), Isis::LinearStretchType::LinearStretchType(), Isis::ManualStretchType::ManualStretchType(), Isis::SawtoothStretchType::SawtoothStretchType(), and StretchType().

◆ p_stretch

Stretch* Isis::StretchType::p_stretch

protected

Current stretch pairs stored here.

Referenced by Isis::BinaryStretchType::getStretch(), Isis::LinearStretchType::getStretch(), Isis::ManualStretchType::getStretch(), Isis::SawtoothStretchType::getStretch(), getStretch(), setHistogram(), Isis::BinaryStretchType::setStretch(), Isis::LinearStretchType::setStretch(), Isis::ManualStretchType::setStretch(), Isis::SawtoothStretchType::setStretch(), StretchType(), updateGraph(), and ~StretchType().

◆ p_table

QTableWidget* Isis::StretchType::p_table

protected

Pairs table.

Referenced by Isis::ManualStretchType::ManualStretchType(), StretchType(), and updateTable().

The documentation for this class was generated from the following files:

/Users/acpaquette/repos/ISIS3/isis/src/qisis/objs/StretchTool/StretchType.h
/Users/acpaquette/repos/ISIS3/isis/src/qisis/objs/StretchTool/StretchType.cpp
