ISIS Documentation

fplanemap

Produce focal plane coordinates from control net file

fplanemap produces a comma separated value (CSV) file containing focal plane coordinates from a control network file. The file is assumed to originate from a coreg run comparing two files either in camera or projected space.

Typical processing strategies would include identifying a trusted source image (truth or MATCH file used in coreg ) that has no distortion and comparable resolution. The registration of the truth image to the image requiring analysis (FROM) should produce strong correlations for the best results. Areas of least variation in topography will also contribute to better results.

This application was developed primarily to analyze image distortion, which is very sensitive to correlation imperfections. The content of the CSV output TO file contains all the information necessary to apply linear or least square fits to equations. The following describes the output CSV file format.

The output TO CSV file contains 11 columns. Note that a camera model for the FROM file is required since it is used to get the actual focal plane coordinates. The sample and line coordinates recorded in the output file will be the same as in the control net file. The sample/line coordinate provided there is used to determine the latitude and longitude of the coordinate. Below is a small portion of an output TO CSV file:

OldSample,OldLine,NewSample,NewLine,X,Y,XC,YC,GoodnessOfFit,Latitude,Longitude
51,3,46.5738,6.52725,-0.125346,3.18205,-0.152566,3.58934,0.514252,32.2544,82.1228
17,37,22.0716,36.9117,-0.0278861,3.11492,-0.030747,3.51921,0.44952,32.2264,82.0898
51,37,54.8234,41.0111,-0.025531,3.18319,-0.0403855,3.6141,0.543963,32.2264,82.1228
84,37,86.1196,39.766,-0.0232456,3.24823,-0.0344203,3.70423,0.225104,32.2264,82.1548
51,43,49.5502,46.0587,-0.0410861,3.18351,-0.055586,3.59933,0.255932,32.2215,82.1228
51,49,51.7797,45.6973,-0.0566404,3.18382,-0.0543615,3.60573,0.347588,32.2165,82.1228
84,49,90.1357,49.14,-0.0541637,3.24884,-0.0616203,3.71664,0.446062,32.2165,82.1548
17,55,15.761,61.5159,-0.0748423,3.11587,-0.103437,3.5031,0.204652,32.2116,82.0898
51,55,48.6316,58.2457,-0.0721934,3.18412,-0.0914211,3.59775,0.383612,32.2116,82.1228
84,55,89.9976,55.097,-0.0696208,3.24915,-0.0791061,3.71678,0.338814,32.2116,82.1548
17,60,11.4821,61.6077,-0.0878837,3.11609,-0.10402,3.49073,0.436698,32.2074,82.0898
51,60,48.1177,61.9931,-0.0851532,3.18435,-0.102458,3.59659,0.266318,32.2074,82.1228
84,60,89.7459,59.6435,-0.0825007,3.24938,-0.0924634,3.71647,0.326716,32.2074,82.1548
17,66,14.9112,70.9194,-0.103532,3.11635,-0.13111,3.50144,0.365906,32.2025,82.0898

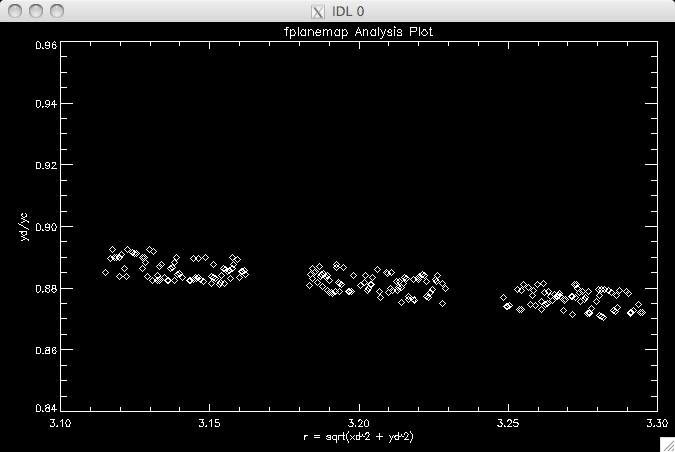

Analysis of the data may result in adjustments to the boresight and/or the distortion model. The plot below is derived from the data from the above file.

Plot of Y Component in mm

This data as plotted can be used to derive distortion model parameters by fitting a line through the data.

The following table describes each column:


CSV Output Columns

Data generated from the fplanemap application
Column Description
OldSample The original sample coordinate of the point at the center of the registration pixel location. This coordinate comes from the MATCH file in coreg.
OldLine The original line coordinate of the point at the center of the registration pixel location. This coordinate comes from the MATCH file in coreg.
NewSample The registered sample coordinate from the FROM file in coreg and fplanemap .
NewLine The registered line coordinate from the FROM file in coreg and fplanemap.
X The distorted focal plane X coordinate (xd) that maps from the old distorted pixel location (OldSample, OldLine). The units are typically in millimeters.
Y The distorted focal plane Y coordinate (yd) that maps from the old distorted pixel location (OldSample, OldLine). The units are typically in millimeters.
XC The undistorted focal plane X coordinate (xc) that maps from the new distorted pixel location (NewSample, NewLine). The units are typically in millimeters.
YC The undistorted focal plane Y coordinate (yc) that maps from the new distorted pixel location (NewSample,NewLine). The units are typically in millimeters.
GoodnessOfFit The coorelation coefficient as found in the control net file that indicates the quality of the registration for the point
Latitude The latitude of the OldSamp/OldLine coordinate
Longitude The longitude of the OldSample/OldLine coordinate

Categories

History

Kris Becker2010-09-24 Original Version

Parameters

Files

This is the same file provided in the FROM parameter for the coregistration program, such as coreg.
Type cube
File Mode input
Filter *.cub

This file will contain the ControlNet created from the run of a co-registration application such as coreg. There are checks made to ensure that it satisfies expected conditions of a output control net from one of these types of applications.

There must be only two measures to a control point. One must be designated the reference. Points that have the Ignore property set to true are not considered in this application.

Type filename
File Mode output
Filter *.net *.pbnet

This file will contain the 11 parameters in comma separated values (CSV) format that provides information about the orginal and registered points, focal plane coordinates and latitude and longitude data.
Type filename
File Mode output
Internal Default None
Filter *.csv

Options

Places a limit on the maximum distance in the detector plane the offset is expected to differ. This value unit is in pixels which is converted internally to the detector pixel unit, which is typically millimeters. Pixel size of the detector is sometimes referred to as pixel pitch.
Type double
Default 5.0

A check will be performed at the pixel location of the original line and sample to ensure the pixel is valid. The pixel must only have a pixel value that is not one of the ISIS special pixels
Type boolean
Default False
