apollocal
Calibration of Apollo 15 metric images.
This program will perform calibrations on images from the Apollo 15 mission's metric camera.
Two calibrations are performed. First, dark current is subtracted. Then, the image is divided
by the flat field image to remove vignetting effects.
Categories
Related Objects and Documents
Applications
History
| Jacob Danton | 2007-05-09 | Original version |
| Curtis Rose | 2016-04-20 | Fixed typo and improved documentation by clarifying information and adding examples. Added image data to test. Fixes #2410. |
Parameters
Files
The cube to be calibrated.
| Type | cube |
|---|---|
| File Mode | input |
| Filter | *.cub |
The resultant cube containing the calibrated data.
| Type | cube |
|---|---|
| File Mode | output |
| Pixel Type | real |
| Filter | *.cub |
Example 1
Cube callibrated.
This example shows how to calibrate an Apollo cube.
Command Line
Run the apollocal application to calibrate the cube.
apollocal
from=../inputCube.cub to=../outputCube.cub

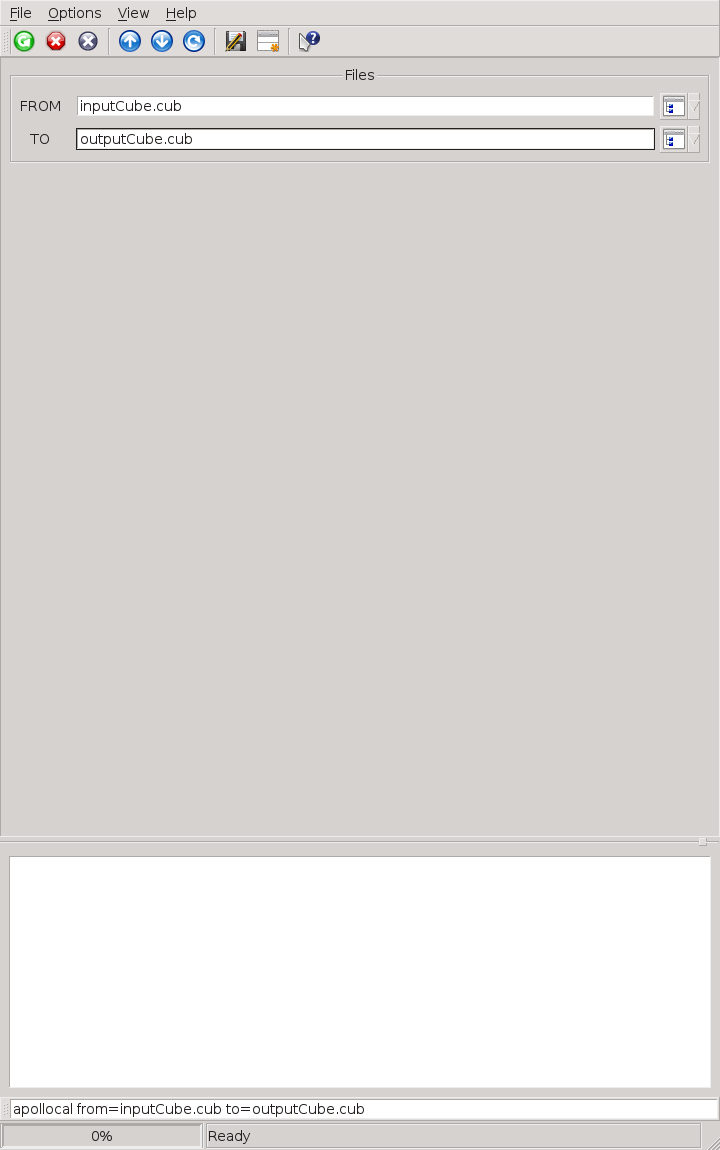

GUI Screenshot
Example Gui
Apollocal GUI example.This is an example of the GUI for apollocal with parameters entered.
Input Image
Input image
Input image.
Parameter Name:
FROM
This is the example apollo image used for the input.
Output Image
Output image
Output image.
Parameter Name:
TO
This is the example output image after apollocal is run.
