This program serves to calibrate most images from the Clementine Hires camera. It does so through the use of some constants based on offset and flat images based on filter type. There are six possible offsets, with the resultant change being anywhere between eight and fifty to the DN. There are four flat images, one for each of the four possible filters. Information for this program came from JGR Vol 108, A radiometric calibration for the Clementine Hires camera: Robinson, Malaret, White. The original paper can be found at https://doi.org/10.1029/2000JE001241 The equation for the A filter yields k values that are identical to those in Table 5 from Robinson et al. (2003), therefore the pixel values in the output image are the same as they would be if the k values from Table 5 were hard coded into the script. The equation for the D filter yields k values that differ from the hard-coded values by less than 1 standard deviation as reported in Table 6 of Robinson et al. (2003). The radiance values that result from the computed k values differ by no more than .0583% of the radiance values computed from the k values published in Table 6.

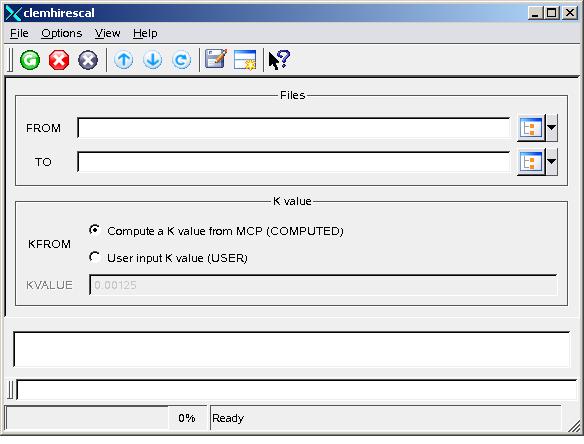

This shows the usage of the clementine high resolution image calibration program. In this case a K value can be computed for the image.

Flat file denominator	This is one of the four avaliable flat files. It is the one used on the image you see, it is specifically for the D filter type.
