clemnirclean
Clean-up of Clementine NIR Images
This program will take a Clementime calibrated cube and clean up null pixels and noise.
Categories
Related Objects and Documents
Applications
History
| Ella Mae Lee | 2001-05-18 | Original version Isis2: perl script nir2db.pl |
| Steven Koechle | 2007-06-08 | Converted to Isis3 from Isis2 |
Parameters
Files
The cube to be cleaned. The cube will be ran through a series of filters to
remove noise.
| Type | cube |
|---|---|
| File Mode | input |
| Filter | *.cub |
The resultant cube containing the cleaned data.
| Type | cube |
|---|---|
| File Mode | output |
| Filter | *.cub |
Options
Option to remove or leave intermediate cube files made by the application
| Type | boolean |
|---|---|
| Default | TRUE |
Example 1
Using clemnirclean
The use of clemnircal creates a clean NIR image. It creates 4 images in intermediate steps.
Command Line
This example shows the use of clemnircal to clean up NIR images
clemnirclean
from= lne4885r.cub
to=lne4885r.cal.cub
remove=no
GUI Screenshot
Example GUI
clemnirclean guiScreenshot of the GUI with parameters set to leave temporary images
Input Image
Input image before the filter.
lne4885r.cub before the filter
Parameter Name:
FROM
This is the image after it was run through clemnircal.
Output Images

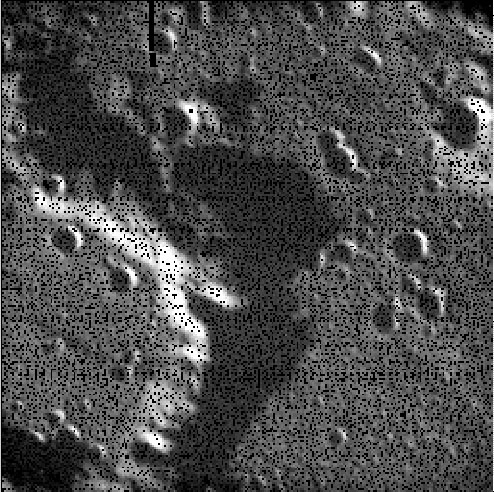

Output image after the first boxcar filter was applied
The image after the first filterDoes a 3x3 noisefilter with null replace.
Output image after the second boxcar filter was applied
The image after the second filterDoes a 3x3 lowpass with outside filter.
Output image after the third boxcar filter was applied
The image after the third filterDoes a 3x3 lowpass with outside filter.
Output image after the fourth boxcar filter was applied
The image after the fourth filterDoes a 3x3 noisefilter with average replace.

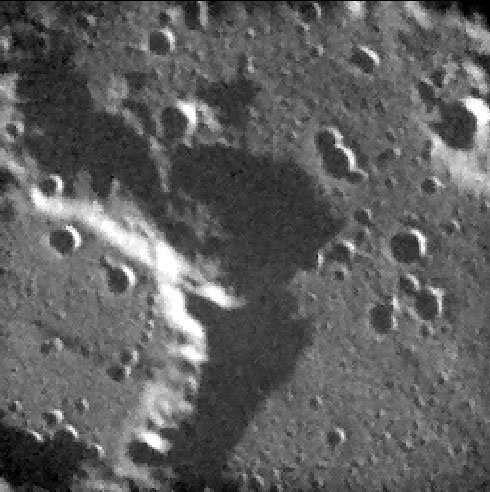

Final output image after the all boxcar filters were applied
The image after the final filter
Parameter Name:
TO
Does a 5x5 lowpass with outside filter.
