clemnirnoise

identifiy and remove NIR noise pattern

WARNING

For the clementine mosaic in Isis2, this program was run before calibration. There is concern this application's systematic noise removal eliminates a substantial amount of valid data.

The program removes a bothersome noise pattern periodically found in Clementine NIR camera imaging. The noise pattern is found in samples 2,6,10,14,18.... found on some or all lines in a NIR image. The program will recognize that the noise pattern exists and then will simply set these sample positions to "null" if the pattern is found.

History

Eric Eliason	1999-06-15	Original Version: clemnirns.F
Steven Koechle	2007-06-07	Converted to Isis 3
Steven Lambright	2008-05-13	Removed references to CubeInfo

Parameters

Files

Input cube file name

Type	cube
File Mode	input
Filter	*.cub

Output cube file name

Type	cube
File Mode	output
Filter	*.cub

Example 1

Using clemnirnoise

The use of clemnirnoise detects certain patterns of noise and replaces the noise with nulls.

Command Line

This example shows the use of clemnirnoise to detect and remove systematic noise.

clemnirnoise
	  from= lne4885r.cub
	  to=lne4885r.noise.cub

GUI Screenshot

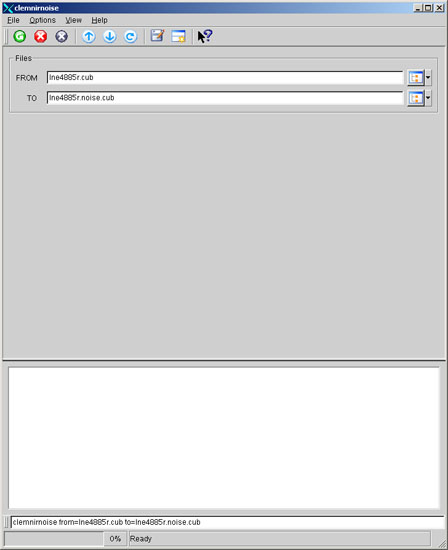

Example GUI

clemnirnoise gui

Screenshot of the GUI with parameters set to leave temporary images

Input Image

Input image before the filter.

lne4885r.cub before run through clemnirclean

Parameter Name: FROM

This is the image after ingestion from clem2isis

Output Image

Final output image after the all boxcar filters were applied

The image after the systematic noise removal

Parameter Name: TO

Looks for noise in specific patterns on lines and removes it if detected.
