cnettable
Application to get Excel compatible statistics
This application takes a control net and outputs the same data avalible from
campt for every control measure in the control net. It also outputs data
about the measure and point. This data is formated as a flat file and is
comma seperated so it can be imported to Excel. The columns titles in the
file are:
|
|
Categories
Related Objects and Documents
Applications
History
| Mackenzie Boyd | 2009-09-11 | Original version |
| Mackenzie Boyd | 2010-03-12 | Added ALLOWOUTSIDE option default behavior not modified at all. |
| Mackenzie Boyd | 2010-03-25 | Change to CameraPointInfo added two parameters to output and modified two Output now had PositiveEast360Longitude and PositiveWest180Longitude. Also made append option more forgiving so that it will create a file if none exists. |
| Mackenzie Boyd | 2010-05-24 | Added option to allow for errors so that instead of crashing the program continues and reports the errors in the output file. |
| Mackenzie Boyd | 2010-06-07 | Updated and added to documentation. |
| Christopher Austin | 2010-06-08 | Gave cnettable the ability to compile |
| Mackenzie Boyd | 2011-04-11 | Modified outputs which would have been Isis::Null double values to now be empty strings. |
| James Alexander Crough | 2011-07-19 | Made the software output all of the log values in addition to the normal output of the software. |
| Jeannie Backer | 2014-08-22 | Updated truth data due to modifications, printing NULL instead of N/A. References #1659. |
| Tyler Wilson | 2014-08-17 | Updated application truth data due to modifications in CameraPointInfo class. References #476. |
| Kaj Williams | 2017-04-21 | Trimmed extra commas from label and data. References #4657. |
Parameters
Files
Use this parameter to select the filename of a list of cubes the
cubes used to create the control net.
| Type | filename |
|---|---|
| File Mode | input |
| Filter | *.txt *.lis *.lst *.list |
The control net from which to derive statistics.
| Type | filename |
|---|---|
| File Mode | input |
| Filter | *.net *.cnet |
This file will contain the statistics of all the control measures in
the control net.
| Type | filename |
|---|---|
| File Mode | output |
| Filter | *.txt *.csv |
If checked this option allows file output to be appended to a file or
create a new file. If the file already exists and append is off the
program will overwrite the existing file.
| Type | boolean |
|---|---|
| Default | false |
Position
When checked sample/line values that are outside of the images (but
close) will be extrapolated. For example a sample of -0.5 would be
valid. If this is not checked a sample of -0.5 is not allowed.
| Type | boolean |
|---|---|
| Default | false |
Errors
If errors occur such as values not having an intersection with the
body or sample line locations outside of the cube with ALLOWOUTSIDE
not checked the program will continue and report the error and reason
to the file. If no errors occur "N/A" is put into the column,
otherwise, the reason for the error is written to the file.
| Type | boolean |
|---|---|
| Default | false |
Example 1
Usage of cnettable application
This is an example of how to use cnettable to produce a flatfile
or csv file for excel or other uses. The required elements are a list
of cubes and a corresponding control network. The easiest way to get
this is to run findimageoverlaps on a list of cubes and then autoseed
this list with the overlaps.
Command Line
These arguments will produce a flatfile containing infomation on all
the points in the control net.
cnettable
fromlist=cubeList.lst cnet=testNet.net flatfile=output.csv

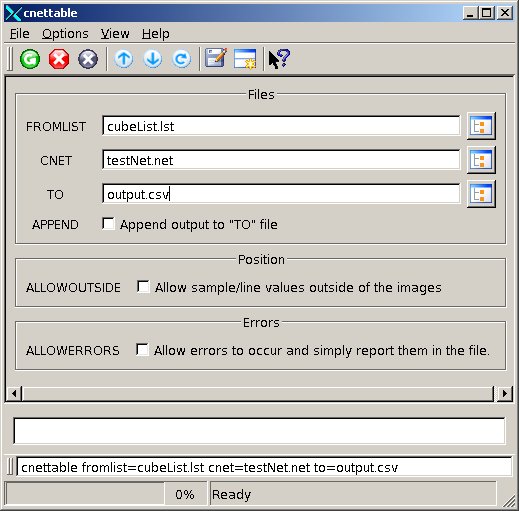

GUI Screenshot
Example GUI
cnettable GUIScreenshot of the GUI with parameters set to take a list of cubes a control network and output to a text file.
Data File
Links open in a new window.| An small example file of the output of the application. | This file contains the output of a run of cnettable on a very small control network. It shows all the expected data for the program and the format the data is in. |
|---|
