thm2isis
Import a Themis IR/VIS RDR or EDR
Categories
History
Janet Barrett | 2002-02-25 | Original version |
Jeff Anderson | 2004-01-30 | Converted to Isis 3.0 |
Jeff Anderson | 2004-02-16 | Added AlphaCube keywords |
Elizabeth Ribelin | 2005-06-28 | Added visual image processing and framelet extraction option |
Elizabeth Miller | 2006-01-04 | Added Frames keyword to framelet labels for the ThemisVis Camera model |
Elizabeth Miller | 2006-01-09 | Modified AppTest to remove framelet files |
Elizabeth Miller | 2006-04-14 | Removed Framelets option, it always creates them now |
Stuart Sides | 2006-06-09 | Removed the ReleaseId keyword from the archive group |
Elizabeth Miller | 2006-08-08 | Modified VIS processing portion to no longer call crop and editlab, but to split the frames apart in the application itself. This helps increase the speed of the application |
Elizabeth Miller | 2006-09-15 | Fixed bugs with pathname and extensions of filenames in the VIS processing |
Elizabeth Miller | 2007-02-20 | Changed OriginalLabel name to IsisCube |
Jeff Anderson | 2007-07-13 | Transfered SpatialSumming parameter for IR camera |
Christopher Austin | 2008-03-18 | Checks if input file is rdr. |
Steven Lambright | 2008-05-13 | Removed references to CubeInfo |
Steven Lambright | 2008-09-18 | The original labels are now being preserved in the Isis 3 cube |
Lynn Weller | 2012-05-08 | Updated documentation text. |
Ian Humphrey | 2014-05-16 | Added history to output cubes. Fixes #1683. |
Jeannie Backer | 2014-04-17 | Added BAND_BIN_BAND_NUMBER keyword to the BandBin group of the imported cube, named BandNumber. Fixes #1659. |
Parameters
Files
Type | filename |
---|---|
File Mode | input |
Filter | *.imq *.img *.QUB |
Type | cube |
---|---|
File Mode | output |
Filter | *.cub |
Options
8 microseconds - PACI write 0 to 1/30 sec - delay of the image acquisition after receipt of the command 0 to 0.1 sec - delay for the command sending by the HPP code so that it is aligned on a 0.1 second boundaryCurrently, the software ignores these three because the 8 microseconds is a negligible fraction of the 1/30 second line rate and the other two are (apparently) variable and unknowable. However, this can result in an incorrect absolute position of as much as four pixels. Similar timing uncertainties probably are applicable to the VIS images. The effect of these timing uncertainties is primarily to potentially introduce errors in absolute coordinates in the along-track direction. This in turn can result in misalignment when mosaicking multiple observations together. The TIMEOFFSET parameter on "thm2isis" allows the user to apply a correction for this time delay, which can thus improve absolute coordinate accuracy and improve mosaic alignments. This offset is stored in the Instrument group of the output Isis cube as SpacecraftClockOffset.
Type | double |
---|---|
Default | 0.0 |
Example 1
Importing a Themis Vis EDR
Command Line
thm2isis from=V04860003EDR.QUB to=V04860003EDR

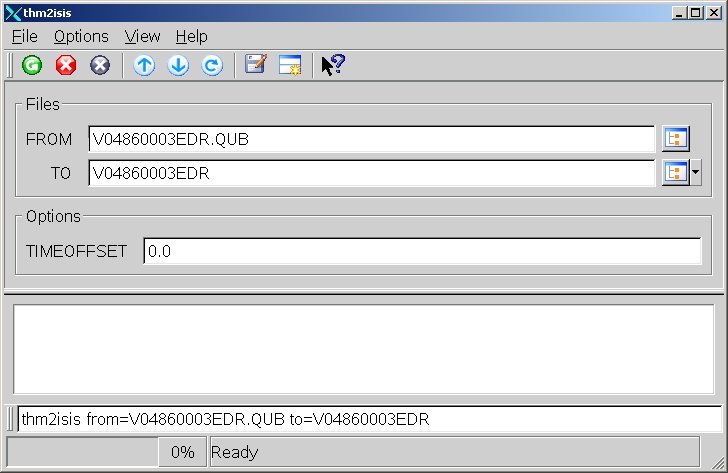

GUI Screenshot
The GUI when running this program
Running thm2isisThis is what the interface looks like when you run this program.
Input Image
Output Images
The output odd themis vis cube
Output Isis Cube (odd)This is the odd framelets output cube "V04860003EDR.odd.cub"
