Isis::CameraFactory Class Reference

Initializes a Camera Model. More...

#include <CameraFactory.h>

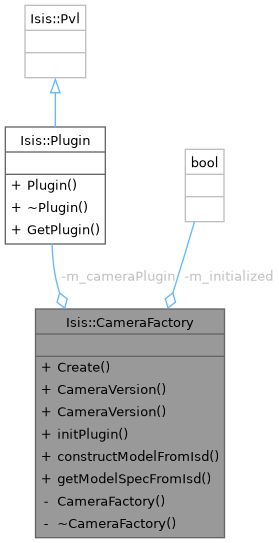

Collaboration diagram for Isis::CameraFactory:

Static Public Member Functions
static Camera *	Create (Cube &cube)
	Creates a Camera object using Pvl Specifications.
static int	CameraVersion (Cube &cube)
	This looks up the current camera model version from the cube.
static int	CameraVersion (Pvl &lab)
	Looks up the current camera model version in the pvl labels.
static void	initPlugin ()
	Reads the appropriate plugin file for the ISIS cameras, and scans the directories specified in IsisPreferences for CSM cameras.
static csm::Model *	constructModelFromIsd (QString isdFilePath, QString pluginName="", QString modelName="", QString isdFormat="")
	Constructs CSM Model from ISD.
static QStringList	getModelSpecFromIsd (QString isdFilePath, QString pluginName="", QString modelName="")
	Generate CSM Model specs from ISD.

Private Member Functions
	CameraFactory ()
	Constructor (Its private, so you cannot use it.
	~CameraFactory ()
	Destroys the CameraFactory object.

Static Private Attributes
static Plugin	m_cameraPlugin
	The plugin file for the camera.
static bool	m_initialized = false
	Has the plugin list been initialized.

Detailed Description

Initializes a Camera Model.

This factory class is used to obtain a Camera Model object given a PVL which contains a valid Instrument group. The Instrument group can come from an image/cube or a hand-created PVL file. The camera is loaded based on information using the SpacecraftName and IntrumentID contained in the Instrument group. It is plugin oriented. That is, this class looks in $ISISROOT/lib/Camera.plugin to convert the SpacecraftName and IntrumentID string into a pointer to the appropriate camera class (e.g., Viking, HiRISE, etc.). This allows programmers who develop new camera models to create a plugin without the need for recompiling all the Isis applications that use camera models.

Author

2005-05-10 Elizabeth Ribelin

History

2005-10-06 Elizabeth Miller - added unitTest.exclude file

2006-05-17 Elizabeth Miller - changed CameraManager.plugin to Camera.plugin

2009-05-12 Steven Lambright - Added CameraVersion(...) and version checking.

2011-05-23 Jannet Barrett and Steven Lambright - Added m_cameraPlugin to reduce cost of instantiating Cameras.

2012-09-06 Steven Lambright - Changed Create() to take Cube instead of Pvl because cameras now require cubes to construct. Please see Camera for more information.

2017-7-11 Summer Stapleton - Added functionality to find the most recent (last) version of the camera model

2017-08-30 Summer Stapleton - Updated documentation. References #4807.

2021-02-17 Kristin Berry and Stuart Sides - added static plugins initialized variable and made initPlugin plublic.

Definition at line 53 of file CameraFactory.h.

Constructor & Destructor Documentation

CameraFactory()

Isis::CameraFactory::CameraFactory ( )

inlineprivate

Constructor (Its private, so you cannot use it.

Use the Create method instead

Definition at line 67 of file CameraFactory.h.

~CameraFactory()

Isis::CameraFactory::~CameraFactory ( )

inlineprivate

Destroys the CameraFactory object.

Definition at line 70 of file CameraFactory.h.

Member Function Documentation

CameraVersion() [1/2]

int Isis::CameraFactory::CameraVersion ( Cube & cube )

static

This looks up the current camera model version from the cube.

Parameters

cube	Input cube

Returns

int Latest Camera Version

Definition at line 164 of file CameraFactory.cpp.

References CameraVersion(), and Isis::Cube::label().

Referenced by CameraVersion(), Create(), and Isis::KernelDb::findAll().

CameraVersion() [2/2]

int Isis::CameraFactory::CameraVersion ( Pvl & lab )

static

Looks up the current camera model version in the pvl labels.

Parameters

lab	The pvl labels

Returns

The current camera model version

Definition at line 176 of file CameraFactory.cpp.

References initPlugin(), and m_cameraPlugin.

constructModelFromIsd()

csm::Model * Isis::CameraFactory::constructModelFromIsd ( QString isdFilePath, QString pluginName = "", QString modelName = "", QString isdFormat = "" )

static

Constructs CSM Model from ISD.

Parameters

isdFilePath	Path to ISD file
pluginName	Plugin name
modelName	Model name
isdFormat	ISD format type (e.g., NITF)

Definition at line 236 of file CameraFactory.cpp.

References getModelSpecFromIsd().

Create()

Camera * Isis::CameraFactory::Create ( Cube & cube )

static

Creates a Camera object using Pvl Specifications.

Parameters

cube	The original cube with the current version camera model

Returns

Camera* The Camera object created

Exceptions

Isis::iException::System	- Unsupported camera model, unable to find the plugin
Isis::iException::Camera	- Unable to initialize camera model

Definition at line 48 of file CameraFactory.cpp.

References CameraVersion(), Isis::Cube::hasBlob(), initPlugin(), Isis::Cube::label(), and m_cameraPlugin.

Referenced by Isis::Cube::camera(), Isis::ControlNetFilter::CubeDistanceFilter(), Isis::QnetTool::openGround(), Isis::ControlNetFilter::PointDistanceFilter(), Isis::ControlNetFilter::PointLatLonFilter(), Isis::ControlNet::SetImages(), Isis::LidarData::SetImages(), and Isis::UniversalGroundMap::UniversalGroundMap().

getModelSpecFromIsd()

QStringList Isis::CameraFactory::getModelSpecFromIsd ( QString isdFilePath, QString pluginName = "", QString modelName = "" )

static

Generate CSM Model specs from ISD.

Parameters

isdFilePath	Path to ISD file
pluginName	Plugin name
modelName	Model name

Definition at line 277 of file CameraFactory.cpp.

Referenced by constructModelFromIsd().

initPlugin()

void Isis::CameraFactory::initPlugin ( )

static

Reads the appropriate plugin file for the ISIS cameras, and scans the directories specified in IsisPreferences for CSM cameras.

Definition at line 124 of file CameraFactory.cpp.

References m_cameraPlugin, and m_initialized.

Referenced by CameraVersion(), and Create().

Member Data Documentation

m_cameraPlugin

Plugin Isis::CameraFactory::m_cameraPlugin

staticprivate

The plugin file for the camera.

Definition at line 72 of file CameraFactory.h.

Referenced by CameraVersion(), Create(), and initPlugin().

m_initialized

bool Isis::CameraFactory::m_initialized = false

staticprivate

Has the plugin list been initialized.

Definition at line 73 of file CameraFactory.h.

Referenced by initPlugin().

---

The documentation for this class was generated from the following files:

• src/base/objs/CameraFactory/CameraFactory.h
• src/base/objs/CameraFactory/CameraFactory.cpp
