Isis 3 Programmer Reference
Public Slots | Signals | Public Member Functions | Protected Slots | Protected Member Functions | Private Member Functions | Private Attributes | List of all members
Isis::MosaicSelectTool Class Reference

Handles selection operations for Isis qt apps. More...

#include <MosaicSelectTool.h>

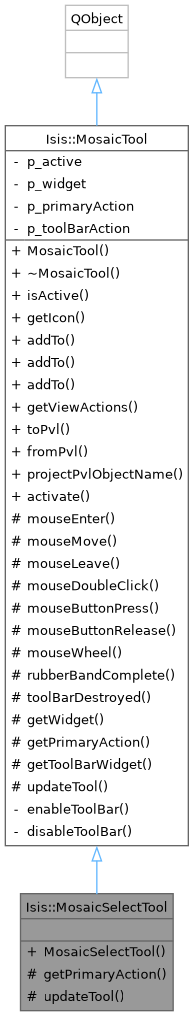

Inheritance diagram for Isis::MosaicSelectTool:
Inheritance graph

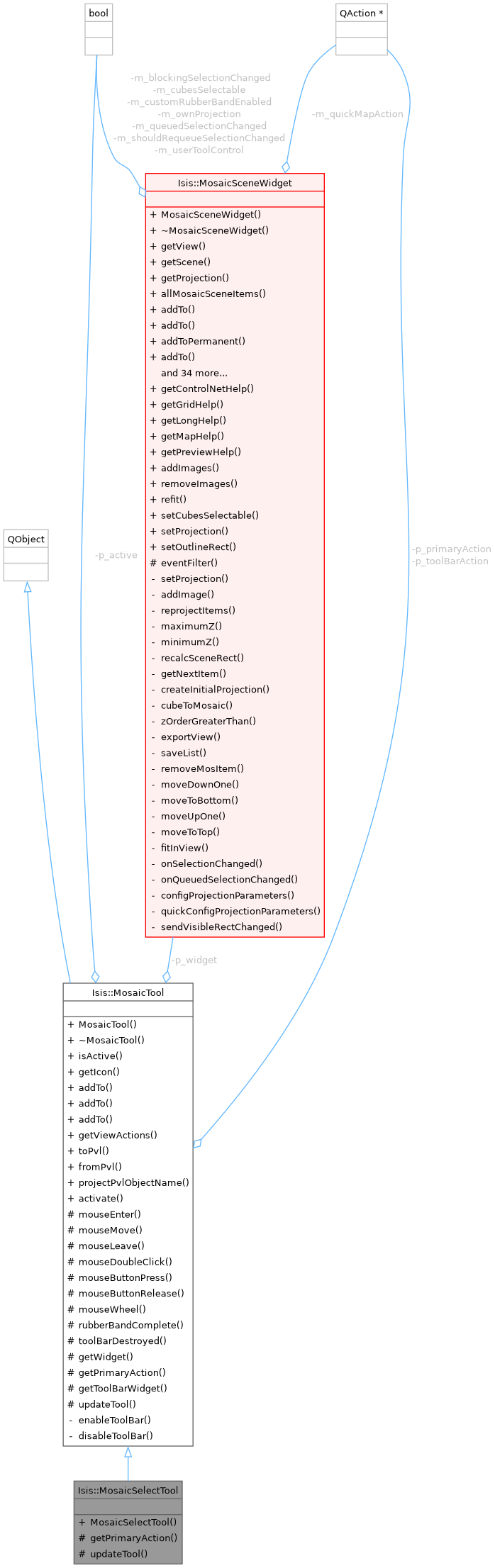

Collaboration diagram for Isis::MosaicSelectTool:
Collaboration graph

Public Slots

void activate (bool)
 Activates the tool.


Signals

void activated (bool)


Public Member Functions

 MosaicSelectTool (MosaicSceneWidget *)
 MosaicSelectTool constructor.

bool isActive () const
 Returns the activeness of this toool.

QPixmap getIcon (QString iconName) const
 returns the path to the icon directory.

virtual void addTo (QMenu *menu)

virtual void addTo (ToolPad *toolPad)

virtual void addTo (QToolBar *toolBar)

virtual QList< QAction * > getViewActions ()

virtual PvlObject toPvl () const

virtual void fromPvl (const PvlObject &obj)

virtual QString projectPvlObjectName () const


Protected Slots

void updateTool ()
 This method sets the QGraphicsView to allow the user to select mosaic items by dragging a rubber band.


Protected Member Functions

virtual QAction * getPrimaryAction ()
 Adds the action to the toolpad.

virtual void mouseEnter ()

virtual void mouseMove (QPointF)

virtual void mouseLeave ()

virtual void mouseDoubleClick (QPointF)

virtual void mouseButtonPress (QPointF, Qt::MouseButton s)

virtual void mouseButtonRelease (QPointF, Qt::MouseButton s)

virtual void mouseWheel (QPointF, int delta)

virtual void rubberBandComplete (QRectF r, Qt::MouseButton s)

void toolBarDestroyed (QObject *obj)

MosaicSceneWidget * getWidget ()

virtual QWidget * getToolBarWidget ()
 This method returns a widget that will be put in a tool bar when the tool is activated.


Private Member Functions

void enableToolBar ()
 Enables entire tool bar.

void disableToolBar ()
 Disables entire tool bar.


Private Attributes

bool p_active
 Is the tool active?

MosaicSceneWidget * p_widget

QAction * p_primaryAction

QAction * p_toolBarAction


Detailed Description

Handles selection operations for Isis qt apps.

Author
????-??-?? Stacy Alley
History
2011-09-27 Steven Lambright - Improved user documentation

Definition at line 19 of file MosaicSelectTool.h.

Constructor & Destructor Documentation

◆ MosaicSelectTool()

Isis::MosaicSelectTool::MosaicSelectTool ( MosaicSceneWidget * scene)

MosaicSelectTool constructor.

Parameters
parent

Definition at line 18 of file MosaicSelectTool.cpp.

Member Function Documentation

◆ activate

void Isis::MosaicTool::activate ( bool on)
slotinherited

Activates the tool.

Parameters
on

Definition at line 148 of file MosaicTool.cpp.

References activate(), disableToolBar(), enableToolBar(), and p_active.

Referenced by activate().

◆ addTo() [1/3]

virtual void Isis::MosaicTool::addTo ( QMenu * menu)
inlinevirtualinherited

Definition at line 63 of file MosaicTool.h.

◆ addTo() [2/3]

void Isis::MosaicTool::addTo ( QToolBar * toolBar)
virtualinherited

Definition at line 70 of file MosaicTool.cpp.

◆ addTo() [3/3]

void Isis::MosaicTool::addTo ( ToolPad * toolPad)
virtualinherited

Definition at line 52 of file MosaicTool.cpp.

◆ disableToolBar()

void Isis::MosaicTool::disableToolBar ( )
privateinherited

Disables entire tool bar.

Definition at line 174 of file MosaicTool.cpp.

References disableToolBar().

Referenced by activate(), and disableToolBar().

◆ enableToolBar()

void Isis::MosaicTool::enableToolBar ( )
privateinherited

Enables entire tool bar.

Definition at line 185 of file MosaicTool.cpp.

References enableToolBar().

Referenced by activate(), and enableToolBar().

◆ fromPvl()

void Isis::MosaicTool::fromPvl ( const PvlObject & obj)
virtualinherited

Reimplemented in Isis::MosaicGridTool.

Definition at line 101 of file MosaicTool.cpp.

◆ getIcon()

QPixmap Isis::MosaicTool::getIcon ( QString iconName) const
inherited

returns the path to the icon directory.

Returns
QString

Definition at line 115 of file MosaicTool.cpp.

References getIcon().

Referenced by getIcon(), Isis::MosaicAreaTool::getPrimaryAction(), Isis::MosaicControlNetTool::getPrimaryAction(), Isis::MosaicFindTool::getPrimaryAction(), Isis::MosaicGridTool::getPrimaryAction(), Isis::MosaicPanTool::getPrimaryAction(), Isis::MosaicSelectTool::getPrimaryAction(), Isis::MosaicZoomTool::getPrimaryAction(), and Isis::MosaicZoomTool::MosaicZoomTool().

◆ getPrimaryAction()

QAction * Isis::MosaicSelectTool::getPrimaryAction ( )
protectedvirtual

Adds the action to the toolpad.

Parameters
toolpad
Returns
QAction*

Implements Isis::MosaicTool.

Definition at line 31 of file MosaicSelectTool.cpp.

References Isis::MosaicTool::getIcon().

◆ getToolBarWidget()

QWidget * Isis::MosaicTool::getToolBarWidget ( )
protectedvirtualinherited

This method returns a widget that will be put in a tool bar when the tool is activated.

This method will only be called once so it can new the widget without a problem.

Reimplemented in Isis::MosaicAreaTool, Isis::MosaicControlNetTool, Isis::MosaicFindTool, Isis::MosaicGridTool, and Isis::MosaicZoomTool.

Definition at line 192 of file MosaicTool.cpp.

References getToolBarWidget().

Referenced by getToolBarWidget().

◆ getViewActions()

QList< QAction * > Isis::MosaicTool::getViewActions ( )
virtualinherited

Definition at line 84 of file MosaicTool.cpp.

◆ getWidget()

MosaicSceneWidget * Isis::MosaicTool::getWidget ( )
inlineprotectedinherited

Definition at line 96 of file MosaicTool.h.

◆ isActive()

bool Isis::MosaicTool::isActive ( ) const
inlineinherited

Returns the activeness of this toool.

Returns
bool

Definition at line 50 of file MosaicTool.h.

References p_active.

Referenced by Isis::MosaicZoomTool::rubberBandComplete(), Isis::MosaicControlNetTool::updateTool(), Isis::MosaicFindTool::updateTool(), Isis::MosaicSelectTool::updateTool(), and Isis::MosaicZoomTool::updateTool().

◆ mouseButtonPress()

void Isis::MosaicTool::mouseButtonPress ( QPointF ,
Qt::MouseButton s )
protectedvirtualinherited

Definition at line 130 of file MosaicTool.cpp.

◆ mouseButtonRelease()

void Isis::MosaicTool::mouseButtonRelease ( QPointF ,
Qt::MouseButton s )
protectedvirtualinherited

Definition at line 134 of file MosaicTool.cpp.

◆ mouseDoubleClick()

void Isis::MosaicTool::mouseDoubleClick ( QPointF )
protectedvirtualinherited

Definition at line 126 of file MosaicTool.cpp.

◆ mouseEnter()

virtual void Isis::MosaicTool::mouseEnter ( )
inlineprotectedvirtualinherited

Definition at line 81 of file MosaicTool.h.

◆ mouseLeave()

virtual void Isis::MosaicTool::mouseLeave ( )
inlineprotectedvirtualinherited

Definition at line 83 of file MosaicTool.h.

◆ mouseMove()

void Isis::MosaicTool::mouseMove ( QPointF )
protectedvirtualinherited

Definition at line 122 of file MosaicTool.cpp.

◆ mouseWheel()

void Isis::MosaicTool::mouseWheel ( QPointF ,
int delta )
protectedvirtualinherited

Definition at line 139 of file MosaicTool.cpp.

◆ projectPvlObjectName()

QString Isis::MosaicTool::projectPvlObjectName ( ) const
virtualinherited

Reimplemented in Isis::MosaicGridTool.

Definition at line 110 of file MosaicTool.cpp.

◆ rubberBandComplete()

virtual void Isis::MosaicTool::rubberBandComplete ( QRectF r,
Qt::MouseButton s )
inlineprotectedvirtualinherited

Reimplemented in Isis::MosaicZoomTool.

Definition at line 88 of file MosaicTool.h.

◆ toolBarDestroyed()

void Isis::MosaicTool::toolBarDestroyed ( QObject * obj)
protectedinherited

Definition at line 165 of file MosaicTool.cpp.

◆ toPvl()

PvlObject Isis::MosaicTool::toPvl ( ) const
virtualinherited

Reimplemented in Isis::MosaicGridTool.

Definition at line 89 of file MosaicTool.cpp.

◆ updateTool

void Isis::MosaicSelectTool::updateTool ( )
protectedslot

This method sets the QGraphicsView to allow the user to select mosaic items by dragging a rubber band.

Definition at line 53 of file MosaicSelectTool.cpp.

References Isis::MosaicTool::isActive().

Member Data Documentation

◆ p_active

bool Isis::MosaicTool::p_active
privateinherited

Is the tool active?

Definition at line 120 of file MosaicTool.h.

Referenced by activate(), and isActive().

◆ p_primaryAction

QAction* Isis::MosaicTool::p_primaryAction
privateinherited

Definition at line 124 of file MosaicTool.h.

◆ p_toolBarAction

QAction* Isis::MosaicTool::p_toolBarAction
privateinherited

Definition at line 125 of file MosaicTool.h.

◆ p_widget

MosaicSceneWidget* Isis::MosaicTool::p_widget
privateinherited

Definition at line 122 of file MosaicTool.h.

The documentation for this class was generated from the following files:
