voy2isis

Standard View | TOC | Home

Import PDS formatted Voyager EDR into Isis format cube

Description
Categories
Groups
Examples
History

Description

This program will take in raw image files from the Voyager spacecraft mission and import them into Isis formatted cubes. The input files are compressed Planetary Data System (PDS) formatted Voyager Experiment Data Record (EDR) files. The output cube will contain tranlated labels in pvl format with instrument, archive, bandbin, kernel, and nominal reseau information.

Categories

Related Objects and Documents

Applications

Documents

Parameter Groups

Files

Name Description
FROM Input Voyager EDR image file
TO Output Isis cube

Files: FROM

Description

Use this parameter to select the Voyager PDS EDR file to be imported. These files are in compressed format and have the form cnnnnnnn.imq where "nnnnnnn" is the FDS count.

Type filename
File Mode input
Filter *.imq

Files: TO

Description

Use this parameter to select the output filename for the imported image.

Type cube
File Mode output
Filter *.cub

Examples

Example 1

Using voy2isis

Description

This example shows the use of voy2isis to ingest Voyager EDRs and output Isis3 cubes.

Command Line

voy2isis from=input/voyagerEdr.imq to=isisImage.cub
This example shows how to import with voy2isis. Both parameters must be used.

GUI Screenshot

voy2isis gui

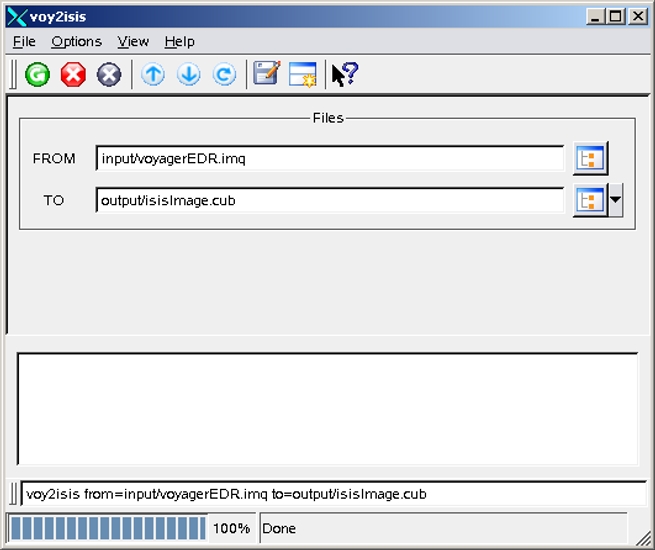

Example GUI

Screenshot of the GUI

Data File

Output cube label This is the label from the output cube showing the Instrument, BandBin, Kernels and Reseaus groups imported.

Output Image

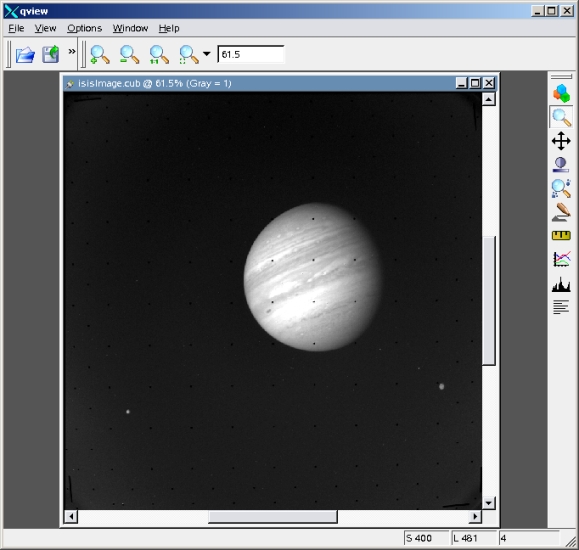

Output cube in qview

Output after ingestion

Screenshot of the image in the Isis qview application after it has been ingested.

History

Jeannie Walldren2009-03-11 Original version
Jeannie Walldren2009-03-23 Modified the Makefile in the app test to ignore particular lines when comparing labels. Removed the orginal extension from the name of the temporary decompressed file output by a call to vdcomp. Modified error message for accuracy.
Mackenzie Boyd2010-04-30 Modified StartTime in labels to remove Z from end. Modified naif frame code for all cameras to be -100 (-32001 -> -32101) from what they were previously to match updated ck and fk kernels. Added significant changes which affect the start time and image number for improved accuracy.
Steven Lambright2010-06-17 Updated to make input IMQ's PVL labels parsable by our PVL classes
Mackenzie Boyd2010-07-29 Added keywords Camera_State_1 and Camera_State_2.
Mackenzie Boyd2011-01-21 Added support for .img files.
Stuart Sides2012-05-05 Added Center and Width keywords to the BandBin group.
Kristin Berry2015-07-22 Added NaifStatus::CheckErrors() to see if any NAIF errors were signaled. References #2248
