#include <Workspace.h>

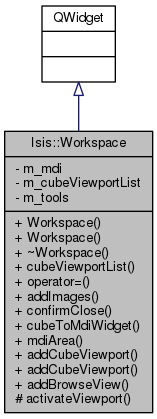

Inheritance diagram for Isis::Workspace:

Collaboration diagram for Isis::Workspace:

Public Slots
void	addCubeViewport (QString cube)
	Add a cubeViewport to the workspace, open the cube. More...

MdiCubeViewport *	addCubeViewport (Cube *cube)
	Add a cubeViewport to the workspace. More...

void	addBrowseView (QString cube)

Signals
void	cubeViewportAdded (MdiCubeViewport *)

void	cubeViewportActivated (MdiCubeViewport *)

Public Member Functions
	Workspace (bool selfContained, QWidget *parent=0)
	Workspace constructor. More...

	Workspace (const Workspace &other)

QVector< MdiCubeViewport * > *	cubeViewportList ()
	Repopulates the list of MdiCubeViewports and returns a pointer to this list. More...

Workspace &	operator= (Workspace other)

void	addImages (ImageList *images)

bool	confirmClose ()

QWidget *	cubeToMdiWidget (Cube *cube)

QMdiArea *	mdiArea ()

Protected Slots
void	activateViewport (QMdiSubWindow *w)
	This gets called when a window is activated or the workspace loses focus. More...

Private Attributes
QPointer< QMdiArea >	m_mdi

QVector< MdiCubeViewport * > *	m_cubeViewportList

ToolList *	m_tools

Detailed Description

Author: ????-??-?? Jeff Anderson

History:

2007-03-21 Tracie Sucharski - Changed call from fitScale to fitScaleMinDimension so that the minimum cube dimension is displayed in its entirety.

2008-05-27 Noah Hilt - Now allows cubes to be opened with additional arguments read by the CubeAttributeInput class, specifically to open certain bands as well as open 3 bands in RGB mode.

2008-12-04 Jeannie Walldren - Fixed bug in addCubeViewport(cubename). Added exception catch to addCubeViewport(cube) to close the CubeViewport from the ViewportMainWindow if it cannot be shown.

2009-03-27 Noah Hilt, Steven Lambright - Changed parent class from QWorkspace to QMdiArea since QWorkspace is now an obsolete class. Also changed how CubeViewports are created.

2010-04-08 Steven Lambright and Eric Hyer - Added progress bar

2010-06-26 Eric Hyer - Now uses MdiCubeViewport instead of CubeViewport. Also fixed include issues.

2010-11-18 Eric Hyer - addBrowseView now deletes the last viewport in the subWindowList instead of the first one

2011-09-19 Steven Lambright - Fixed addBrowseView to actually close the old viewports instead of hiding them. Fixes #418

2012-05-29 Steven Lambright - Now utilizes ViewportMdiSubWindow instead of QMdiSubWindow. References #854.

2012-09-18 Steven Lambright - Added the selfContained option to the constructor. This allows us to show a work space without handling the tool and status areas externally. No longer inherits from QMdiArea because of the need to place widgets around the mdi area.

2015-05-13 Ian Humphrey - Modified addCubeViewport(QString) to handle any exceptions that are thrown within the slot. This prevents undefined behavior when an exception is not handled within a connected slot. References #2210.

2016-09-08 Tracie Sucharski - Changed imageToMdiWidget to cubeToMdiWidget. Workspace deals with cubes. Since Image contains a cube, simply pass in cube instead of Image. This was done to handle the new IPCE container class, Shape, which also contains a cube, but not an Image.

Definition at line 81 of file Workspace.h.

Constructor & Destructor Documentation

Isis::Workspace::Workspace	(	bool	selfContained,
		QWidget *	parent = `0`
	)

Workspace constructor.

Parameters

parent

Definition at line 57 of file Workspace.cpp.

References Isis::Tool::activate(), activateViewport(), Isis::Tool::addTo(), Isis::Tool::addToActive(), Isis::Tool::addToPermanent(), and Isis::Tool::menuName().

Member Function Documentation

void Isis::Workspace::activateViewport ( QMdiSubWindow * w )

protectedslot

This gets called when a window is activated or the workspace loses focus.

Parameters

w

Definition at line 221 of file Workspace.cpp.

Referenced by Workspace().

void Isis::Workspace::addCubeViewport ( QString cubename )

slot

Add a cubeViewport to the workspace, open the cube.

Parameters

cubename[in] (QString) cube name

History:

2006-06-12 Tracie Sucharski, Clear errors after catching when attempting to open cube.

2007-02-13 Tracie Sucharski, Open cube read, not read/write. Opening read/write was done to accomodate the EditTool. EditTool will now reopen the cube read/write.

2008-05-27 Noah Hilt, When opening a cube now if a user specifies extra arguments to the cube name, the cube will be opened using a CubeAttributeInput specifically for the number and index of bands to be opened. Additionally, if a cube is opened with 3 bands it will be opened in RGB mode with red, green, and blue set to the 3 bands respectively.

2008-12-04 Jeannie Walldren - Removed "delete cube" since this was causing a segfault and this deallocation is already taking place in addCubeViewport(cube).

2015-05-13 Ian Humphrey - Caught exception now handled by sending a QMessageBox to the Workspace. This prevents undefined behavior caused by not handling an exception within a connected slot.

Definition at line 326 of file Workspace.cpp.

References Isis::CubeAttributeInput::bands(), Isis::Cube::open(), Isis::Cube::setVirtualBands(), Isis::IString::ToInteger(), and Isis::IException::toString().

Referenced by Isis::CubeDnView::onItemAdded().

MdiCubeViewport * Isis::Workspace::addCubeViewport ( Cube * cube )

slot

Add a cubeViewport to the workspace.

Parameters

cube[in] (Cube *) cube information

History:

2007-04-13 Tracie Sucharski - Load entire image instead of fitting smallest dimension.

2008-05-27 Noah Hilt - Now returns a MdiCubeViewport in order for the addCubeViewport(QString cubename) method to modify the MdiCubeViewport.

2008-08-20 Stacy Alley - Changed the setScale call to match the zoomTool's fit in view
