Clean-up of Clementine NIR Images
Description
Categories
Groups
Examples
History
Description
Categories
Related Objects and Documents
Applications
Parameter Groups
Files
| Name | Description |
|---|---|
| FROM | Input cube to be cleaned |
| TO | Output cube |
Options
| Name | Description |
|---|---|
| REMOVE | Remove intermediate files |
Files: FROM
Description
The cube to be cleaned. The cube will be ran through a series of filters to remove noise.
| Type | cube |
|---|---|
| File Mode | input |
| Filter | *.cub |
Files: TO
Description
The resultant cube containing the cleaned data.
| Type | cube |
|---|---|
| File Mode | output |
| Filter | *.cub |
Options: REMOVE
Description
Option to remove or leave intermediate cube files made by the application
| Type | boolean |
|---|---|
| Default | TRUE |
Examples
Example 1
Using clemnirclean
Description
Command Line
GUI Screenshot
clemnirclean gui
|
Example GUI Screenshot of the GUI with parameters set to leave temporary images |
Input Image
lne4885r.cub before the filter
|
Input image before the filter.
Parameter Name:
FROM This is the image after it was run through clemnircal. |
Output Images

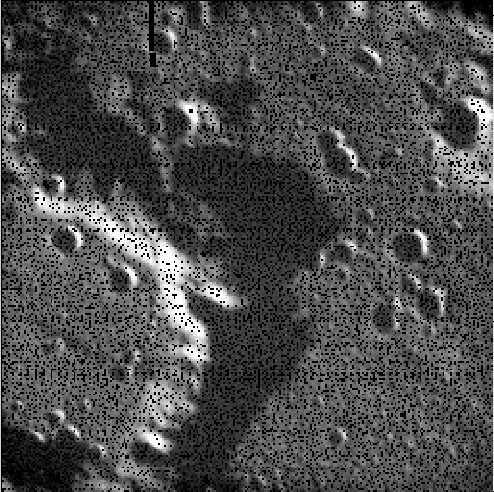

The image after the first filter
|
Output image after the first boxcar filter was applied Does a 3x3 noisefilter with null replace. |

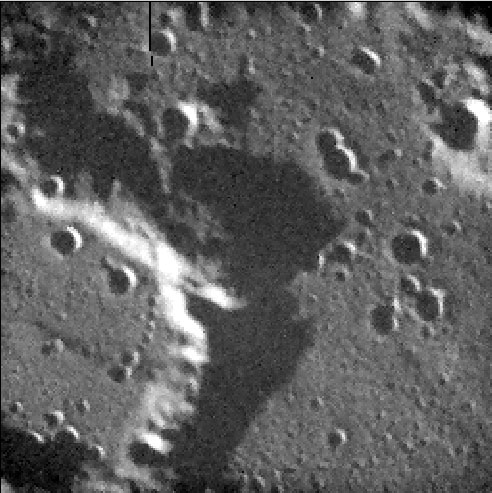

The image after the second filter
|
Output image after the second boxcar filter was applied Does a 3x3 lowpass with outside filter. |
The image after the third filter
|
Output image after the third boxcar filter was applied Does a 3x3 lowpass with outside filter. |
The image after the fourth filter
|
Output image after the fourth boxcar filter was applied Does a 3x3 noisefilter with average replace. |
|
The image after the final filter
|
Final output image after the all boxcar filters were applied
Parameter Name:
TO Does a 5x5 lowpass with outside filter. |
History
| Ella Mae Lee | 2001-05-18 | Original version Isis2: perl script nir2db.pl |
| Steven Koechle | 2007-06-08 | Converted to Isis3 from Isis2 |
