ISIS 3 Application Documentation

histmatch

Standard View | TOC | Home

Match histograms of 2 cubes

Description
Categories
Groups
Examples
History

Description

This program takes in two input images, FROM and MATCH, and uses their histograms to compute stretch pairs. The data in the stretch depends on which matching algorithm is chosen. If Culmulative Distribution Function (CDF) is chosen, the histogram data will be stored into stretch pairs at regular intervals, the default being every one percent between 0.5 and 99.5 percent. If MODE is chosen, only the histogram data at the endpoints and mode are stored. The pixels from the input image are remapped based on the data in the stretch pairs and the results are written to a new cube file. This is useful for tone matching two images. The following figures illustrate what is happening. Band 1 is FROM, Band 6 is MATCH, and CDF and Mode are two different output cubes. The blue line is the histogram and the red line is the cumulative distribution.

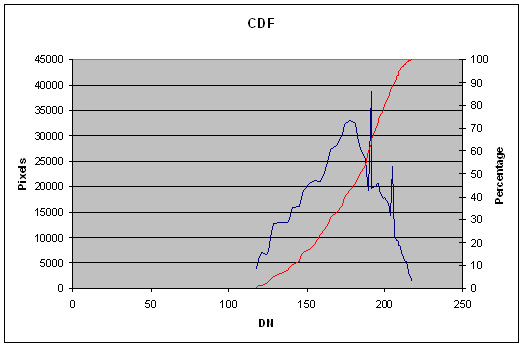

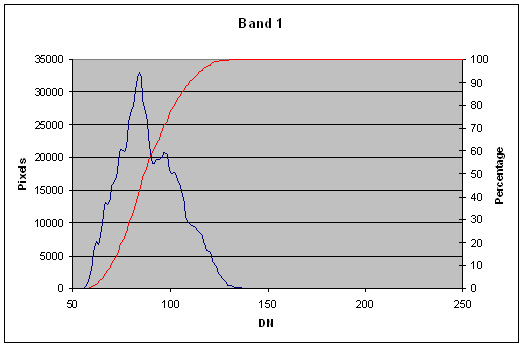

Band 1 image Output of CDF algorithm

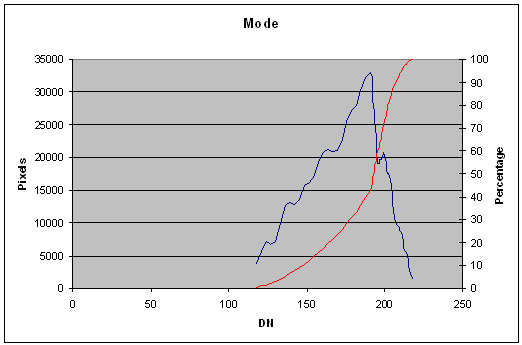

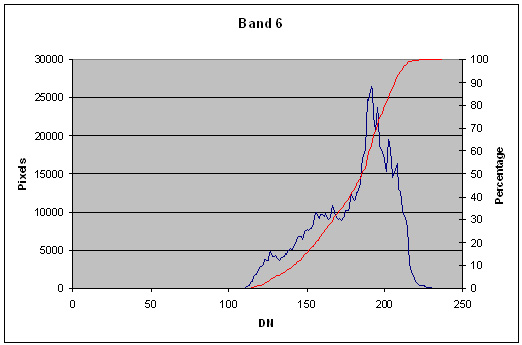

Band 6 image Output of Mode algorithm
Notice how the endpoints, mode, and overall shape of Band 1's histogram is now roughly equivalent to Band 6.

Categories

Related Objects and Documents

Applications

Parameter Groups

Files

Name Description
FROM Input file to be altered
MATCH Input file to be matched
TO Output cube

Algorithm

Name Description
STRETCHStretch mode

Histogram Options

Name Description
MINPERMinimum percentage
MAXPERMaximum percentage
INCREMENTPercentage increment

Files: FROM

Description

This file will have its histogram reshaped to resemble MATCH's histogram

Type cube
File Mode input
Filter *.cub

Files: MATCH

Description

This file's histogram will be matched by FROM

Type cube
File Mode input
Filter *.cub

Files: TO

Description

The resultant cube containing the altered input file

Type cube
File Mode output
Filter *.cub

Algorithm: STRETCH

Description

This parameter specifies how the histogram will be stretched. The options are to stretch by by percentage (CDF), or by mode (Mode).

Type string
Default CDF
Option List:
Option Brief Description
CDFMatch Cumulative Distribution Function Remap image using stretch pairs taken at regular percentage intervals
MODEMatch modes Remap image using stretch pairs based on endpoints and mode

Exclusions

  • INCREMENT

Histogram Options: MINPER

Description

Minimum cut-off value for the histogram

Type double
Default 0.5
Minimum 0.0 (inclusive)
Less Than
  • MAXPER

Histogram Options: MAXPER

Description

Maximum cut-off value for the histogram

Type double
Default 99.5
Maximum 100.0 (inclusive)

Histogram Options: INCREMENT

Description

Percentage increment for the histogram

Type integer
Default 1
Minimum 1 (inclusive)
Less Than
  • MAXPER

Examples

Example 1

Peaks histogram matching with CDF

Description

This example shows the results of histogram matching using the cumulative distribution function.

Command Line

histmatch from=../peaks.cub+1 match=../peaks.cub+6 stretch=cdf to=../result.cub
Use CDF matching to adjust Band 1's histogram to resemble Band 6's histogram

GUI Screenshot

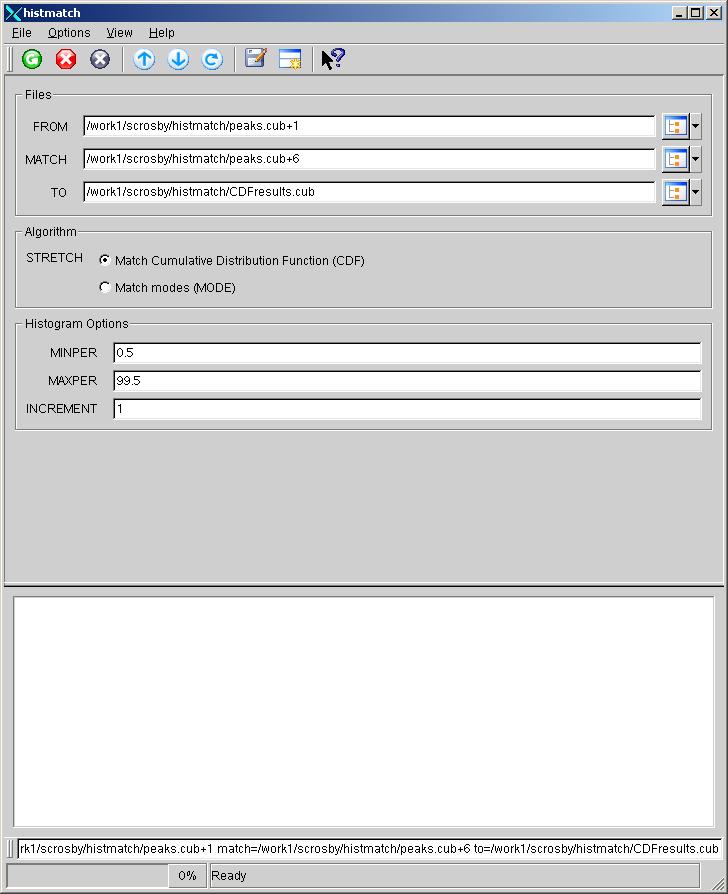

Histmatch Gui

Example Gui

Screenshot of GUI with parameters filled in to perform a histogram matching operation with the input images.

Input Images

Input Peaks (Band 1) image

Input image for histmatch

Parameter Name: FROM

This is the input image for the histmatch example.

Input Peaks (Band 1) image

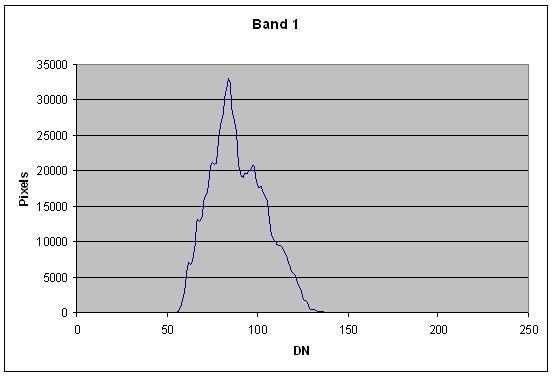

Band 1 histogram

This is the input image's histogram.

Input Peaks (Band 6) image

Match image for histmatch

Parameter Name: MATCH

This is the match image for the histmatch example (i.e. the other input's histogram will be matched to this image's histogram).

Input Peaks (Band 6) image

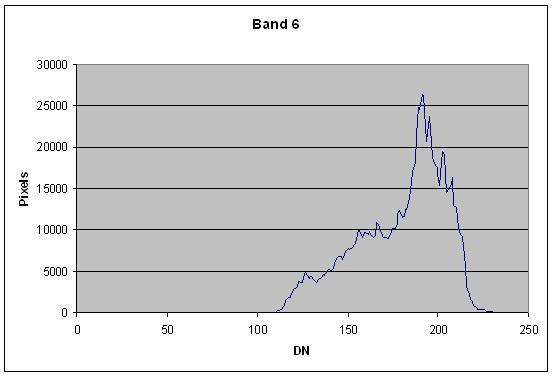

Band 6 histogram

This is the input image's histogram.

Output Images

Output image showing results of the CDF histogram matching.

Output image for CDF matching

Parameter Name: TO

This is the output image that results.

Output image

CDF histogram

This is the output image's histogram.

Example 2

Peaks histogram matching with mode

Description

This example shows the results of histogram matching using the match mode function.

Command Line

histmatch from=../peaks.cub+1 match=../peaks.cub+6 stretch=mode to=../result.cub
Use mode matching to adjust Band 1's histogram to resemble Band 6's histogram

Input Images

Input Peaks (Band 1) image

Input image for histmatch

Parameter Name: FROM

This is the input image for the histmatch example.

Input Peaks (Band 1) image

Band 1 histogram

This is the input image's histogram.

Input Peaks (Band 6) image

Match image for histmatch

Parameter Name: MATCH

This is the match image for the histmatch example (i.e. the other input's histogram will be matched to this image's histogram).

Input Peaks (Band 6) image

Band 6 histogram

This is the input image's histogram.

Output Images

Output image showing results of the modal histogram matching.

Output image for mode matching

Parameter Name: TO

This is the output image that results.

Output image

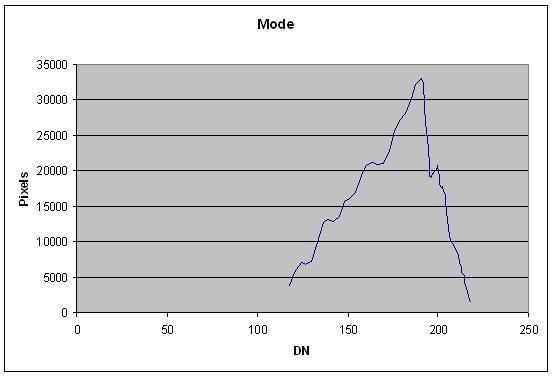

Mode histogram

This is the output image's histogram.

History

Sean Crosby2006-12-04 Original version
Sean Crosby2007-03-12 Included ability to histmatch input cubes of different sizes
Steven Lambright2008-05-12 Removed references to CubeInfo
