Trim edges of input cube
Description
Categories
Groups
Examples
History
Description
Categories
Related Objects and Documents
Applications
Parameter Groups
Files
| Name | Description |
|---|---|
| FROM | Input cube to trim |
| TO | Output cube |
Trim size
| Name | Description |
|---|---|
| TOP | Number of lines to trim at top of cube |
| BOTTOM | Number of lines to trim at bottom of cube |
| LEFT | Number of samples to trim at left side of cube |
| RIGHT | Number of samples to trim at right side of cube |
Files: FROM
Description
Use this parameter to select the filename. All bands within the file will be trimmed.
| Type | cube |
|---|---|
| File Mode | input |
| Filter | *.cub |
Files: TO
Description
This file will contain the results of the trimmed cube.
| Type | cube |
|---|---|
| File Mode | output |
| Filter | *.cub |
Trim size: TOP
Description
This defines the number of lines that will be set to NULL at the top of the cube.
| Type | integer |
|---|---|
| Default | 0 |
| Minimum | 0 (inclusive) |
Trim size: BOTTOM
Description
This defines the number of lines that will be set to NULL at the bottom of the cube.
| Type | integer |
|---|---|
| Default | 0 |
| Minimum | 0 (inclusive) |
Trim size: LEFT
Description
This defines the number of samples that will be set to NULL at the left side of the cube.
| Type | integer |
|---|---|
| Default | 0 |
| Minimum | 0 (inclusive) |
Trim size: RIGHT
Description
This defines the number of samples that will be set to NULL at the right side of the cube.
| Type | integer |
|---|---|
| Default | 0 |
| Minimum | 0 (inclusive) |
Examples
Example 1
trim Lunar Orbiter
Description
Command Line

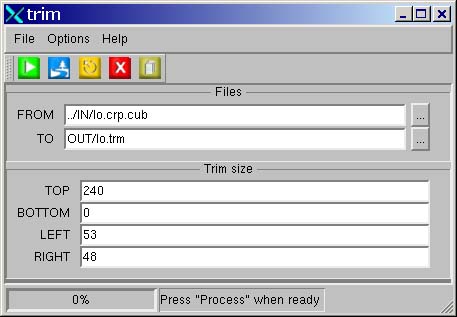

GUI Screenshot
trim Gui
|
Example Gui Screenshot of GUI with parameters filled in to perform a trim operation on the input image. |
Input Image
Input image
|
Input image for trim
Parameter Name:
FROM This is the input image for the trim example . |
Output Image
Output image showing results of the trim application.
|
Output image for trim
Parameter Name:
TO This is the output image that results. |
History
| Jim Mathews | 1994-02-14 | Original version |
| Tracie Sucharski | 2002-07-01 | Ported to Isis 3.0 |
| K Teal Thompson | 2002-12-02 | Add example. |
| K Teal Thompson | 2003-03-28 | Make images smaller |
| Stuart Sides | 2003-04-04 | Fixed problem with isiscvs not checking in the thumb and image directories. |
| Kim Sides | 2003-05-13 | Added application test |
| Stuart Sides | 2003-05-16 | Modified schema location from astogeology... to isis.astrogeology..." |
| Stuart Sides | 2003-07-29 | Modified filename parameters to be cube parameters where necessary |
| Steven Lambright | 2008-05-13 | Removed references to CubeInfo |
