Calibration of Apollo 15 metric images.
| Overview | Parameters | Example 1 |
Description
This program will perform calibrations on images from the Apollo 15 mission's metric camera.
Two calibrations are performed. First, dark current is subtracted. Then, the image is divided
by the flat field image to remove vignetting effects.
CategoriesRelated Objects and DocumentsApplicationsHistory
|
| U.S. Department of the Interior | U.S. Geological Survey ISIS | Privacy & Disclaimers | Astrogeology Research Program To contact us, please post comments and questions on the USGS Astrogeology Discussion Board To report a bug, or suggest a feature go to: ISIS Github File Modified: 07/13/2023 14:51:38 |
Parameter GroupsFiles
|
| U.S. Department of the Interior | U.S. Geological Survey ISIS | Privacy & Disclaimers | Astrogeology Research Program To contact us, please post comments and questions on the USGS Astrogeology Discussion Board To report a bug, or suggest a feature go to: ISIS Github File Modified: 07/13/2023 14:51:38 |
Files: FROM
Description
The cube to be calibrated.
| Type | cube |
|---|---|
| File Mode | input |
| Filter | *.cub |
Files: TO
Description
The resultant cube containing the calibrated data.
| Type | cube |
|---|---|
| File Mode | output |
| Pixel Type | real |
| Filter | *.cub |
Example 1Cube callibrated. Description
This example shows how to calibrate an Apollo cube.
Command Line
apollocal
from=../inputCube.cub to=../outputCube.cub
Run the apollocal application to calibrate the cube.

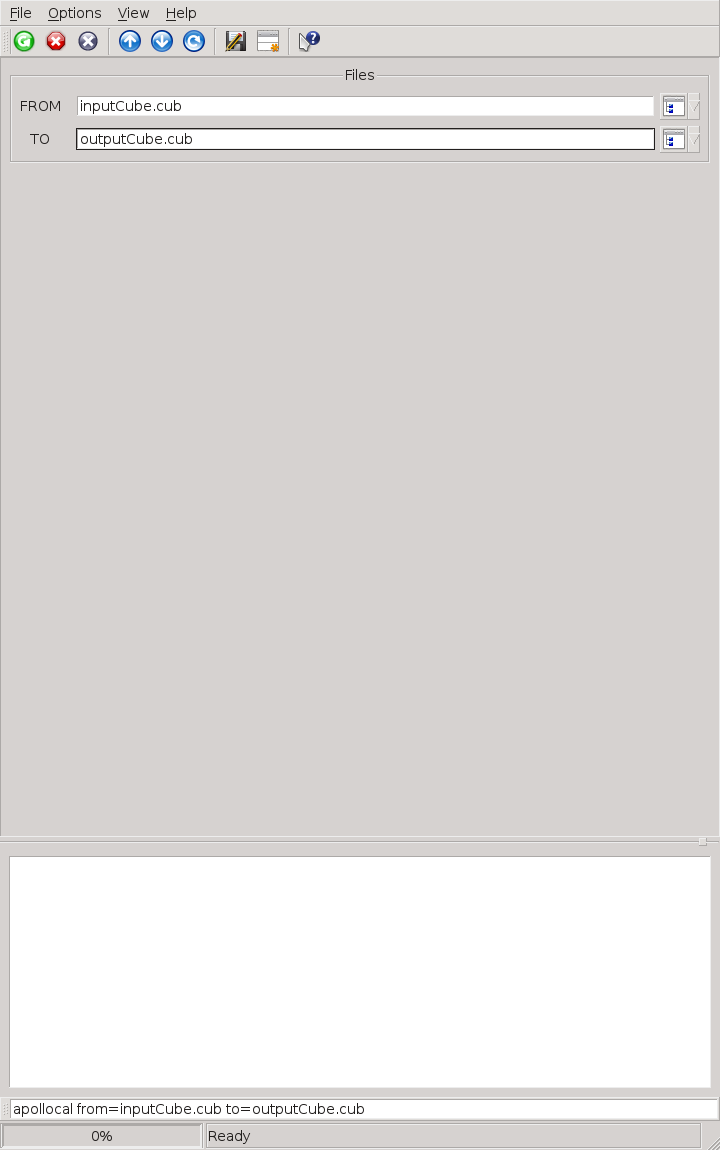

GUI Screenshot

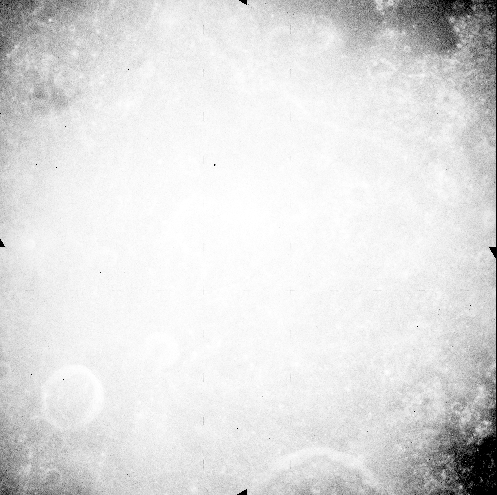

Input Image
Output Image
|
![Apollocal GUI example.](javascript:popUpNewWindow ("./assets/ApollocalGUI.png",1900, 1000))
![Input image.](javascript:popUpNewWindow ("./assets/InputCub.png",1900, 1000))
![Output image.](javascript:popUpNewWindow ("./assets/OutputCub.png",1900, 1000))
