ISIS 3 Application Documentation
cnetbin2pvl | Printer Friendly View | TOC | Home |
Converts an Isis3 control network file from binary into pvl format.
| Overview | Parameters | Example 1 |
| U.S. Department of the Interior | U.S. Geological Survey ISIS | Privacy & Disclaimers | Astrogeology Research Program To contact us, please post comments and questions on the USGS Astrogeology Discussion Board To report a bug, or suggest a feature go to: ISIS Github File Modified: 07/13/2023 15:09:52 |
Parameter GroupsFiles
|
| U.S. Department of the Interior | U.S. Geological Survey ISIS | Privacy & Disclaimers | Astrogeology Research Program To contact us, please post comments and questions on the USGS Astrogeology Discussion Board To report a bug, or suggest a feature go to: ISIS Github File Modified: 07/13/2023 15:09:52 |
Files: FROM
Description
A control net file in binary format.
| Type | filename |
|---|---|
| File Mode | input |
| Filter | *.bin |
Files: TO
Description
A control network file in the PVL format.
| Type | filename |
|---|---|
| File Mode | output |
| Filter | *.cnet *.pvl |
Example 1Converting a binary Control Network to a PVL network. DescriptionA binary V0001 Control Network converted to the latest PVL network.
Command Line
cnetbin2pvl
from=/usgs/cpkgs/isis3/data/control/testData/unitTest_ControlNetVersioner_ProtoNetwork1_ProtoV0001.net to=PvlNetwork.pvl
In this example, we are converting a binary V0001 network from the test data area to a PVL network.

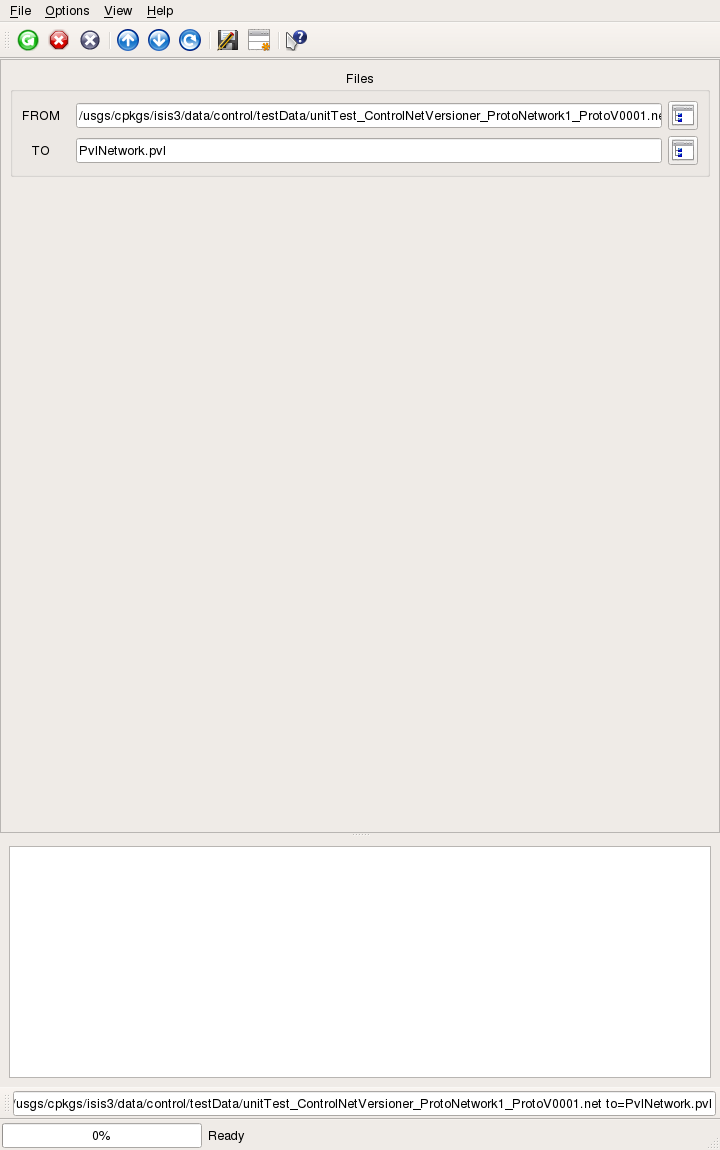

GUI Screenshot
Input Image
Output Image
|
![Cnetbin2pvl -gui](javascript:popUpNewWindow ("assets/image/cnetbin2pvlGUI.png",500, 500))
![Input control network](javascript:popUpNewWindow ("assets/image/InputNetwork.png",500, 500))
![Output PVL network that was made from the existing network.](javascript:popUpNewWindow ("assets/image/OutputNetwork.png",500, 500))
