ISIS 3 Application Documentation

isis2ascii

Printer Friendly View | TOC | Home

Export cube to an ascii file

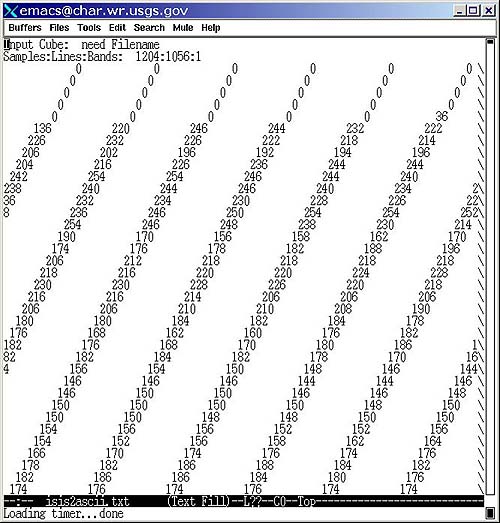

Overview Parameters Example 1

Description

This program converts sn ISIS cube to ASCII file format. Special pixels such as NULL, LIS, LRS, HIS and HRS have predetermined pixel values. You may opt to assign a range of pixel values to the individual Special Pixels using the SETPIXELVALUES parameter. Bands in the cube will be output in band sequential format.

Beware: The output file will be roughly 3 times as big as the input.

Categories

Related Applications to Previous Versions of ISIS

This program replaces the following applications existing in previous versions of ISIS:
  • list
  • cube2ascii

History

Tracie L Sucharski2002-06-28 Original version
Tracie Sucharski2002-10-25 Fixed bug-was writing LRS for LIS values.
K Teal Thompson2002-11-25 Add example
Tracie Sucharski2003-01-28 Remove from Utility category.
K Teal Thompson2003-02-03 Make images smaller.
K Teal Thompson2003-03-19 Add /image and /thumb directory.
Tracie Sucharski2003-04-03 Added-lien:Use IsisString class when outputing pixel values.
Stuart Sides2003-04-04 Fixed problem with isiscvs not checking in the thumb and image directories.
Kim Sides2003-05-13 Added application test
Stuart Sides2003-05-16 Modified schema location from astogeology... to isis.astrogeology..."
Stuart Sides2003-07-29 Modified filename parameters to be cube parameters where necessary
Jeff Anderson2003-08-27 Changed default extension handling mechanism
Brendan George2006-09-28 Documentation fixes
Steven Lambright2008-05-12 Removed references to CubeInfo
Makayla Shepherd2015-01-30 Increased precision of the DNs in the output text file from 6 to 7
Adam Paquette2016-06-15 Added the ability for a user to specify the special pixel values
U.S. Department of the Interior | U.S. Geological Survey
ISIS | Privacy & Disclaimers | Astrogeology Research Program
To contact us, please post comments and questions on the USGS Astrogeology Discussion Board
To report a bug, or suggest a feature go to: ISIS Github
File Modified: 07/13/2023 15:23:20
X

Files: FROM

Description

The file name of the input cube to be listed.

Type cube
File Mode input
Filter *.cub
Close Window
X

Files: TO

Description

The file name of the ascii output file.

Type filename
File Mode output
Filter *.txt
Close Window
X

Options: HEADER

Description

If set to yes, a brief header will be printed to the ascii file which will include the cube name and dimensions.

Type boolean
Default YES
Close Window
X

Special Pixels: SETPIXELVALUES

Description

Determine whether the user would like a specific output for the special pixels in the image.

Type boolean
Default NO
Inclusions
  • NULLVALUE
  • LRSVALUE
  • LISVALUE
  • HISVALUE
  • HRSVALUE
Close Window
X

Special Pixels: NULLVALUE

Description

Value that will replace any null pixel within a cub with the number entered. Defaults to NULL if nothing is entered.

Type string
Default NULL
Inclusions
  • SETPIXELVALUES
Close Window
X

Special Pixels: LRSVALUE

Description

Value that will replace any LRS pixel within a cub with the number entered. Defaults to LRS if nothing is entered.

Type string
Default LRS
Inclusions
  • SETPIXELVALUES
Close Window
X

Special Pixels: LISVALUE

Description

Value that will replace any LIS pixel within a cub with the number entered. Defaults to LIS if nothing is entered.

Type string
Default LIS
Inclusions
  • SETPIXELVALUES
Close Window
X

Special Pixels: HISVALUE

Description

Value that will replace any HIS pixel within a cub with the number entered. Defaults to HIS if nothing is entered.

Type string
Default HIS
Inclusions
  • SETPIXELVALUES
Close Window
X

Special Pixels: HRSVALUE

Description

Value that will replace any HRS pixel within a cub with the number entered. Defaults to HRS if nothing is entered.

Type string
Default HRS
Inclusions
  • SETPIXELVALUES
Close Window
