This is the QwtRasterData for a scatter plot. More...

#include <ScatterPlotData.h>

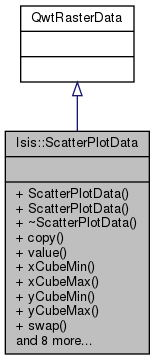

Inheritance diagram for Isis::ScatterPlotData:

Collaboration diagram for Isis::ScatterPlotData:

Public Member Functions
	ScatterPlotData (Cube xCube, int xCubeBand, int xBinCount, Cube yCube, int yCubeBand, int yBinCount, QwtInterval sampleRange, QwtInterval lineRange)
	ScatterPlotDataConstructor. More...

	ScatterPlotData (const ScatterPlotData &other)
	This is an optimized copy constructor. More...

	~ScatterPlotData ()
	Destructor. More...

virtual QwtRasterData *	copy () const
	Returns a copy of the ScatterPlotData object. More...

virtual double	value (double x, double y) const
	This gets called every time the scatter plot is re-drawn. More...

double	xCubeMin () const
	Return the min DN value for the x-axis cube's data range. More...

double	xCubeMax () const
	Return the max DN value for the y-axis cube's data range. More...

double	yCubeMin () const
	Return the min DN value for the y-axis cube's data range. More...

double	yCubeMax () const
	Return the max DN value for the y-axis cube's data range. More...

void	swap (ScatterPlotData &other)
	This is part of the copy-and-swap paradigm. More...

QPair< double, double >	binXY (int binIndex) const
	Get the center X/Y Dn values for the bin at index. More...

int	binCount (int binIndex) const
	Get the count (number of values) which fall into the bin at index. More...

int	numberOfBins () const
	Get the total number of bins (bin count in x * bin count in y). More...

QVector< double >	discreteXValues () const
	Get a list of all of the x-bin center values for this scatter plot. More...

void	alarm (double x, double y)
	Alarm the bin (highlight it) at the given x/y DN value. More...

void	clearAlarms ()
	Forget all alarmed bins (viewport->plot). More...

QRectF	pixelHint (const QRectF &area) const
	This is a hint given to qwt for how to render a pixel in the spectrogram. More...

ScatterPlotData &	operator= (const ScatterPlotData &other)
	Take the data from other and copy it into this. More...

Detailed Description

This is the QwtRasterData for a scatter plot.

This gives Qwt values to put in each bin for a spectrogram, effectively making the scatter plot.

Author: ????-??-?? Unknown

Constructor & Destructor Documentation

◆ ScatterPlotData() [1/2]

Isis::ScatterPlotData::ScatterPlotData	(	Cube *	xCube,
		int	xCubeBand,
		int	xBinCount,
		Cube *	yCube,
		int	yCubeBand,
		int	yBinCount,
		QwtInterval	sampleRange,
		QwtInterval	lineRange
	)

ScatterPlotDataConstructor.

Parameters

xCube	The x-axis cube
xCubeBand	The x-axis cube's band to get DN values from
xBinCount	The resolution of the x-axis
yCube	The y-axis cube
yCubeBand	The y-axis cube's band to get DN values from
yBinCount	The resolution of the y-axis
sampleRange	The sample range to gather the histogram from, this is the same for the x cube and y cube.
lineRange	The line range to gather the histogram from, this is the same for the x cube and y cube.

References ASSERT, Isis::IsSpecial(), Isis::Cube::lineCount(), Isis::Statistics::Maximum(), Isis::Statistics::Minimum(), Isis::Cube::pixelType(), Isis::Cube::read(), Isis::Cube::sampleCount(), and value().

Referenced by copy().

◆ ScatterPlotData() [2/2]

Isis::ScatterPlotData::ScatterPlotData ( const ScatterPlotData & other )

This is an optimized copy constructor.

Copies are not zero-time, but they are pretty quick.

Parameters

other The ScatterPlotData to copy.

◆ ~ScatterPlotData()

Isis::ScatterPlotData::~ScatterPlotData ( )

Destructor.

Member Function Documentation

◆ alarm()

void Isis::ScatterPlotData::alarm	(	double	x,
		double	y
	)

Alarm the bin (highlight it) at the given x/y DN value.

This is for viewport->plot alarming.

Parameters

x	The x-dn value of the bin to alarm
y	The y-dn value of the bin to alarm

Referenced by Isis::ScatterPlotWindow::setMousePosition().

◆ binCount()

int Isis::ScatterPlotData::binCount ( int binIndex ) const

Get the count (number of values) which fall into the bin at index.

Parameters

binIndex The bin we're getting the data from

Returns: The total number of cube DNs which fall into the given bin

Referenced by value().

◆ binXY()

QPair< double, double > Isis::ScatterPlotData::binXY ( int index ) const

Get the center X/Y Dn values for the bin at index.

Parameters

index The bin to get the center X/Y DN Values for

Returns: The center DN value of the given bin

References _FILEINFO_, numberOfBins(), and Isis::IException::Programmer.

◆ clearAlarms()

void Isis::ScatterPlotData::clearAlarms ( )

Forget all alarmed bins (viewport->plot).

Referenced by Isis::ScatterPlotWindow::setMousePosition().

◆ copy()

QwtRasterData * Isis::ScatterPlotData::copy ( ) const

virtual

Returns a copy of the ScatterPlotData object.

Returns: A new instance this this class

References ScatterPlotData().

◆ discreteXValues()

QVector< double > Isis::ScatterPlotData::discreteXValues ( ) const

Get a list of all of the x-bin center values for this scatter plot.

Returns: A set of discrete x values, useful for things like fitting a line

Referenced by Isis::PlotWindowBestFitDialog::createBestFitLine().

◆ numberOfBins()

int Isis::ScatterPlotData::numberOfBins ( ) const

Get the total number of bins (bin count in x * bin count in y).

Returns: The total number of bins

Referenced by binXY().

◆ operator=()

ScatterPlotData & Isis::ScatterPlotData::operator= ( const ScatterPlotData & other )

Take the data from other and copy it into this.

This uses the copy-and-swap paradigm for exception safety.

Parameters

other The scatter plot data which needs copied to this

Returns: This returns *this.

References swap().

◆ pixelHint()

QRectF Isis::ScatterPlotData::pixelHint ( const QRectF & area ) const

This is a hint given to qwt for how to render a pixel in the spectrogram.

Parameters

area	This is ignored

Returns: The size of a pixel in the scatter plot

◆ swap()

void Isis::ScatterPlotData::swap ( ScatterPlotData & other )

This is part of the copy-and-swap paradigm.

Swap member data with other.

Parameters

other The class to trade member data with

Referenced by operator=().

◆ value()

double Isis::ScatterPlotData::value	(	double	x,
		double	y
	)		const

virtual

This gets called every time the scatter plot is re-drawn.

This returns the counts for each DN (x), DN (y), or if the bin is alarmed this returns the max count.

Parameters

x	The X-Dn value
y	The Y-Dn value

Returns: The bin's colorizable-value

References binCount().

Referenced by ScatterPlotData().

◆ xCubeMax()

double Isis::ScatterPlotData::xCubeMax ( ) const

Return the max DN value for the y-axis cube's data range.

Returns: x axis cube data max DN value

Referenced by Isis::ScatterPlotWindow::ScatterPlotWindow().

◆ xCubeMin()

double Isis::ScatterPlotData::xCubeMin ( ) const

Return the min DN value for the x-axis cube's data range.

Returns: x axis cube data min DN value

Referenced by Isis::ScatterPlotWindow::ScatterPlotWindow().

◆ yCubeMax()

double Isis::ScatterPlotData::yCubeMax ( ) const

Return the max DN value for the y-axis cube's data range.

Returns: x axis cube data max DN value

Referenced by Isis::ScatterPlotWindow::ScatterPlotWindow().

◆ yCubeMin()

double Isis::ScatterPlotData::yCubeMin ( ) const

Return the min DN value for the y-axis cube's data range.

Returns: y axis cube data min DN value

Referenced by Isis::ScatterPlotWindow::ScatterPlotWindow().

The documentation for this class was generated from the following files:

/usgs/pkgs/isis3.9.0_docs/ISIS3/isis/src/qisis/objs/ScatterPlotTool/ScatterPlotData.h
/usgs/pkgs/isis3.9.0_docs/ISIS3/isis/src/qisis/objs/ScatterPlotTool/ScatterPlotData.cpp
