This class is used to modify and manage solve settings for 1 to many BundleObservations. More...

#include <BundleObservationSolveSettings.h>

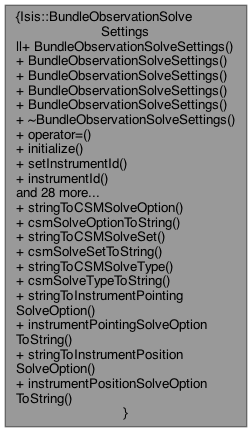

Collaboration diagram for Isis::BundleObservationSolveSettings:

Public Types
enum	CSMSolveOption { NoCSMParameters = 0 , Set = 1 , Type = 2 , List = 3 }
	Options for how to solve for CSM parameters. More...

enum	InstrumentPointingSolveOption { NoPointingFactors = 0 , AnglesOnly = 1 , AnglesVelocity = 2 , AnglesVelocityAcceleration = 3 , AllPointingCoefficients = 4 }
	Options for how to solve for instrument pointing. More...

enum	InstrumentPositionSolveOption { NoPositionFactors = 0 , PositionOnly = 1 , PositionVelocity = 2 , PositionVelocityAcceleration = 3 , AllPositionCoefficients = 4 }
	Options for how to solve for instrument position. More...

Public Member Functions
	BundleObservationSolveSettings ()
	Constructor with default parameter initializations. More...

	BundleObservationSolveSettings (Project project, XmlStackedHandlerReader xmlReader)
	Construct this BundleObservationSolveSettings object from XML. More...

	BundleObservationSolveSettings (FileName xmlFile, Project project, XmlStackedHandlerReader xmlReader)

	BundleObservationSolveSettings (const BundleObservationSolveSettings &src)
	Constructs a BundleObservationSolveSettings from another one. More...

	BundleObservationSolveSettings (const PvlGroup &scParameterGroup)

	~BundleObservationSolveSettings ()
	Destructor. More...

BundleObservationSolveSettings &	operator= (const BundleObservationSolveSettings &src)
	Assigns the state of another BundleObservationSolveSettings to this one. More...

void	initialize ()
	Initializes the default state of this BundleObservationSolveSettings. More...

void	setInstrumentId (QString instrumentId)
	Sets the instrument id for this observation. More...

QString	instrumentId () const
	Accesses the instrument id for this observation. More...

void	addObservationNumber (QString observationNumber)
	Associates an observation number with these solve settings. More...

bool	removeObservationNumber (QString observationNumber)
	Removes an observation number from this solve settings. More...

QSet< QString >	observationNumbers () const
	Returns a list of observation numbers associated with these solve settings. More...

void	setCSMSolveSet (csm::param::Set set)
	Set the set of CSM parameters to solve for. More...

void	setCSMSolveType (csm::param::Type type)
	Set the type of CSM parameters to solve for. More...

void	setCSMSolveParameterList (QStringList list)
	Set an explicit list of CSM parameters to solve for. More...

CSMSolveOption	csmSolveOption () const
	Get how the CSM parameters to solve for are specified for this observation. More...

csm::param::Set	csmParameterSet () const
	Get the set of CSM parameters to solve for. More...

csm::param::Type	csmParameterType () const
	Get the type of CSM parameters to solve for. More...

QStringList	csmParameterList () const
	Get the list of CSM parameters to solve for. More...

void	setInstrumentPointingSettings (InstrumentPointingSolveOption option, bool solveTwist, int ckDegree=2, int ckSolveDegree=2, bool solvePolynomialOverExisting=false, double anglesAprioriSigma=-1.0, double angularVelocityAprioriSigma=-1.0, double angularAccelerationAprioriSigma=-1.0, QList< double > *additionalPointingSigmas=nullptr)
	Sets the instrument pointing settings. More...

InstrumentPointingSolveOption	instrumentPointingSolveOption () const
	Accesses the instrument pointing solve option. More...

bool	solveTwist () const
	Accesses the flag for solving for twist. More...

int	ckDegree () const
	Accesses the degree of polynomial fit to original camera angles (ckDegree). More...

int	ckSolveDegree () const
	Accesses the degree of the camera angles polynomial being fit to in the bundle adjustment (ckSolveDegree). More...

int	numberCameraAngleCoefficientsSolved () const
	Accesses the number of camera angle coefficients in the solution. More...

bool	solvePolyOverPointing () const
	Whether or not the solve polynomial will be fit over the existing pointing polynomial. More...

QList< double >	aprioriPointingSigmas () const
	Accesses the a priori pointing sigmas. More...

SpiceRotation::Source	pointingInterpolationType () const
	Accesses the SpiceRotation interpolation type for the instrument pointing. More...

void	setInstrumentPositionSettings (InstrumentPositionSolveOption option, int spkDegree=2, int spkSolveDegree=2, bool positionOverHermite=false, double positionAprioriSigma=-1.0, double velocityAprioriSigma=-1.0, double accelerationAprioriSigma=-1.0, QList< double > *additionalPositionSigmas=nullptr)
	Sets the instrument pointing settings. More...

InstrumentPositionSolveOption	instrumentPositionSolveOption () const
	Accesses the instrument position solve option. More...

int	spkDegree () const
	Accesses the degree of the polynomial fit to the original camera position (spkDegree). More...

int	spkSolveDegree () const
	Accesses the degree of thecamera position polynomial being fit to in the bundle adjustment (spkSolveDegree). More...

int	numberCameraPositionCoefficientsSolved () const
	Accesses the number of camera position coefficients in the solution. More...

bool	solvePositionOverHermite () const
	Whether or not the polynomial for solving will be fit over an existing Hermite spline. More...

QList< double >	aprioriPositionSigmas () const
	Accesses the a priori position sigmas. More...

SpicePosition::Source	positionInterpolationType () const
	Accesses the SpicePosition interpolation type for the spacecraft position. More...

void	save (QXmlStreamWriter &stream, const Project *project) const
	Saves this BundleObservationSolveSettings to an xml stream. More...

Static Public Member Functions
static CSMSolveOption	stringToCSMSolveOption (QString option)
	Convert a string to a CSM solve option enumeration value. More...

static QString	csmSolveOptionToString (CSMSolveOption option)
	Convert a CSM solve option enumeration value to a string. More...

static csm::param::Set	stringToCSMSolveSet (QString set)
	Convert a string to its CSM parameter set enumeration value. More...

static QString	csmSolveSetToString (csm::param::Set set)
	Convert a CSM parameter set enumeration value to a string. More...

static csm::param::Type	stringToCSMSolveType (QString type)
	Convert a string to its CSM parameter type enumeration value. More...

static QString	csmSolveTypeToString (csm::param::Type type)
	Convert a CSM parameter type enumeration value to a string. More...

static InstrumentPointingSolveOption	stringToInstrumentPointingSolveOption (QString option)
	Translates a QString InstrumentPointingSolveOption to its enumerated value. More...

static QString	instrumentPointingSolveOptionToString (InstrumentPointingSolveOption option)
	Tranlsates an enumerated InstrumentPointingSolveOption value to its string representation. More...

static InstrumentPositionSolveOption	stringToInstrumentPositionSolveOption (QString option)
	Translates a QString InstrumentPositionSolveOption to its enumerated value. More...

static QString	instrumentPositionSolveOptionToString (InstrumentPositionSolveOption option)
	Translates an enumerated InstrumentPositionSolveOption to its string representation. More...

Detailed Description

This class is used to modify and manage solve settings for 1 to many BundleObservations.

These settings indicate how any associated observations should be solved.

Author: 2014-07-09 Ken Edmundson

Member Enumeration Documentation

◆ CSMSolveOption

enum Isis::BundleObservationSolveSettings::CSMSolveOption

Options for how to solve for CSM parameters.

Enumerator
NoCSMParameters	Do not solve for CSM parameters.
Set	Solve for all CSM parameters belonging to a specific set.
Type	Solve for all CSM parameters of a specific type.
List	Solve for an explicit list of CSM parameters.

◆ InstrumentPointingSolveOption

enum Isis::BundleObservationSolveSettings::InstrumentPointingSolveOption

Options for how to solve for instrument pointing.

Enumerator
NoPointingFactors	Solve for none of the pointing factors.
AnglesOnly	Solve for pointing angles: right ascension, declination and, optionally, twist.
AnglesVelocity	Solve for pointing angles and their angular velocities.
AnglesVelocityAcceleration	Solve for pointing angles, their velocities and their accelerations.
AllPointingCoefficients	Solve for all coefficients in the polynomials fit to the pointing angles.

◆ InstrumentPositionSolveOption

enum Isis::BundleObservationSolveSettings::InstrumentPositionSolveOption

Options for how to solve for instrument position.

Enumerator
NoPositionFactors	Solve for none of the position factors.
PositionOnly	Solve for instrument positions only.
PositionVelocity	Solve for instrument positions and velocities.
PositionVelocityAcceleration	Solve for instrument positions, velocities, and accelerations.
AllPositionCoefficients	Solve for all coefficients in the polynomials fit to the instrument positions.

Constructor & Destructor Documentation

◆ BundleObservationSolveSettings() [1/5]

Isis::BundleObservationSolveSettings::BundleObservationSolveSettings ( )

Constructor with default parameter initializations.

References initialize().

◆ BundleObservationSolveSettings() [2/5]

Isis::BundleObservationSolveSettings::BundleObservationSolveSettings	(	Project *	project,
		XmlStackedHandlerReader *	xmlReader
	)

Construct this BundleObservationSolveSettings object from XML.

Parameters

bundleSettingsFolder	Where this settings XML resides - /work/.../projectRoot/images/import1
xmlReader	An XML reader that's up to an <bundleSettings> tag.

References initialize(), and Isis::XmlStackedHandlerReader::pushContentHandler().

◆ BundleObservationSolveSettings() [3/5]

Isis::BundleObservationSolveSettings::BundleObservationSolveSettings	(	FileName	xmlFile,
		Project *	project,
		XmlStackedHandlerReader *	xmlReader
	)

◆ BundleObservationSolveSettings() [4/5]

Isis::BundleObservationSolveSettings::BundleObservationSolveSettings ( const BundleObservationSolveSettings & other )

Constructs a BundleObservationSolveSettings from another one.

Parameters

other The BundleObservationSolveSettings to copy

◆ BundleObservationSolveSettings() [5/5]

Isis::BundleObservationSolveSettings::BundleObservationSolveSettings ( const PvlGroup & scParameterGroup )

◆ ~BundleObservationSolveSettings()

Isis::BundleObservationSolveSettings::~BundleObservationSolveSettings ( )

Destructor.

Member Function Documentation

◆ addObservationNumber()

void Isis::BundleObservationSolveSettings::addObservationNumber ( QString observationNumber )

Associates an observation number with these solve settings.

These solve settings are to be applied to any associated observations.

Parameters

observationNumber QString observation number to associate with these settings.

Referenced by Isis::JigsawSetupDialog::JigsawSetupDialog().

◆ aprioriPointingSigmas()

QList< double > Isis::BundleObservationSolveSettings::aprioriPointingSigmas ( ) const

Accesses the a priori pointing sigmas.

Returns: QList<double> Returns a QList of the a priori pointing sigmas

Referenced by Isis::BundleSolutionInfo::outputHeader(), and Isis::JigsawSetupDialog::treeViewSelectionChanged().

◆ aprioriPositionSigmas()

QList< double > Isis::BundleObservationSolveSettings::aprioriPositionSigmas ( ) const

Accesses the a priori position sigmas.

Returns: QList<double> Returns a QList of the a priori position sigmas

Referenced by Isis::BundleSolutionInfo::outputHeader(), and Isis::JigsawSetupDialog::treeViewSelectionChanged().

◆ ckDegree()

int Isis::BundleObservationSolveSettings::ckDegree ( ) const

Accesses the degree of polynomial fit to original camera angles (ckDegree).

Returns: int Returns the degree of the polynomial fit to the original camera angles

Referenced by Isis::BundleSolutionInfo::outputHeader(), setInstrumentPointingSettings(), and Isis::JigsawSetupDialog::treeViewSelectionChanged().

◆ ckSolveDegree()

int Isis::BundleObservationSolveSettings::ckSolveDegree ( ) const

Accesses the degree of the camera angles polynomial being fit to in the bundle adjustment (ckSolveDegree).

Returns: int Returns the degree of the camera angles polynomial in the bundle adjustment

Referenced by Isis::BundleSolutionInfo::outputHeader(), setInstrumentPointingSettings(), and Isis::JigsawSetupDialog::treeViewSelectionChanged().

◆ csmParameterList()

QStringList Isis::BundleObservationSolveSettings::csmParameterList ( ) const

Get the list of CSM parameters to solve for.

Returns: QStringList The names of the CSM parameters to solve for

◆ csmParameterSet()

csm::param::Set Isis::BundleObservationSolveSettings::csmParameterSet ( ) const

Get the set of CSM parameters to solve for.

Returns: csm::param::Set The CSM parameter set to solve for

◆ csmParameterType()

csm::param::Type Isis::BundleObservationSolveSettings::csmParameterType ( ) const

Get the type of CSM parameters to solve for.

Returns: csm::param::Type The CSM parameter type to solve for

◆ csmSolveOption()

BundleObservationSolveSettings::CSMSolveOption Isis::BundleObservationSolveSettings::csmSolveOption ( ) const

Get how the CSM parameters to solve for are specified for this observation.

Returns: CSMSolveOption

◆ csmSolveOptionToString()

QString Isis::BundleObservationSolveSettings::csmSolveOptionToString ( CSMSolveOption option )

static

Convert a CSM solve option enumeration value to a string.

Parameters

option The option's enumeration value

Returns: QString The option as a string

References _FILEINFO_, List, NoCSMParameters, Isis::IException::Programmer, Set, Isis::toString(), and Type.

◆ csmSolveSetToString()

QString Isis::BundleObservationSolveSettings::csmSolveSetToString ( csm::param::Set set )

static

Convert a CSM parameter set enumeration value to a string.

Parameters

set	The set's enumeration value

Returns: QString The set's name

References _FILEINFO_, Isis::IException::Programmer, and Isis::toString().

◆ csmSolveTypeToString()

QString Isis::BundleObservationSolveSettings::csmSolveTypeToString ( csm::param::Type type )

static

Convert a CSM parameter type enumeration value to a string.

Parameters

type	The type's enumeration value

Returns: QString The type's name

References _FILEINFO_, Isis::IException::Programmer, and Isis::toString().

◆ initialize()

void Isis::BundleObservationSolveSettings::initialize ( )

Initializes the default state of this BundleObservationSolveSettings.

References AnglesOnly, NoCSMParameters, NoPositionFactors, setInstrumentPointingSettings(), and setInstrumentPositionSettings().

Referenced by BundleObservationSolveSettings().

◆ instrumentId()

QString Isis::BundleObservationSolveSettings::instrumentId ( ) const

Accesses the instrument id for this observation.

Returns: QString Returns the instrument id for this observation

Referenced by save(), and setInstrumentId().

◆ instrumentPointingSolveOption()

BundleObservationSolveSettings::InstrumentPointingSolveOption Isis::BundleObservationSolveSettings::instrumentPointingSolveOption ( ) const

Accesses the instrument pointing solve option.

Returns: BundleObservationSolveSettings::InstrumentPointingSolveOption Returns the instrument pointing solve option

Referenced by Isis::JigsawSetupDialog::treeViewSelectionChanged().

◆ instrumentPointingSolveOptionToString()

QString Isis::BundleObservationSolveSettings::instrumentPointingSolveOptionToString ( InstrumentPointingSolveOption option )

static

Tranlsates an enumerated InstrumentPointingSolveOption value to its string representation.

Parameters

option Enumerated InstrumentPointingSolveOption value

Exceptions

IException::Programmer "Unknown pointing solve option enum."

Returns: QString Returns the QString representation of the passed InstrumentPointingSolveOption

References _FILEINFO_, AllPointingCoefficients, AnglesOnly, AnglesVelocity, AnglesVelocityAcceleration, NoPointingFactors, Isis::IException::Programmer, and Isis::toString().

Referenced by Isis::IsisBundleObservation::applyParameterCorrections(), and save().

◆ instrumentPositionSolveOption()

BundleObservationSolveSettings::InstrumentPositionSolveOption Isis::BundleObservationSolveSettings::instrumentPositionSolveOption ( ) const

Accesses the instrument position solve option.

Returns: BundleObservationSolveSettings::InstrumentPositionSolveOption Returns the instrument position solve option

Referenced by Isis::JigsawSetupDialog::treeViewSelectionChanged().

◆ instrumentPositionSolveOptionToString()

QString Isis::BundleObservationSolveSettings::instrumentPositionSolveOptionToString ( InstrumentPositionSolveOption option )

static

Translates an enumerated InstrumentPositionSolveOption to its string representation.

Parameters

option Enumerated InstrumentPositionSolveOption value

Exceptions

IException::Programmer "Unknown position solve option enum."

Returns: QString Returns the QString representation of the passed InstrumentPointingSolveOption

References _FILEINFO_, AllPositionCoefficients, NoPositionFactors, PositionOnly, PositionVelocity, PositionVelocityAcceleration, Isis::IException::Programmer, and Isis::toString().

Referenced by Isis::IsisBundleObservation::applyParameterCorrections(), and save().

◆ numberCameraAngleCoefficientsSolved()

int Isis::BundleObservationSolveSettings::numberCameraAngleCoefficientsSolved ( ) const

Accesses the number of camera angle coefficients in the solution.

Returns: int Returns the number of camera angle coefficients in the solution

Referenced by Isis::BundleSolutionInfo::outputHeader().

◆ numberCameraPositionCoefficientsSolved()

int Isis::BundleObservationSolveSettings::numberCameraPositionCoefficientsSolved ( ) const

Accesses the number of camera position coefficients in the solution.

Returns: int Returns the number of camera position coefficients.

Referenced by Isis::BundleSolutionInfo::outputHeader().

◆ observationNumbers()

QSet< QString > Isis::BundleObservationSolveSettings::observationNumbers ( ) const

Returns a list of observation numbers associated with these solve settings.

Returns: QSet<QString> Returns a QSet containing the associated observation numbers.

Referenced by Isis::JigsawSetupDialog::JigsawSetupDialog().

◆ operator=()

BundleObservationSolveSettings & Isis::BundleObservationSolveSettings::operator= ( const BundleObservationSolveSettings & other )

Assigns the state of another BundleObservationSolveSettings to this one.

Parameters

other The other BundleObservationSolveSettings to assign state from

◆ pointingInterpolationType()

SpiceRotation::Source Isis::BundleObservationSolveSettings::pointingInterpolationType ( ) const

Accesses the SpiceRotation interpolation type for the instrument pointing.

Returns: SpiceRotation::Source Returns the SpiceRotation interpolation type for pointing

◆ positionInterpolationType()

SpicePosition::Source Isis::BundleObservationSolveSettings::positionInterpolationType ( ) const

Accesses the SpicePosition interpolation type for the spacecraft position.

Returns: SpicePosition::Source Returns the SpicePositon interpolation type for position

◆ removeObservationNumber()

bool Isis::BundleObservationSolveSettings::removeObservationNumber ( QString observationNumber )

Removes an observation number from this solve settings.

The observation is no longer associated with this solve settings.

Parameters

QString observationNumber The observation number to remove from this solve settings.

Returns: bool Returns true if the observation number passed was actually removed; otherwise returns false.

◆ save()

void Isis::BundleObservationSolveSettings::save	(	QXmlStreamWriter &	stream,
		const Project *	project
	)		const

Saves this BundleObservationSolveSettings to an xml stream.

Parameters

stream	A QXmlStreamWriter to write to
project	Pointer to the current project

References instrumentId(), instrumentPointingSolveOptionToString(), instrumentPositionSolveOptionToString(), Isis::IsSpecial(), and Isis::toString().

◆ setCSMSolveParameterList()

void Isis::BundleObservationSolveSettings::setCSMSolveParameterList ( QStringList list )

Set an explicit list of CSM parameters to solve for.

Parameters

list	The names of the parameters to solve for

References List.

Referenced by BundleObservationSolveSettings().

◆ setCSMSolveSet()

void Isis::BundleObservationSolveSettings::setCSMSolveSet ( csm::param::Set set )

Set the set of CSM parameters to solve for.

See the CSM API documentation for what the different set values mean.

Parameters

set	The set to solve for

References Set.

Referenced by BundleObservationSolveSettings().

◆ setCSMSolveType()

void Isis::BundleObservationSolveSettings::setCSMSolveType ( csm::param::Type type )

Set the type of CSM parameters to solve for.

Parameters

type	The parameter type to solve for

References Type.

Referenced by BundleObservationSolveSettings().

◆ setInstrumentId()

void Isis::BundleObservationSolveSettings::setInstrumentId ( QString instrumentId )

Sets the instrument id for this observation.

Parameters

instrumentId QString instrument id

References instrumentId().

◆ setInstrumentPointingSettings()

void Isis::BundleObservationSolveSettings::setInstrumentPointingSettings	(	InstrumentPointingSolveOption	option,
		bool	solveTwist,
		int	ckDegree = `2`,
		int	ckSolveDegree = `2`,
		bool	solvePolynomialOverExisting = `false`,
		double	anglesAprioriSigma = `-1.0`,
		double	angularVelocityAprioriSigma = `-1.0`,
		double	angularAccelerationAprioriSigma = `-1.0`,
		QList< double > *	additionalPointingSigmas = `nullptr`
	)

Sets the instrument pointing settings.

Parameters

option	Option for how to solve for instrument pointing
solveTwist	Whether or not to solve for twist
ckDegree
ckSolveDegree
solvePolynomialOverExisting	Indicates whether the polynomial will be fit over an existing pointing polynomial
anglesAprioriSigma	A priori angle values
angularVelocityAprioriSigma	A priori angular velocity
angularAccelerationAprioriSigma	A priori angular acceleration

References AllPointingCoefficients, ckDegree(), ckSolveDegree(), Isis::Null, Isis::SpiceRotation::PolyFunction, Isis::SpiceRotation::PolyFunctionOverSpice, and solveTwist().

Referenced by initialize(), and Isis::JigsawSetupDialog::JigsawSetupDialog().

◆ setInstrumentPositionSettings()

void Isis::BundleObservationSolveSettings::setInstrumentPositionSettings	(	InstrumentPositionSolveOption	option,
		int	spkDegree = `2`,
		int	spkSolveDegree = `2`,
		bool	positionOverHermite = `false`,
		double	positionAprioriSigma = `-1.0`,
		double	velocityAprioriSigma = `-1.0`,
		double	accelerationAprioriSigma = `-1.0`,
		QList< double > *	additionalPositionSigmas = `nullptr`
	)

Sets the instrument pointing settings.

Parameters

option	Option for how to solve the instrument position
spkDegree
spkSolveDegree
positionOverHermite	Whether or not the polynomial will be fit over an existing Hermite spline
positionAprioriSigma	A priori position sigma
velocityAprioriSigma	A priori velocity sigma
accelerationAprioriSigma	A priori acceleration sigma

References AllPositionCoefficients, Isis::Null, Isis::SpicePosition::PolyFunction, Isis::SpicePosition::PolyFunctionOverHermiteConstant, spkDegree(), and spkSolveDegree().

Referenced by initialize().

◆ solvePolyOverPointing()

bool Isis::BundleObservationSolveSettings::solvePolyOverPointing ( ) const

Whether or not the solve polynomial will be fit over the existing pointing polynomial.

Returns: bool Indicates whether the polynomial will be fit over the existing pointing polynomial

Referenced by Isis::BundleSolutionInfo::outputHeader(), and Isis::JigsawSetupDialog::treeViewSelectionChanged().

◆ solvePositionOverHermite()

bool Isis::BundleObservationSolveSettings::solvePositionOverHermite ( ) const

Whether or not the polynomial for solving will be fit over an existing Hermite spline.

Returns: bool Returns whether or not to fit the solve polynomial over an existing Hermite spline

Referenced by Isis::BundleSolutionInfo::outputHeader(), and Isis::JigsawSetupDialog::treeViewSelectionChanged().

◆ solveTwist()

bool Isis::BundleObservationSolveSettings::solveTwist ( ) const

Accesses the flag for solving for twist.

Returns: bool Returns whether or not to solve for twist

Referenced by Isis::BundleSolutionInfo::outputHeader(), setInstrumentPointingSettings(), and Isis::JigsawSetupDialog::treeViewSelectionChanged().

◆ spkDegree()

int Isis::BundleObservationSolveSettings::spkDegree ( ) const

Accesses the degree of the polynomial fit to the original camera position (spkDegree).

Returns: int Returns the degree of the original camera position polynomial.

Referenced by Isis::BundleSolutionInfo::outputHeader(), setInstrumentPositionSettings(), and Isis::JigsawSetupDialog::treeViewSelectionChanged().

◆ spkSolveDegree()

int Isis::BundleObservationSolveSettings::spkSolveDegree ( ) const

Accesses the degree of thecamera position polynomial being fit to in the bundle adjustment (spkSolveDegree).

Returns: int Returns the degree of the camera position polynomial in the bundle adjustment.

Referenced by Isis::BundleSolutionInfo::outputHeader(), setInstrumentPositionSettings(), and Isis::JigsawSetupDialog::treeViewSelectionChanged().

◆ stringToCSMSolveOption()

BundleObservationSolveSettings::CSMSolveOption Isis::BundleObservationSolveSettings::stringToCSMSolveOption ( QString option )

static

Convert a string to a CSM solve option enumeration value.

Parameters

option The option as a string

Returns: CSMSolveOption The option's enumeration value

References _FILEINFO_, List, NoCSMParameters, Set, Type, and Isis::IException::Unknown.

◆ stringToCSMSolveSet()

csm::param::Set Isis::BundleObservationSolveSettings::stringToCSMSolveSet ( QString set )

static

Convert a string to its CSM parameter set enumeration value.

Parameters

set	The set name

Returns: csm::param::Set The set's enumeration value

References _FILEINFO_, and Isis::IException::Unknown.

Referenced by BundleObservationSolveSettings().

◆ stringToCSMSolveType()

csm::param::Type Isis::BundleObservationSolveSettings::stringToCSMSolveType ( QString type )

static

Convert a string to its CSM parameter type enumeration value.

Parameters

type	The type name

Returns: csm::param::Type The types's enumeration value

References _FILEINFO_, and Isis::IException::Unknown.

Referenced by BundleObservationSolveSettings().

◆ stringToInstrumentPointingSolveOption()

BundleObservationSolveSettings::InstrumentPointingSolveOption Isis::BundleObservationSolveSettings::stringToInstrumentPointingSolveOption ( QString option )

static

Translates a QString InstrumentPointingSolveOption to its enumerated value.

Parameters

option QString representation of the instrument pointing solve option

Exceptions

IException::Unknown "Unknown bundle instrument point solve option."

Returns: BundleObservationSolveSettings::InstrumentPointingSolveOption Returns the enumerated value of the instrument pointing solve option

References _FILEINFO_, AllPointingCoefficients, AnglesOnly, AnglesVelocity, AnglesVelocityAcceleration, NoPointingFactors, and Isis::IException::Unknown.

◆ stringToInstrumentPositionSolveOption()

BundleObservationSolveSettings::InstrumentPositionSolveOption Isis::BundleObservationSolveSettings::stringToInstrumentPositionSolveOption ( QString option )

static

Translates a QString InstrumentPositionSolveOption to its enumerated value.

Parameters

option QString representation of an instrument position solve option

Exceptions

IExeption::Unknown "Unknown bundle instrument position solve option."

Returns: BundleObservationSolveSettings::InstrumentPositionSolveOption Returns the enumerated value of the instrument position solve option

References _FILEINFO_, AllPositionCoefficients, NoPositionFactors, PositionOnly, PositionVelocity, PositionVelocityAcceleration, and Isis::IException::Unknown.

The documentation for this class was generated from the following files:

/Users/arsanders/repos/ISIS3/isis/src/control/objs/BundleUtilities/BundleObservationSolveSettings.h
/Users/arsanders/repos/ISIS3/isis/src/control/objs/BundleUtilities/BundleObservationSolveSettings.cpp

Public Types

Public Member Functions

Static Public Member Functions

Detailed Description

Member Enumeration Documentation

◆ CSMSolveOption

◆ InstrumentPointingSolveOption

◆ InstrumentPositionSolveOption

Constructor & Destructor Documentation

◆ BundleObservationSolveSettings() [1/5]

◆ BundleObservationSolveSettings() [2/5]

◆ BundleObservationSolveSettings() [3/5]

◆ BundleObservationSolveSettings() [4/5]

◆ BundleObservationSolveSettings() [5/5]

◆ ~BundleObservationSolveSettings()

Member Function Documentation

◆ addObservationNumber()

◆ aprioriPointingSigmas()

◆ aprioriPositionSigmas()

◆ ckDegree()

◆ ckSolveDegree()

◆ csmParameterList()

◆ csmParameterSet()

◆ csmParameterType()

◆ csmSolveOption()

◆ csmSolveOptionToString()

◆ csmSolveSetToString()

◆ csmSolveTypeToString()

◆ initialize()

◆ instrumentId()

◆ instrumentPointingSolveOption()

◆ instrumentPointingSolveOptionToString()

◆ instrumentPositionSolveOption()

◆ instrumentPositionSolveOptionToString()

◆ numberCameraAngleCoefficientsSolved()

◆ numberCameraPositionCoefficientsSolved()

◆ observationNumbers()

◆ operator=()

◆ pointingInterpolationType()

◆ positionInterpolationType()

◆ removeObservationNumber()

◆ save()

◆ setCSMSolveParameterList()

◆ setCSMSolveSet()

◆ setCSMSolveType()

◆ setInstrumentId()

◆ setInstrumentPointingSettings()

◆ setInstrumentPositionSettings()

◆ solvePolyOverPointing()

◆ solvePositionOverHermite()

◆ solveTwist()

◆ spkDegree()

◆ spkSolveDegree()

◆ stringToCSMSolveOption()

◆ stringToCSMSolveSet()

◆ stringToCSMSolveType()

◆ stringToInstrumentPointingSolveOption()

◆ stringToInstrumentPositionSolveOption()
