a control network More...

#include <ControlNet.h>

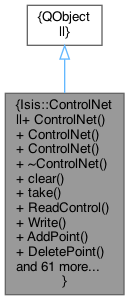

Inheritance diagram for Isis::ControlNet:

Collaboration diagram for Isis::ControlNet:

Public Types
enum	ModType { Swapped , GraphModified }
	Control Point Modification Types. More...

Signals
void	networkStructureModified ()

void	networkModified (ControlNet::ModType type)

void	pointModified (ControlPoint *point, ControlPoint::ModType type, QVariant oldValue, QVariant newValue)

void	measureModified (ControlMeasure *measure, ControlMeasure::ModType type, QVariant oldValue, QVariant newValue)

void	pointDeleted (ControlPoint *point)

void	newPoint (ControlPoint *)

void	newMeasure (ControlMeasure *)

void	measureRemoved (ControlMeasure *)

Public Member Functions
	ControlNet (SurfacePoint::CoordinateType=SurfacePoint::Latitudinal)
	Creates an empty ControlNet object. More...

	ControlNet (const ControlNet &other)

	ControlNet (const QString &filename, Progress *progress=0, SurfacePoint::CoordinateType=SurfacePoint::Latitudinal)
	Creates a ControlNet object from the given file. More...

	~ControlNet ()
	Destructor removes allocated memory. More...

void	clear ()
	Clear the contents of this object. More...

QList< ControlPoint * >	take ()
	Transfer ownership of all points to caller. More...

void	ReadControl (const QString &filename, Progress *progress=0)
	Reads in the control points from the given file. More...

void	Write (const QString &filename, bool pvl=false)
	Writes out the control network. More...

void	AddPoint (ControlPoint *point)
	Adds a ControlPoint to the ControlNet. More...

int	DeletePoint (ControlPoint *point)
	Delete a ControlPoint from the network by the point's address. More...

int	DeletePoint (QString pointId)
	Delete a ControlPoint from the network using the point's Id. More...

int	DeletePoint (int index)
	Delete a ControlPoint from the network using the point's index. More...

bool	ContainsPoint (QString pointId) const

QList< QString >	GetCubeSerials () const
	Use this method to get a complete list of all the cube serial numbers in the network. More...

QString	GraphToString () const
	Used for verifying graph intergrity. More...

QList< QList< QString > >	GetSerialConnections () const
	This method searches through all the cube serial numbers in the network. More...

int	getEdgeCount () const

QList< QString >	getAdjacentImages (QString serialNumber) const
	Get all images connected to a given image by common control points. More...

QList< ControlMeasure * >	GetMeasuresInCube (QString serialNumber)
	Get all the measures pertaining to a given cube serial number. More...

QList< ControlMeasure * >	GetValidMeasuresInCube (QString serialNumber)
	Get all the valid measures pertaining to a given cube serial number. More...

QList< ControlMeasure * >	sortedMeasureList (double(ControlMeasure::*statFunc)() const, double min, double max)
	Get a sorted list of all the measures that have values in a given ragen. More...

void	ComputeResiduals ()
	Compute error for each point in the network. More...

void	ComputeApriori ()
	Compute aprior values for each point in the network. More...

const ControlPoint *	GetPoint (QString pointId) const

ControlPoint *	GetPoint (QString pointId)

const ControlPoint *	GetPoint (int index) const

ControlPoint *	GetPoint (int index)

double	AverageResidual ()
	Compute the average error of all points in the network. More...

Isis::Camera *	Camera (int index)
	Returns the camera list from the given image number. More...

Isis::Camera *	Camera (QString serialNumber)
	Returns the camera list from the input serial number. More...

QString	CreatedDate () const
	Return the Created Date. More...

QString	Description () const
	Return the description of the network. More...

ControlPoint *	FindClosest (QString serialNumber, double sample, double line)
	Finds and returns a pointer to the closest ControlPoint to the ControlMeasure with the given serial number and line sample location. More...

double	GetMaximumResidual ()
	Determine the maximum error of all points in the network. More...

QString	GetNetworkId () const

int	GetNumEditLockMeasures ()
	Return the total number of edit locked measures for all control points in the network. More...

int	GetNumEditLockPoints ()
	Returns the number of edit locked control points. More...

int	GetNumIgnoredMeasures ()
	Return the total number of ignored measures for all control points in the network. More...

int	GetNumberOfValidMeasuresInImage (const QString &serialNumber)
	Return the number of measures in image specified by serialNumber. More...

int	GetNumberOfJigsawRejectedMeasuresInImage (const QString &serialNumber)
	Return the number of jigsaw rejected measures in image specified by serialNumber. More...

void	ClearJigsawRejected ()
	Sets jigsaw rejected flag to false for all points and measures. More...

void	IncrementNumberOfRejectedMeasuresInImage (const QString &serialNumber)
	Increment number of jigsaw rejected measures in image specified by serialNumber. More...

void	DecrementNumberOfRejectedMeasuresInImage (const QString &serialNumber)
	Decrement number of jigsaw rejected measures in image specified by serialNumber. More...

int	GetNumMeasures () const
	Returns the total number of measures for all control points in the network. More...

int	GetNumPoints () const
	Return the number of control points in the network. More...

int	GetNumValidMeasures ()
	Return the number of valid (non-ignored) measures for all control points in the network. More...

int	GetNumValidPoints ()
	Returns the number of non-ignored control points. More...

QString	GetTarget () const
	Return the target name. More...

QString	GetUserName () const
	Return the user name. More...

QString	GetLastModified () const
	Return the last modified date. More...

QList< ControlPoint * >	GetPoints ()
	Return QList of all the ControlPoints in the network. More...

QList< QString >	GetPointIds () const
	Return QList of ControlPoint Ids used in hash, in order of addition. More...

SurfacePoint::CoordinateType	GetCoordType ()
	Get the control point coordinate type (see the available types in SurfacePoint.h). More...

void	SetCreatedDate (const QString &date)
	Set the creation time. More...

void	SetDescription (const QString &newDescription)
	Set the description of the network. More...

void	SetImages (const QString &imageListFile)
	Creates the ControlNet's image cameras based on an input file. More...

void	SetImages (SerialNumberList &list, Progress *progress=0)
	Creates the ControlNet's image camera's based on the list of Serial Numbers. More...

void	SetModifiedDate (const QString &date)
	Set the last modified date. More...

void	SetMutex (QMutex *mutex)
	Set mutex to lock for making Naif calls. More...

void	SetNetworkId (const QString &id)
	Set the network id. More...

void	SetTarget (const QString &target)
	Sets the target name and target radii, if available. More...

void	SetTarget (Pvl label)
	Sets the target name and radii using values found in the mapping group of the given label, if available. More...

void	SetTarget (const ControlNet &other)

void	SetUserName (const QString &name)
	Set the user name of the control network. More...

void	SetCoordType (SurfacePoint::CoordinateType coordType)
	Sets the control point coordinate type. More...

void	swap (ControlNet &other)
	Swaps the member data with the given control net. More...

ControlNet &	operator= (const ControlNet &other)
	Assign other to this. More...

const ControlPoint *	operator[] (QString id) const

ControlPoint *	operator[] (QString id)

const ControlPoint *	operator[] (int id) const

ControlPoint *	operator[] (int id)

Friends
class	ControlMeasure

class	ControlPoint

Detailed Description

a control network

This class is used to store a network of ControlPoints

Author: 2005-07-29 Jeff Anderson

See also: ControlPoint ControlMeasure

Member Enumeration Documentation

◆ ModType

enum Isis::ControlNet::ModType

Control Point Modification Types.

This enum is designed to represent the different types of modifications that can be made to a ControlNet.

Swapped means the network was swapped with another network (ControlNet::Swap(ControlNet &other)). GraphModified means that a vertice or edge was added/removed from the graph..

Enumerator
Swapped
GraphModified

Constructor & Destructor Documentation

◆ ControlNet() [1/3]

Isis::ControlNet::ControlNet ( SurfacePoint::CoordinateType coordType = SurfacePoint::Latitudinal )

Creates an empty ControlNet object.

References Isis::Application::DateTime().

◆ ControlNet() [2/3]

Isis::ControlNet::ControlNet ( const ControlNet & other )

References AddPoint(), ControlPoint, GetNumPoints(), GetPoint(), and newPoint().

◆ ControlNet() [3/3]

Isis::ControlNet::ControlNet	(	const QString &	ptfile,
		Progress *	progress = `0`,
		SurfacePoint::CoordinateType	coordType = `SurfacePoint::Latitudinal`
	)

Creates a ControlNet object from the given file.

Parameters

ptfile	Name of network file
progress	A pointer to the progress of reading in the control points

References _FILEINFO_, Isis::IException::Io, and ReadControl().

◆ ~ControlNet()

Isis::ControlNet::~ControlNet ( )

Destructor removes allocated memory.

Author: Kris Becker

References clear().

Member Function Documentation

◆ AddPoint()

void Isis::ControlNet::AddPoint ( ControlPoint * point )

Adds a ControlPoint to the ControlNet.

Parameters

point Control point to be added

Exceptions

IException::Programmer	"Null pointer passed to ControlNet::AddPoint!"
IException::Programmer	"ControlPoint must have unique Id"

References _FILEINFO_, ContainsPoint(), Isis::ControlPoint::GetId(), networkStructureModified(), and Isis::IException::Programmer.

Referenced by ControlNet(), and ReadControl().

◆ AverageResidual()

double Isis::ControlNet::AverageResidual ( )

Compute the average error of all points in the network.

Returns: double Average error of points

History:: 2010-01-12 Tracie Sucharski - Renamed from AverageError

References Isis::Statistics::Average(), Isis::ControlMeasure::GetResidualMagnitude(), Isis::ControlPoint::GetStatistic(), and Isis::ControlPoint::IsIgnored().

◆ Camera() [1/2]

Isis::Camera * Isis::ControlNet::Camera ( int index )

Returns the camera list from the given image number.

Parameters

index The image number

Returns: Isis::Camera* The pointer to the resultant camera list

Referenced by Isis::QnetCubeDistanceFilter::filter(), Isis::QnetPointDistanceFilter::filter(), and Isis::LidarData::SetImages().

◆ Camera() [2/2]

Isis::Camera * Isis::ControlNet::Camera ( QString serialNumber )

Returns the camera list from the input serial number.

Parameters

serialNumber Serial number.

Returns: Isis::Camera* The pointer to the resultant camera.

◆ clear()

void Isis::ControlNet::clear ( )

Clear the contents of this object.

The contents of the ControlNet object are deleted. The internal variables that hold the contents are not. See the destructor.

Author: Kris Becker

References GetNumPoints().

Referenced by take(), and ~ControlNet().

◆ ClearJigsawRejected()

void Isis::ControlNet::ClearJigsawRejected ( )

Sets jigsaw rejected flag to false for all points and measures.

Called by BundleAdjust::Init method

References Isis::ControlPoint::ClearJigsawRejected().

◆ ComputeApriori()

void Isis::ControlNet::ComputeApriori ( )

Compute aprior values for each point in the network.

History:: 2010-08-23 Ken Edmundson, skipping ignored points

References Isis::ControlPoint::ComputeApriori(), and Isis::ControlPoint::IsIgnored().

◆ ComputeResiduals()

void Isis::ControlNet::ComputeResiduals ( )

Compute error for each point in the network.

History:: 2010-01-11 Tracie Sucharski, Renamed from ComputeErrors

◆ ContainsPoint()

bool Isis::ControlNet::ContainsPoint ( QString pointId ) const

Parameters

pointId the point Id to check for in the network.

Returns: True if the point is in the network, false otherwise.

Referenced by AddPoint(), and Isis::MatchToolNewPointDialog::MatchToolNewPointDialog().

◆ CreatedDate()

QString Isis::ControlNet::CreatedDate ( ) const

Return the Created Date.

Author: Sharmila Prasad (10/6/2010)

Returns: QString

Referenced by Isis::ControlNetVersioner::ControlNetVersioner().

◆ DecrementNumberOfRejectedMeasuresInImage()

void Isis::ControlNet::DecrementNumberOfRejectedMeasuresInImage ( const QString & serialNumber )

Decrement number of jigsaw rejected measures in image specified by serialNumber.

◆ DeletePoint() [1/3]

int Isis::ControlNet::DeletePoint ( ControlPoint * point )

Delete a ControlPoint from the network by the point's address.

Parameters

point The point to delete

References _FILEINFO_, DeletePoint(), Isis::ControlPoint::GetId(), and Isis::IException::User.

Referenced by DeletePoint(), Isis::AbstractPointItem::deleteSource(), and Isis::CnetEditorWidget::filteredNetwork().

◆ DeletePoint() [2/3]

int Isis::ControlNet::DeletePoint ( int index )

Delete a ControlPoint from the network using the point's index.

Parameters

index The index of the Control Point to be deleted.

References _FILEINFO_, DeletePoint(), and Isis::IException::Programmer.

◆ DeletePoint() [3/3]

int Isis::ControlNet::DeletePoint ( QString pointId )

Delete a ControlPoint from the network using the point's Id.

Parameters

pointId The Point Id of the ControlPoint to be deleted.

Exceptions

IException::User "the point Id does not exist in the network"

References _FILEINFO_, Isis::ControlPoint::Delete(), Isis::ControlPoint::getMeasures(), Isis::ControlPoint::IsEditLocked(), Isis::ControlPoint::IsIgnored(), networkStructureModified(), pointDeleted(), Isis::ControlPoint::PointLocked, Isis::ControlPoint::Success, and Isis::IException::User.

◆ Description()

QString Isis::ControlNet::Description ( ) const

Return the description of the network.

Returns: The description of this Control Network

Referenced by Isis::ControlNetVersioner::ControlNetVersioner().

◆ FindClosest()

ControlPoint * Isis::ControlNet::FindClosest	(	QString	serialNumber,
		double	sample,
		double	line
	)

Finds and returns a pointer to the closest ControlPoint to the ControlMeasure with the given serial number and line sample location.

Parameters

serialNumber	The serial number of the the file the ControlMeasure is on
sample	The sample number of the ControlMeasure
line	The line number of the ControlMeasure

Returns: ControlPoint* Pointer to the ControlPoint closest to the given line, sample position

References _FILEINFO_, Isis::ControlMeasure::GetLine(), Isis::ControlMeasure::GetSample(), Isis::ControlMeasure::Parent(), and Isis::IException::Programmer.

◆ getAdjacentImages()

QList< QString > Isis::ControlNet::getAdjacentImages ( QString serialNumber ) const

Get all images connected to a given image by common control points.

Parameters

serialNumber the serial number of the image to find images adjacent to.

Returns: QList<QString> The serial numbers of all adjacent images.

References _FILEINFO_, and Isis::IException::Programmer.

Referenced by GraphToString().

◆ GetCoordType()

SurfacePoint::CoordinateType Isis::ControlNet::GetCoordType ( )

Get the control point coordinate type (see the available types in SurfacePoint.h).

Returns: the control point coordinate type

Referenced by Isis::ControlPoint::SetAprioriSurfacePoint().

◆ GetCubeSerials()

QList< QString > Isis::ControlNet::GetCubeSerials ( ) const

Use this method to get a complete list of all the cube serial numbers in the network.

Note that the order in which the serials are ordered in the returned list is arbitrary and could change each time this method is called (but the operation is done in constant time).

Returns: A list of the Cube Serial Numbers in the ControlNet.

Referenced by Isis::ControlNetStatistics::GenerateImageStats(), Isis::CnetDisplayProperties::getCubeList(), Isis::ControlNetVitals::getCubeSerials(), Isis::ControlNetVitals::getImagesBelowMeasureThreshold(), GraphToString(), Isis::ControlNetVitals::initializeVitals(), Isis::ControlNetVitals::numImages(), and Isis::ChipViewport::paintEvent().

◆ getEdgeCount()

int Isis::ControlNet::getEdgeCount ( ) const

Returns: The total number of edges in the bi-directional graph for images

◆ GetLastModified()

QString Isis::ControlNet::GetLastModified ( ) const

Return the last modified date.

Referenced by Isis::ControlNetVersioner::ControlNetVersioner().

◆ GetMaximumResidual()

double Isis::ControlNet::GetMaximumResidual ( )

Determine the maximum error of all points in the network.

Returns: double Max error of points

History:: 2010-01-12 Tracie Sucharski - Renamed from MaximumError

References Isis::ControlMeasure::GetResidualMagnitude(), Isis::ControlPoint::GetStatistic(), and Isis::Statistics::Maximum().

◆ GetMeasuresInCube()

QList< ControlMeasure * > Isis::ControlNet::GetMeasuresInCube ( QString serialNumber )

Get all the measures pertaining to a given cube serial number.

Returns: A list of all measures which are in a given cube

References _FILEINFO_, and Isis::IException::Programmer.

Referenced by Isis::ControlNetStatistics::GenerateImageStats(), GetValidMeasuresInCube(), and Isis::ChipViewport::paintEvent().

◆ GetNetworkId()

QString Isis::ControlNet::GetNetworkId ( ) const

Referenced by Isis::ControlNetVersioner::ControlNetVersioner(), Isis::ControlNetVitals::getNetworkId(), and Isis::ControlNetVitals::validateNetwork().

◆ GetNumberOfJigsawRejectedMeasuresInImage()

int Isis::ControlNet::GetNumberOfJigsawRejectedMeasuresInImage ( const QString & serialNumber )

Return the number of jigsaw rejected measures in image specified by serialNumber.

Returns: Number of jigsaw rejected measures in image

◆ GetNumberOfValidMeasuresInImage()

int Isis::ControlNet::GetNumberOfValidMeasuresInImage ( const QString & serialNumber )

Return the number of measures in image specified by serialNumber.

Returns: Number of valid measures in image

History:: 2013-12-18 Tracie Sucharski - Renamed from GetNumberOfMeasuresInImage, it is returning a count of only valid measures (Ignore=False).

References GetValidMeasuresInCube().

Referenced by Isis::ControlNetVitals::initializeVitals().

◆ GetNumEditLockMeasures()

int Isis::ControlNet::GetNumEditLockMeasures ( )

Return the total number of edit locked measures for all control points in the network.

Returns: Number of edit locked measures

References Isis::ControlPoint::GetNumLockedMeasures().

Referenced by Isis::ControlNetStatistics::GenerateControlNetStats().

◆ GetNumEditLockPoints()

int Isis::ControlNet::GetNumEditLockPoints ( )

Returns the number of edit locked control points.

Returns: Number of edit locked control points

References Isis::ControlPoint::IsEditLocked().

Referenced by Isis::ControlNetStatistics::GenerateControlNetStats().

◆ GetNumIgnoredMeasures()

int Isis::ControlNet::GetNumIgnoredMeasures ( )

Return the total number of ignored measures for all control points in the network.

Returns: Number of valid measures

References Isis::ControlPoint::GetNumMeasures(), and Isis::ControlPoint::GetNumValidMeasures().

◆ GetNumMeasures()

int Isis::ControlNet::GetNumMeasures ( ) const

Returns the total number of measures for all control points in the network.

Returns: Number of control measures

References Isis::ControlPoint::GetNumMeasures().

Referenced by Isis::ControlNetVitals::addPoint(), and Isis::ControlNetVitals::initializeVitals().

◆ GetNumPoints()

int Isis::ControlNet::GetNumPoints ( ) const

Return the number of control points in the network.

◆ GetNumValidMeasures()

int Isis::ControlNet::GetNumValidMeasures ( )

Return the number of valid (non-ignored) measures for all control points in the network.

Returns: Number of valid measures

References Isis::ControlPoint::GetNumValidMeasures(), and Isis::ControlPoint::IsIgnored().

◆ GetNumValidPoints()

int Isis::ControlNet::GetNumValidPoints ( )

Returns the number of non-ignored control points.

Returns: Number of valid control points

References Isis::ControlPoint::IsIgnored().

◆ GetPoint() [1/4]

ControlPoint * Isis::ControlNet::GetPoint ( int index )

References _FILEINFO_, GetPoint(), and Isis::IException::Programmer.

◆ GetPoint() [2/4]

const ControlPoint * Isis::ControlNet::GetPoint ( int index ) const

References _FILEINFO_, GetPoint(), and Isis::IException::Programmer.

◆ GetPoint() [3/4]

ControlPoint * Isis::ControlNet::GetPoint ( QString pointId )

References _FILEINFO_, and Isis::IException::Programmer.

◆ GetPoint() [4/4]

const ControlPoint * Isis::ControlNet::GetPoint ( QString pointId ) const

References _FILEINFO_, and Isis::IException::Programmer.

◆ GetPointIds()

QList< QString > Isis::ControlNet::GetPointIds ( ) const

Return QList of ControlPoint Ids used in hash, in order of addition.

◆ GetPoints()

QList< ControlPoint * > Isis::ControlNet::GetPoints ( )

Return QList of all the ControlPoints in the network.

References GetPoint().

Referenced by Isis::ControlNetVersioner::ControlNetVersioner(), Isis::ControlNetVitals::getAllPoints(), Isis::ControlNetVitals::getConstrainedPoints(), Isis::ControlNetVitals::getFixedPoints(), Isis::ControlNetVitals::getFreePoints(), Isis::ControlNetVitals::getIgnoredPoints(), Isis::ControlNetVitals::getLockedPoints(), Isis::ControlNetVitals::getPointsBelowMeasureThreshold(), Isis::ControlNetVitals::initializeVitals(), and take().

◆ GetSerialConnections()

QList< QList< QString > > Isis::ControlNet::GetSerialConnections ( ) const

This method searches through all the cube serial numbers in the network.

Serials which are connected to other serials through points are grouped together in the same lists. The list containing the lists of strings is nothing more than a list of islands such that each island is a list of serials which are connected to each other. If the control network is completely connected, then this list will only have one element (a list of all the serials in the network).

Returns: A list of cube islands as serial numbers

Referenced by Isis::ControlNetVitals::initializeVitals(), and Isis::ControlNetVitals::validateNetwork().

◆ GetTarget()

QString Isis::ControlNet::GetTarget ( ) const

Return the target name.

Referenced by Isis::ControlNetVersioner::ControlNetVersioner().

◆ GetUserName()

QString Isis::ControlNet::GetUserName ( ) const

Return the user name.

Referenced by Isis::ControlNetVersioner::ControlNetVersioner().

◆ GetValidMeasuresInCube()

QList< ControlMeasure * > Isis::ControlNet::GetValidMeasuresInCube ( QString serialNumber )

Get all the valid measures pertaining to a given cube serial number.

Returns: A list of all valid measures which are in a given cube

References GetMeasuresInCube(), and Isis::ControlMeasure::IsIgnored().

Referenced by Isis::ControlNetVitals::getImagesBelowMeasureThreshold(), and GetNumberOfValidMeasuresInImage().

◆ GraphToString()

QString Isis::ControlNet::GraphToString ( ) const

Used for verifying graph intergrity.

Returns: A string representation of the ControlNet graph

References getAdjacentImages(), GetCubeSerials(), Isis::ControlPoint::GetId(), Isis::ControlPoint::IsIgnored(), and Isis::toString().

◆ IncrementNumberOfRejectedMeasuresInImage()

void Isis::ControlNet::IncrementNumberOfRejectedMeasuresInImage ( const QString & serialNumber )

Increment number of jigsaw rejected measures in image specified by serialNumber.

◆ measureModified

void Isis::ControlNet::measureModified	(	ControlMeasure *	measure,
		ControlMeasure::ModType	type,
		QVariant	oldValue,
		QVariant	newValue
	)

signal

◆ measureRemoved

void Isis::ControlNet::measureRemoved ( ControlMeasure * )

signal

◆ networkModified

void Isis::ControlNet::networkModified ( ControlNet::ModType type )

signal

Referenced by swap().

◆ networkStructureModified

void Isis::ControlNet::networkStructureModified ( )

signal

Referenced by AddPoint(), and DeletePoint().

◆ newMeasure

void Isis::ControlNet::newMeasure ( ControlMeasure * )

signal

◆ newPoint

void Isis::ControlNet::newPoint ( ControlPoint * )

signal

Referenced by ControlNet().

◆ operator=()

ControlNet & Isis::ControlNet::operator= ( const ControlNet & other )

Assign other to this.

This is an exception-safe assignment operator.

Parameters

other The control net to assign to this.

References swap().

◆ operator[]() [1/4]

ControlPoint * Isis::ControlNet::operator[] ( int id )

References GetPoint().

◆ operator[]() [2/4]

const ControlPoint * Isis::ControlNet::operator[] ( int id ) const

References GetPoint().

◆ operator[]() [3/4]

ControlPoint * Isis::ControlNet::operator[] ( QString id )

References GetPoint().

◆ operator[]() [4/4]

const ControlPoint * Isis::ControlNet::operator[] ( QString id ) const

References GetPoint().

◆ pointDeleted

void Isis::ControlNet::pointDeleted ( ControlPoint * point )

signal

Referenced by DeletePoint().

◆ pointModified

void Isis::ControlNet::pointModified	(	ControlPoint *	point,
		ControlPoint::ModType	type,
		QVariant	oldValue,
		QVariant	newValue
	)

signal

◆ ReadControl()

void Isis::ControlNet::ReadControl	(	const QString &	filename,
		Progress *	progress = `0`
	)

Reads in the control points from the given file.

Parameters

ptfile	Name of file containing a Pvl list of control points
progress	A pointer to the progress of reading in the control points

Exceptions

Isis::iException::User	- "Invalid Network Type"
Isis::iException::User	- "Invalid Control Point"
Isis::iException::User	- "Invalid Format"

References AddPoint(), Isis::Progress::CheckStatus(), Isis::ControlNetVersioner::creationDate(), Isis::ControlNetVersioner::description(), Isis::ControlNetVersioner::lastModificationDate(), Isis::ControlNetVersioner::netId(), Isis::ControlNetVersioner::numPoints(), Isis::Progress::SetMaximumSteps(), SetTarget(), Isis::Progress::SetText(), Isis::ControlNetVersioner::takeFirstPoint(), Isis::ControlNetVersioner::targetName(), and Isis::ControlNetVersioner::userName().

Referenced by ControlNet().

◆ SetCoordType()

void Isis::ControlNet::SetCoordType ( SurfacePoint::CoordinateType coordType )

Sets the control point coordinate type.

Parameters

coordType Control point coordinate type

◆ SetCreatedDate()

void Isis::ControlNet::SetCreatedDate ( const QString & date )

Set the creation time.

Parameters

date	The date this Control Network was created

◆ SetDescription()

void Isis::ControlNet::SetDescription ( const QString & newDescription )

Set the description of the network.

Parameters

desc	The description of this Control Network

◆ SetImages() [1/2]

void Isis::ControlNet::SetImages ( const QString & imageListFile )

Creates the ControlNet's image cameras based on an input file.

Parameters

imageListFile The list of images

References SetImages().

Referenced by Isis::QnetFileTool::open(), Isis::Project::setActiveImageList(), and SetImages().

◆ SetImages() [2/2]

void Isis::ControlNet::SetImages	(	SerialNumberList &	list,
		Progress *	progress = `0`
	)

Creates the ControlNet's image camera's based on the list of Serial Numbers.

Parameters

list	The list of Serial Numbers
progress	A pointer to the progress of creating the cameras

Exceptions

Isis::iException::System	- "Unable to create camera for cube file"
Isis::iException::User	- "Control point measure does not have a cube with a matching serial number"

References _FILEINFO_, Isis::Progress::CheckStatus(), Isis::CameraFactory::Create(), Isis::SerialNumberList::fileName(), Isis::ControlMeasure::GetCubeSerialNumber(), Isis::ControlPoint::getCubeSerialNumbers(), Isis::ControlPoint::GetId(), Isis::SerialNumberList::hasSerialNumber(), Isis::ControlMeasure::IsIgnored(), Isis::SerialNumberList::serialNumber(), Isis::ControlMeasure::SetCamera(), Isis::Progress::SetMaximumSteps(), Isis::Progress::SetText(), Isis::SerialNumberList::size(), Isis::IException::Unknown, and Isis::IException::User.

◆ SetModifiedDate()

void Isis::ControlNet::SetModifiedDate ( const QString & date )

Set the last modified date.

Parameters

date	The last date this Control Network was modified

◆ SetMutex()

void Isis::ControlNet::SetMutex ( QMutex * mutex )

Set mutex to lock for making Naif calls.

Author: 2012-09-11 Tracie Sucharski

Parameters

mutex

Referenced by Isis::Control::openControlNet().

◆ SetNetworkId()

void Isis::ControlNet::SetNetworkId ( const QString & id )

Set the network id.

Parameters

id	The Id of this Control Network

◆ SetTarget() [1/3]

void Isis::ControlNet::SetTarget ( const ControlNet & other )

References swap().

◆ SetTarget() [2/3]

void Isis::ControlNet::SetTarget ( const QString & target )

Sets the target name and target radii, if available.

Note: The target radii are found using NAIF target codes. If the given target name is not recognized, the target radii vector will be filled with Isis::Null values.

See also: Target::radiiGroup(QString)

Parameters

target The name of the target of this Control Network

Referenced by Isis::QnetFileTool::open(), and ReadControl().

◆ SetTarget() [3/3]

void Isis::ControlNet::SetTarget ( Pvl label )

Sets the target name and radii using values found in the mapping group of the given label, if available.

If this fails, calls SetTarget(QString).

Parameters

label A PVL Containing Target information (usually in a Mapping group or NaifKeywords object).

References Isis::PvlObject::findGroup(), Isis::PvlObject::findObject(), Isis::PvlObject::hasGroup(), Isis::PvlContainer::hasKeyword(), Isis::PvlObject::hasObject(), and Isis::PvlObject::Traverse.

◆ SetUserName()

void Isis::ControlNet::SetUserName ( const QString & name )

Set the user name of the control network.

Parameters

name	The name of the user creating or modifying this ControlNet

Referenced by Isis::QnetFileTool::open().

◆ sortedMeasureList()

QList< ControlMeasure * > Isis::ControlNet::sortedMeasureList	(	double(ControlMeasure::*)() const	statFunc,
		double	min,
		double	max
	)

Get a sorted list of all the measures that have values in a given ragen.

Parameters

statFunc	A pointer to a control Measure acessor
min	the minimum value of acessor return for list inclusion
max	the maximum value of acessor return for list inclusion

References Isis::ControlPoint::GetMeasure(), Isis::ControlPoint::GetNumMeasures(), GetNumPoints(), GetPoint(), Isis::ControlMeasure::IsIgnored(), and Isis::ControlPoint::IsIgnored().

◆ swap()

void Isis::ControlNet::swap ( ControlNet & other )

Swaps the member data with the given control net.

This is an optimized form of: ControlNet a = ... ControlNet b = ...

Swap 'a' and 'b' ControlNet tmp = a; a = b; b = tmp;

This is used primarily for the assignment operator in order to do copy-and-swap.

Parameters

other The control net to swap with.

References networkModified(), and Swapped.

Referenced by operator=(), and SetTarget().

◆ take()

QList< ControlPoint * > Isis::ControlNet::take ( )

Transfer ownership of all points to caller.

This method is used to transfer ownership to the caller. This method is not reintrant in the sense that if someone else has already made this call, it is an error to attempt to take ownership again.

Note that it now becomes the responsibility of the caller to delete all the pointers to ControlPoints that are returned in the list.

WARNING!!! This call alone can create a situation where the owner could delete point memory after the point list is exported from this class creating a problem. For this reason, the clear() method be called!!!

Author: Kris Becker

Returns: QList<ControlPoint*> Returns the list of all control points to caller

References _FILEINFO_, clear(), GetPoints(), and Isis::IException::Programmer.

◆ Write()

void Isis::ControlNet::Write	(	const QString &	ptfile,
		bool	pvl = `false`
	)

Writes out the control network.

Parameters

ptfile	Name of file containing a Pvl list of control points
pvl	Boolean indicating whether to write in pvl format (Default=false)

History:

2010-10-05 Tracie Sucharski - Renamed old WRite method to WritePvl and created this new method to determine format to be written.

2017-12-21 Jesse Mapel - Modified to use new ControlNetVersioner.

References _FILEINFO_, Isis::IException::Io, Isis::IException::Programmer, Isis::ControlNetVersioner::toPvl(), Isis::Pvl::write(), and Isis::ControlNetVersioner::write().

Referenced by Isis::Control::copyToNewProjectRoot(), Isis::QnetFileTool::save(), Isis::QnetFileTool::saveAs(), and Isis::Control::write().

Friends And Related Function Documentation

◆ ControlMeasure

friend class ControlMeasure

friend

◆ ControlPoint

friend class ControlPoint

friend

Referenced by ControlNet().

The documentation for this class was generated from the following files:

/Users/arsanders/repos/ISIS3/isis/src/control/objs/ControlNet/ControlNet.h
/Users/arsanders/repos/ISIS3/isis/src/control/objs/ControlNet/ControlNet.cpp

Public Types

Signals

Public Member Functions

Friends

Detailed Description

Member Enumeration Documentation

◆ ModType

Constructor & Destructor Documentation

◆ ControlNet() [1/3]

◆ ControlNet() [2/3]

◆ ControlNet() [3/3]

◆ ~ControlNet()

Member Function Documentation

◆ AddPoint()

◆ AverageResidual()

◆ Camera() [1/2]

◆ Camera() [2/2]

◆ clear()

◆ ClearJigsawRejected()

◆ ComputeApriori()

◆ ComputeResiduals()

◆ ContainsPoint()

◆ CreatedDate()

◆ DecrementNumberOfRejectedMeasuresInImage()

◆ DeletePoint() [1/3]

◆ DeletePoint() [2/3]

◆ DeletePoint() [3/3]

◆ Description()

◆ FindClosest()

◆ getAdjacentImages()

◆ GetCoordType()

◆ GetCubeSerials()

◆ getEdgeCount()

◆ GetLastModified()

◆ GetMaximumResidual()

◆ GetMeasuresInCube()

◆ GetNetworkId()

◆ GetNumberOfJigsawRejectedMeasuresInImage()

◆ GetNumberOfValidMeasuresInImage()

◆ GetNumEditLockMeasures()

◆ GetNumEditLockPoints()

◆ GetNumIgnoredMeasures()

◆ GetNumMeasures()

◆ GetNumPoints()

◆ GetNumValidMeasures()

◆ GetNumValidPoints()

◆ GetPoint() [1/4]

◆ GetPoint() [2/4]

◆ GetPoint() [3/4]

◆ GetPoint() [4/4]

◆ GetPointIds()

◆ GetPoints()

◆ GetSerialConnections()

◆ GetTarget()

◆ GetUserName()

◆ GetValidMeasuresInCube()

◆ GraphToString()

◆ IncrementNumberOfRejectedMeasuresInImage()

◆ measureModified

◆ measureRemoved

◆ networkModified

◆ networkStructureModified

◆ newMeasure

◆ newPoint

◆ operator=()

◆ operator[]() [1/4]

◆ operator[]() [2/4]

◆ operator[]() [3/4]

◆ operator[]() [4/4]

◆ pointDeleted

◆ pointModified

◆ ReadControl()

◆ SetCoordType()

◆ SetCreatedDate()

◆ SetDescription()

◆ SetImages() [1/2]

◆ SetImages() [2/2]

◆ SetModifiedDate()

◆ SetMutex()

◆ SetNetworkId()
