Isis::Mixed Class Reference

Mixed albedo/topo normalization without atmosphere. More...

#include <Mixed.h>

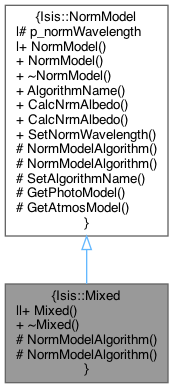

Inheritance diagram for Isis::Mixed:
Inheritance graph

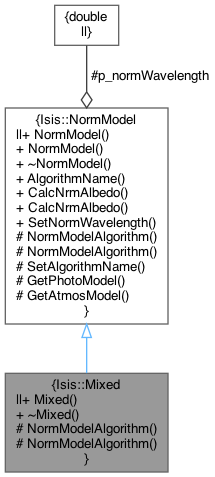

Collaboration diagram for Isis::Mixed:
Collaboration graph

Public Member Functions

 Mixed (Pvl &pvl, PhotoModel &pmodel)

virtual ~Mixed ()

std::string AlgorithmName () const
 Return normalization algorithm name. More...

void CalcNrmAlbedo (double pha, double inc, double ema, double dn, double &albedo, double &mult, double &base)
 Calculate the albedo normalization. More...

void CalcNrmAlbedo (double pha, double inc, double ema, double deminc, double demema, double dn, double &albedo, double &mult, double &base)
 Calculate the normalization albedo using photometric angle information. More...

virtual void SetNormWavelength (double wavelength)
 Set the wavelength parameter. More...


Protected Member Functions

virtual void NormModelAlgorithm (double pha, double inc, double ema, double dn, double &albedo, double &mult, double &base)

virtual void NormModelAlgorithm (double pha, double inc, double ema, double deminc, double demema, double dn, double &albedo, double &mult, double &base)

void SetAlgorithmName (std::string name)

PhotoModelGetPhotoModel ()

AtmosModelGetAtmosModel ()


Protected Attributes

double p_normWavelength


Detailed Description

Mixed albedo/topo normalization without atmosphere.

This mode will do albedo normalization over most of the planet but near the terminator it will normalize topographic contrast to avoid the "seams" we are currently getting with the plain albedo normalization. The two effects will be joined seamlessly. In addition to the parameters for no-atmosphere albedo normaliza- tion (i.e., the photometric parameters and the choice of angles for normal albedo calculation) this mode needs two more parameters. INCMAT is the incidence angle at which the RMS contrast from al- bedo matches the RMS contrast from topography. (Could input a full 3-angle geometry at which the contrasts are equal but since the user is probably going to find this parameter by trial and er- ror it's easier to specify only incidence and use emission=0, phase=incidence for this second reference state.) ALBEDO, the av- erage normal albedo, is also needed.

Author
1998-12-21 Randy Kirk

Constructor & Destructor Documentation

◆ Mixed()

◆ ~Mixed()

virtual Isis::Mixed::~Mixed ( )
inlinevirtual

Member Function Documentation

◆ AlgorithmName()

std::string Isis::NormModel::AlgorithmName ( ) const
inlineinherited

Return normalization algorithm name.

◆ CalcNrmAlbedo() [1/2]

void Isis::NormModel::CalcNrmAlbedo ( double  pha,
double  inc,
double  ema,
double  deminc,
double  demema,
double  dn,
double &  albedo,
double &  mult,
double &  base
)
inherited

Calculate the normalization albedo using photometric angle information.

Parameters
phainput phase angle
incinput incidence angle for ellipsoid
emainput emission angle for ellipsoid
demincinput incidence angle for dem
dememainput emission angle for dem
dninput albedo value

References Isis::NormModel::NormModelAlgorithm().

◆ CalcNrmAlbedo() [2/2]

void Isis::NormModel::CalcNrmAlbedo ( double  pha,
double  inc,
double  ema,
double  dn,
double &  albedo,
double &  mult,
double &  base
)
inherited

Calculate the albedo normalization.

Calculate the normalization albedo using photometric angle information.

Parameters
phainput phase angle
incinput incidence angle
emainput emission angle
dninput albedo value

References Isis::NormModel::NormModelAlgorithm().

Referenced by Isis::Photometry::Compute().

◆ GetAtmosModel()

◆ GetPhotoModel()

◆ NormModelAlgorithm() [1/2]

void Isis::Mixed::NormModelAlgorithm ( double  pha,
double  inc,
double  ema,
double  deminc,
double  demema,
double  dn,
double &  albedo,
double &  mult,
double &  base
)
protectedvirtual

◆ NormModelAlgorithm() [2/2]

virtual void Isis::Mixed::NormModelAlgorithm ( double  pha,
double  inc,
double  ema,
double  dn,
double &  albedo,
double &  mult,
double &  base
)
inlineprotectedvirtual

Implements Isis::NormModel.

◆ SetAlgorithmName()

void Isis::NormModel::SetAlgorithmName ( std::string  name)
inlineprotectedinherited

◆ SetNormWavelength()

void Isis::NormModel::SetNormWavelength ( double  wavelength)
virtualinherited

Set the wavelength parameter.

This value is obtained from the BandBin Center keyword of the image. This must be set by the application.

References Isis::NormModel::p_normWavelength.

Referenced by Isis::Photometry::SetPhotomWl().

Member Data Documentation

◆ p_normWavelength

double Isis::NormModel::p_normWavelength
protectedinherited

The documentation for this class was generated from the following files:
