This controls the 'Grid' abilities in the MosaicSceneWidget. More...

#include <MosaicGridTool.h>

Inheritance diagram for Isis::MosaicGridTool:

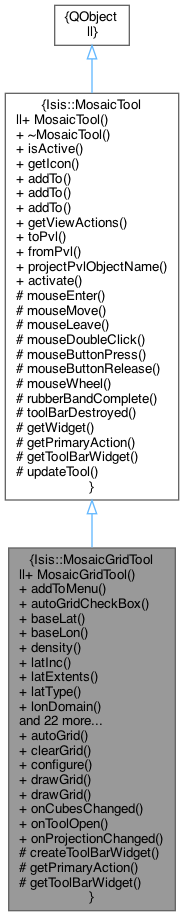

Collaboration diagram for Isis::MosaicGridTool:

Public Types
enum	GridExtentSource { Map , Cubes , Manual }

Public Slots
void	autoGrid (bool draw)
	Calculates the lat/lon increments from the bounding rectangle of the open cubes. More...

void	clearGrid ()
	Clears the grid from the scene. More...

void	configure ()
	Give a configuration dialog for the options available in this tool. More...

void	drawGrid ()
	Creates the GridGraphicsItem that will draw the grid. More...

void	drawGrid (bool draw)
	Determines whether the grid should be drawn or not. More...

void	onCubesChanged ()
	Determines whether or not the bounding rectangle was changed by the addition or removal of cubes. More...

void	onToolOpen (bool check)
	Checks both checkboxes when the tool is first opened. More...

void	onProjectionChanged ()

void	activate (bool)
	Activates the tool. More...

Signals
void	boundingRectChanged ()

void	activated (bool)

Public Member Functions
	MosaicGridTool (MosaicSceneWidget *)
	MosaicGridTool constructor. More...

void	addToMenu (QMenu *menu)
	Adds the pan action to the given menu. More...

bool	autoGridCheckBox ()
	True if checked. More...

Latitude	baseLat ()
	The base latitude. More...

Longitude	baseLon ()
	The base longitude. More...

int	density ()
	The density or resolution of the grid. More...

Angle	latInc ()
	The angle of the latitude increment. More...

GridExtentSource	latExtents ()
	The extent type (Map, Cubes, Manual) for the latitude. More...

QString	latType ()
	The latitude type (planetocentric/planetographic) of the projection of the scene. More...

QString	lonDomain ()
	The longitude domain of the projection of the scene. More...

GridExtentSource	lonExtents ()
	The extent type (Map, Cubes, Manual) for the longitude. More...

Angle	lonInc ()
	The angle of the longitude increment. More...

Latitude	maxLat ()
	The maximum latitude used to determine the grid's extents and increments. More...

Longitude	maxLon ()
	The maximum longitude used to determine the grid's extents and increments. More...

Latitude	minLat ()
	The minimum latitude used to determine the grid's extents and increments. More...

Longitude	minLon ()
	The minimum longitude used to determine the grid's extents and increments. More...

MosaicSceneWidget *	sceneWidget ()

bool	showGrid ()
	True if grid is displayed. More...

void	setAutoGridCheckBox (bool checked)
	Modify the check state of the checkbox. More...

void	setBaseLat (Latitude baseLat)
	Modify the base latitude. More...

void	setBaseLon (Longitude baseLon)
	Modify the base longitude. More...

void	setDensity (int density)
	Modify the density. More...

void	setLatExtents (GridExtentSource source, Latitude minLat, Latitude maxLat)
	Set the maximum and minimum latitude of the grid. More...

void	setLatInc (Angle latInc)
	Modify the latitude increment. More...

void	setLonExtents (GridExtentSource source, Longitude minLon, Longitude maxLon)
	Set the maximum and minimum longitude of the grid. More...

void	setLonInc (Angle lonInc)
	Modify the longitude increment. More...

void	setShowGrid (bool show)
	Modify the check state of the checkbox. More...

void	fromPvl (const PvlObject &obj)
	Read the tool information form a pvl object. More...

QString	projectPvlObjectName () const
	An accessor for the name of the Pvl object that the tool's information is stored in. More...

PvlObject	toPvl () const
	Store the tool information in a pvl object. More...

Longitude	domainMinLon ()

Longitude	domainMaxLon ()

bool	isActive () const
	Returns the activeness of this toool. More...

QPixmap	getIcon (QString iconName) const
	returns the path to the icon directory. More...

virtual void	addTo (QMenu *menu)

virtual void	addTo (ToolPad *toolPad)

virtual void	addTo (QToolBar *toolBar)

virtual QList< QAction * >	getViewActions ()

Protected Slots
virtual void	updateTool ()

Protected Member Functions
QWidget *	createToolBarWidget ()
	Creates the widget to add to the tool bar. More...

QAction *	getPrimaryAction ()
	Adds the action to the toolpad. More...

QWidget *	getToolBarWidget ()
	Creates the Grid Toolbar Widget. More...

virtual void	mouseEnter ()

virtual void	mouseMove (QPointF)

virtual void	mouseLeave ()

virtual void	mouseDoubleClick (QPointF)

virtual void	mouseButtonPress (QPointF, Qt::MouseButton s)

virtual void	mouseButtonRelease (QPointF, Qt::MouseButton s)

virtual void	mouseWheel (QPointF, int delta)

virtual void	rubberBandComplete (QRectF r, Qt::MouseButton s)

void	toolBarDestroyed (QObject *obj)

MosaicSceneWidget *	getWidget ()

Detailed Description

This controls the 'Grid' abilities in the MosaicSceneWidget.

Author: ????-??-?? Stacy Alley

Member Enumeration Documentation

◆ GridExtentSource

enum Isis::MosaicGridTool::GridExtentSource

Enumerator
Map	The grid will be drawn using the extents from the map projection.
Cubes	The grid will be drawn using the extents from the bounding rectangle of the open cubes.
Manual	The grid will be drawn using the extents that the user specifies.

Constructor & Destructor Documentation

◆ MosaicGridTool()

Isis::MosaicGridTool::MosaicGridTool ( MosaicSceneWidget * scene )

MosaicGridTool constructor.

Parameters

parent

References Cubes, Isis::MosaicSceneWidget::cubesBoundingRect(), Isis::Angle::Degrees, domainMaxLon(), domainMinLon(), Isis::MosaicTool::getWidget(), and onProjectionChanged().

Member Function Documentation

◆ activate

void Isis::MosaicTool::activate ( bool on )

slotinherited

Activates the tool.

Parameters

on

References Isis::MosaicTool::activated().

Referenced by Isis::MosaicTool::addTo().

◆ activated

void Isis::MosaicTool::activated ( bool )

signalinherited

Referenced by Isis::MosaicTool::activate(), getToolBarWidget(), and Isis::MosaicTool::MosaicTool().

◆ addTo() [1/3]

virtual void Isis::MosaicTool::addTo ( QMenu * menu )

inlinevirtualinherited

Referenced by Isis::MosaicSceneWidget::addTo(), Isis::MosaicSceneWidget::getControlNetHelp(), and Isis::MosaicSceneWidget::getGridHelp().

◆ addTo() [2/3]

void Isis::MosaicTool::addTo ( QToolBar * toolBar )

virtualinherited

References Isis::MosaicTool::getToolBarWidget(), and Isis::MosaicTool::toolBarDestroyed().

◆ addTo() [3/3]

void Isis::MosaicTool::addTo ( ToolPad * toolPad )

virtualinherited

References Isis::MosaicTool::activate(), Isis::ToolPad::addAction(), and Isis::MosaicTool::getPrimaryAction().

◆ addToMenu()

void Isis::MosaicGridTool::addToMenu ( QMenu * menu )

Adds the pan action to the given menu.

Parameters

menu

◆ autoGrid

void Isis::MosaicGridTool::autoGrid ( bool draw )

slot

Calculates the lat/lon increments from the bounding rectangle of the open cubes.

Parameters

draw	True if lat/lon increments need to be calculated.

References Isis::MosaicSceneWidget::cubesBoundingRect(), Isis::Angle::Degrees, Isis::Angle::degrees(), drawGrid(), Isis::MosaicSceneWidget::getProjection(), Isis::MosaicTool::getWidget(), Isis::TProjection::Mapping(), Isis::Latitude::planetographic(), Isis::Projection::projectionType(), setLatExtents(), setLonExtents(), and Isis::Projection::Triaxial.

Referenced by Isis::MosaicGridToolConfigDialog::applySettings(), getToolBarWidget(), onCubesChanged(), and onToolOpen().

◆ autoGridCheckBox()

bool Isis::MosaicGridTool::autoGridCheckBox ( )

True if checked.

Returns: The state of the checkbox.

Referenced by Isis::MosaicGridToolConfigDialog::readSettings().

◆ baseLat()

Latitude Isis::MosaicGridTool::baseLat ( )

The base latitude.

Returns: The base latitude

Referenced by Isis::MosaicGridToolConfigDialog::readSettings(), and setBaseLat().

◆ baseLon()

Longitude Isis::MosaicGridTool::baseLon ( )

The base longitude.

Returns: The base longitude

Referenced by Isis::MosaicGridToolConfigDialog::readSettings(), and setBaseLon().

◆ boundingRectChanged

void Isis::MosaicGridTool::boundingRectChanged ( )

signal

Referenced by onCubesChanged().

◆ clearGrid

void Isis::MosaicGridTool::clearGrid ( )

slot

Clears the grid from the scene.

Does not erase any grid information.

References drawGrid(), Isis::MosaicSceneWidget::getScene(), and Isis::MosaicTool::getWidget().

Referenced by Isis::MosaicGridToolConfigDialog::applySettings(), and drawGrid().

◆ configure

void Isis::MosaicGridTool::configure ( )

slot

Give a configuration dialog for the options available in this tool.

Referenced by getToolBarWidget().

◆ createToolBarWidget()

QWidget * Isis::MosaicGridTool::createToolBarWidget ( )

protected

Creates the widget to add to the tool bar.

Parameters

parent

Returns: QWidget*

◆ density()

int Isis::MosaicGridTool::density ( )

The density or resolution of the grid.

The number of straight lines used to draw the grid.

Returns: The density

Referenced by Isis::MosaicGridToolConfigDialog::readSettings(), and setDensity().

◆ domainMaxLon()

Longitude Isis::MosaicGridTool::domainMaxLon ( )

References Isis::Angle::Degrees, Isis::MosaicSceneWidget::getProjection(), Isis::MosaicTool::getWidget(), Isis::TProjection::Has360Domain(), and Isis::Projection::Triaxial.

Referenced by MosaicGridTool(), and setLonExtents().

◆ domainMinLon()

Longitude Isis::MosaicGridTool::domainMinLon ( )

References Isis::Angle::Degrees, Isis::MosaicSceneWidget::getProjection(), Isis::MosaicTool::getWidget(), Isis::TProjection::Has360Domain(), and Isis::Projection::Triaxial.

Referenced by MosaicGridTool(), and setLonExtents().

◆ drawGrid [1/2]

void Isis::MosaicGridTool::drawGrid ( )

slot

Creates the GridGraphicsItem that will draw the grid.

If there is no grid item the grid is cleared and redrawn with a new item.

References Isis::Angle::degrees(), drawGrid(), Isis::MosaicSceneWidget::getScene(), Isis::MosaicTool::getWidget(), and onCubesChanged().

Referenced by Isis::MosaicGridToolConfigDialog::applySettings(), autoGrid(), clearGrid(), drawGrid(), fromPvl(), and getToolBarWidget().

◆ drawGrid [2/2]

void Isis::MosaicGridTool::drawGrid ( bool draw )

slot

Determines whether the grid should be drawn or not.

Parameters

draw	True if grid should be drawn. Otherwise, it will be cleared.

References clearGrid(), and drawGrid().

◆ fromPvl()

void Isis::MosaicGridTool::fromPvl ( const PvlObject & obj )

virtual

Read the tool information form a pvl object.

Parameters

obj	the object from which we are extracting the information

Reimplemented from Isis::MosaicTool.

References Isis::Angle::Degrees, drawGrid(), Isis::TProjection::EquatorialRadius(), Isis::MosaicSceneWidget::getProjection(), Isis::MosaicTool::getWidget(), Isis::PvlObject::hasKeyword(), Isis::Distance::Meters, Isis::Latitude::Planetocentric, Isis::TProjection::PolarRadius(), Isis::Projection::projectionType(), Isis::toBool(), Isis::toDouble(), Isis::toInt(), and Isis::Projection::Triaxial.

◆ getIcon()

QPixmap Isis::MosaicTool::getIcon ( QString iconName ) const

inherited

returns the path to the icon directory.

Returns: QString

References Isis::FileName::expanded().

Referenced by Isis::MosaicAreaTool::getPrimaryAction(), Isis::MosaicControlNetTool::getPrimaryAction(), Isis::MosaicFindTool::getPrimaryAction(), getPrimaryAction(), Isis::MosaicPanTool::getPrimaryAction(), Isis::MosaicSelectTool::getPrimaryAction(), Isis::MosaicZoomTool::getPrimaryAction(), and Isis::MosaicZoomTool::MosaicZoomTool().

◆ getPrimaryAction()

QAction * Isis::MosaicGridTool::getPrimaryAction ( )

protectedvirtual

Adds the action to the toolpad.

Parameters

toolpad

Returns: QAction*

Implements Isis::MosaicTool.

References Isis::MosaicTool::getIcon().

◆ getToolBarWidget()

QWidget * Isis::MosaicGridTool::getToolBarWidget ( )

protectedvirtual

Creates the Grid Toolbar Widget.

Returns: The toolbar widget

Reimplemented from Isis::MosaicTool.

References Isis::MosaicTool::activated(), autoGrid(), configure(), Isis::MosaicSceneWidget::cubesBoundingRect(), drawGrid(), Isis::MosaicTool::getWidget(), and onToolOpen().

◆ getViewActions()

QList< QAction * > Isis::MosaicTool::getViewActions ( )

virtualinherited

Reimplemented in Isis::MosaicZoomTool.

Referenced by Isis::MosaicSceneWidget::getViewActions().

◆ getWidget()

MosaicSceneWidget * Isis::MosaicTool::getWidget ( )

inlineprotectedinherited

Referenced by autoGrid(), Isis::MosaicAreaTool::clearBox(), clearGrid(), Isis::MosaicFindTool::clearPoint(), domainMaxLon(), domainMinLon(), drawGrid(), fromPvl(), getToolBarWidget(), Isis::MosaicFindTool::getUserGroundPoint(), latType(), Isis::MosaicControlNetTool::loadNetwork(), lonDomain(), Isis::MosaicControlNetTool::MosaicControlNetTool(), MosaicGridTool(), Isis::MosaicTrackTool::MosaicTrackTool(), Isis::MosaicControlNetTool::mouseButtonRelease(), Isis::MosaicAreaTool::mouseButtonRelease(), Isis::MosaicFindTool::mouseButtonRelease(), Isis::MosaicZoomTool::mouseWheel(), onCubesChanged(), onProjectionChanged(), Isis::MosaicZoomTool::rubberBandComplete(), sceneWidget(), setLatExtents(), setLonExtents(), Isis::MosaicTrackTool::updateLabels(), Isis::MosaicZoomTool::updateResolutionBox(), Isis::MosaicPanTool::updateTool(), Isis::MosaicSelectTool::updateTool(), Isis::MosaicZoomTool::updateTool(), Isis::MosaicAreaTool::userChangedBox(), and Isis::MosaicZoomTool::zoomFit().

◆ isActive()

bool Isis::MosaicTool::isActive ( ) const

inlineinherited

Returns the activeness of this toool.

Returns: bool

Referenced by Isis::MosaicSceneWidget::isControlNetToolActive(), Isis::MosaicControlNetTool::mouseButtonRelease(), Isis::MosaicZoomTool::mouseButtonRelease(), Isis::MosaicAreaTool::mouseButtonRelease(), Isis::MosaicFindTool::mouseButtonRelease(), Isis::MosaicZoomTool::rubberBandComplete(), Isis::MosaicFindTool::updateTool(), Isis::MosaicPanTool::updateTool(), Isis::MosaicSelectTool::updateTool(), and Isis::MosaicZoomTool::updateTool().

◆ latExtents()

MosaicGridTool::GridExtentSource Isis::MosaicGridTool::latExtents ( )

The extent type (Map, Cubes, Manual) for the latitude.

Returns: The extent type of the latitude

Referenced by Isis::MosaicGridToolConfigDialog::MosaicGridToolConfigDialog(), and Isis::MosaicGridToolConfigDialog::readSettings().

◆ latInc()

Angle Isis::MosaicGridTool::latInc ( )

The angle of the latitude increment.

Returns: The latitude increment angle.

Referenced by Isis::MosaicGridToolConfigDialog::readSettings(), and setLatInc().

◆ latType()

QString Isis::MosaicGridTool::latType ( )

The latitude type (planetocentric/planetographic) of the projection of the scene.

Returns: the latitude type as a string

References Isis::MosaicSceneWidget::getProjection(), Isis::MosaicTool::getWidget(), Isis::TProjection::LatitudeTypeString(), and Isis::Projection::Triaxial.

Referenced by Isis::MosaicGridToolConfigDialog::MosaicGridToolConfigDialog().

◆ lonDomain()

QString Isis::MosaicGridTool::lonDomain ( )

The longitude domain of the projection of the scene.

Returns: the domain as a string

References Isis::MosaicSceneWidget::getProjection(), Isis::MosaicTool::getWidget(), Isis::TProjection::LongitudeDomainString(), and Isis::Projection::Triaxial.

Referenced by Isis::MosaicGridToolConfigDialog::MosaicGridToolConfigDialog().

◆ lonExtents()

MosaicGridTool::GridExtentSource Isis::MosaicGridTool::lonExtents ( )

The extent type (Map, Cubes, Manual) for the longitude.

Returns: The extent type of the longitude

Referenced by Isis::MosaicGridToolConfigDialog::MosaicGridToolConfigDialog(), and Isis::MosaicGridToolConfigDialog::readSettings().

◆ lonInc()

Angle Isis::MosaicGridTool::lonInc ( )

The angle of the longitude increment.

Returns: The longitude increment angle.

Referenced by Isis::MosaicGridToolConfigDialog::readSettings(), and setLonInc().

◆ maxLat()

Latitude Isis::MosaicGridTool::maxLat ( )

The maximum latitude used to determine the grid's extents and increments.

Returns: The maximum latitude of the grid range.

Referenced by onProjectionChanged(), Isis::MosaicGridToolConfigDialog::readSettings(), and setLatExtents().

◆ maxLon()

Longitude Isis::MosaicGridTool::maxLon ( )

The maximum longitude used to determine the grid's extents and increments.

Returns: The maximum longitude of the grid range.

Referenced by onProjectionChanged(), Isis::MosaicGridToolConfigDialog::readSettings(), and setLonExtents().

◆ minLat()

Latitude Isis::MosaicGridTool::minLat ( )

The minimum latitude used to determine the grid's extents and increments.

Returns: The minimum latitude of the grid range.

Referenced by onProjectionChanged(), Isis::MosaicGridToolConfigDialog::readSettings(), and setLatExtents().

◆ minLon()

Longitude Isis::MosaicGridTool::minLon ( )

The minimum longitude used to determine the grid's extents and increments.

Returns: The minimum longitude of the grid range.

Referenced by onProjectionChanged(), Isis::MosaicGridToolConfigDialog::readSettings(), and setLonExtents().

◆ mouseButtonPress()

void Isis::MosaicTool::mouseButtonPress	(	QPointF	,
		Qt::MouseButton	s
	)

protectedvirtualinherited

Referenced by Isis::MosaicTool::MosaicTool().

◆ mouseButtonRelease()

void Isis::MosaicTool::mouseButtonRelease	(	QPointF	,
		Qt::MouseButton	s
	)

protectedvirtualinherited

Reimplemented in Isis::MosaicControlNetTool, Isis::MosaicZoomTool, Isis::MosaicAreaTool, and Isis::MosaicFindTool.

Referenced by Isis::MosaicTool::MosaicTool().

◆ mouseDoubleClick()

void Isis::MosaicTool::mouseDoubleClick ( QPointF )

protectedvirtualinherited

Referenced by Isis::MosaicTool::MosaicTool().

◆ mouseEnter()

virtual void Isis::MosaicTool::mouseEnter ( )

inlineprotectedvirtualinherited

Referenced by Isis::MosaicTool::MosaicTool().

◆ mouseLeave()

virtual void Isis::MosaicTool::mouseLeave ( )

inlineprotectedvirtualinherited

Referenced by Isis::MosaicTool::MosaicTool().

◆ mouseMove()

void Isis::MosaicTool::mouseMove ( QPointF )

protectedvirtualinherited

Referenced by Isis::MosaicTool::MosaicTool().

◆ mouseWheel()

void Isis::MosaicTool::mouseWheel	(	QPointF	,
		int	delta
	)

protectedvirtualinherited

Reimplemented in Isis::MosaicZoomTool.

Referenced by Isis::MosaicTool::MosaicTool().

◆ onCubesChanged

void Isis::MosaicGridTool::onCubesChanged ( )

slot

Determines whether or not the bounding rectangle was changed by the addition or removal of cubes.

If it wasn't changed, the grid is not redrawn. If it was (and autogrid is checked), the grid is redrawn with new lat/lon increments.

References autoGrid(), boundingRectChanged(), Isis::MosaicSceneWidget::getView(), and Isis::MosaicTool::getWidget().

Referenced by drawGrid().

◆ onProjectionChanged

void Isis::MosaicGridTool::onProjectionChanged ( )

slot

References Isis::Angle::Degrees, Isis::MosaicSceneWidget::getProjection(), Isis::MosaicTool::getWidget(), Map, Isis::TProjection::MaximumLatitude(), Isis::TProjection::MaximumLongitude(), maxLat(), maxLon(), Isis::TProjection::MinimumLatitude(), Isis::TProjection::MinimumLongitude(), minLat(), minLon(), setLatExtents(), and setLonExtents().

Referenced by MosaicGridTool().

◆ onToolOpen

void Isis::MosaicGridTool::onToolOpen ( bool check )

slot

Checks both checkboxes when the tool is first opened.

Allows the grid to remain when the tool is not active.

Parameters

check True when the tool is activated

References autoGrid().

Referenced by getToolBarWidget().

◆ projectPvlObjectName()

QString Isis::MosaicGridTool::projectPvlObjectName ( ) const

virtual

An accessor for the name of the Pvl object that the tool's information is stored in.

Returns: The name in string form.

Reimplemented from Isis::MosaicTool.

Referenced by toPvl().

◆ rubberBandComplete()

virtual void Isis::MosaicTool::rubberBandComplete	(	QRectF	r,
		Qt::MouseButton	s
	)

inlineprotectedvirtualinherited

Reimplemented in Isis::MosaicZoomTool.

Referenced by Isis::MosaicTool::MosaicTool().

◆ sceneWidget()

MosaicSceneWidget * Isis::MosaicGridTool::sceneWidget ( )

Returns: a pointer to the scene

References Isis::MosaicTool::getWidget().

Referenced by Isis::MosaicGridToolConfigDialog::applySettings(), and Isis::MosaicGridToolConfigDialog::readSettings().

◆ setAutoGridCheckBox()

void Isis::MosaicGridTool::setAutoGridCheckBox ( bool checked )

Modify the check state of the checkbox.

Parameters

checked the new state of the checkbox

Referenced by Isis::MosaicGridToolConfigDialog::applySettings().

◆ setBaseLat()

void Isis::MosaicGridTool::setBaseLat ( Latitude baseLat )

Modify the base latitude.

Parameters

baseLat the new base latitude.

References baseLat().

Referenced by Isis::MosaicGridToolConfigDialog::applySettings().

◆ setBaseLon()

void Isis::MosaicGridTool::setBaseLon ( Longitude baseLon )

Modify the base longitude.

Parameters

baseLon the new base longitude.

References baseLon().

Referenced by Isis::MosaicGridToolConfigDialog::applySettings().

◆ setDensity()

void Isis::MosaicGridTool::setDensity ( int density )

Modify the density.

Parameters

density the new density value.

References density().

Referenced by Isis::MosaicGridToolConfigDialog::applySettings().

◆ setLatExtents()

void Isis::MosaicGridTool::setLatExtents	(	GridExtentSource	source,
		Latitude	minLat = `Latitude()`,
		Latitude	maxLat = `Latitude()`
	)

Set the maximum and minimum latitude of the grid.

Parameters

source	Where the grid extents come from (Map, Cubes, Manual).
minLat	The minimum latitude of the grid.
maxLat	The maximum latitude of the grid.

Referenced by Isis::MosaicGridToolConfigDialog::applySettings(), autoGrid(), and onProjectionChanged().

◆ setLatInc()

void Isis::MosaicGridTool::setLatInc ( Angle latInc )

Modify the latitude increment.

Parameters

latInc the new increment angle.

References Isis::Angle::Degrees, and latInc().

Referenced by Isis::MosaicGridToolConfigDialog::applySettings().

◆ setLonExtents()

void Isis::MosaicGridTool::setLonExtents	(	GridExtentSource	source,
		Longitude	minLon = `Longitude()`,
		Longitude	maxLon = `Longitude()`
	)

Set the maximum and minimum longitude of the grid.

Parameters

source	Where the grid extents come from (Map, Cubes, Manual).
minLon	The minimum longitude of the grid.
maxLon	The maximum longitude of the grid.

References Cubes, Isis::MosaicSceneWidget::cubesBoundingRect(), Isis::Angle::Degrees, domainMaxLon(), domainMinLon(), Isis::MosaicSceneWidget::getProjection(), Isis::MosaicTool::getWidget(), Isis::TProjection::Longitude(), Manual, Map, Isis::TProjection::MaximumLongitude(), maxLon(), Isis::TProjection::MinimumLongitude(), minLon(), Isis::Projection::projectionType(), Isis::TProjection::SetCoordinate(), and Isis::Projection::Triaxial.

Referenced by Isis::MosaicGridToolConfigDialog::applySettings(), autoGrid(), and onProjectionChanged().

◆ setLonInc()

void Isis::MosaicGridTool::setLonInc ( Angle lonInc )

Modify the longitude increment.

Parameters

lonInc the new lonitude increment.

References Isis::Angle::Degrees, and lonInc().

Referenced by Isis::MosaicGridToolConfigDialog::applySettings().

◆ setShowGrid()

void Isis::MosaicGridTool::setShowGrid ( bool show )

Modify the check state of the checkbox.

Parameters

checked the new state of the checkbox

Referenced by Isis::MosaicGridToolConfigDialog::applySettings().

◆ showGrid()

bool Isis::MosaicGridTool::showGrid ( )

True if grid is displayed.

Returns: Whether or not the grid is displayed.

Referenced by Isis::MosaicGridToolConfigDialog::readSettings().

◆ toolBarDestroyed()

void Isis::MosaicTool::toolBarDestroyed ( QObject * obj )

protectedinherited

Referenced by Isis::MosaicTool::addTo().

◆ toPvl()

PvlObject Isis::MosaicGridTool::toPvl ( ) const

virtual

Store the tool information in a pvl object.

Returns: the pvl object

Reimplemented from Isis::MosaicTool.

References Isis::Angle::degrees(), projectPvlObjectName(), and Isis::toString().

◆ updateTool

virtual void Isis::MosaicTool::updateTool ( )

inlineprotectedvirtualslotinherited

Referenced by Isis::MosaicTool::MosaicTool().

The documentation for this class was generated from the following files:

/Users/arsanders/repos/ISIS3/isis/src/qisis/objs/MosaicSceneWidget/MosaicGridTool.h
/Users/arsanders/repos/ISIS3/isis/src/qisis/objs/MosaicSceneWidget/MosaicGridTool.cpp

Public Types

Public Slots

Signals

Public Member Functions

Protected Slots

Protected Member Functions

Detailed Description

Member Enumeration Documentation

◆ GridExtentSource

Constructor & Destructor Documentation

◆ MosaicGridTool()

Member Function Documentation

◆ activate

◆ activated

◆ addTo() [1/3]

◆ addTo() [2/3]

◆ addTo() [3/3]

◆ addToMenu()

◆ autoGrid

◆ autoGridCheckBox()

◆ baseLat()

◆ baseLon()

◆ boundingRectChanged

◆ clearGrid

◆ configure

◆ createToolBarWidget()

◆ density()

◆ domainMaxLon()

◆ domainMinLon()

◆ drawGrid [1/2]

◆ drawGrid [2/2]

◆ fromPvl()

◆ getIcon()

◆ getPrimaryAction()

◆ getToolBarWidget()

◆ getViewActions()

◆ getWidget()

◆ isActive()

◆ latExtents()

◆ latInc()

◆ latType()

◆ lonDomain()

◆ lonExtents()

◆ lonInc()

◆ maxLat()

◆ maxLon()

◆ minLat()

◆ minLon()

◆ mouseButtonPress()

◆ mouseButtonRelease()

◆ mouseDoubleClick()

◆ mouseEnter()

◆ mouseLeave()

◆ mouseMove()

◆ mouseWheel()

◆ onCubesChanged

◆ onProjectionChanged

◆ onToolOpen

◆ projectPvlObjectName()

◆ rubberBandComplete()

◆ sceneWidget()

◆ setAutoGridCheckBox()

◆ setBaseLat()

◆ setBaseLon()

◆ setDensity()

◆ setLatExtents()

◆ setLatInc()

◆ setLonExtents()

◆ setLonInc()

◆ setShowGrid()

◆ showGrid()

◆ toolBarDestroyed()

◆ toPvl()

◆ updateTool
