A Spectral definition that includes wavelength and center values for each (line, sample) coordinate. More...

#include <SpectralDefinition1D.h>

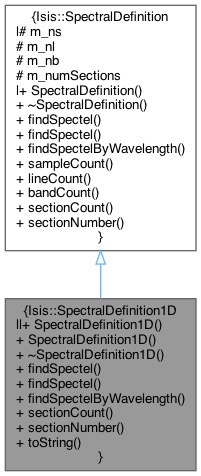

Inheritance diagram for Isis::SpectralDefinition1D:

Collaboration diagram for Isis::SpectralDefinition1D:

Public Member Functions
	SpectralDefinition1D (FileName smileDefFilename)
	Constructs a SpectralDefinition1D, typically used as the target SpectralDefinition in the desmile application. More...

	SpectralDefinition1D ()
	construct an empty 1D SpectralDef More...

virtual	~SpectralDefinition1D ()
	destructor More...

Spectel	findSpectel (const int sample, const int line, const int band) const
	Get the Spectel from this SpectralDefinition at a (s,l,b). More...

Spectel	findSpectel (const Spectel &inSpectel, const int sectionNumber) const
	Gets the Spectel from this SpectralDefinition at the same location (s,l,b) as the input Spectel. More...

Spectel	findSpectelByWavelength (double wavelength, int sectionNumber) const
	Finds the Spectel with the closest center wavelength (in the given sectionNumber) to the input wavelength. More...

virtual int	sectionCount () const
	Returns the number of sections in this Spectral Definition. More...

int	sectionNumber (int s, int l, int b) const
	Returns the section number that a spectel is in. More...

QString	toString ()
	Returns the QString representation of the SpectralDefinition1D. More...

virtual int	sampleCount () const
	Returns the number of samples in the calibration image. More...

virtual int	lineCount () const
	Returns the number of line in the calibration image. More...

virtual int	bandCount () const
	Returns the number of bands in the calibration image. More...

Protected Attributes
int	m_ns
	Number of samples in input Cube. More...

int	m_nl
	Number of lines in input Cube. More...

int	m_nb
	Number of bands in input Cube. More...

Detailed Description

A Spectral definition that includes wavelength and center values for each (line, sample) coordinate.

Author: 2015-05-21 Kristin Berry

Constructor & Destructor Documentation

◆ SpectralDefinition1D() [1/2]

Isis::SpectralDefinition1D::SpectralDefinition1D ( FileName smileDefFilename )

Constructs a SpectralDefinition1D, typically used as the target SpectralDefinition in the desmile application.

Parameters

smileDefFilename The filename for the source of the 1D SpectralDefinition. Currently, only CSVs are accepted as input.

References _FILEINFO_, Isis::CSVReader::columns(), Isis::CSVReader::getColumn(), Isis::SpectralDefinition::m_nb, Isis::SpectralDefinition::m_nl, Isis::SpectralDefinition::m_ns, Isis::NULL8, Isis::CSVReader::rows(), Isis::toDouble(), Isis::FileName::toString(), Isis::IException::Unknown, and Isis::IException::User.

◆ SpectralDefinition1D() [2/2]

Isis::SpectralDefinition1D::SpectralDefinition1D ( )

construct an empty 1D SpectralDef

◆ ~SpectralDefinition1D()

Isis::SpectralDefinition1D::~SpectralDefinition1D ( )

virtual

destructor

Member Function Documentation

◆ bandCount()

int Isis::SpectralDefinition::bandCount ( ) const

virtualinherited

Returns the number of bands in the calibration image.

References Isis::SpectralDefinition::m_nb.

◆ findSpectel() [1/2]

Spectel Isis::SpectralDefinition1D::findSpectel	(	const int	sample,
		const int	line,
		const int	band
	)		const

virtual

Get the Spectel from this SpectralDefinition at a (s,l,b).

This can be used to determine the center wavelength and filter width in a particular band.

If the (s,l,b) is not in the spectral definition, an empty Spectel is returned.

Parameters

sample	Sample
line	Line
band	Band

Returns: Spectel

Implements Isis::SpectralDefinition.

◆ findSpectel() [2/2]

Spectel Isis::SpectralDefinition1D::findSpectel	(	const Spectel &	inSpectel,
		const int	sectionNumber
	)		const

virtual

Gets the Spectel from this SpectralDefinition at the same location (s,l,b) as the input Spectel.

Author: 2015-05-15 Kristin Berry

Parameters

inSpectel	The input Spectel used to look up information.
sectionNumber	The SpectralDefinition's section number that the input Spectel is in.

Returns: Spectel

Implements Isis::SpectralDefinition.

References Isis::Spectel::centerWavelength(), findSpectelByWavelength(), and sectionNumber().

◆ findSpectelByWavelength()

Spectel Isis::SpectralDefinition1D::findSpectelByWavelength	(	double	wavelength,
		int	sectionNumber
	)		const

virtual

Finds the Spectel with the closest center wavelength (in the given sectionNumber) to the input wavelength.

Author: 2015-05-15 Kristin Berry

Parameters

wavelength	The closest wavelength to this input wavelength is searched for in the SpectralDefinition.
sectionNumber	The section number of the definition to search in.

Returns: Spectel The Spectel with the closest center wavelength to the input wavelength.

Implements Isis::SpectralDefinition.

References _FILEINFO_, Isis::Null, sectionNumber(), and Isis::IException::User.

Referenced by findSpectel().

◆ lineCount()

int Isis::SpectralDefinition::lineCount ( ) const

virtualinherited

Returns the number of line in the calibration image.

References Isis::SpectralDefinition::m_nl.

◆ sampleCount()

int Isis::SpectralDefinition::sampleCount ( ) const

virtualinherited

Returns the number of samples in the calibration image.

References Isis::SpectralDefinition::m_ns.

◆ sectionCount()

int Isis::SpectralDefinition1D::sectionCount ( ) const

virtual

Returns the number of sections in this Spectral Definition.

Returns: int The number of sections in the SpectralDefinition

Reimplemented from Isis::SpectralDefinition.

◆ sectionNumber()

int Isis::SpectralDefinition1D::sectionNumber	(	int	s,
		int	l,
		int	b
	)		const

virtual

Returns the section number that a spectel is in.

Parameters

s	Sample coordinate of spectel
l	Line coordinate of spectel
b	Band coordinate of spectel

Returns: int The section number this spectel is in

Implements Isis::SpectralDefinition.

Referenced by findSpectel(), and findSpectelByWavelength().

◆ toString()

QString Isis::SpectralDefinition1D::toString ( )

Returns the QString representation of the SpectralDefinition1D.

Author: Kristin Berry

Member Data Documentation

◆ m_nb

int Isis::SpectralDefinition::m_nb

protectedinherited

Number of bands in input Cube.

Referenced by Isis::SpectralDefinition::bandCount(), SpectralDefinition1D(), and Isis::SpectralDefinition2D::SpectralDefinition2D().

◆ m_nl

int Isis::SpectralDefinition::m_nl

protectedinherited

Number of lines in input Cube.

Referenced by Isis::SpectralDefinition::lineCount(), SpectralDefinition1D(), and Isis::SpectralDefinition2D::SpectralDefinition2D().

◆ m_ns

int Isis::SpectralDefinition::m_ns

protectedinherited

Number of samples in input Cube.

Referenced by Isis::SpectralDefinition::sampleCount(), SpectralDefinition1D(), and Isis::SpectralDefinition2D::SpectralDefinition2D().

The documentation for this class was generated from the following files:

/Users/arsanders/repos/ISIS3/isis/src/base/objs/SpectralDefinition1D/SpectralDefinition1D.h
/Users/arsanders/repos/ISIS3/isis/src/base/objs/SpectralDefinition1D/SpectralDefinition1D.cpp
