Isis Developer Reference
Public Member Functions | Protected Attributes | List of all members
Isis::KaguyaMiCameraDistortionMap Class Reference
Spice, Instruments, and Cameras | Mission Specific Objects » Kaguya

Distort/undistort focal plane coordinates. More...

#include <KaguyaMiCameraDistortionMap.h>

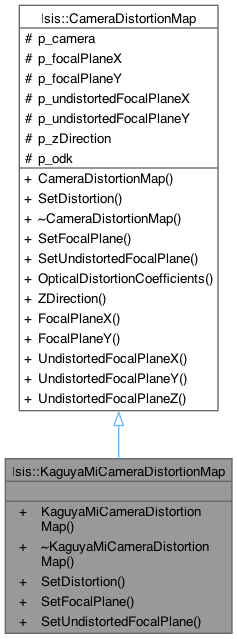

Inheritance diagram for Isis::KaguyaMiCameraDistortionMap:
Inheritance graph

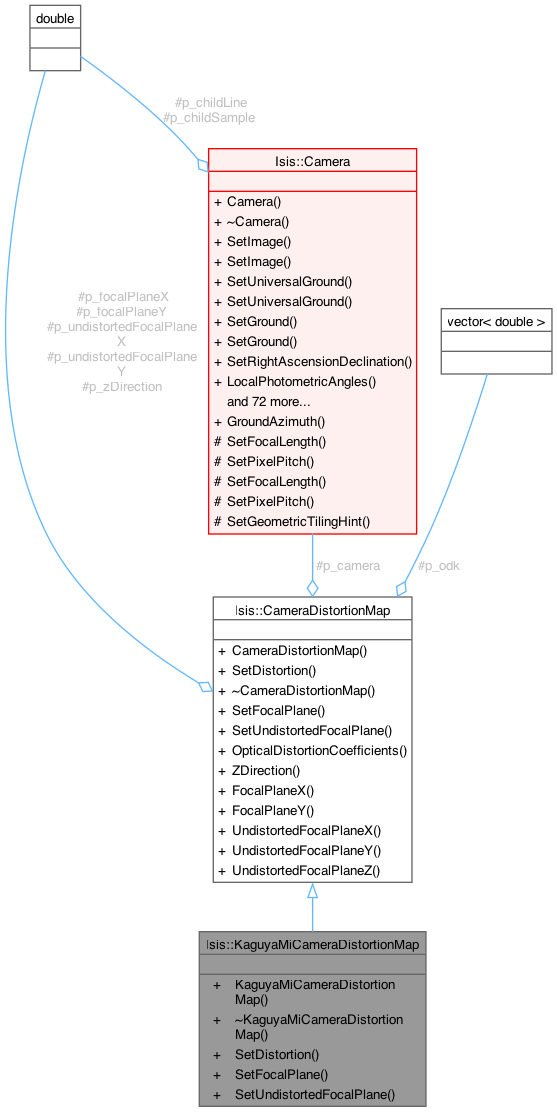

Collaboration diagram for Isis::KaguyaMiCameraDistortionMap:
Collaboration graph

Public Member Functions

 KaguyaMiCameraDistortionMap (Camera *parent)
 Camera distortion map constructor.

virtual ~KaguyaMiCameraDistortionMap ()
 Destroys the KaguyaMiCameraDistortionMap object.

void SetDistortion (const int naifIkCode)

virtual bool SetFocalPlane (const double dx, const double dy)
 Compute undistorted focal plane x/y.

virtual bool SetUndistortedFocalPlane (const double ux, const double uy)
 Compute distorted focal plane x/y.

std::vector< double > OpticalDistortionCoefficients () const
 Retrieve the distortion coefficients used for this model.

double ZDirection () const
 Gets the z-direction for this camera.

double FocalPlaneX () const
 Gets the x-value in the focal plane coordinate system.

double FocalPlaneY () const
 Gets the y-value in the focal plane coordinate system.

double UndistortedFocalPlaneX () const
 Gets the x-value in the undistorted focal plane coordinate system.

double UndistortedFocalPlaneY () const
 Gets the y-value in the undistorted focal plane coordinate system.

double UndistortedFocalPlaneZ () const
 Gets the z-value in the undistorted focal plane coordinate system.


Protected Attributes

Camera * p_camera
 The camera to distort/undistort.

double p_focalPlaneX
 Distorted focal plane x.

double p_focalPlaneY
 Distorted focal plane y.

double p_undistortedFocalPlaneX
 Undistorted focal plane x.

double p_undistortedFocalPlaneY
 Undistorted focal plane y.

double p_zDirection
 Undistorted focal plane z.

std::vector< double > p_odk = {}
 Vector of distortion coefficients.


Detailed Description

Distort/undistort focal plane coordinates.

Creates a map for adding/removing optical distortions from the focal plane of a camera.

See also
KaguyaMiCamera
Author
2012-06-20 Orrin Thomas

Constructor & Destructor Documentation

◆ KaguyaMiCameraDistortionMap()

Isis::KaguyaMiCameraDistortionMap::KaguyaMiCameraDistortionMap ( Camera * parent)

Camera distortion map constructor.

Create a camera distortion map. This class maps between distorted and undistorted focal plane x/y's. The default mapping is the identity, that is, the focal plane x/y and undistorted focal plane x/y will be identical.

Parameters
parentthe parent camera that will use this distortion map
zDirectionthe direction of the focal plane Z-axis (either 1 or -1)

◆ ~KaguyaMiCameraDistortionMap()

virtual Isis::KaguyaMiCameraDistortionMap::~KaguyaMiCameraDistortionMap ( )
inlinevirtual

Destroys the KaguyaMiCameraDistortionMap object.

Member Function Documentation

◆ FocalPlaneX()

double Isis::CameraDistortionMap::FocalPlaneX ( ) const
inherited

Gets the x-value in the focal plane coordinate system.

This is represented in millimeters from the origin.

Returns
The distorted focal plane x.

References Isis::CameraDistortionMap::p_focalPlaneX.

Referenced by Isis::Camera::SetRightAscensionDeclination(), and Isis::LineScanCameraSkyMap::SetSky().

◆ FocalPlaneY()

double Isis::CameraDistortionMap::FocalPlaneY ( ) const
inherited

Gets the y-value in the focal plane coordinate system.

This is represented in millimeters from the origin.

Returns
The distorted focal plane y.

References Isis::CameraDistortionMap::p_focalPlaneY.

Referenced by Isis::Camera::SetRightAscensionDeclination().

◆ OpticalDistortionCoefficients()

std::vector< double > Isis::CameraDistortionMap::OpticalDistortionCoefficients ( ) const
inherited

Retrieve the distortion coefficients used for this model.

Returns
The optical distortion of polynomial coefficients.

References Isis::CameraDistortionMap::p_odk.

◆ SetDistortion()

void Isis::KaguyaMiCameraDistortionMap::SetDistortion ( const int naifIkCode)
virtual
Parameters
naifIkCode

Reimplemented from Isis::CameraDistortionMap.

References Isis::Spice::getDouble(), Isis::CameraDistortionMap::p_camera, Isis::Camera::PixelPitch(), and Isis::toString().

◆ SetFocalPlane()

bool Isis::KaguyaMiCameraDistortionMap::SetFocalPlane ( const double dx,
const double dy )
virtual

Compute undistorted focal plane x/y.

Compute undistorted focal plane x/y given a distorted focal plane x/y.

Parameters
dxdistorted focal plane x in millimeters
dydistorted focal plane y in millimeters
Returns
if the conversion was successful
See also
SetDistortion

Reimplemented from Isis::CameraDistortionMap.

References Isis::CameraDistortionMap::p_focalPlaneX, Isis::CameraDistortionMap::p_focalPlaneY, Isis::CameraDistortionMap::p_undistortedFocalPlaneX, and Isis::CameraDistortionMap::p_undistortedFocalPlaneY.

◆ SetUndistortedFocalPlane()

bool Isis::KaguyaMiCameraDistortionMap::SetUndistortedFocalPlane ( const double ux,
const double uy )
virtual

Compute distorted focal plane x/y.

Compute distorted focal plane x/y given an undistorted focal plane x/y.

Parameters
uxundistorted focal plane x in millimeters
uyundistorted focal plane y in millimeters
Returns
if the conversion was successful
See also
SetDistortion

Reimplemented from Isis::CameraDistortionMap.

References Isis::CameraDistortionMap::p_focalPlaneX, Isis::CameraDistortionMap::p_focalPlaneY, Isis::CameraDistortionMap::p_undistortedFocalPlaneX, Isis::CameraDistortionMap::p_undistortedFocalPlaneY, Isis::FunctionTools::realCubicRoots(), and Isis::FunctionTools::realQuadraticRoots().

◆ UndistortedFocalPlaneX()

double Isis::CameraDistortionMap::UndistortedFocalPlaneX ( ) const
inherited

Gets the x-value in the undistorted focal plane coordinate system.

This is represented in millimeters from the origin.

Returns
The undistorted focal plane x

References Isis::CameraDistortionMap::p_undistortedFocalPlaneX.

Referenced by Isis::LidarControlPoint::ComputeResiduals(), Isis::Camera::SetImage(), and Isis::Camera::SetImage().

◆ UndistortedFocalPlaneY()

double Isis::CameraDistortionMap::UndistortedFocalPlaneY ( ) const
inherited

Gets the y-value in the undistorted focal plane coordinate system.

This is represented in millimeters from the origin.

Returns
The undistorted focal plane y

References Isis::CameraDistortionMap::p_undistortedFocalPlaneY.

Referenced by Isis::LidarControlPoint::ComputeResiduals(), Isis::Camera::SetImage(), and Isis::Camera::SetImage().

◆ UndistortedFocalPlaneZ()

double Isis::CameraDistortionMap::UndistortedFocalPlaneZ ( ) const
inherited

Gets the z-value in the undistorted focal plane coordinate system.

This is represented as the focal length, in millimeters, with the sign indicating z-direction.

Returns
The undistorted focal plane z

References Isis::Camera::FocalLength(), Isis::CameraDistortionMap::p_camera, and Isis::CameraDistortionMap::p_zDirection.

Referenced by Isis::CameraGroundMap::GetdXYdOrientation(), Isis::CameraGroundMap::GetdXYdPoint(), Isis::CameraGroundMap::GetdXYdPosition(), Isis::CameraGroundMap::GetdXYdTOrientation(), Isis::CameraGroundMap::GetXY(), Isis::Camera::SetImage(), and Isis::Camera::SetImage().

◆ ZDirection()

double Isis::CameraDistortionMap::ZDirection ( ) const
inherited

Gets the z-direction for this camera.

The direction is represented as +/- 1.

Returns
The direction of the focal plane Z-axis

References Isis::CameraDistortionMap::p_zDirection.

Member Data Documentation

◆ p_camera

Camera* Isis::CameraDistortionMap::p_camera
protectedinherited

The camera to distort/undistort.

Referenced by Isis::LroWideAngleCameraDistortionMap::addFilter(), Isis::CameraDistortionMap::CameraDistortionMap(), Isis::KaguyaTcCameraDistortionMap::KaguyaTcCameraDistortionMap(), Isis::MarciDistortionMap::MarciDistortionMap(), Isis::NewHorizonsMvicFrameCameraDistortionMap::NewHorizonsMvicFrameCameraDistortionMap(), Isis::NewHorizonsMvicTdiCameraDistortionMap::NewHorizonsMvicTdiCameraDistortionMap(), Isis::OsirisRexDistortionMap::OsirisRexDistortionMap(), SetDistortion(), Isis::LoHighDistortionMap::SetDistortion(), Isis::LoMediumDistortionMap::SetDistortion(), Isis::LroNarrowAngleDistortionMap::SetDistortion(), Isis::TaylorCameraDistortionMap::SetDistortion(), Isis::CameraDistortionMap::SetDistortion(), Isis::JunoDistortionMap::SetDistortion(), Isis::OsirisRexDistortionMap::SetDistortion(), Isis::ReseauDistortionMap::SetFocalPlane(), Isis::LoMediumDistortionMap::SetFocalPlane(), Isis::MocWideAngleDistortionMap::SetFocalPlane(), Isis::MarciDistortionMap::SetFocalPlane(), Isis::JunoDistortionMap::SetFocalPlane(), Isis::ReseauDistortionMap::SetUndistortedFocalPlane(), Isis::LoMediumDistortionMap::SetUndistortedFocalPlane(), Isis::MocWideAngleDistortionMap::SetUndistortedFocalPlane(), Isis::MarciDistortionMap::SetUndistortedFocalPlane(), Isis::CameraDistortionMap::SetUndistortedFocalPlane(), Isis::Hyb2OncDistortionMap::SetUndistortedFocalPlane(), Isis::TgoCassisDistortionMap::TgoCassisDistortionMap(), and Isis::CameraDistortionMap::UndistortedFocalPlaneZ().

◆ p_focalPlaneX

double Isis::CameraDistortionMap::p_focalPlaneX
protectedinherited

Distorted focal plane x.

Referenced by Isis::CameraDistortionMap::FocalPlaneX(), Isis::ApolloMetricDistortionMap::SetFocalPlane(), Isis::RadarSlantRangeMap::SetFocalPlane(), Isis::RadialDistortionMap::SetFocalPlane(), Isis::ReseauDistortionMap::SetFocalPlane(), Isis::Chandrayaan1M3DistortionMap::SetFocalPlane(), Isis::ClementineUvvisDistortionMap::SetFocalPlane(), SetFocalPlane(), Isis::LoHighDistortionMap::SetFocalPlane(), Isis::LoMediumDistortionMap::SetFocalPlane(), Isis::LroNarrowAngleDistortionMap::SetFocalPlane(), Isis::LroWideAngleCameraDistortionMap::SetFocalPlane(), Isis::TaylorCameraDistortionMap::SetFocalPlane(), Isis::MocWideAngleDistortionMap::SetFocalPlane(), Isis::MarciDistortionMap::SetFocalPlane(), Isis::NewHorizonsMvicFrameCameraDistortionMap::SetFocalPlane(), Isis::NewHorizonsMvicTdiCameraDistortionMap::SetFocalPlane(), Isis::ThemisIrDistortionMap::SetFocalPlane(), Isis::ThemisVisDistortionMap::SetFocalPlane(), Isis::RosettaOsirisCameraDistortionMap::SetFocalPlane(), Isis::TgoCassisDistortionMap::SetFocalPlane(), Isis::DawnFcDistortionMap::SetFocalPlane(), Isis::NewHorizonsLorriDistortionMap::SetFocalPlane(), Isis::CameraDistortionMap::SetFocalPlane(), Isis::Hyb2OncDistortionMap::SetFocalPlane(), Isis::JunoDistortionMap::SetFocalPlane(), Isis::KaguyaTcCameraDistortionMap::SetFocalPlane(), Isis::OsirisRexDistortionMap::SetFocalPlane(), Isis::DawnFcDistortionMap::SetUndistortedFocalPlane(), Isis::NewHorizonsLorriDistortionMap::SetUndistortedFocalPlane(), Isis::ApolloMetricDistortionMap::SetUndistortedFocalPlane(), Isis::RadarSlantRangeMap::SetUndistortedFocalPlane(), Isis::RadialDistortionMap::SetUndistortedFocalPlane(), Isis::ReseauDistortionMap::SetUndistortedFocalPlane(), Isis::Chandrayaan1M3DistortionMap::SetUndistortedFocalPlane(), Isis::ClementineUvvisDistortionMap::SetUndistortedFocalPlane(), SetUndistortedFocalPlane(), Isis::LoHighDistortionMap::SetUndistortedFocalPlane(), Isis::LoMediumDistortionMap::SetUndistortedFocalPlane(), Isis::LroNarrowAngleDistortionMap::SetUndistortedFocalPlane(), Isis::LroWideAngleCameraDistortionMap::SetUndistortedFocalPlane(), Isis::TaylorCameraDistortionMap::SetUndistortedFocalPlane(), Isis::MocWideAngleDistortionMap::SetUndistortedFocalPlane(), Isis::MarciDistortionMap::SetUndistortedFocalPlane(), Isis::NewHorizonsMvicFrameCameraDistortionMap::SetUndistortedFocalPlane(), Isis::NewHorizonsMvicTdiCameraDistortionMap::SetUndistortedFocalPlane(), Isis::ThemisIrDistortionMap::SetUndistortedFocalPlane(), Isis::ThemisVisDistortionMap::SetUndistortedFocalPlane(), Isis::RosettaOsirisCameraDistortionMap::SetUndistortedFocalPlane(), Isis::TgoCassisDistortionMap::SetUndistortedFocalPlane(), Isis::CameraDistortionMap::SetUndistortedFocalPlane(), Isis::Hyb2OncDistortionMap::SetUndistortedFocalPlane(), Isis::JunoDistortionMap::SetUndistortedFocalPlane(), Isis::KaguyaTcCameraDistortionMap::SetUndistortedFocalPlane(), and Isis::OsirisRexDistortionMap::SetUndistortedFocalPlane().

◆ p_focalPlaneY

double Isis::CameraDistortionMap::p_focalPlaneY
protectedinherited

Distorted focal plane y.

Referenced by Isis::CameraDistortionMap::FocalPlaneY(), Isis::ApolloMetricDistortionMap::SetFocalPlane(), Isis::RadarSlantRangeMap::SetFocalPlane(), Isis::RadialDistortionMap::SetFocalPlane(), Isis::ReseauDistortionMap::SetFocalPlane(), Isis::Chandrayaan1M3DistortionMap::SetFocalPlane(), Isis::ClementineUvvisDistortionMap::SetFocalPlane(), SetFocalPlane(), Isis::LoHighDistortionMap::SetFocalPlane(), Isis::LoMediumDistortionMap::SetFocalPlane(), Isis::LroNarrowAngleDistortionMap::SetFocalPlane(), Isis::LroWideAngleCameraDistortionMap::SetFocalPlane(), Isis::TaylorCameraDistortionMap::SetFocalPlane(), Isis::MocWideAngleDistortionMap::SetFocalPlane(), Isis::MarciDistortionMap::SetFocalPlane(), Isis::NewHorizonsMvicFrameCameraDistortionMap::SetFocalPlane(), Isis::NewHorizonsMvicTdiCameraDistortionMap::SetFocalPlane(), Isis::ThemisIrDistortionMap::SetFocalPlane(), Isis::ThemisVisDistortionMap::SetFocalPlane(), Isis::RosettaOsirisCameraDistortionMap::SetFocalPlane(), Isis::TgoCassisDistortionMap::SetFocalPlane(), Isis::DawnFcDistortionMap::SetFocalPlane(), Isis::NewHorizonsLorriDistortionMap::SetFocalPlane(), Isis::CameraDistortionMap::SetFocalPlane(), Isis::Hyb2OncDistortionMap::SetFocalPlane(), Isis::JunoDistortionMap::SetFocalPlane(), Isis::KaguyaTcCameraDistortionMap::SetFocalPlane(), Isis::OsirisRexDistortionMap::SetFocalPlane(), Isis::DawnFcDistortionMap::SetUndistortedFocalPlane(), Isis::NewHorizonsLorriDistortionMap::SetUndistortedFocalPlane(), Isis::ApolloMetricDistortionMap::SetUndistortedFocalPlane(), Isis::RadarSlantRangeMap::SetUndistortedFocalPlane(), Isis::RadialDistortionMap::SetUndistortedFocalPlane(), Isis::ReseauDistortionMap::SetUndistortedFocalPlane(), Isis::Chandrayaan1M3DistortionMap::SetUndistortedFocalPlane(), Isis::ClementineUvvisDistortionMap::SetUndistortedFocalPlane(), SetUndistortedFocalPlane(), Isis::LoHighDistortionMap::SetUndistortedFocalPlane(), Isis::LoMediumDistortionMap::SetUndistortedFocalPlane(), Isis::LroNarrowAngleDistortionMap::SetUndistortedFocalPlane(), Isis::LroWideAngleCameraDistortionMap::SetUndistortedFocalPlane(), Isis::TaylorCameraDistortionMap::SetUndistortedFocalPlane(), Isis::MocWideAngleDistortionMap::SetUndistortedFocalPlane(), Isis::MarciDistortionMap::SetUndistortedFocalPlane(), Isis::NewHorizonsMvicFrameCameraDistortionMap::SetUndistortedFocalPlane(), Isis::NewHorizonsMvicTdiCameraDistortionMap::SetUndistortedFocalPlane(), Isis::ThemisIrDistortionMap::SetUndistortedFocalPlane(), Isis::ThemisVisDistortionMap::SetUndistortedFocalPlane(), Isis::RosettaOsirisCameraDistortionMap::SetUndistortedFocalPlane(), Isis::TgoCassisDistortionMap::SetUndistortedFocalPlane(), Isis::CameraDistortionMap::SetUndistortedFocalPlane(), Isis::Hyb2OncDistortionMap::SetUndistortedFocalPlane(), Isis::JunoDistortionMap::SetUndistortedFocalPlane(), Isis::KaguyaTcCameraDistortionMap::SetUndistortedFocalPlane(), and Isis::OsirisRexDistortionMap::SetUndistortedFocalPlane().

◆ p_odk

std::vector<double> Isis::CameraDistortionMap::p_odk = {}
protectedinherited

Vector of distortion coefficients.

Referenced by Isis::LroWideAngleCameraDistortionMap::LroWideAngleCameraDistortionMap(), Isis::MarciDistortionMap::MarciDistortionMap(), Isis::CameraDistortionMap::OpticalDistortionCoefficients(), Isis::LroWideAngleCameraDistortionMap::setBand(), Isis::LroNarrowAngleDistortionMap::SetDistortion(), Isis::CameraDistortionMap::SetDistortion(), Isis::JunoDistortionMap::SetDistortion(), Isis::OsirisRexDistortionMap::SetDistortion(), Isis::LoHighDistortionMap::SetFocalPlane(), Isis::LoMediumDistortionMap::SetFocalPlane(), Isis::LroNarrowAngleDistortionMap::SetFocalPlane(), Isis::LroWideAngleCameraDistortionMap::SetFocalPlane(), Isis::MarciDistortionMap::SetFocalPlane(), Isis::CameraDistortionMap::SetFocalPlane(), Isis::Hyb2OncDistortionMap::SetFocalPlane(), Isis::JunoDistortionMap::SetFocalPlane(), Isis::OsirisRexDistortionMap::SetFocalPlane(), Isis::LoHighDistortionMap::SetUndistortedFocalPlane(), Isis::LoMediumDistortionMap::SetUndistortedFocalPlane(), Isis::LroNarrowAngleDistortionMap::SetUndistortedFocalPlane(), Isis::LroWideAngleCameraDistortionMap::SetUndistortedFocalPlane(), Isis::MarciDistortionMap::SetUndistortedFocalPlane(), Isis::CameraDistortionMap::SetUndistortedFocalPlane(), Isis::Hyb2OncDistortionMap::SetUndistortedFocalPlane(), Isis::JunoDistortionMap::SetUndistortedFocalPlane(), and Isis::OsirisRexDistortionMap::SetUndistortedFocalPlane().

◆ p_undistortedFocalPlaneX

double Isis::CameraDistortionMap::p_undistortedFocalPlaneX
protectedinherited

Undistorted focal plane x.

Referenced by Isis::ApolloMetricDistortionMap::SetFocalPlane(), Isis::RadarSlantRangeMap::SetFocalPlane(), Isis::RadialDistortionMap::SetFocalPlane(), Isis::ReseauDistortionMap::SetFocalPlane(), Isis::Chandrayaan1M3DistortionMap::SetFocalPlane(), Isis::ClementineUvvisDistortionMap::SetFocalPlane(), SetFocalPlane(), Isis::LoHighDistortionMap::SetFocalPlane(), Isis::LoMediumDistortionMap::SetFocalPlane(), Isis::LroNarrowAngleDistortionMap::SetFocalPlane(), Isis::LroWideAngleCameraDistortionMap::SetFocalPlane(), Isis::TaylorCameraDistortionMap::SetFocalPlane(), Isis::MocWideAngleDistortionMap::SetFocalPlane(), Isis::MarciDistortionMap::SetFocalPlane(), Isis::NewHorizonsMvicFrameCameraDistortionMap::SetFocalPlane(), Isis::NewHorizonsMvicTdiCameraDistortionMap::SetFocalPlane(), Isis::ThemisIrDistortionMap::SetFocalPlane(), Isis::ThemisVisDistortionMap::SetFocalPlane(), Isis::RosettaOsirisCameraDistortionMap::SetFocalPlane(), Isis::TgoCassisDistortionMap::SetFocalPlane(), Isis::DawnFcDistortionMap::SetFocalPlane(), Isis::NewHorizonsLorriDistortionMap::SetFocalPlane(), Isis::CameraDistortionMap::SetFocalPlane(), Isis::Hyb2OncDistortionMap::SetFocalPlane(), Isis::JunoDistortionMap::SetFocalPlane(), Isis::KaguyaTcCameraDistortionMap::SetFocalPlane(), Isis::OsirisRexDistortionMap::SetFocalPlane(), Isis::DawnFcDistortionMap::SetUndistortedFocalPlane(), Isis::NewHorizonsLorriDistortionMap::SetUndistortedFocalPlane(), Isis::ApolloMetricDistortionMap::SetUndistortedFocalPlane(), Isis::RadarSlantRangeMap::SetUndistortedFocalPlane(), Isis::RadialDistortionMap::SetUndistortedFocalPlane(), Isis::ReseauDistortionMap::SetUndistortedFocalPlane(), Isis::Chandrayaan1M3DistortionMap::SetUndistortedFocalPlane(), Isis::ClementineUvvisDistortionMap::SetUndistortedFocalPlane(), SetUndistortedFocalPlane(), Isis::LoHighDistortionMap::SetUndistortedFocalPlane(), Isis::LoMediumDistortionMap::SetUndistortedFocalPlane(), Isis::LroNarrowAngleDistortionMap::SetUndistortedFocalPlane(), Isis::LroWideAngleCameraDistortionMap::SetUndistortedFocalPlane(), Isis::TaylorCameraDistortionMap::SetUndistortedFocalPlane(), Isis::MocWideAngleDistortionMap::SetUndistortedFocalPlane(), Isis::MarciDistortionMap::SetUndistortedFocalPlane(), Isis::NewHorizonsMvicFrameCameraDistortionMap::SetUndistortedFocalPlane(), Isis::NewHorizonsMvicTdiCameraDistortionMap::SetUndistortedFocalPlane(), Isis::ThemisIrDistortionMap::SetUndistortedFocalPlane(), Isis::ThemisVisDistortionMap::SetUndistortedFocalPlane(), Isis::RosettaOsirisCameraDistortionMap::SetUndistortedFocalPlane(), Isis::TgoCassisDistortionMap::SetUndistortedFocalPlane(), Isis::CameraDistortionMap::SetUndistortedFocalPlane(), Isis::Hyb2OncDistortionMap::SetUndistortedFocalPlane(), Isis::JunoDistortionMap::SetUndistortedFocalPlane(), Isis::KaguyaTcCameraDistortionMap::SetUndistortedFocalPlane(), Isis::OsirisRexDistortionMap::SetUndistortedFocalPlane(), and Isis::CameraDistortionMap::UndistortedFocalPlaneX().

◆ p_undistortedFocalPlaneY

double Isis::CameraDistortionMap::p_undistortedFocalPlaneY
protectedinherited

Undistorted focal plane y.

Referenced by Isis::ApolloMetricDistortionMap::SetFocalPlane(), Isis::RadarSlantRangeMap::SetFocalPlane(), Isis::RadialDistortionMap::SetFocalPlane(), Isis::ReseauDistortionMap::SetFocalPlane(), Isis::Chandrayaan1M3DistortionMap::SetFocalPlane(), Isis::ClementineUvvisDistortionMap::SetFocalPlane(), SetFocalPlane(), Isis::LoHighDistortionMap::SetFocalPlane(), Isis::LoMediumDistortionMap::SetFocalPlane(), Isis::LroNarrowAngleDistortionMap::SetFocalPlane(), Isis::LroWideAngleCameraDistortionMap::SetFocalPlane(), Isis::TaylorCameraDistortionMap::SetFocalPlane(), Isis::MocWideAngleDistortionMap::SetFocalPlane(), Isis::MarciDistortionMap::SetFocalPlane(), Isis::NewHorizonsMvicFrameCameraDistortionMap::SetFocalPlane(), Isis::NewHorizonsMvicTdiCameraDistortionMap::SetFocalPlane(), Isis::ThemisIrDistortionMap::SetFocalPlane(), Isis::ThemisVisDistortionMap::SetFocalPlane(), Isis::RosettaOsirisCameraDistortionMap::SetFocalPlane(), Isis::TgoCassisDistortionMap::SetFocalPlane(), Isis::DawnFcDistortionMap::SetFocalPlane(), Isis::NewHorizonsLorriDistortionMap::SetFocalPlane(), Isis::CameraDistortionMap::SetFocalPlane(), Isis::Hyb2OncDistortionMap::SetFocalPlane(), Isis::JunoDistortionMap::SetFocalPlane(), Isis::KaguyaTcCameraDistortionMap::SetFocalPlane(), Isis::OsirisRexDistortionMap::SetFocalPlane(), Isis::DawnFcDistortionMap::SetUndistortedFocalPlane(), Isis::NewHorizonsLorriDistortionMap::SetUndistortedFocalPlane(), Isis::ApolloMetricDistortionMap::SetUndistortedFocalPlane(), Isis::RadarSlantRangeMap::SetUndistortedFocalPlane(), Isis::RadialDistortionMap::SetUndistortedFocalPlane(), Isis::ReseauDistortionMap::SetUndistortedFocalPlane(), Isis::Chandrayaan1M3DistortionMap::SetUndistortedFocalPlane(), Isis::ClementineUvvisDistortionMap::SetUndistortedFocalPlane(), SetUndistortedFocalPlane(), Isis::LoHighDistortionMap::SetUndistortedFocalPlane(), Isis::LoMediumDistortionMap::SetUndistortedFocalPlane(), Isis::LroNarrowAngleDistortionMap::SetUndistortedFocalPlane(), Isis::LroWideAngleCameraDistortionMap::SetUndistortedFocalPlane(), Isis::TaylorCameraDistortionMap::SetUndistortedFocalPlane(), Isis::MocWideAngleDistortionMap::SetUndistortedFocalPlane(), Isis::MarciDistortionMap::SetUndistortedFocalPlane(), Isis::NewHorizonsMvicFrameCameraDistortionMap::SetUndistortedFocalPlane(), Isis::NewHorizonsMvicTdiCameraDistortionMap::SetUndistortedFocalPlane(), Isis::ThemisIrDistortionMap::SetUndistortedFocalPlane(), Isis::ThemisVisDistortionMap::SetUndistortedFocalPlane(), Isis::RosettaOsirisCameraDistortionMap::SetUndistortedFocalPlane(), Isis::TgoCassisDistortionMap::SetUndistortedFocalPlane(), Isis::CameraDistortionMap::SetUndistortedFocalPlane(), Isis::Hyb2OncDistortionMap::SetUndistortedFocalPlane(), Isis::JunoDistortionMap::SetUndistortedFocalPlane(), Isis::KaguyaTcCameraDistortionMap::SetUndistortedFocalPlane(), Isis::OsirisRexDistortionMap::SetUndistortedFocalPlane(), and Isis::CameraDistortionMap::UndistortedFocalPlaneY().

◆ p_zDirection

double Isis::CameraDistortionMap::p_zDirection
protectedinherited

Undistorted focal plane z.

Referenced by Isis::CameraDistortionMap::CameraDistortionMap(), Isis::CameraDistortionMap::UndistortedFocalPlaneZ(), and Isis::CameraDistortionMap::ZDirection().

The documentation for this class was generated from the following files:
