Isis::RosettaOsirisCameraDistortionMap Class Reference
Spice, Instruments, and Cameras | Mission Specific Objects » Rosetta

Distortion map for converting between undistorted focal plane and distorted focal plane coordinates for the Rosetta OSIRIS NAC and WAC. More...

#include <RosettaOsirisCameraDistortionMap.h>

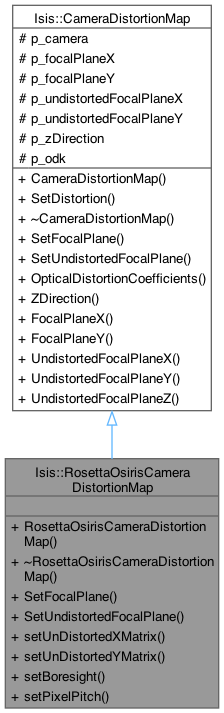

Inheritance diagram for Isis::RosettaOsirisCameraDistortionMap:
Inheritance graph

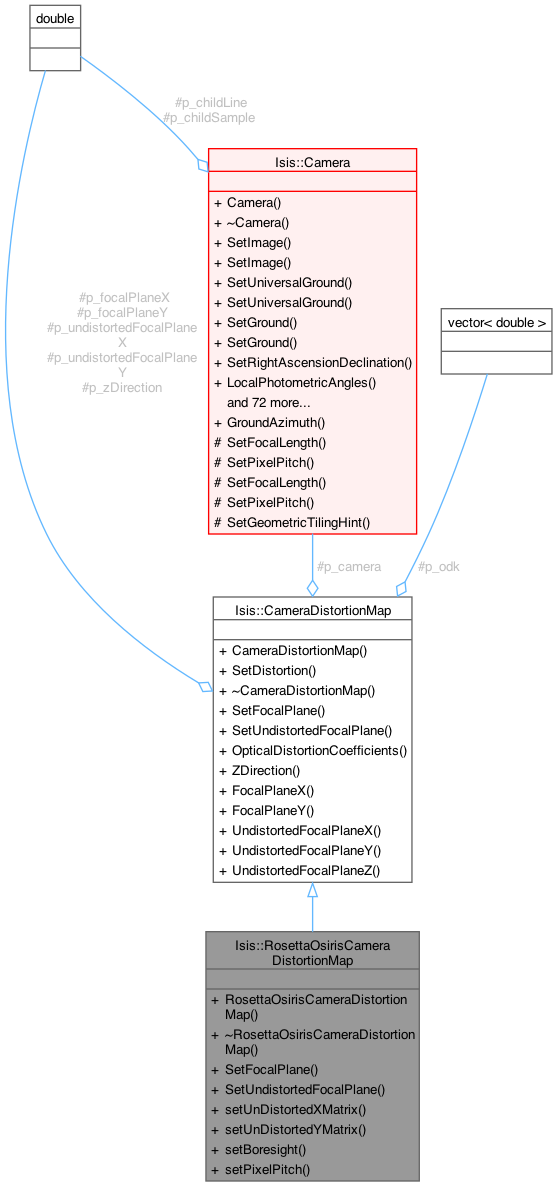

Collaboration diagram for Isis::RosettaOsirisCameraDistortionMap:
Collaboration graph

Public Member Functions

 RosettaOsirisCameraDistortionMap (Camera *parent)
 Create a camera distortion map.

virtual ~RosettaOsirisCameraDistortionMap ()
 Destroys the RosettaOsirisCameraDistortionMap object.

virtual bool SetFocalPlane (const double dx, const double dy)
 Compute undistorted focal plane x/y given a distorted focal plane x/y.

virtual bool SetUndistortedFocalPlane (const double ux, const double uy)
 Compute distorted focal plane x/y given an undistorted focal plane x/y.

void setUnDistortedXMatrix (LinearAlgebra::Matrix xMat)
 Set the matrix for converting from distorted to undistorted samples.

void setUnDistortedYMatrix (LinearAlgebra::Matrix yMat)
 Set the matrix for converting from distorted to undistorted lines.

void setBoresight (double sample, double line)
 Set the boresight location for converting from focal plane coordinates to pixel coordinates.

void setPixelPitch (double pitch)
 Set the pixel pitch for converting from focal plane coordinates to pixel coordinates.

virtual void SetDistortion (int naifIkCode)
 Load distortion coefficients.

std::vector< double > OpticalDistortionCoefficients () const
 Retrieve the distortion coefficients used for this model.

double ZDirection () const
 Gets the z-direction for this camera.

double FocalPlaneX () const
 Gets the x-value in the focal plane coordinate system.

double FocalPlaneY () const
 Gets the y-value in the focal plane coordinate system.

double UndistortedFocalPlaneX () const
 Gets the x-value in the undistorted focal plane coordinate system.

double UndistortedFocalPlaneY () const
 Gets the y-value in the undistorted focal plane coordinate system.

double UndistortedFocalPlaneZ () const
 Gets the z-value in the undistorted focal plane coordinate system.


Protected Attributes

Camera * p_camera
 The camera to distort/undistort.

double p_focalPlaneX
 Distorted focal plane x.

double p_focalPlaneY
 Distorted focal plane y.

double p_undistortedFocalPlaneX
 Undistorted focal plane x.

double p_undistortedFocalPlaneY
 Undistorted focal plane y.

double p_zDirection
 Undistorted focal plane z.

std::vector< double > p_odk = {}
 Vector of distortion coefficients.


Detailed Description

Distortion map for converting between undistorted focal plane and distorted focal plane coordinates for the Rosetta OSIRIS NAC and WAC.

The distortion models are defined by pixelspace polynomials. The polynomials use zero-based pixel space with the origin at the top left corner of the image, so the input focal plane coordinates are converted to pixel coordinates using the boresight location and pixel pitch. After computation, they are converted back into focal plane coordinates by the inverse process.

Given a set of distorted pixel coordinates (dx, dy), the undistorted pixel coordinates (ux, uy) are computed as:

\[ (ux, uy) = F(dx, dy) = ( \sum_{i=0}^3 \sum_{j=0}^3 C_{i,j}^x dx^i dy^j, \sum_{i=0}^3 \sum_{j=0}^3 C_{i,j}^y dx^i dy^j) \]

where \( C_{i,j}^y \) and \( C_{i,j}^y \) are the \( (i,j)^{\text{th}} \) coefficients of the \( x \) and \( y \) polynomials respectively.

Given a set of undistorted pixel coordinates (ux, uy), Newton's method is used to find the distorted coordinates (dx, dy) within a tolerance of \( 10^{-7} \) pixels.

See also
RosettOsirisCamera
Author
2016-10-31 Jesse Mapel and Jeannie Backer

Constructor & Destructor Documentation

◆ RosettaOsirisCameraDistortionMap()

Isis::RosettaOsirisCameraDistortionMap::RosettaOsirisCameraDistortionMap ( Camera * parent)

Create a camera distortion map.

This class maps between distorted and undistorted focal plane x/y's. The default mapping is the identity, that is, the focal plane x/y and undistorted focal plane x/y will be identical.

Parameters
parentthe parent camera that will use this distortion map

References Isis::LinearAlgebra::zeroMatrix().

◆ ~RosettaOsirisCameraDistortionMap()

virtual Isis::RosettaOsirisCameraDistortionMap::~RosettaOsirisCameraDistortionMap ( )
inlinevirtual

Destroys the RosettaOsirisCameraDistortionMap object.

Member Function Documentation

◆ FocalPlaneX()

double Isis::CameraDistortionMap::FocalPlaneX ( ) const
inherited

Gets the x-value in the focal plane coordinate system.

This is represented in millimeters from the origin.

Returns
The distorted focal plane x.

References Isis::CameraDistortionMap::p_focalPlaneX.

Referenced by Isis::Camera::SetRightAscensionDeclination(), and Isis::LineScanCameraSkyMap::SetSky().

◆ FocalPlaneY()

double Isis::CameraDistortionMap::FocalPlaneY ( ) const
inherited

Gets the y-value in the focal plane coordinate system.

This is represented in millimeters from the origin.

Returns
The distorted focal plane y.

References Isis::CameraDistortionMap::p_focalPlaneY.

Referenced by Isis::Camera::SetRightAscensionDeclination().

◆ OpticalDistortionCoefficients()

std::vector< double > Isis::CameraDistortionMap::OpticalDistortionCoefficients ( ) const
inherited

Retrieve the distortion coefficients used for this model.

Returns
The optical distortion of polynomial coefficients.

References Isis::CameraDistortionMap::p_odk.

◆ setBoresight()

void Isis::RosettaOsirisCameraDistortionMap::setBoresight ( double sample,
double line )

Set the boresight location for converting from focal plane coordinates to pixel coordinates.

Parameters
sampleThe sample location of the boresight
lineThe line location of the boresight

◆ SetDistortion()

void Isis::CameraDistortionMap::SetDistortion ( int naifIkCode)
virtualinherited

Load distortion coefficients.

This method loads the distortion coefficients from the instrument kernel. The coefficients in the NAIF instrument kernel are expected to be in the form of:

INSxxxxx_OD_K = ( coef1, coef2, ..., coefN)
where xxxxx is the instrument code (always a negative number)

These coefficient will be used to convert from focal plane x,y to undistorted x,y as follows (add equation here)

Parameters
naifIkCodeCode to search for in instrument kernel

Reimplemented in Isis::KaguyaMiCameraDistortionMap, Isis::LoHighDistortionMap, Isis::LoMediumDistortionMap, Isis::LroNarrowAngleDistortionMap, Isis::TaylorCameraDistortionMap, Isis::JunoDistortionMap, and Isis::OsirisRexOcamsDistortionMap.

References Isis::CameraDistortionMap::p_camera, Isis::CameraDistortionMap::p_odk, and Isis::toString().

Referenced by Isis::LoHighDistortionMap::SetDistortion(), and Isis::LoMediumDistortionMap::SetDistortion().

◆ SetFocalPlane()

bool Isis::RosettaOsirisCameraDistortionMap::SetFocalPlane ( const double dx,
const double dy )
virtual

Compute undistorted focal plane x/y given a distorted focal plane x/y.

The distortion is modeled by pixelspace polynomials. The polynomials use zero-based pixel space with the origin at the top left corner of the image, so the input focal plane coordinates are converted to pixel coordinates using the boresight location and pixel pitch. After computation, they are converted back into focal plane coordinates by the inverse process.

Given a set of distorted pixel coordinates (dx, dy), the undistorted pixel coordinates (ux, uy) are computed as:

\[ (ux, uy) = F(dx, dy) = ( \sum_{i=0}^3 \sum_{j=0}^3 C_{i,j}^x dx^i dy^j, \sum_{i=0}^3 \sum_{j=0}^3 C_{i,j}^y dx^i dy^j) \]

where \( C_{i,j}^y \) and \( C_{i,j}^y \) are the \( (i,j)^{\text{th}} \) coefficients of the \( x \) and \( y \) polynomials respectively.

This calculation is actually performed as follows:

\[ (ux, uy) = \left( C^x \begin{bmatrix} 1 \\ dx \\ dx^2 \\ dx^3 \end{bmatrix} \cdot \begin{bmatrix} 1 \\ dy \\ dy^2 \\ dy^3 \end{bmatrix}, C^y \begin{bmatrix} 1 \\ dx \\ dx^2 \\ dx^3 \end{bmatrix} \cdot \begin{bmatrix} 1 \\ dy \\ dy^2 \\ dy^3 \end{bmatrix} \right) \]

where \( C^x \) and \( C^y \) are the \( x \) and \( y \) coefficient matrices respectively.

Parameters
dxdistorted focal plane x in millimeters
dydistorted focal plane y in millimeters
Returns
bool if the conversion was successful

Reimplemented from Isis::CameraDistortionMap.

References Isis::LinearAlgebra::dotProduct(), Isis::LinearAlgebra::multiply(), Isis::CameraDistortionMap::p_focalPlaneX, Isis::CameraDistortionMap::p_focalPlaneY, Isis::CameraDistortionMap::p_undistortedFocalPlaneX, Isis::CameraDistortionMap::p_undistortedFocalPlaneY, and Isis::LinearAlgebra::zeroVector().

◆ setPixelPitch()

void Isis::RosettaOsirisCameraDistortionMap::setPixelPitch ( double pitch)

Set the pixel pitch for converting from focal plane coordinates to pixel coordinates.

Parameters
pitchThe pixel pitch in mm per pixel.

◆ SetUndistortedFocalPlane()

bool Isis::RosettaOsirisCameraDistortionMap::SetUndistortedFocalPlane ( const double ux,
const double uy )
virtual

Compute distorted focal plane x/y given an undistorted focal plane x/y.

The conversion is performed using Newton's method to find distorted coordinates whose undistorted coordinates are within \( 10^{-7} \) pixels of the input undistorted coordinates. The input undistorted coordinates are used as an initial guess for the distorted coordinates.

Given a set of undistorted pixel coordinates (ux, uy), the object function is:

\[ G(dx, dy) = (ux, uy) - F(dx, dy) \]

where \( F \) is the transformation from distorted to undistorted pixel coordinates.

Then, the negative jacobian is:

\[ -J_G(dx, dy) = \begin{bmatrix} C^x \begin{bmatrix} 0 \\ 1 \\ 2dx \\ 3dx^2 \end{bmatrix} \cdot \begin{bmatrix} 1 \\ dy \\ dy^2 \\ dy^3 \end{bmatrix} & C^x \begin{bmatrix} 1 \\ dx \\ dx^2 \\ dx^3 \end{bmatrix} \cdot \begin{bmatrix} 0 \\ 1 \\ 2dy \\ 3dy^2 \end{bmatrix} \\ C^y \begin{bmatrix} 0 \\ 1 \\ 2dx \\ 3dx^2 \end{bmatrix} \cdot \begin{bmatrix} 1 \\ dy \\ dy^2 \\ dy^3 \end{bmatrix} & C^y \begin{bmatrix} 1 \\ dx \\ dx^2 \\ dx^3 \end{bmatrix} \cdot \begin{bmatrix} 0 \\ 1 \\ 2dy \\ 3dy^2 \end{bmatrix} \end{bmatrix} \]

Parameters
uxundistorted focal plane x in millimeters
uyundistorted focal plane y in millimeters
Returns
bool if the conversion was successful

Reimplemented from Isis::CameraDistortionMap.

References Isis::LinearAlgebra::dotProduct(), Isis::LinearAlgebra::magnitude(), Isis::LinearAlgebra::multiply(), Isis::CameraDistortionMap::p_focalPlaneX, Isis::CameraDistortionMap::p_focalPlaneY, Isis::CameraDistortionMap::p_undistortedFocalPlaneX, Isis::CameraDistortionMap::p_undistortedFocalPlaneY, Isis::LinearAlgebra::zeroMatrix(), and Isis::LinearAlgebra::zeroVector().

◆ setUnDistortedXMatrix()

void Isis::RosettaOsirisCameraDistortionMap::setUnDistortedXMatrix ( LinearAlgebra::Matrix xMat)

Set the matrix for converting from distorted to undistorted samples.

Parameters
xMatThe conversion matrix

◆ setUnDistortedYMatrix()

void Isis::RosettaOsirisCameraDistortionMap::setUnDistortedYMatrix ( LinearAlgebra::Matrix yMat)

Set the matrix for converting from distorted to undistorted lines.

Parameters
yMatThe conversion matrix

◆ UndistortedFocalPlaneX()

double Isis::CameraDistortionMap::UndistortedFocalPlaneX ( ) const
inherited

Gets the x-value in the undistorted focal plane coordinate system.

This is represented in millimeters from the origin.

Returns
The undistorted focal plane x

References Isis::CameraDistortionMap::p_undistortedFocalPlaneX.

Referenced by Isis::LidarControlPoint::ComputeResiduals(), Isis::Camera::SetImage(), and Isis::Camera::SetImage().

◆ UndistortedFocalPlaneY()

double Isis::CameraDistortionMap::UndistortedFocalPlaneY ( ) const
inherited

Gets the y-value in the undistorted focal plane coordinate system.

This is represented in millimeters from the origin.

Returns
The undistorted focal plane y

References Isis::CameraDistortionMap::p_undistortedFocalPlaneY.

Referenced by Isis::LidarControlPoint::ComputeResiduals(), Isis::Camera::SetImage(), and Isis::Camera::SetImage().

◆ UndistortedFocalPlaneZ()

double Isis::CameraDistortionMap::UndistortedFocalPlaneZ ( ) const
inherited

Gets the z-value in the undistorted focal plane coordinate system.

This is represented as the focal length, in millimeters, with the sign indicating z-direction.

Returns
The undistorted focal plane z

References Isis::Camera::FocalLength(), Isis::CameraDistortionMap::p_camera, and Isis::CameraDistortionMap::p_zDirection.

Referenced by Isis::CameraGroundMap::GetdXYdOrientation(), Isis::CameraGroundMap::GetdXYdPoint(), Isis::CameraGroundMap::GetdXYdPosition(), Isis::CameraGroundMap::GetdXYdTOrientation(), Isis::CameraGroundMap::GetXY(), Isis::CameraGroundMap::LookCtoFocalPlaneXY(), Isis::Camera::SetImage(), and Isis::Camera::SetImage().

◆ ZDirection()

double Isis::CameraDistortionMap::ZDirection ( ) const
inherited

Gets the z-direction for this camera.

The direction is represented as +/- 1.

Returns
The direction of the focal plane Z-axis

References Isis::CameraDistortionMap::p_zDirection.

Member Data Documentation

◆ p_camera

Camera* Isis::CameraDistortionMap::p_camera
protectedinherited

The camera to distort/undistort.

Referenced by Isis::LroWideAngleCameraDistortionMap::addFilter(), Isis::CameraDistortionMap::CameraDistortionMap(), Isis::OsirisRexTagcamsDistortionMap::distortion_to_pointing_frame(), Isis::KaguyaTcCameraDistortionMap::KaguyaTcCameraDistortionMap(), Isis::MarciDistortionMap::MarciDistortionMap(), Isis::NewHorizonsMvicFrameCameraDistortionMap::NewHorizonsMvicFrameCameraDistortionMap(), Isis::NewHorizonsMvicTdiCameraDistortionMap::NewHorizonsMvicTdiCameraDistortionMap(), Isis::OsirisRexDistortionMap::OsirisRexDistortionMap(), Isis::OsirisRexOcamsDistortionMap::OsirisRexOcamsDistortionMap(), Isis::OsirisRexTagcamsDistortionMap::pointing_to_distortion_frame(), Isis::KaguyaMiCameraDistortionMap::SetDistortion(), Isis::LoHighDistortionMap::SetDistortion(), Isis::LoMediumDistortionMap::SetDistortion(), Isis::LroNarrowAngleDistortionMap::SetDistortion(), Isis::TaylorCameraDistortionMap::SetDistortion(), Isis::CameraDistortionMap::SetDistortion(), Isis::JunoDistortionMap::SetDistortion(), Isis::OsirisRexOcamsDistortionMap::SetDistortion(), Isis::OsirisRexDistortionMap::SetDistortion(), Isis::ReseauDistortionMap::SetFocalPlane(), Isis::LoMediumDistortionMap::SetFocalPlane(), Isis::MocWideAngleDistortionMap::SetFocalPlane(), Isis::MarciDistortionMap::SetFocalPlane(), Isis::JunoDistortionMap::SetFocalPlane(), Isis::OsirisRexOcamsDistortionMap::SetFocalPlane(), Isis::ReseauDistortionMap::SetUndistortedFocalPlane(), Isis::LoMediumDistortionMap::SetUndistortedFocalPlane(), Isis::MocWideAngleDistortionMap::SetUndistortedFocalPlane(), Isis::MarciDistortionMap::SetUndistortedFocalPlane(), Isis::CameraDistortionMap::SetUndistortedFocalPlane(), Isis::Hyb2OncDistortionMap::SetUndistortedFocalPlane(), Isis::OsirisRexOcamsDistortionMap::SetUndistortedFocalPlane(), Isis::TgoCassisDistortionMap::TgoCassisDistortionMap(), and Isis::CameraDistortionMap::UndistortedFocalPlaneZ().

◆ p_focalPlaneX

double Isis::CameraDistortionMap::p_focalPlaneX
protectedinherited

Distorted focal plane x.

Referenced by Isis::CameraDistortionMap::FocalPlaneX(), Isis::ApolloMetricDistortionMap::SetFocalPlane(), Isis::RadarSlantRangeMap::SetFocalPlane(), Isis::RadialDistortionMap::SetFocalPlane(), Isis::ReseauDistortionMap::SetFocalPlane(), Isis::Chandrayaan1M3DistortionMap::SetFocalPlane(), Isis::ClementineUvvisDistortionMap::SetFocalPlane(), Isis::KaguyaMiCameraDistortionMap::SetFocalPlane(), Isis::LoHighDistortionMap::SetFocalPlane(), Isis::LoMediumDistortionMap::SetFocalPlane(), Isis::LroNarrowAngleDistortionMap::SetFocalPlane(), Isis::LroWideAngleCameraDistortionMap::SetFocalPlane(), Isis::TaylorCameraDistortionMap::SetFocalPlane(), Isis::MocWideAngleDistortionMap::SetFocalPlane(), Isis::MarciDistortionMap::SetFocalPlane(), Isis::NewHorizonsMvicFrameCameraDistortionMap::SetFocalPlane(), Isis::NewHorizonsMvicTdiCameraDistortionMap::SetFocalPlane(), Isis::ThemisIrDistortionMap::SetFocalPlane(), Isis::ThemisVisDistortionMap::SetFocalPlane(), Isis::OsirisRexTagcamsDistortionMap::SetFocalPlane(), SetFocalPlane(), Isis::TgoCassisDistortionMap::SetFocalPlane(), Isis::DawnFcDistortionMap::SetFocalPlane(), Isis::NewHorizonsLorriDistortionMap::SetFocalPlane(), Isis::CameraDistortionMap::SetFocalPlane(), Isis::Hyb2OncDistortionMap::SetFocalPlane(), Isis::JunoDistortionMap::SetFocalPlane(), Isis::KaguyaTcCameraDistortionMap::SetFocalPlane(), Isis::OsirisRexDistortionMap::SetFocalPlane(), Isis::OsirisRexOcamsDistortionMap::SetFocalPlane(), Isis::DawnFcDistortionMap::SetUndistortedFocalPlane(), Isis::NewHorizonsLorriDistortionMap::SetUndistortedFocalPlane(), Isis::ApolloMetricDistortionMap::SetUndistortedFocalPlane(), Isis::RadarSlantRangeMap::SetUndistortedFocalPlane(), Isis::RadialDistortionMap::SetUndistortedFocalPlane(), Isis::ReseauDistortionMap::SetUndistortedFocalPlane(), Isis::Chandrayaan1M3DistortionMap::SetUndistortedFocalPlane(), Isis::ClementineUvvisDistortionMap::SetUndistortedFocalPlane(), Isis::KaguyaMiCameraDistortionMap::SetUndistortedFocalPlane(), Isis::LoHighDistortionMap::SetUndistortedFocalPlane(), Isis::LoMediumDistortionMap::SetUndistortedFocalPlane(), Isis::LroNarrowAngleDistortionMap::SetUndistortedFocalPlane(), Isis::LroWideAngleCameraDistortionMap::SetUndistortedFocalPlane(), Isis::TaylorCameraDistortionMap::SetUndistortedFocalPlane(), Isis::MocWideAngleDistortionMap::SetUndistortedFocalPlane(), Isis::MarciDistortionMap::SetUndistortedFocalPlane(), Isis::NewHorizonsMvicFrameCameraDistortionMap::SetUndistortedFocalPlane(), Isis::NewHorizonsMvicTdiCameraDistortionMap::SetUndistortedFocalPlane(), Isis::ThemisIrDistortionMap::SetUndistortedFocalPlane(), Isis::ThemisVisDistortionMap::SetUndistortedFocalPlane(), Isis::OsirisRexTagcamsDistortionMap::SetUndistortedFocalPlane(), SetUndistortedFocalPlane(), Isis::TgoCassisDistortionMap::SetUndistortedFocalPlane(), Isis::CameraDistortionMap::SetUndistortedFocalPlane(), Isis::Hyb2OncDistortionMap::SetUndistortedFocalPlane(), Isis::JunoDistortionMap::SetUndistortedFocalPlane(), Isis::KaguyaTcCameraDistortionMap::SetUndistortedFocalPlane(), Isis::OsirisRexDistortionMap::SetUndistortedFocalPlane(), and Isis::OsirisRexOcamsDistortionMap::SetUndistortedFocalPlane().

◆ p_focalPlaneY

double Isis::CameraDistortionMap::p_focalPlaneY
protectedinherited

Distorted focal plane y.

Referenced by Isis::CameraDistortionMap::FocalPlaneY(), Isis::ApolloMetricDistortionMap::SetFocalPlane(), Isis::RadarSlantRangeMap::SetFocalPlane(), Isis::RadialDistortionMap::SetFocalPlane(), Isis::ReseauDistortionMap::SetFocalPlane(), Isis::Chandrayaan1M3DistortionMap::SetFocalPlane(), Isis::ClementineUvvisDistortionMap::SetFocalPlane(), Isis::KaguyaMiCameraDistortionMap::SetFocalPlane(), Isis::LoHighDistortionMap::SetFocalPlane(), Isis::LoMediumDistortionMap::SetFocalPlane(), Isis::LroNarrowAngleDistortionMap::SetFocalPlane(), Isis::LroWideAngleCameraDistortionMap::SetFocalPlane(), Isis::TaylorCameraDistortionMap::SetFocalPlane(), Isis::MocWideAngleDistortionMap::SetFocalPlane(), Isis::MarciDistortionMap::SetFocalPlane(), Isis::NewHorizonsMvicFrameCameraDistortionMap::SetFocalPlane(), Isis::NewHorizonsMvicTdiCameraDistortionMap::SetFocalPlane(), Isis::ThemisIrDistortionMap::SetFocalPlane(), Isis::ThemisVisDistortionMap::SetFocalPlane(), Isis::OsirisRexTagcamsDistortionMap::SetFocalPlane(), SetFocalPlane(), Isis::TgoCassisDistortionMap::SetFocalPlane(), Isis::DawnFcDistortionMap::SetFocalPlane(), Isis::NewHorizonsLorriDistortionMap::SetFocalPlane(), Isis::CameraDistortionMap::SetFocalPlane(), Isis::Hyb2OncDistortionMap::SetFocalPlane(), Isis::JunoDistortionMap::SetFocalPlane(), Isis::KaguyaTcCameraDistortionMap::SetFocalPlane(), Isis::OsirisRexDistortionMap::SetFocalPlane(), Isis::OsirisRexOcamsDistortionMap::SetFocalPlane(), Isis::DawnFcDistortionMap::SetUndistortedFocalPlane(), Isis::NewHorizonsLorriDistortionMap::SetUndistortedFocalPlane(), Isis::ApolloMetricDistortionMap::SetUndistortedFocalPlane(), Isis::RadarSlantRangeMap::SetUndistortedFocalPlane(), Isis::RadialDistortionMap::SetUndistortedFocalPlane(), Isis::ReseauDistortionMap::SetUndistortedFocalPlane(), Isis::Chandrayaan1M3DistortionMap::SetUndistortedFocalPlane(), Isis::ClementineUvvisDistortionMap::SetUndistortedFocalPlane(), Isis::KaguyaMiCameraDistortionMap::SetUndistortedFocalPlane(), Isis::LoHighDistortionMap::SetUndistortedFocalPlane(), Isis::LoMediumDistortionMap::SetUndistortedFocalPlane(), Isis::LroNarrowAngleDistortionMap::SetUndistortedFocalPlane(), Isis::LroWideAngleCameraDistortionMap::SetUndistortedFocalPlane(), Isis::TaylorCameraDistortionMap::SetUndistortedFocalPlane(), Isis::MocWideAngleDistortionMap::SetUndistortedFocalPlane(), Isis::MarciDistortionMap::SetUndistortedFocalPlane(), Isis::NewHorizonsMvicFrameCameraDistortionMap::SetUndistortedFocalPlane(), Isis::NewHorizonsMvicTdiCameraDistortionMap::SetUndistortedFocalPlane(), Isis::ThemisIrDistortionMap::SetUndistortedFocalPlane(), Isis::ThemisVisDistortionMap::SetUndistortedFocalPlane(), Isis::OsirisRexTagcamsDistortionMap::SetUndistortedFocalPlane(), SetUndistortedFocalPlane(), Isis::TgoCassisDistortionMap::SetUndistortedFocalPlane(), Isis::CameraDistortionMap::SetUndistortedFocalPlane(), Isis::Hyb2OncDistortionMap::SetUndistortedFocalPlane(), Isis::JunoDistortionMap::SetUndistortedFocalPlane(), Isis::KaguyaTcCameraDistortionMap::SetUndistortedFocalPlane(), Isis::OsirisRexDistortionMap::SetUndistortedFocalPlane(), and Isis::OsirisRexOcamsDistortionMap::SetUndistortedFocalPlane().

◆ p_odk

std::vector<double> Isis::CameraDistortionMap::p_odk = {}
protectedinherited

Vector of distortion coefficients.

Referenced by Isis::LroWideAngleCameraDistortionMap::LroWideAngleCameraDistortionMap(), Isis::MarciDistortionMap::MarciDistortionMap(), Isis::CameraDistortionMap::OpticalDistortionCoefficients(), Isis::LroWideAngleCameraDistortionMap::setBand(), Isis::LroNarrowAngleDistortionMap::SetDistortion(), Isis::CameraDistortionMap::SetDistortion(), Isis::JunoDistortionMap::SetDistortion(), Isis::OsirisRexOcamsDistortionMap::SetDistortion(), Isis::OsirisRexDistortionMap::SetDistortion(), Isis::LoHighDistortionMap::SetFocalPlane(), Isis::LoMediumDistortionMap::SetFocalPlane(), Isis::LroNarrowAngleDistortionMap::SetFocalPlane(), Isis::LroWideAngleCameraDistortionMap::SetFocalPlane(), Isis::MarciDistortionMap::SetFocalPlane(), Isis::CameraDistortionMap::SetFocalPlane(), Isis::Hyb2OncDistortionMap::SetFocalPlane(), Isis::JunoDistortionMap::SetFocalPlane(), Isis::OsirisRexDistortionMap::SetFocalPlane(), Isis::OsirisRexOcamsDistortionMap::SetFocalPlane(), Isis::LoHighDistortionMap::SetUndistortedFocalPlane(), Isis::LoMediumDistortionMap::SetUndistortedFocalPlane(), Isis::LroNarrowAngleDistortionMap::SetUndistortedFocalPlane(), Isis::LroWideAngleCameraDistortionMap::SetUndistortedFocalPlane(), Isis::MarciDistortionMap::SetUndistortedFocalPlane(), Isis::CameraDistortionMap::SetUndistortedFocalPlane(), Isis::Hyb2OncDistortionMap::SetUndistortedFocalPlane(), Isis::JunoDistortionMap::SetUndistortedFocalPlane(), Isis::OsirisRexDistortionMap::SetUndistortedFocalPlane(), and Isis::OsirisRexOcamsDistortionMap::SetUndistortedFocalPlane().

◆ p_undistortedFocalPlaneX

double Isis::CameraDistortionMap::p_undistortedFocalPlaneX
protectedinherited

Undistorted focal plane x.

Referenced by Isis::ApolloMetricDistortionMap::SetFocalPlane(), Isis::RadarSlantRangeMap::SetFocalPlane(), Isis::RadialDistortionMap::SetFocalPlane(), Isis::ReseauDistortionMap::SetFocalPlane(), Isis::Chandrayaan1M3DistortionMap::SetFocalPlane(), Isis::ClementineUvvisDistortionMap::SetFocalPlane(), Isis::KaguyaMiCameraDistortionMap::SetFocalPlane(), Isis::LoHighDistortionMap::SetFocalPlane(), Isis::LoMediumDistortionMap::SetFocalPlane(), Isis::LroNarrowAngleDistortionMap::SetFocalPlane(), Isis::LroWideAngleCameraDistortionMap::SetFocalPlane(), Isis::TaylorCameraDistortionMap::SetFocalPlane(), Isis::MocWideAngleDistortionMap::SetFocalPlane(), Isis::MarciDistortionMap::SetFocalPlane(), Isis::NewHorizonsMvicFrameCameraDistortionMap::SetFocalPlane(), Isis::NewHorizonsMvicTdiCameraDistortionMap::SetFocalPlane(), Isis::ThemisIrDistortionMap::SetFocalPlane(), Isis::ThemisVisDistortionMap::SetFocalPlane(), Isis::OsirisRexTagcamsDistortionMap::SetFocalPlane(), SetFocalPlane(), Isis::TgoCassisDistortionMap::SetFocalPlane(), Isis::DawnFcDistortionMap::SetFocalPlane(), Isis::NewHorizonsLorriDistortionMap::SetFocalPlane(), Isis::CameraDistortionMap::SetFocalPlane(), Isis::Hyb2OncDistortionMap::SetFocalPlane(), Isis::JunoDistortionMap::SetFocalPlane(), Isis::KaguyaTcCameraDistortionMap::SetFocalPlane(), Isis::OsirisRexDistortionMap::SetFocalPlane(), Isis::OsirisRexOcamsDistortionMap::SetFocalPlane(), Isis::DawnFcDistortionMap::SetUndistortedFocalPlane(), Isis::NewHorizonsLorriDistortionMap::SetUndistortedFocalPlane(), Isis::ApolloMetricDistortionMap::SetUndistortedFocalPlane(), Isis::RadarSlantRangeMap::SetUndistortedFocalPlane(), Isis::RadialDistortionMap::SetUndistortedFocalPlane(), Isis::ReseauDistortionMap::SetUndistortedFocalPlane(), Isis::Chandrayaan1M3DistortionMap::SetUndistortedFocalPlane(), Isis::ClementineUvvisDistortionMap::SetUndistortedFocalPlane(), Isis::KaguyaMiCameraDistortionMap::SetUndistortedFocalPlane(), Isis::LoHighDistortionMap::SetUndistortedFocalPlane(), Isis::LoMediumDistortionMap::SetUndistortedFocalPlane(), Isis::LroNarrowAngleDistortionMap::SetUndistortedFocalPlane(), Isis::LroWideAngleCameraDistortionMap::SetUndistortedFocalPlane(), Isis::TaylorCameraDistortionMap::SetUndistortedFocalPlane(), Isis::MocWideAngleDistortionMap::SetUndistortedFocalPlane(), Isis::MarciDistortionMap::SetUndistortedFocalPlane(), Isis::NewHorizonsMvicFrameCameraDistortionMap::SetUndistortedFocalPlane(), Isis::NewHorizonsMvicTdiCameraDistortionMap::SetUndistortedFocalPlane(), Isis::ThemisIrDistortionMap::SetUndistortedFocalPlane(), Isis::ThemisVisDistortionMap::SetUndistortedFocalPlane(), Isis::OsirisRexTagcamsDistortionMap::SetUndistortedFocalPlane(), SetUndistortedFocalPlane(), Isis::TgoCassisDistortionMap::SetUndistortedFocalPlane(), Isis::CameraDistortionMap::SetUndistortedFocalPlane(), Isis::Hyb2OncDistortionMap::SetUndistortedFocalPlane(), Isis::JunoDistortionMap::SetUndistortedFocalPlane(), Isis::KaguyaTcCameraDistortionMap::SetUndistortedFocalPlane(), Isis::OsirisRexDistortionMap::SetUndistortedFocalPlane(), Isis::OsirisRexOcamsDistortionMap::SetUndistortedFocalPlane(), and Isis::CameraDistortionMap::UndistortedFocalPlaneX().

◆ p_undistortedFocalPlaneY

double Isis::CameraDistortionMap::p_undistortedFocalPlaneY
protectedinherited

Undistorted focal plane y.

Referenced by Isis::ApolloMetricDistortionMap::SetFocalPlane(), Isis::RadarSlantRangeMap::SetFocalPlane(), Isis::RadialDistortionMap::SetFocalPlane(), Isis::ReseauDistortionMap::SetFocalPlane(), Isis::Chandrayaan1M3DistortionMap::SetFocalPlane(), Isis::ClementineUvvisDistortionMap::SetFocalPlane(), Isis::KaguyaMiCameraDistortionMap::SetFocalPlane(), Isis::LoHighDistortionMap::SetFocalPlane(), Isis::LoMediumDistortionMap::SetFocalPlane(), Isis::LroNarrowAngleDistortionMap::SetFocalPlane(), Isis::LroWideAngleCameraDistortionMap::SetFocalPlane(), Isis::TaylorCameraDistortionMap::SetFocalPlane(), Isis::MocWideAngleDistortionMap::SetFocalPlane(), Isis::MarciDistortionMap::SetFocalPlane(), Isis::NewHorizonsMvicFrameCameraDistortionMap::SetFocalPlane(), Isis::NewHorizonsMvicTdiCameraDistortionMap::SetFocalPlane(), Isis::ThemisIrDistortionMap::SetFocalPlane(), Isis::ThemisVisDistortionMap::SetFocalPlane(), Isis::OsirisRexTagcamsDistortionMap::SetFocalPlane(), SetFocalPlane(), Isis::TgoCassisDistortionMap::SetFocalPlane(), Isis::DawnFcDistortionMap::SetFocalPlane(), Isis::NewHorizonsLorriDistortionMap::SetFocalPlane(), Isis::CameraDistortionMap::SetFocalPlane(), Isis::Hyb2OncDistortionMap::SetFocalPlane(), Isis::JunoDistortionMap::SetFocalPlane(), Isis::KaguyaTcCameraDistortionMap::SetFocalPlane(), Isis::OsirisRexDistortionMap::SetFocalPlane(), Isis::OsirisRexOcamsDistortionMap::SetFocalPlane(), Isis::DawnFcDistortionMap::SetUndistortedFocalPlane(), Isis::NewHorizonsLorriDistortionMap::SetUndistortedFocalPlane(), Isis::ApolloMetricDistortionMap::SetUndistortedFocalPlane(), Isis::RadarSlantRangeMap::SetUndistortedFocalPlane(), Isis::RadialDistortionMap::SetUndistortedFocalPlane(), Isis::ReseauDistortionMap::SetUndistortedFocalPlane(), Isis::Chandrayaan1M3DistortionMap::SetUndistortedFocalPlane(), Isis::ClementineUvvisDistortionMap::SetUndistortedFocalPlane(), Isis::KaguyaMiCameraDistortionMap::SetUndistortedFocalPlane(), Isis::LoHighDistortionMap::SetUndistortedFocalPlane(), Isis::LoMediumDistortionMap::SetUndistortedFocalPlane(), Isis::LroNarrowAngleDistortionMap::SetUndistortedFocalPlane(), Isis::LroWideAngleCameraDistortionMap::SetUndistortedFocalPlane(), Isis::TaylorCameraDistortionMap::SetUndistortedFocalPlane(), Isis::MocWideAngleDistortionMap::SetUndistortedFocalPlane(), Isis::MarciDistortionMap::SetUndistortedFocalPlane(), Isis::NewHorizonsMvicFrameCameraDistortionMap::SetUndistortedFocalPlane(), Isis::NewHorizonsMvicTdiCameraDistortionMap::SetUndistortedFocalPlane(), Isis::ThemisIrDistortionMap::SetUndistortedFocalPlane(), Isis::ThemisVisDistortionMap::SetUndistortedFocalPlane(), Isis::OsirisRexTagcamsDistortionMap::SetUndistortedFocalPlane(), SetUndistortedFocalPlane(), Isis::TgoCassisDistortionMap::SetUndistortedFocalPlane(), Isis::CameraDistortionMap::SetUndistortedFocalPlane(), Isis::Hyb2OncDistortionMap::SetUndistortedFocalPlane(), Isis::JunoDistortionMap::SetUndistortedFocalPlane(), Isis::KaguyaTcCameraDistortionMap::SetUndistortedFocalPlane(), Isis::OsirisRexDistortionMap::SetUndistortedFocalPlane(), Isis::OsirisRexOcamsDistortionMap::SetUndistortedFocalPlane(), and Isis::CameraDistortionMap::UndistortedFocalPlaneY().

◆ p_zDirection

double Isis::CameraDistortionMap::p_zDirection
protectedinherited

Undistorted focal plane z.

Referenced by Isis::CameraDistortionMap::CameraDistortionMap(), Isis::CameraDistortionMap::UndistortedFocalPlaneZ(), and Isis::CameraDistortionMap::ZDirection().

The documentation for this class was generated from the following files:
