Convert between parent image coordinates and detector coordinates. More...

#include <PushFrameCameraDetectorMap.h>

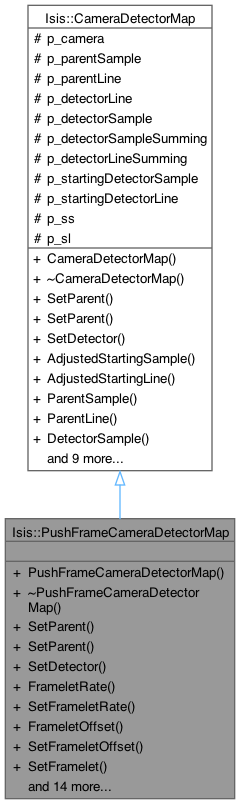

Inheritance diagram for Isis::PushFrameCameraDetectorMap:

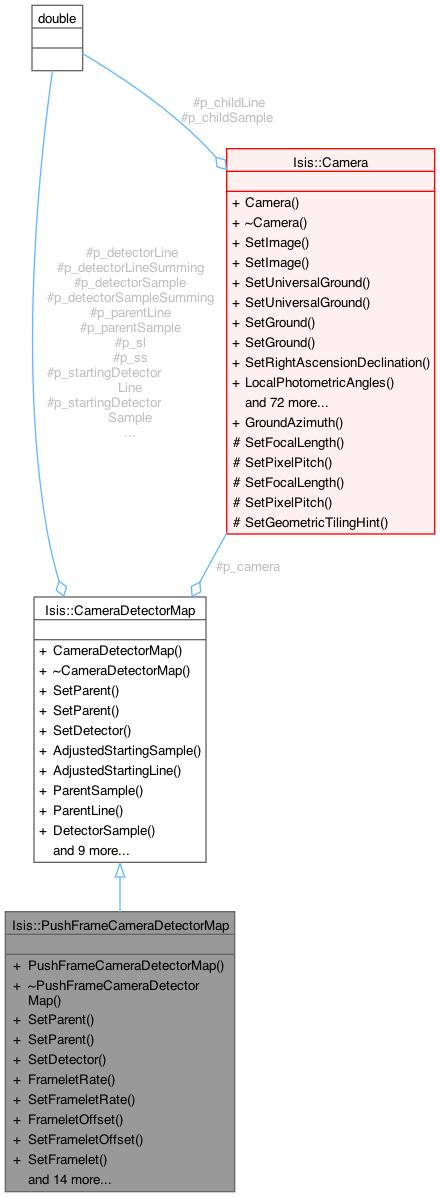

Collaboration diagram for Isis::PushFrameCameraDetectorMap:

Public Member Functions
	PushFrameCameraDetectorMap (Camera *parent, const double etStart, const double frameletRate, int frameletHeight)
	Construct a detector map for push frame cameras.

virtual	~PushFrameCameraDetectorMap ()
	Destructor.

virtual bool	SetParent (const double sample, const double line)
	Compute detector position from a parent image coordinate.

virtual bool	SetParent (const double sample, const double line, const double deltaT)
	Compute detector position from a parent image coordinate.

virtual bool	SetDetector (const double sample, const double line)
	Compute parent position from a detector coordinate.

double	FrameletRate () const
	Return the time in seconds between framelets.

void	SetFrameletRate (const double frameletRate)
	Reset the frame rate.

int	FrameletOffset () const
	Return the frame offset.

void	SetFrameletOffset (int frameletOffset)
	Reset the frame offset.

void	SetFramelet (int framelet, const double deltaT=0)
	This method changes the current framelet.

int	Framelet ()
	This method returns the current framelet.

void	SetBandFirstDetectorLine (int firstLine)
	Change the starting line in the detector based on band.

int	GetBandFirstDetectorLine ()
	Return the starting line in the detector for the current band.

void	SetStartTime (const double etStart)
	Reset the starting ephemeris time.

double	StartEphemerisTime () const
	This returns the starting ET of this band.

void	SetExposureDuration (double exposureDuration)
	Change the exposure duration in seconds.

virtual double	exposureDuration (const double sample, const double line, const int band) const
	This virtual method is for returning the exposure duration of a given pixel.

void	SetFrameletOrderReversed (bool frameletOrderReversed, int nframelets)
	Changes the direction of the framelets.

void	SetFrameletsGeometricallyFlipped (bool frameletsFlipped)
	Mirrors the each framelet in the file.

int	TotalFramelets () const
	Return the total number of framelets including padding.

double	frameletSample () const
	This returns the calculated framelet sample.

double	frameletLine () const
	This returns the calculated framelet line.

int	frameletHeight () const
	This returns how many lines are considered a single framelet.

bool	timeAscendingFramelets ()
	Returns if the framelets are reversed from top-to-bottom.

double	AdjustedStartingSample () const
	Return the starting detector sample adjusted for summation.

double	AdjustedStartingLine () const
	Return the starting detector line adjusted for summation.

double	ParentSample () const
	Return parent sample.

double	ParentLine () const
	Return parent line.

double	DetectorSample () const
	Return detector sample.

double	DetectorLine () const
	Return detector line.

void	SetStartingDetectorSample (const double sample)
	Set the starting detector sample.

void	SetStartingDetectorLine (const double line)
	Set the starting detector line.

void	SetDetectorSampleSumming (const double summing)
	Set sample summing mode.

void	SetDetectorLineSumming (const double summing)
	Set line summing mode.

virtual double	SampleScaleFactor () const
	Return scaling factor for computing sample resolution.

virtual double	LineScaleFactor () const
	Return scaling factor for computing line resolution.

virtual double	LineRate () const
	Return the line collection rate (0 for framing cameras)

Protected Attributes
Camera *	p_camera
	Pointer to the camera.

double	p_parentSample
	The parent sample calculated from the detector.

double	p_parentLine
	The parent line calculated from the detector.

double	p_detectorLine
	Detector coordinate line value.

double	p_detectorSample
	Detector coordinate sample value.

double	p_detectorSampleSumming
	The scaling factor for computing sample resolution.

double	p_detectorLineSumming
	The scaling factor for computing line resolution.

double	p_startingDetectorSample
	Detector start coordinate sample value.

double	p_startingDetectorLine
	Detector start coordinate line value.

double	p_ss
	Start sample.

double	p_sl
	Start line.

Detailed Description

Convert between parent image coordinates and detector coordinates.

This class is used to convert between parent dector coordinates (sample/line) and detector coordinates for a push frame camera.

See also: Camera

Author: 2007-10-15 Steven Lambright

Constructor & Destructor Documentation

◆ PushFrameCameraDetectorMap()

Isis::PushFrameCameraDetectorMap::PushFrameCameraDetectorMap	(	Camera *	parent,
		const double	etStart,
		const double	frameletRate,
		int	frameletHeight )

Construct a detector map for push frame cameras.

Parameters

parent	The parent camera model for the detector map
etStart	starting ephemeris time in seconds at the first framelet (not including padded framelets).
frameletRate	the time in seconds between framelets
frameletHeight	Physical height of framelet in lines (don't account for summing)

References frameletHeight().

◆ ~PushFrameCameraDetectorMap()

Isis::PushFrameCameraDetectorMap::~PushFrameCameraDetectorMap ( )

virtual

Destructor.

Member Function Documentation

◆ AdjustedStartingLine()

double Isis::CameraDetectorMap::AdjustedStartingLine ( ) const

inherited

Return the starting detector line adjusted for summation.

Returns: (double) The starting line

References Isis::CameraDetectorMap::p_sl.

◆ AdjustedStartingSample()

double Isis::CameraDetectorMap::AdjustedStartingSample ( ) const

inherited

Return the starting detector sample adjusted for summation.

Returns: (double) The starting sample

References Isis::CameraDetectorMap::p_ss.

◆ DetectorLine()

double Isis::CameraDetectorMap::DetectorLine ( ) const

inherited

Return detector line.

Returns: (double) The detector line

References Isis::CameraDetectorMap::p_detectorLine.

Referenced by Isis::Camera::SetImage(), and Isis::Camera::SetImage().

◆ DetectorSample()

double Isis::CameraDetectorMap::DetectorSample ( ) const

inherited

Return detector sample.

Returns: (double) The detector sample

References Isis::CameraDetectorMap::p_detectorSample.

Referenced by Isis::Camera::SetImage(), and Isis::Camera::SetImage().

◆ exposureDuration()

double Isis::PushFrameCameraDetectorMap::exposureDuration	(	const double	sample,
		const double	line,
		const int	band ) const

virtual

This virtual method is for returning the exposure duration of a given pixel.

Parameters

sample	The sample of the desired pixel.
line	The line of the desired pixel.
band	The band of the desired pixel.

Returns: double The exposure duration for the desired pixel in seconds.

Reimplemented from Isis::CameraDetectorMap.

Referenced by SetExposureDuration().

◆ Framelet()

int Isis::PushFrameCameraDetectorMap::Framelet ( )

This method returns the current framelet.

This framelet is calculated when SetParent is called.

Returns: int The current framelet

◆ frameletHeight()

int Isis::PushFrameCameraDetectorMap::frameletHeight ( ) const

This returns how many lines are considered a single framelet.

Returns: int Number of lines in a framelet

Referenced by PushFrameCameraDetectorMap().

◆ frameletLine()

double Isis::PushFrameCameraDetectorMap::frameletLine ( ) const

This returns the calculated framelet line.

Returns: double Current framelet line

◆ FrameletOffset()

int Isis::PushFrameCameraDetectorMap::FrameletOffset ( ) const

Return the frame offset.

Returns: int The number of framelets padding the top of the band.

◆ FrameletRate()

double Isis::PushFrameCameraDetectorMap::FrameletRate ( ) const

Return the time in seconds between framelets.

Returns: double The time from the start of a framelet's exposure to the end of the framlet's exposure duration.

◆ frameletSample()

double Isis::PushFrameCameraDetectorMap::frameletSample ( ) const

This returns the calculated framelet sample.

Returns: double Current framelet sample

◆ GetBandFirstDetectorLine()

int Isis::PushFrameCameraDetectorMap::GetBandFirstDetectorLine ( )

Return the starting line in the detector for the current band.

Returns: int The starting line in the detector for the current band

◆ LineRate()

double Isis::CameraDetectorMap::LineRate ( ) const

virtualinherited

Return the line collection rate (0 for framing cameras)

Returns: (double) The line collection rate

Reimplemented in Isis::ApolloPanoramicDetectorMap, Isis::LineScanCameraDetectorMap, and Isis::RadarPulseMap.

Referenced by Isis::LineScanCameraSkyMap::SetSky().

◆ LineScaleFactor()

double Isis::CameraDetectorMap::LineScaleFactor ( ) const

virtualinherited

Return scaling factor for computing line resolution.

Returns: (double) The scaling factor for line resolution

References Isis::CameraDetectorMap::p_detectorLineSumming.

Referenced by Isis::Camera::LineResolution(), Isis::Camera::ObliqueLineResolution(), Isis::ThemisIrCamera::SetBand(), SetDetector(), SetParent(), and TotalFramelets().

◆ ParentLine()

double Isis::CameraDetectorMap::ParentLine ( ) const

inherited

Return parent line.

Returns: (double) The parent line

References Isis::CameraDetectorMap::p_parentLine.

Referenced by Isis::Camera::SetRightAscensionDeclination().

◆ ParentSample()

double Isis::CameraDetectorMap::ParentSample ( ) const

inherited

Return parent sample.

Returns: (double) The parent sample

References Isis::CameraDetectorMap::p_parentSample.

Referenced by Isis::Camera::SetRightAscensionDeclination().

◆ SampleScaleFactor()

double Isis::CameraDetectorMap::SampleScaleFactor ( ) const

virtualinherited

Return scaling factor for computing sample resolution.

Returns: (double) The scaling factor for sample resolution

References Isis::CameraDetectorMap::p_detectorSampleSumming.

Referenced by Isis::Camera::ObliqueSampleResolution(), and Isis::Camera::SampleResolution().

◆ SetBandFirstDetectorLine()

void Isis::PushFrameCameraDetectorMap::SetBandFirstDetectorLine ( int firstLine )

Change the starting line in the detector based on band.

Use this method to change which line is read out of the CCD for any given band. That is, as the virtual SetBand method for the specfic camera is invoked this method should be called.

Parameters

firstLine 0-based offset to the first line (first line of detector = 0)

Referenced by Isis::ThemisVisCamera::BandEphemerisTimeOffset(), Isis::LroWideAngleCamera::SetBand(), and Isis::MarciCamera::SetBand().

◆ SetDetector()

bool Isis::PushFrameCameraDetectorMap::SetDetector	(	const double	sample,
		const double	line )

virtual

Compute parent position from a detector coordinate.

This method will compute a parent sample given a detector coordinate. The parent line and framelet line will be computed.

Parameters

sample	Sample number in the detector
line	Line number in the detector

Returns: bool conversion successful

Reimplemented from Isis::CameraDetectorMap.

References Isis::CameraDetectorMap::LineScaleFactor(), Isis::CameraDetectorMap::p_detectorLine, Isis::CameraDetectorMap::p_detectorSample, Isis::CameraDetectorMap::p_parentLine, and Isis::CameraDetectorMap::SetDetector().

◆ SetDetectorLineSumming()

void Isis::CameraDetectorMap::SetDetectorLineSumming ( const double summing )

inlineinherited

Set line summing mode.

Use this method to specify if detector lines are summed/averaged. That is, one image lines represents the average of N detectors. If not set the default is 1.

Parameters

summing Line summing mode

References Isis::CameraDetectorMap::p_detectorLineSumming.

Referenced by Isis::CrismCamera::CrismCamera().

◆ SetDetectorSampleSumming()

void Isis::CameraDetectorMap::SetDetectorSampleSumming ( const double summing )

inlineinherited

Set sample summing mode.

Use this method to specify if detector samples are summed/averaged. That is, one image sample represents the average of N detectors. If not set the default is 1.

Parameters

summing Sample summing mode

References Isis::CameraDetectorMap::p_detectorSampleSumming.

Referenced by Isis::ApolloPanoramicCamera::ApolloPanoramicCamera(), Isis::CrismCamera::CrismCamera(), Isis::DawnVirCamera::DawnVirCamera(), Isis::HrscCamera::HrscCamera(), and Isis::RosettaVirtisCamera::RosettaVirtisCamera().

◆ SetExposureDuration()

void Isis::PushFrameCameraDetectorMap::SetExposureDuration ( double exposureDuration )

Change the exposure duration in seconds.

Use this method to change the exposure duration of each framelet which may be different than the framelet rate.

Parameters

exposureDuration The time from the start of a framelet's exposure to the end of the framlet's exposure duration.

References exposureDuration().

◆ SetFramelet()

void Isis::PushFrameCameraDetectorMap::SetFramelet	(	int	framelet,
		const double	deltaT = 0 )

This method changes the current framelet.

The camera's ephemeris time will be updated to the center of the framelet.

Parameters

framelet	Current Framelet
deltaT	offset from center time in seconds

References Isis::CameraDetectorMap::p_camera, and Isis::Sensor::setTime().

Referenced by SetParent().

◆ SetFrameletOffset()

void Isis::PushFrameCameraDetectorMap::SetFrameletOffset ( int frameletOffset )

Reset the frame offset.

Use this method to reset the frame offset. Usually this will not need to be done unless the offset changes between bands.

Parameters

frameletOffset Number of frames offset in cube

◆ SetFrameletOrderReversed()

void Isis::PushFrameCameraDetectorMap::SetFrameletOrderReversed	(	bool	frameletOrderReversed,
		int	nframelets )

Changes the direction of the framelets.

Use this method to change which direction the framelets are ordered. In some cases, the top framelet from the raw instrument data has been moved to the bottom of the image and this compensates for that.

If not set, the default is to not flip the framelet order

Parameters

frameletOrderReversed	Indicates whether the order of the framelets is should be flipped
nframelets	Number of framelets in each band, ignored if frameletsReversed is set to false

◆ SetFrameletRate()

void Isis::PushFrameCameraDetectorMap::SetFrameletRate ( const double frameletRate )

Reset the frame rate.

Use this method to reset the time between framelets. Usually this will not need to be done unless the rate changes between bands.

Parameters

frameletRate the time from the start of a framelet to the start of the next framlet.

◆ SetFrameletsGeometricallyFlipped()

void Isis::PushFrameCameraDetectorMap::SetFrameletsGeometricallyFlipped ( bool frameletsFlipped )

Mirrors the each framelet in the file.

Use this method to change which direction the framelets are geometrically placed. If the first line in the framelet has been changed to the last line in the framelet, then this should be true (DEFAULT).

If not set, the default is true.

Parameters

frameletsFlipped Indicates whether each framelet is flipped over a horizontal axis

◆ SetParent() [1/2]

bool Isis::PushFrameCameraDetectorMap::SetParent	(	const double	sample,
		const double	line )

virtual

Compute detector position from a parent image coordinate.

This method will compute the detector position and framelet position from the parent line/sample coordinate. The parent line will be used to set the appropriate time in the parent camera.

Parameters

sample	Sample number in the parent image
line	Line number in the parent image

Returns: bool conversion successful

Reimplemented from Isis::CameraDetectorMap.

References SetParent().

Referenced by SetParent().

◆ SetParent() [2/2]

bool Isis::PushFrameCameraDetectorMap::SetParent	(	const double	sample,
		const double	line,
		const double	deltaT )

virtual

Compute detector position from a parent image coordinate.

This method will compute the detector position and framelet position from the parent line/sample coordinate. The parent line will be used to set the appropriate time in the parent camera.

Parameters

sample	Sample number in the parent image
line	Line number in the parent image
deltaT	offset from center time in seconds

Returns: bool conversion successful

Reimplemented from Isis::CameraDetectorMap.

References Isis::CameraDetectorMap::LineScaleFactor(), Isis::CameraDetectorMap::p_detectorLine, Isis::CameraDetectorMap::p_parentLine, Isis::CameraDetectorMap::p_parentSample, SetFramelet(), and Isis::CameraDetectorMap::SetParent().

◆ SetStartingDetectorLine()

void Isis::CameraDetectorMap::SetStartingDetectorLine ( const double line )

inlineinherited

Set the starting detector line.

Use this method to specify the starting detector that represents the first image line in the cube. If not set the default is 1.

Parameters

line	Starting detector line

References Isis::CameraDetectorMap::p_startingDetectorLine.

◆ SetStartingDetectorSample()

void Isis::CameraDetectorMap::SetStartingDetectorSample ( const double sample )

inlineinherited

Set the starting detector sample.

Use this method to specify the starting detector that represents the first image sample in the cube. If not set the default is 1.

Parameters

sample Starting detector sample

References Isis::CameraDetectorMap::p_startingDetectorSample.

Referenced by Isis::ApolloPanoramicCamera::ApolloPanoramicCamera().

◆ SetStartTime()

void Isis::PushFrameCameraDetectorMap::SetStartTime ( const double etStart )

Reset the starting ephemeris time.

Use this method to reset the starting time of the top edge of the first line in the parent image. That is the time, prior to cropping, scaling, or padding. Usually this will not need to be done unless the time changes between bands.

Parameters

etStart starting ephemeris time in seconds

Referenced by Isis::ThemisVisCamera::SetBand().

◆ StartEphemerisTime()

double Isis::PushFrameCameraDetectorMap::StartEphemerisTime ( ) const

This returns the starting ET of this band.

Returns: double Starting time (often band-dependant)

◆ timeAscendingFramelets()

bool Isis::PushFrameCameraDetectorMap::timeAscendingFramelets ( )

Returns if the framelets are reversed from top-to-bottom.

Returns: bool if the framelets are reversed from top-to-bottom.

◆ TotalFramelets()

int Isis::PushFrameCameraDetectorMap::TotalFramelets ( ) const

Return the total number of framelets including padding.

Returns: int The total number of framelets including padding

References Isis::CameraDetectorMap::LineScaleFactor(), Isis::CameraDetectorMap::p_camera, and Isis::Camera::ParentLines().

Member Data Documentation

◆ p_camera

Camera* Isis::CameraDetectorMap::p_camera

protectedinherited

Pointer to the camera.

Referenced by Isis::CameraDetectorMap::CameraDetectorMap(), Isis::ApolloPanoramicDetectorMap::SetDetector(), Isis::LineScanCameraDetectorMap::SetDetector(), Isis::RadarPulseMap::SetDetector(), Isis::VariableLineScanCameraDetectorMap::SetDetector(), SetFramelet(), Isis::ApolloPanoramicDetectorMap::SetParent(), Isis::RadarPulseMap::SetParent(), Isis::MocWideAngleDetectorMap::SetParent(), Isis::CameraDetectorMap::SetParent(), Isis::LineScanCameraDetectorMap::SetParent(), Isis::RollingShutterCameraDetectorMap::SetParent(), Isis::VariableLineScanCameraDetectorMap::SetParent(), and TotalFramelets().

◆ p_detectorLine

double Isis::CameraDetectorMap::p_detectorLine

protectedinherited

Detector coordinate line value.

Referenced by Isis::CameraDetectorMap::DetectorLine(), Isis::ApolloPanoramicDetectorMap::SetDetector(), Isis::CameraDetectorMap::SetDetector(), SetDetector(), Isis::RollingShutterCameraDetectorMap::SetDetector(), Isis::ApolloPanoramicDetectorMap::SetParent(), Isis::RadarPulseMap::SetParent(), Isis::CameraDetectorMap::SetParent(), Isis::LineScanCameraDetectorMap::SetParent(), SetParent(), Isis::RollingShutterCameraDetectorMap::SetParent(), and Isis::VariableLineScanCameraDetectorMap::SetParent().

◆ p_detectorLineSumming

double Isis::CameraDetectorMap::p_detectorLineSumming

protectedinherited

The scaling factor for computing line resolution.

Referenced by Isis::CameraDetectorMap::CameraDetectorMap(), Isis::CameraDetectorMap::LineScaleFactor(), Isis::CameraDetectorMap::SetDetector(), Isis::RollingShutterCameraDetectorMap::SetDetector(), Isis::CameraDetectorMap::SetDetectorLineSumming(), Isis::CameraDetectorMap::SetParent(), and Isis::RollingShutterCameraDetectorMap::SetParent().

◆ p_detectorSample

double Isis::CameraDetectorMap::p_detectorSample

protectedinherited

Detector coordinate sample value.

Referenced by Isis::CameraDetectorMap::DetectorSample(), Isis::ApolloPanoramicDetectorMap::SetDetector(), Isis::CameraDetectorMap::SetDetector(), SetDetector(), Isis::RollingShutterCameraDetectorMap::SetDetector(), Isis::ApolloPanoramicDetectorMap::SetParent(), Isis::MocWideAngleDetectorMap::SetParent(), Isis::CameraDetectorMap::SetParent(), and Isis::RollingShutterCameraDetectorMap::SetParent().

◆ p_detectorSampleSumming

double Isis::CameraDetectorMap::p_detectorSampleSumming

protectedinherited

The scaling factor for computing sample resolution.

Referenced by Isis::CameraDetectorMap::CameraDetectorMap(), Isis::CameraDetectorMap::SampleScaleFactor(), Isis::CameraDetectorMap::SetDetector(), Isis::RollingShutterCameraDetectorMap::SetDetector(), Isis::CameraDetectorMap::SetDetectorSampleSumming(), Isis::CameraDetectorMap::SetParent(), and Isis::RollingShutterCameraDetectorMap::SetParent().

◆ p_parentLine

double Isis::CameraDetectorMap::p_parentLine

protectedinherited

The parent line calculated from the detector.

Referenced by Isis::CameraDetectorMap::ParentLine(), Isis::ApolloPanoramicDetectorMap::SetDetector(), Isis::CameraDetectorMap::SetDetector(), Isis::LineScanCameraDetectorMap::SetDetector(), SetDetector(), Isis::RadarPulseMap::SetDetector(), Isis::RollingShutterCameraDetectorMap::SetDetector(), Isis::VariableLineScanCameraDetectorMap::SetDetector(), Isis::ApolloPanoramicDetectorMap::SetParent(), Isis::CameraDetectorMap::SetParent(), SetParent(), and Isis::RollingShutterCameraDetectorMap::SetParent().

◆ p_parentSample

double Isis::CameraDetectorMap::p_parentSample

protectedinherited

The parent sample calculated from the detector.

Referenced by Isis::CameraDetectorMap::ParentSample(), Isis::ApolloPanoramicDetectorMap::SetDetector(), Isis::CameraDetectorMap::SetDetector(), Isis::RollingShutterCameraDetectorMap::SetDetector(), Isis::MocWideAngleDetectorMap::SetDetector(), Isis::ApolloPanoramicDetectorMap::SetParent(), Isis::CameraDetectorMap::SetParent(), SetParent(), and Isis::RollingShutterCameraDetectorMap::SetParent().

◆ p_sl

double Isis::CameraDetectorMap::p_sl

protectedinherited

Start line.

Referenced by Isis::CameraDetectorMap::AdjustedStartingLine(), Isis::CameraDetectorMap::SetDetector(), Isis::RollingShutterCameraDetectorMap::SetDetector(), Isis::CameraDetectorMap::SetParent(), and Isis::RollingShutterCameraDetectorMap::SetParent().

◆ p_ss

double Isis::CameraDetectorMap::p_ss

protectedinherited

Start sample.

Referenced by Isis::CameraDetectorMap::AdjustedStartingSample(), Isis::CameraDetectorMap::SetDetector(), Isis::RollingShutterCameraDetectorMap::SetDetector(), Isis::CameraDetectorMap::SetParent(), and Isis::RollingShutterCameraDetectorMap::SetParent().

◆ p_startingDetectorLine

double Isis::CameraDetectorMap::p_startingDetectorLine

protectedinherited

Detector start coordinate line value.

Referenced by Isis::CameraDetectorMap::CameraDetectorMap(), and Isis::CameraDetectorMap::SetStartingDetectorLine().

◆ p_startingDetectorSample

double Isis::CameraDetectorMap::p_startingDetectorSample

protectedinherited

Detector start coordinate sample value.

Referenced by Isis::CameraDetectorMap::CameraDetectorMap(), and Isis::CameraDetectorMap::SetStartingDetectorSample().

The documentation for this class was generated from the following files:

/Users/chkim/repos/ISIS3/isis/src/base/objs/PushFrameCameraDetectorMap/PushFrameCameraDetectorMap.h
/Users/chkim/repos/ISIS3/isis/src/base/objs/PushFrameCameraDetectorMap/PushFrameCameraDetectorMap.cpp

Public Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ PushFrameCameraDetectorMap()

◆ ~PushFrameCameraDetectorMap()

Member Function Documentation

◆ AdjustedStartingLine()

◆ AdjustedStartingSample()

◆ DetectorLine()

◆ DetectorSample()

◆ exposureDuration()

◆ Framelet()

◆ frameletHeight()

◆ frameletLine()

◆ FrameletOffset()

◆ FrameletRate()

◆ frameletSample()

◆ GetBandFirstDetectorLine()

◆ LineRate()

◆ LineScaleFactor()

◆ ParentLine()

◆ ParentSample()

◆ SampleScaleFactor()

◆ SetBandFirstDetectorLine()

◆ SetDetector()

◆ SetDetectorLineSumming()

◆ SetDetectorSampleSumming()

◆ SetExposureDuration()

◆ SetFramelet()

◆ SetFrameletOffset()

◆ SetFrameletOrderReversed()

◆ SetFrameletRate()

◆ SetFrameletsGeometricallyFlipped()

◆ SetParent() [1/2]

◆ SetParent() [2/2]

◆ SetStartingDetectorLine()

◆ SetStartingDetectorSample()

◆ SetStartTime()

◆ StartEphemerisTime()

◆ timeAscendingFramelets()

◆ TotalFramelets()

Member Data Documentation

◆ p_camera

◆ p_detectorLine

◆ p_detectorLineSumming

◆ p_detectorSample

◆ p_detectorSampleSumming

◆ p_parentLine

◆ p_parentSample

◆ p_sl

◆ p_ss

◆ p_startingDetectorLine

◆ p_startingDetectorSample
