Isis::SampleShiftFilter Class Reference

Allows filtering by a control measure's sample shift. More...

#include <SampleShiftFilter.h>

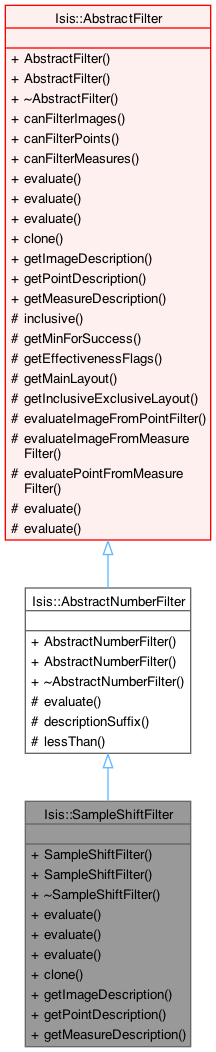

Inheritance diagram for Isis::SampleShiftFilter:

Collaboration diagram for Isis::SampleShiftFilter:

Public Types
enum	FilterEffectiveness { Images = 1 , Points = 2 , Measures = 4 }

Signals
void	filterChanged ()

Public Member Functions
	SampleShiftFilter (AbstractFilter::FilterEffectivenessFlag flag, int minimumForSuccess=-1)
	SampleShiftFilter (const SampleShiftFilter &other)
virtual	~SampleShiftFilter ()
bool	evaluate (const QPair< QString, ControlNet * > *) const
bool	evaluate (const ControlPoint *) const
bool	evaluate (const ControlMeasure *) const
AbstractFilter *	clone () const
QString	getImageDescription () const
QString	getPointDescription () const
QString	getMeasureDescription () const
virtual bool	canFilterImages () const
virtual bool	canFilterPoints () const
virtual bool	canFilterMeasures () const

Protected Member Functions
bool	evaluate (double) const
virtual bool	evaluate (const ControlPoint *, bool(ControlPoint::*)() const) const
virtual bool	evaluate (const ControlMeasure *, bool(ControlMeasure::*)() const) const
QString	descriptionSuffix () const
bool	lessThan () const
bool	inclusive () const
int	getMinForSuccess () const
AbstractFilter::FilterEffectivenessFlag *	getEffectivenessFlags () const
QBoxLayout *	getMainLayout () const
QBoxLayout *	getInclusiveExclusiveLayout () const
bool	evaluateImageFromPointFilter (const QPair< QString, ControlNet * > *) const
bool	evaluateImageFromMeasureFilter (const QPair< QString, ControlNet * > *) const
bool	evaluatePointFromMeasureFilter (const ControlPoint *) const

Detailed Description

Allows filtering by a control measure's sample shift.

This class allows the user to filter control measures by their sample shift (i.e. how many samples they shifted in the image). This allows the user to make a list of control measures that shifted by a certain amount in an image after adjustment. The sample shift is the difference between the measure's sample and a priori sample.

Author

2012-04-18 Jai Rideout

Member Enumeration Documentation

FilterEffectiveness

enum Isis::AbstractFilter::FilterEffectiveness

inherited

Enumerator
Images
Points
Measures

Constructor & Destructor Documentation

SampleShiftFilter() [1/2]

Isis::SampleShiftFilter::SampleShiftFilter	(	AbstractFilter::FilterEffectivenessFlag	flag,
		int	minimumForSuccess = -1 )

Referenced by clone().

SampleShiftFilter() [2/2]

Isis::SampleShiftFilter::SampleShiftFilter

(

const SampleShiftFilter &

other

)

~SampleShiftFilter()

Isis::SampleShiftFilter::~SampleShiftFilter ( )

virtual

Member Function Documentation

canFilterImages()

bool Isis::AbstractFilter::canFilterImages ( ) const

virtualinherited

References Isis::AbstractFilter::Images.

Referenced by Isis::FilterWidget::evaluate(), Isis::AbstractFilter::evaluateImageFromMeasureFilter(), and Isis::AbstractFilter::evaluateImageFromPointFilter().

canFilterMeasures()

bool Isis::AbstractFilter::canFilterMeasures ( ) const

virtualinherited

References Isis::AbstractFilter::Measures.

Referenced by Isis::FilterWidget::evaluate().

canFilterPoints()

bool Isis::AbstractFilter::canFilterPoints ( ) const

virtualinherited

References Isis::AbstractFilter::Points.

Referenced by Isis::FilterWidget::evaluate(), and Isis::AbstractFilter::evaluatePointFromMeasureFilter().

clone()

AbstractFilter * Isis::SampleShiftFilter::clone ( ) const

virtual

Implements Isis::AbstractFilter.

References SampleShiftFilter().

descriptionSuffix()

QString Isis::AbstractNumberFilter::descriptionSuffix ( ) const

protectedinherited

References Isis::AbstractFilter::inclusive(), and Isis::AbstractNumberFilter::lessThan().

Referenced by Isis::AdjustedLatitudeFilter::getImageDescription(), Isis::AdjustedLatitudeSigmaFilter::getImageDescription(), Isis::AdjustedLongitudeFilter::getImageDescription(), Isis::AdjustedLongitudeSigmaFilter::getImageDescription(), Isis::AdjustedRadiusFilter::getImageDescription(), Isis::AdjustedRadiusSigmaFilter::getImageDescription(), Isis::AdjustedXFilter::getImageDescription(), Isis::AdjustedXSigmaFilter::getImageDescription(), Isis::AdjustedYFilter::getImageDescription(), Isis::AdjustedYSigmaFilter::getImageDescription(), Isis::AdjustedZFilter::getImageDescription(), Isis::AdjustedZSigmaFilter::getImageDescription(), Isis::APrioriLatitudeFilter::getImageDescription(), Isis::APrioriLatitudeSigmaFilter::getImageDescription(), Isis::APrioriLongitudeFilter::getImageDescription(), Isis::APrioriLongitudeSigmaFilter::getImageDescription(), Isis::APrioriRadiusFilter::getImageDescription(), Isis::APrioriRadiusSigmaFilter::getImageDescription(), Isis::APrioriXFilter::getImageDescription(), Isis::APrioriXSigmaFilter::getImageDescription(), Isis::APrioriYFilter::getImageDescription(), Isis::APrioriYSigmaFilter::getImageDescription(), Isis::APrioriZFilter::getImageDescription(), Isis::APrioriZSigmaFilter::getImageDescription(), Isis::GoodnessOfFitFilter::getImageDescription(), Isis::LineFilter::getImageDescription(), Isis::LineResidualFilter::getImageDescription(), Isis::LineShiftFilter::getImageDescription(), Isis::ResidualMagnitudeFilter::getImageDescription(), Isis::SampleFilter::getImageDescription(), Isis::SampleResidualFilter::getImageDescription(), getImageDescription(), Isis::GoodnessOfFitFilter::getMeasureDescription(), Isis::LineFilter::getMeasureDescription(), Isis::LineResidualFilter::getMeasureDescription(), Isis::LineShiftFilter::getMeasureDescription(), Isis::ResidualMagnitudeFilter::getMeasureDescription(), Isis::SampleFilter::getMeasureDescription(), Isis::SampleResidualFilter::getMeasureDescription(), getMeasureDescription(), Isis::AdjustedLatitudeFilter::getPointDescription(), Isis::AdjustedLatitudeSigmaFilter::getPointDescription(), Isis::AdjustedLongitudeFilter::getPointDescription(), Isis::AdjustedLongitudeSigmaFilter::getPointDescription(), Isis::AdjustedRadiusFilter::getPointDescription(), Isis::AdjustedRadiusSigmaFilter::getPointDescription(), Isis::AdjustedXFilter::getPointDescription(), Isis::AdjustedXSigmaFilter::getPointDescription(), Isis::AdjustedYFilter::getPointDescription(), Isis::AdjustedYSigmaFilter::getPointDescription(), Isis::AdjustedZFilter::getPointDescription(), Isis::AdjustedZSigmaFilter::getPointDescription(), Isis::APrioriLatitudeFilter::getPointDescription(), Isis::APrioriLatitudeSigmaFilter::getPointDescription(), Isis::APrioriLongitudeFilter::getPointDescription(), Isis::APrioriLongitudeSigmaFilter::getPointDescription(), Isis::APrioriRadiusFilter::getPointDescription(), Isis::APrioriRadiusSigmaFilter::getPointDescription(), Isis::APrioriXFilter::getPointDescription(), Isis::APrioriXSigmaFilter::getPointDescription(), Isis::APrioriYFilter::getPointDescription(), Isis::APrioriYSigmaFilter::getPointDescription(), Isis::APrioriZFilter::getPointDescription(), and Isis::APrioriZSigmaFilter::getPointDescription().

evaluate() [1/6]

bool Isis::SampleShiftFilter::evaluate ( const ControlMeasure * measure ) const

virtual

Implements Isis::AbstractFilter.

References Isis::AbstractNumberFilter::evaluate().

evaluate() [2/6]

bool Isis::AbstractFilter::evaluate ( const ControlMeasure * measure, bool(ControlMeasure::*)() const meth ) const

protectedvirtualinherited

evaluate() [3/6]

bool Isis::SampleShiftFilter::evaluate ( const ControlPoint * point ) const

virtual

Implements Isis::AbstractFilter.

References Isis::AbstractFilter::evaluatePointFromMeasureFilter().

evaluate() [4/6]

bool Isis::AbstractFilter::evaluate ( const ControlPoint * point, bool(ControlPoint::*)() const meth ) const

protectedvirtualinherited

evaluate() [5/6]

bool Isis::SampleShiftFilter::evaluate ( const QPair< QString, ControlNet * > * imageAndNet ) const

virtual

Implements Isis::AbstractFilter.

References Isis::AbstractFilter::evaluateImageFromMeasureFilter().

evaluate() [6/6]

bool Isis::AbstractNumberFilter::evaluate ( double number ) const

protectedinherited

References Isis::AbstractFilter::inclusive(), and Isis::AbstractNumberFilter::lessThan().

Referenced by Isis::GoodnessOfFitFilter::evaluate(), Isis::LineFilter::evaluate(), Isis::LineResidualFilter::evaluate(), Isis::LineShiftFilter::evaluate(), Isis::ResidualMagnitudeFilter::evaluate(), Isis::SampleFilter::evaluate(), Isis::SampleResidualFilter::evaluate(), evaluate(), Isis::AdjustedLatitudeFilter::evaluate(), Isis::AdjustedLatitudeSigmaFilter::evaluate(), Isis::AdjustedLongitudeFilter::evaluate(), Isis::AdjustedLongitudeSigmaFilter::evaluate(), Isis::AdjustedRadiusFilter::evaluate(), Isis::AdjustedRadiusSigmaFilter::evaluate(), Isis::AdjustedXFilter::evaluate(), Isis::AdjustedXSigmaFilter::evaluate(), Isis::AdjustedYFilter::evaluate(), Isis::AdjustedYSigmaFilter::evaluate(), Isis::AdjustedZFilter::evaluate(), Isis::AdjustedZSigmaFilter::evaluate(), Isis::APrioriLatitudeFilter::evaluate(), Isis::APrioriLatitudeSigmaFilter::evaluate(), Isis::APrioriLongitudeFilter::evaluate(), Isis::APrioriLongitudeSigmaFilter::evaluate(), Isis::APrioriRadiusFilter::evaluate(), Isis::APrioriRadiusSigmaFilter::evaluate(), Isis::APrioriXFilter::evaluate(), Isis::APrioriXSigmaFilter::evaluate(), Isis::APrioriYFilter::evaluate(), Isis::APrioriYSigmaFilter::evaluate(), Isis::APrioriZFilter::evaluate(), and Isis::APrioriZSigmaFilter::evaluate().

evaluateImageFromMeasureFilter()

bool Isis::AbstractFilter::evaluateImageFromMeasureFilter ( const QPair< QString, ControlNet * > * imageAndNet ) const

protectedinherited

References Isis::AbstractFilter::canFilterImages().

Referenced by Isis::GoodnessOfFitFilter::evaluate(), Isis::LineFilter::evaluate(), Isis::LineResidualFilter::evaluate(), Isis::LineShiftFilter::evaluate(), Isis::MeasureIgnoredFilter::evaluate(), Isis::MeasureJigsawRejectedFilter::evaluate(), Isis::MeasureTypeFilter::evaluate(), Isis::ResidualMagnitudeFilter::evaluate(), Isis::SampleFilter::evaluate(), Isis::SampleResidualFilter::evaluate(), and evaluate().

evaluateImageFromPointFilter()

bool Isis::AbstractFilter::evaluateImageFromPointFilter ( const QPair< QString, ControlNet * > * imageAndNet ) const

protectedinherited

References Isis::AbstractFilter::canFilterImages().

Referenced by Isis::AdjustedLatitudeFilter::evaluate(), Isis::AdjustedLatitudeSigmaFilter::evaluate(), Isis::AdjustedLongitudeFilter::evaluate(), Isis::AdjustedLongitudeSigmaFilter::evaluate(), Isis::AdjustedRadiusFilter::evaluate(), Isis::AdjustedRadiusSigmaFilter::evaluate(), Isis::AdjustedXFilter::evaluate(), Isis::AdjustedXSigmaFilter::evaluate(), Isis::AdjustedYFilter::evaluate(), Isis::AdjustedYSigmaFilter::evaluate(), Isis::AdjustedZFilter::evaluate(), Isis::AdjustedZSigmaFilter::evaluate(), Isis::APrioriLatitudeFilter::evaluate(), Isis::APrioriLatitudeSigmaFilter::evaluate(), Isis::APrioriLongitudeFilter::evaluate(), Isis::APrioriLongitudeSigmaFilter::evaluate(), Isis::APrioriRadiusFilter::evaluate(), Isis::APrioriRadiusSigmaFilter::evaluate(), Isis::APrioriXFilter::evaluate(), Isis::APrioriXSigmaFilter::evaluate(), Isis::APrioriYFilter::evaluate(), Isis::APrioriYSigmaFilter::evaluate(), Isis::APrioriZFilter::evaluate(), Isis::APrioriZSigmaFilter::evaluate(), Isis::ChooserNameFilter::evaluate(), Isis::MeasureCountFilter::evaluate(), Isis::PointEditLockedFilter::evaluate(), Isis::PointIdFilter::evaluate(), Isis::PointIgnoredFilter::evaluate(), Isis::PointJigsawRejectedFilter::evaluate(), and Isis::PointTypeFilter::evaluate().

evaluatePointFromMeasureFilter()

bool Isis::AbstractFilter::evaluatePointFromMeasureFilter ( const ControlPoint * point ) const

protectedinherited

References Isis::AbstractFilter::canFilterPoints(), and Isis::ControlPoint::getMeasures().

Referenced by Isis::GoodnessOfFitFilter::evaluate(), Isis::ImageIdFilter::evaluate(), Isis::LineFilter::evaluate(), Isis::LineResidualFilter::evaluate(), Isis::LineShiftFilter::evaluate(), Isis::MeasureIgnoredFilter::evaluate(), Isis::MeasureJigsawRejectedFilter::evaluate(), Isis::MeasureTypeFilter::evaluate(), Isis::ResidualMagnitudeFilter::evaluate(), Isis::SampleFilter::evaluate(), Isis::SampleResidualFilter::evaluate(), and evaluate().

filterChanged

void Isis::AbstractFilter::filterChanged ( )

signalinherited

getEffectivenessFlags()

AbstractFilter::FilterEffectivenessFlag * Isis::AbstractFilter::getEffectivenessFlags ( ) const

protectedinherited

getImageDescription()

QString Isis::SampleShiftFilter::getImageDescription ( ) const

virtual

Reimplemented from Isis::AbstractFilter.

References Isis::AbstractNumberFilter::descriptionSuffix(), Isis::AbstractFilter::getImageDescription(), and Isis::AbstractFilter::getMinForSuccess().

Referenced by getPointDescription().

getInclusiveExclusiveLayout()

QBoxLayout * Isis::AbstractFilter::getInclusiveExclusiveLayout ( ) const

protectedinherited

getMainLayout()

QBoxLayout * Isis::AbstractFilter::getMainLayout ( ) const

protectedinherited

Referenced by Isis::AbstractMultipleChoiceFilter::createWidget().

getMeasureDescription()

QString Isis::SampleShiftFilter::getMeasureDescription ( ) const

virtual

Reimplemented from Isis::AbstractFilter.

References Isis::AbstractNumberFilter::descriptionSuffix().

getMinForSuccess()

int Isis::AbstractFilter::getMinForSuccess ( ) const

inlineprotectedinherited

Referenced by Isis::AbstractFilter::getImageDescription(), Isis::AdjustedLatitudeFilter::getImageDescription(), Isis::AdjustedLatitudeSigmaFilter::getImageDescription(), Isis::AdjustedLongitudeFilter::getImageDescription(), Isis::AdjustedLongitudeSigmaFilter::getImageDescription(), Isis::AdjustedRadiusFilter::getImageDescription(), Isis::AdjustedRadiusSigmaFilter::getImageDescription(), Isis::AdjustedXFilter::getImageDescription(), Isis::AdjustedXSigmaFilter::getImageDescription(), Isis::AdjustedYFilter::getImageDescription(), Isis::AdjustedYSigmaFilter::getImageDescription(), Isis::AdjustedZFilter::getImageDescription(), Isis::AdjustedZSigmaFilter::getImageDescription(), Isis::APrioriLatitudeFilter::getImageDescription(), Isis::APrioriLatitudeSigmaFilter::getImageDescription(), Isis::APrioriLongitudeFilter::getImageDescription(), Isis::APrioriLongitudeSigmaFilter::getImageDescription(), Isis::APrioriRadiusFilter::getImageDescription(), Isis::APrioriRadiusSigmaFilter::getImageDescription(), Isis::APrioriXFilter::getImageDescription(), Isis::APrioriXSigmaFilter::getImageDescription(), Isis::APrioriYFilter::getImageDescription(), Isis::APrioriYSigmaFilter::getImageDescription(), Isis::APrioriZFilter::getImageDescription(), Isis::APrioriZSigmaFilter::getImageDescription(), Isis::ChooserNameFilter::getImageDescription(), Isis::GoodnessOfFitFilter::getImageDescription(), Isis::LineFilter::getImageDescription(), Isis::LineResidualFilter::getImageDescription(), Isis::LineShiftFilter::getImageDescription(), Isis::MeasureCountFilter::getImageDescription(), Isis::MeasureIgnoredFilter::getImageDescription(), Isis::MeasureJigsawRejectedFilter::getImageDescription(), Isis::MeasureTypeFilter::getImageDescription(), Isis::PointEditLockedFilter::getImageDescription(), Isis::PointIdFilter::getImageDescription(), Isis::PointIgnoredFilter::getImageDescription(), Isis::PointJigsawRejectedFilter::getImageDescription(), Isis::PointTypeFilter::getImageDescription(), Isis::ResidualMagnitudeFilter::getImageDescription(), Isis::SampleFilter::getImageDescription(), Isis::SampleResidualFilter::getImageDescription(), getImageDescription(), and Isis::ImageIdFilter::getPointDescription().

getPointDescription()

QString Isis::SampleShiftFilter::getPointDescription ( ) const

virtual

Reimplemented from Isis::AbstractFilter.

References getImageDescription().

inclusive()

bool Isis::AbstractFilter::inclusive ( ) const

protectedinherited

Referenced by Isis::AbstractNumberFilter::descriptionSuffix(), Isis::AbstractStringFilter::descriptionSuffix(), Isis::MeasureTypeFilter::evaluate(), Isis::PointTypeFilter::evaluate(), Isis::AbstractNumberFilter::evaluate(), Isis::AbstractStringFilter::evaluate(), Isis::MeasureCountFilter::getImageDescription(), Isis::MeasureIgnoredFilter::getImageDescription(), Isis::MeasureJigsawRejectedFilter::getImageDescription(), Isis::MeasureTypeFilter::getImageDescription(), Isis::PointEditLockedFilter::getImageDescription(), Isis::PointIgnoredFilter::getImageDescription(), Isis::PointJigsawRejectedFilter::getImageDescription(), Isis::PointTypeFilter::getImageDescription(), Isis::MeasureIgnoredFilter::getMeasureDescription(), Isis::MeasureJigsawRejectedFilter::getMeasureDescription(), Isis::MeasureTypeFilter::getMeasureDescription(), Isis::MeasureCountFilter::getPointDescription(), Isis::PointEditLockedFilter::getPointDescription(), Isis::PointIgnoredFilter::getPointDescription(), Isis::PointJigsawRejectedFilter::getPointDescription(), and Isis::PointTypeFilter::getPointDescription().

lessThan()

bool Isis::AbstractNumberFilter::lessThan ( ) const

protectedinherited

Referenced by Isis::AbstractNumberFilter::descriptionSuffix(), and Isis::AbstractNumberFilter::evaluate().

---

The documentation for this class was generated from the following files:

• /Users/chkim/repos/ISIS3/isis/src/qisis/objs/CnetEditorWidget/SampleShiftFilter.h
• /Users/chkim/repos/ISIS3/isis/src/qisis/objs/CnetEditorWidget/SampleShiftFilter.cpp
