Isis::AbstractTableModel Class Reference

Translates the tree model into a table model. More...

#include <AbstractTableModel.h>

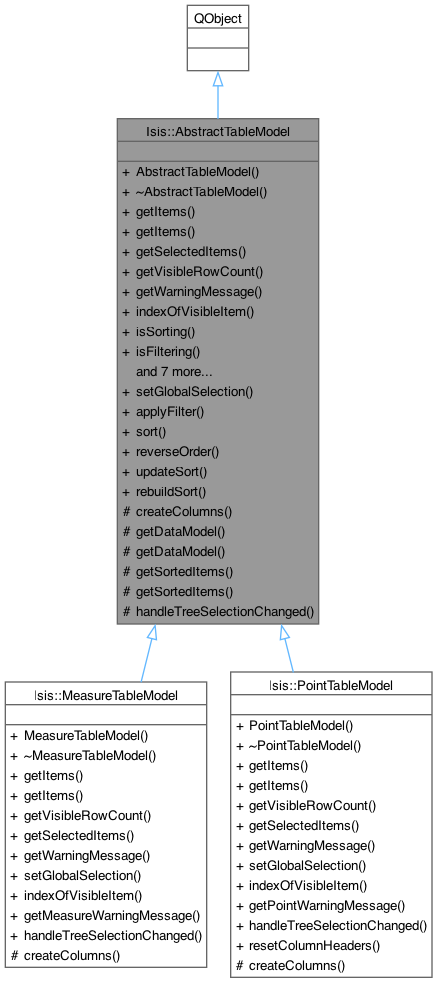

Inheritance diagram for Isis::AbstractTableModel:

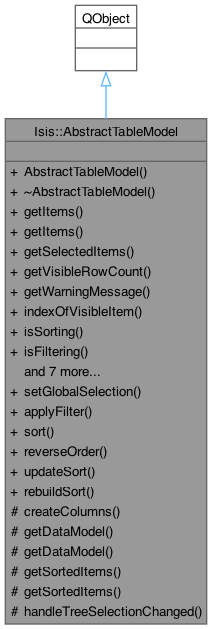

Collaboration diagram for Isis::AbstractTableModel:

Public Types
enum	Warning { None = 0 , SortingDisabled , SortingTableSizeLimitReached }

Public Slots
virtual void	setGlobalSelection (bool selected)=0
virtual void	applyFilter ()
virtual void	sort ()
virtual void	reverseOrder (TableColumn *)
virtual void	updateSort ()
virtual void	rebuildSort ()

Signals
void	modelModified ()
void	filterProgressChanged (int)
void	rebuildProgressChanged (int)
void	sortProgressChanged (int)
void	filterProgressRangeChanged (int, int)
void	rebuildProgressRangeChanged (int, int)
void	sortProgressRangeChanged (int, int)
void	filterCountsChanged (int visibleRows, int totalRows)
void	treeSelectionChanged (QList< AbstractTreeItem * >)
void	tableSelectionChanged (QList< AbstractTreeItem * >)
void	userWarning (AbstractTableModel::Warning)

Public Member Functions
	AbstractTableModel (AbstractTreeModel *, AbstractTableDelegate *)
virtual	~AbstractTableModel ()
virtual QList< AbstractTreeItem * >	getItems (int, int)=0
virtual QList< AbstractTreeItem * >	getItems (AbstractTreeItem *, AbstractTreeItem *)=0
virtual QList< AbstractTreeItem * >	getSelectedItems ()=0
virtual int	getVisibleRowCount () const =0
virtual QString	getWarningMessage (AbstractTreeItem const *, TableColumn const *, QString valueToSave) const =0
virtual int	indexOfVisibleItem (AbstractTreeItem const *item) const =0
virtual bool	isSorting () const
virtual bool	isFiltering () const
virtual bool	sortingIsEnabled () const
virtual void	setSortingEnabled (bool)
virtual int	sortLimit () const
virtual void	setSortLimit (int)
virtual bool	sortingOn () const
virtual TableColumnList *	getColumns ()
virtual const AbstractTableDelegate *	getDelegate () const

Protected Member Functions
virtual TableColumnList *	createColumns ()=0
AbstractTreeModel *	getDataModel ()
const AbstractTreeModel *	getDataModel () const
virtual QList< AbstractTreeItem * >	getSortedItems (int, int, AbstractTreeModel::InterestingItems)
virtual QList< AbstractTreeItem * >	getSortedItems (AbstractTreeItem *, AbstractTreeItem *, AbstractTreeModel::InterestingItems)
void	handleTreeSelectionChanged (QList< AbstractTreeItem * > newlySelectedItems, AbstractTreeItem::InternalPointerType)

Detailed Description

Translates the tree model into a table model.

This class acts as a proxy model for the abstract tree model by allowing the user to access data in a table-like fashion (by sorted row).

Author

????-??-?? Eric Hyer

Member Enumeration Documentation

Warning

enum Isis::AbstractTableModel::Warning

Enumerator
None
SortingDisabled
SortingTableSizeLimitReached

Constructor & Destructor Documentation

AbstractTableModel()

Isis::AbstractTableModel::AbstractTableModel	(	AbstractTreeModel *	model,
		AbstractTableDelegate *	someDelegate )

References filterCountsChanged(), filterProgressChanged(), filterProgressRangeChanged(), modelModified(), rebuildProgressChanged(), rebuildProgressRangeChanged(), rebuildSort(), and tableSelectionChanged().

Referenced by createColumns(), Isis::MeasureTableModel::MeasureTableModel(), and Isis::PointTableModel::PointTableModel().

~AbstractTableModel()

Isis::AbstractTableModel::~AbstractTableModel ( )

virtual

Member Function Documentation

applyFilter

void Isis::AbstractTableModel::applyFilter ( )

virtualslot

References Isis::AbstractTreeModel::applyFilter(), and getDataModel().

createColumns()

virtual TableColumnList * Isis::AbstractTableModel::createColumns ( )

protectedpure virtual

Implemented in Isis::MeasureTableModel, and Isis::PointTableModel.

References AbstractTableModel().

Referenced by getColumns().

filterCountsChanged

void Isis::AbstractTableModel::filterCountsChanged ( int visibleRows, int totalRows )

signal

Referenced by AbstractTableModel(), Isis::MeasureTableModel::MeasureTableModel(), and Isis::PointTableModel::PointTableModel().

filterProgressChanged

void Isis::AbstractTableModel::filterProgressChanged ( int )

signal

Referenced by AbstractTableModel().

filterProgressRangeChanged

void Isis::AbstractTableModel::filterProgressRangeChanged ( int , int  )

signal

Referenced by AbstractTableModel().

getColumns()

TableColumnList * Isis::AbstractTableModel::getColumns ( )

virtual

References createColumns(), and sort().

Referenced by Isis::PointTableModel::resetColumnHeaders(), and Isis::TableViewContent::TableViewContent().

getDataModel() [1/2]

AbstractTreeModel * Isis::AbstractTableModel::getDataModel ( )

protected

Referenced by applyFilter(), Isis::MeasureTableModel::getSelectedItems(), Isis::PointTableModel::getSelectedItems(), getSortedItems(), getSortedItems(), Isis::MeasureTableModel::getVisibleRowCount(), Isis::PointTableModel::getVisibleRowCount(), Isis::MeasureTableModel::indexOfVisibleItem(), Isis::PointTableModel::indexOfVisibleItem(), Isis::MeasureTableModel::setGlobalSelection(), and Isis::PointTableModel::setGlobalSelection().

getDataModel() [2/2]

const AbstractTreeModel * Isis::AbstractTableModel::getDataModel ( ) const

protected

getDelegate()

const AbstractTableDelegate * Isis::AbstractTableModel::getDelegate ( ) const

virtual

getItems() [1/2]

virtual QList< AbstractTreeItem * > Isis::AbstractTableModel::getItems ( AbstractTreeItem * , AbstractTreeItem *  )

pure virtual

Implemented in Isis::MeasureTableModel, and Isis::PointTableModel.

getItems() [2/2]

virtual QList< AbstractTreeItem * > Isis::AbstractTableModel::getItems ( int , int  )

pure virtual

Implemented in Isis::MeasureTableModel, and Isis::PointTableModel.

Referenced by Isis::TableViewContent::keyPressEvent(), and rebuildSort().

getSelectedItems()

virtual QList< AbstractTreeItem * > Isis::AbstractTableModel::getSelectedItems ( )

pure virtual

Implemented in Isis::MeasureTableModel, and Isis::PointTableModel.

getSortedItems() [1/2]

QList< AbstractTreeItem * > Isis::AbstractTableModel::getSortedItems ( AbstractTreeItem * item1, AbstractTreeItem * item2, AbstractTreeModel::InterestingItems flags )

protectedvirtual

References _FILEINFO_, getDataModel(), Isis::AbstractTreeModel::getItems(), Isis::IException::Programmer, and sortingOn().

getSortedItems() [2/2]

QList< AbstractTreeItem * > Isis::AbstractTableModel::getSortedItems ( int start, int end, AbstractTreeModel::InterestingItems flags )

protectedvirtual

References getDataModel(), Isis::AbstractTreeModel::getItems(), isFiltering(), and sortingOn().

Referenced by Isis::MeasureTableModel::getItems(), Isis::MeasureTableModel::getItems(), Isis::PointTableModel::getItems(), and Isis::PointTableModel::getItems().

getVisibleRowCount()

virtual int Isis::AbstractTableModel::getVisibleRowCount ( ) const

pure virtual

Implemented in Isis::MeasureTableModel, and Isis::PointTableModel.

Referenced by Isis::TableViewContent::keyPressEvent(), Isis::CnetEditorSortConfigDialog::readSettings(), and sortingOn().

getWarningMessage()

virtual QString Isis::AbstractTableModel::getWarningMessage ( AbstractTreeItem const * , TableColumn const * , QString valueToSave ) const

pure virtual

Implemented in Isis::MeasureTableModel, and Isis::PointTableModel.

handleTreeSelectionChanged()

void Isis::AbstractTableModel::handleTreeSelectionChanged ( QList< AbstractTreeItem * > newlySelectedItems, AbstractTreeItem::InternalPointerType pointerType )

protected

References Isis::AbstractTreeItem::getPointerType(), and treeSelectionChanged().

Referenced by Isis::MeasureTableModel::handleTreeSelectionChanged(), and Isis::PointTableModel::handleTreeSelectionChanged().

indexOfVisibleItem()

virtual int Isis::AbstractTableModel::indexOfVisibleItem ( AbstractTreeItem const * item ) const

pure virtual

Implemented in Isis::MeasureTableModel, and Isis::PointTableModel.

Referenced by Isis::TableViewContent::keyPressEvent(), and Isis::TableViewContent::scrollTo().

isFiltering()

bool Isis::AbstractTableModel::isFiltering ( ) const

virtual

Referenced by getSortedItems().

isSorting()

bool Isis::AbstractTableModel::isSorting ( ) const

virtual

Referenced by sort().

modelModified

void Isis::AbstractTableModel::modelModified ( )

signal

Referenced by AbstractTableModel(), rebuildSort(), and sort().

rebuildProgressChanged

void Isis::AbstractTableModel::rebuildProgressChanged ( int )

signal

Referenced by AbstractTableModel().

rebuildProgressRangeChanged

void Isis::AbstractTableModel::rebuildProgressRangeChanged ( int , int  )

signal

Referenced by AbstractTableModel().

rebuildSort

void Isis::AbstractTableModel::rebuildSort ( )

virtualslot

References getItems(), modelModified(), None, sort(), SortingDisabled, sortingOn(), SortingTableSizeLimitReached, and userWarning().

Referenced by AbstractTableModel(), setSortingEnabled(), and setSortLimit().

reverseOrder

void Isis::AbstractTableModel::reverseOrder ( TableColumn * column )

virtualslot

setGlobalSelection

virtual void Isis::AbstractTableModel::setGlobalSelection ( bool selected )

pure virtualslot

Implemented in Isis::MeasureTableModel, and Isis::PointTableModel.

setSortingEnabled()

void Isis::AbstractTableModel::setSortingEnabled ( bool enabled )

virtual

References rebuildSort().

setSortLimit()

void Isis::AbstractTableModel::setSortLimit ( int limit )

virtual

References rebuildSort().

sort

void Isis::AbstractTableModel::sort ( )

virtualslot

References isSorting(), modelModified(), and sortingOn().

Referenced by getColumns(), and rebuildSort().

sortingIsEnabled()

bool Isis::AbstractTableModel::sortingIsEnabled ( ) const

virtual

Referenced by sortingOn().

sortingOn()

bool Isis::AbstractTableModel::sortingOn ( ) const

virtual

References getVisibleRowCount(), sortingIsEnabled(), and sortLimit().

Referenced by getSortedItems(), getSortedItems(), rebuildSort(), and sort().

sortLimit()

int Isis::AbstractTableModel::sortLimit ( ) const

virtual

Referenced by Isis::CnetEditorSortConfigDialog::readSettings(), and sortingOn().

sortProgressChanged

void Isis::AbstractTableModel::sortProgressChanged ( int )

signal

sortProgressRangeChanged

void Isis::AbstractTableModel::sortProgressRangeChanged ( int , int  )

signal

tableSelectionChanged

void Isis::AbstractTableModel::tableSelectionChanged ( QList< AbstractTreeItem * > )

signal

Referenced by AbstractTableModel().

treeSelectionChanged

void Isis::AbstractTableModel::treeSelectionChanged ( QList< AbstractTreeItem * > )

signal

Referenced by handleTreeSelectionChanged(), Isis::MeasureTableModel::MeasureTableModel(), and Isis::PointTableModel::PointTableModel().

updateSort

void Isis::AbstractTableModel::updateSort ( )

virtualslot

userWarning

void Isis::AbstractTableModel::userWarning ( AbstractTableModel::Warning )

signal

Referenced by rebuildSort().

---

The documentation for this class was generated from the following files:

• /Users/astamile/ISIS3/isis/src/qisis/objs/CnetEditorWidget/AbstractTableModel.h
• /Users/astamile/ISIS3/isis/src/qisis/objs/CnetEditorWidget/AbstractTableModel.cpp
