View for editing a single ControlPoint. More...

#include <ControlPointEditView.h>

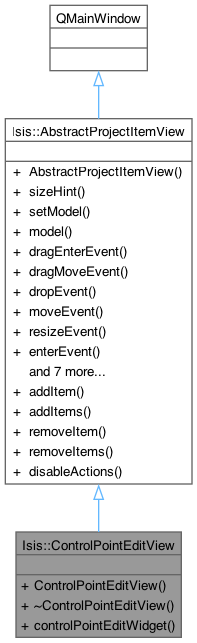

Inheritance diagram for Isis::ControlPointEditView:

Collaboration diagram for Isis::ControlPointEditView:

Public Slots
virtual void	addItem (ProjectItem *item)
	Adds an item to the view.

virtual void	addItems (QList< ProjectItem * > items)
	Adds several items to the view.

virtual void	removeItem (ProjectItem *item)
	Removes an item to the view.

virtual void	removeItems (QList< ProjectItem * > items)
	Removes several items from the view.

Signals
void	windowChangeEvent (bool event)

Public Member Functions
	ControlPointEditView (Directory directory, QWidget parent=0)
	Constructor.

	~ControlPointEditView ()
	Destructor.

ControlPointEditWidget *	controlPointEditWidget ()
	Returns the ControlPointEditWidget.

virtual QSize	sizeHint () const
	Returns the suggested size.

virtual void	setModel (ProjectItemModel *model)
	Sets the model used by the view.

virtual ProjectItemModel *	model ()
	Returns the model used by the view.

virtual void	dragEnterEvent (QDragEnterEvent *event)
	Accepts the drag enter event if the internal model can accept the mime data.

virtual void	dragMoveEvent (QDragMoveEvent *event)
	Accepts the drag event if the internal model can accept the mime data.

virtual void	dropEvent (QDropEvent *event)
	Drops the data into the internal model if it can accept the data.

virtual void	moveEvent (QMoveEvent *event)

virtual void	resizeEvent (QResizeEvent *event)

virtual void	enterEvent (QEvent *event)
	Enables actions when cursor enters the view.

virtual void	leaveEvent (QEvent *event)
	Disables actions when cursor leaves the view.

virtual QList< QAction * >	contextMenuActions ()
	Returns a list of actions appropriate for a context menu.

virtual ProjectItem *	currentItem ()
	Returns the current item of the model.

virtual QList< ProjectItem * >	selectedItems ()
	Return the selected items of the model.

virtual ProjectItemModel *	internalModel ()
	Returns the internal model of the view.

virtual void	setInternalModel (ProjectItemModel *model)
	Sets the internal model of the view.

Detailed Description

View for editing a single ControlPoint.

Author: 2016-04-06 Tracie Sucharski

Constructor & Destructor Documentation

◆ ControlPointEditView()

Isis::ControlPointEditView::ControlPointEditView	(	Directory *	directory,
		QWidget *	parent = 0 )

Constructor.

References Isis::AbstractProjectItemView::AbstractProjectItemView().

◆ ~ControlPointEditView()

Isis::ControlPointEditView::~ControlPointEditView ( )

Destructor.

Member Function Documentation

◆ addItem

void Isis::AbstractProjectItemView::addItem ( ProjectItem * item )

virtualslotinherited

Adds an item to the view.

The item must be part of the view's model. This method can be overridden in a subclass to filter out unneeded items.

Parameters

[in] item (ProjectItem *) The item to add.

References internalModel().

Referenced by Isis::CubeDnView::addItem().

◆ addItems

void Isis::AbstractProjectItemView::addItems ( QList< ProjectItem * > items )

virtualslotinherited

Adds several items to the view.

The items must be a part of the view's model. This method can be overridden in a subclass to filter out unneeded items.

Parameters

[in] items (QList<ProjectItem *>) The items to add.

References internalModel().

Referenced by Isis::CubeDnViewWorkOrder::execute(), and Isis::Footprint2DViewWorkOrder::execute().

◆ contextMenuActions()

QList< QAction * > Isis::AbstractProjectItemView::contextMenuActions ( )

virtualinherited

Returns a list of actions appropriate for a context menu.

Returns: QList<QAction *> The actions

◆ controlPointEditWidget()

ControlPointEditWidget * Isis::ControlPointEditView::controlPointEditWidget ( )

Returns the ControlPointEditWidget.

Returns: (ControlPointEditWidget *) The ControlPointEditWidget used to display the footprints.

Referenced by Isis::Directory::addControlPointEditView(), Isis::Directory::createControlPoint(), Isis::Directory::deleteControlPoint(), and Isis::Directory::modifyControlPoint().

◆ currentItem()

ProjectItem * Isis::AbstractProjectItemView::currentItem ( )

virtualinherited

Returns the current item of the model.

Returns: ProjectItem * The item

References Isis::ProjectItemModel::currentItem(), and model().

◆ dragEnterEvent()

void Isis::AbstractProjectItemView::dragEnterEvent ( QDragEnterEvent * event )

virtualinherited

Accepts the drag enter event if the internal model can accept the mime data.

Parameters

[in] event (QDragEnterEvent *) The drag event

References internalModel().

Referenced by Isis::Footprint2DView::eventFilter().

◆ dragMoveEvent()

void Isis::AbstractProjectItemView::dragMoveEvent ( QDragMoveEvent * event )

virtualinherited

Accepts the drag event if the internal model can accept the mime data.

Parameters

[in] event (QDragMoveEvent *) The drag event

References internalModel().

Referenced by Isis::Footprint2DView::eventFilter().

◆ dropEvent()

void Isis::AbstractProjectItemView::dropEvent ( QDropEvent * event )

virtualinherited

Drops the data into the internal model if it can accept the data.

Parameters

[in] event (QDropEvent *) The drop event

References internalModel().

Referenced by Isis::Footprint2DView::eventFilter().

◆ enterEvent()

void Isis::AbstractProjectItemView::enterEvent ( QEvent * event )

virtualinherited

Enables actions when cursor enters the view.

Parameters

event The enter event

References enableActions().

◆ internalModel()

ProjectItemModel * Isis::AbstractProjectItemView::internalModel ( )

virtualinherited

Returns the internal model of the view.

By default it is a proxy model.

Returns: ProjectItemModel * The internal model

Referenced by addItem(), addItems(), Isis::CubeDnView::CubeDnView(), dragEnterEvent(), dragMoveEvent(), dropEvent(), Isis::Footprint2DView::Footprint2DView(), model(), Isis::ProjectItemTreeView::ProjectItemTreeView(), removeItem(), Isis::ProjectItemTreeView::setInternalModel(), and setModel().

◆ leaveEvent()

void Isis::AbstractProjectItemView::leaveEvent ( QEvent * event )

virtualinherited

Disables actions when cursor leaves the view.

Parameters

event The leave event

References disableActions().

◆ model()

ProjectItemModel * Isis::AbstractProjectItemView::model ( )

virtualinherited

Returns the model used by the view.

If the internal model is a proxy model, it returns the source model.

Returns: ProjectItemModel * The model.

References internalModel().

Referenced by currentItem(), selectedItems(), setInternalModel(), Isis::ProjectItemTreeView::setInternalModel(), and setModel().

◆ moveEvent()

void Isis::AbstractProjectItemView::moveEvent ( QMoveEvent * event )

virtualinherited

References windowChangeEvent().

◆ removeItem

void Isis::AbstractProjectItemView::removeItem ( ProjectItem * item )

virtualslotinherited

Removes an item to the view.

The item must be part of the view's model. This method can be overriden in a subclass to filter out unneeded items.

Parameters

[in] item (ProjectItem *) The item to remove.

References internalModel().

Referenced by removeItems().

◆ removeItems

void Isis::AbstractProjectItemView::removeItems ( QList< ProjectItem * > items )

virtualslotinherited

Removes several items from the view.

The items must be a part of the view's model.

Parameters

[in] items (QList<ProjectItem *>) The items to remove.

References removeItem().

◆ resizeEvent()

void Isis::AbstractProjectItemView::resizeEvent ( QResizeEvent * event )

virtualinherited

References windowChangeEvent().

◆ selectedItems()

QList< ProjectItem * > Isis::AbstractProjectItemView::selectedItems ( )

virtualinherited

Return the selected items of the model.

Returns: QList<ProjectItem *> The items

References model(), and Isis::ProjectItemModel::selectedItems().

◆ setInternalModel()

void Isis::AbstractProjectItemView::setInternalModel ( ProjectItemModel * model )

virtualinherited

Sets the internal model of the view.

Parameters

[in] model (ProjectItemModel *) The new internal model

Reimplemented in Isis::ProjectItemTreeView.

References model().

Referenced by Isis::ProjectItemTreeView::setInternalModel().

◆ setModel()

void Isis::AbstractProjectItemView::setModel ( ProjectItemModel * model )

virtualinherited

Sets the model used by the view.

If the internal model is a proxy model, it sets the source model.

Parameters

[in] model (ProjectItemModel *) The new model

References internalModel(), and model().

Referenced by Isis::Directory::addCubeDnView(), Isis::Directory::addFootprint2DView(), and Isis::Directory::addProjectItemTreeView().

◆ sizeHint()

QSize Isis::AbstractProjectItemView::sizeHint ( ) const

virtualinherited

Returns the suggested size.

Returns: QSize The size hint

Reimplemented in Isis::ControlHealthMonitorView, and Isis::ProjectItemTreeView.

◆ windowChangeEvent

void Isis::AbstractProjectItemView::windowChangeEvent ( bool event )

signalinherited

Referenced by moveEvent(), and resizeEvent().

The documentation for this class was generated from the following files:

/Users/astamile/ISIS3/isis/src/qisis/objs/ControlPointEditView/ControlPointEditView.h
/Users/astamile/ISIS3/isis/src/qisis/objs/ControlPointEditView/ControlPointEditView.cpp
