Isis Developer Reference
Public Member Functions | Static Public Member Functions | Protected Member Functions | Protected Attributes | List of all members
Isis::PhotoModel Class Referenceabstract
Radiometric And Photometric Correction

#include <PhotoModel.h>

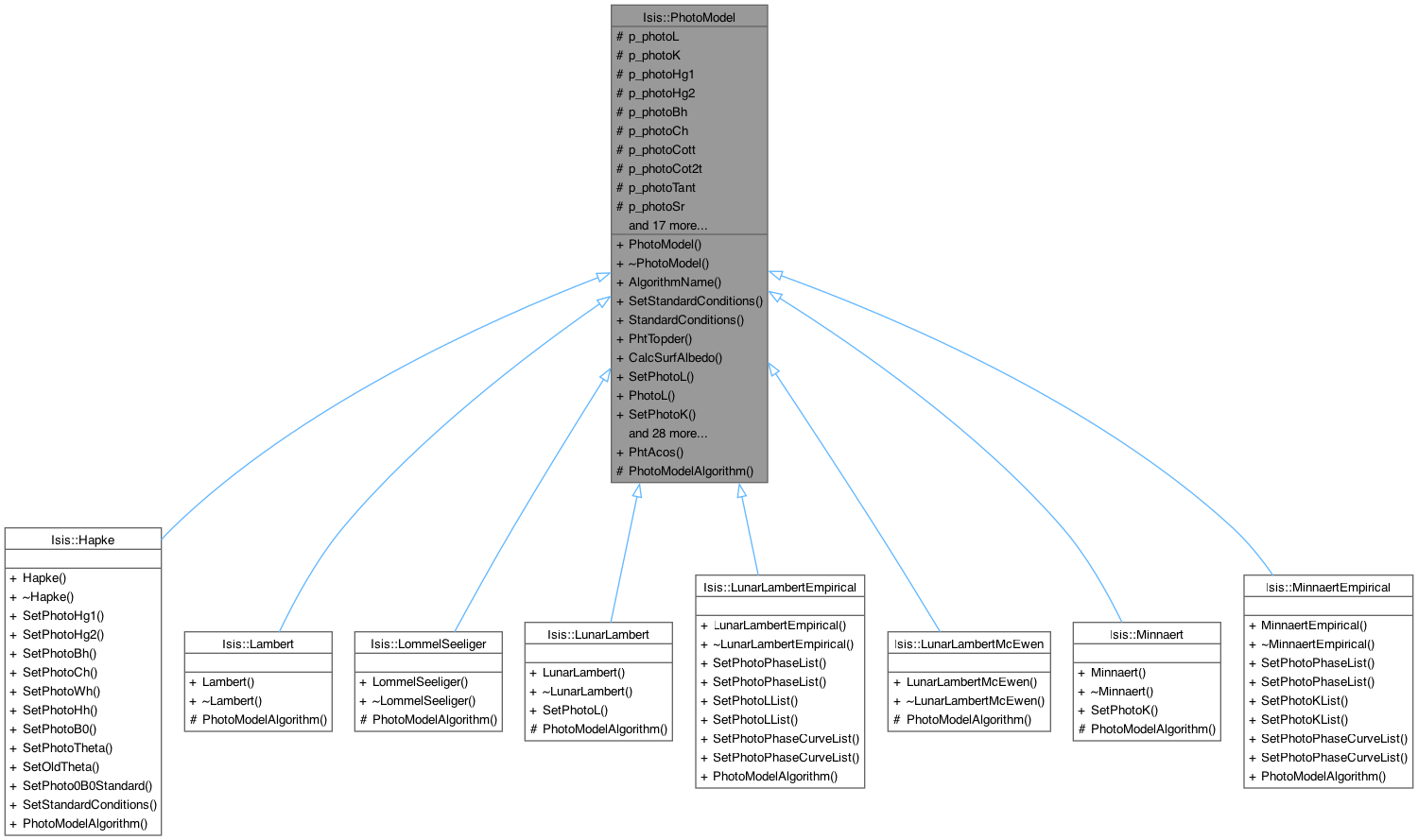

Inheritance diagram for Isis::PhotoModel:
Inheritance graph

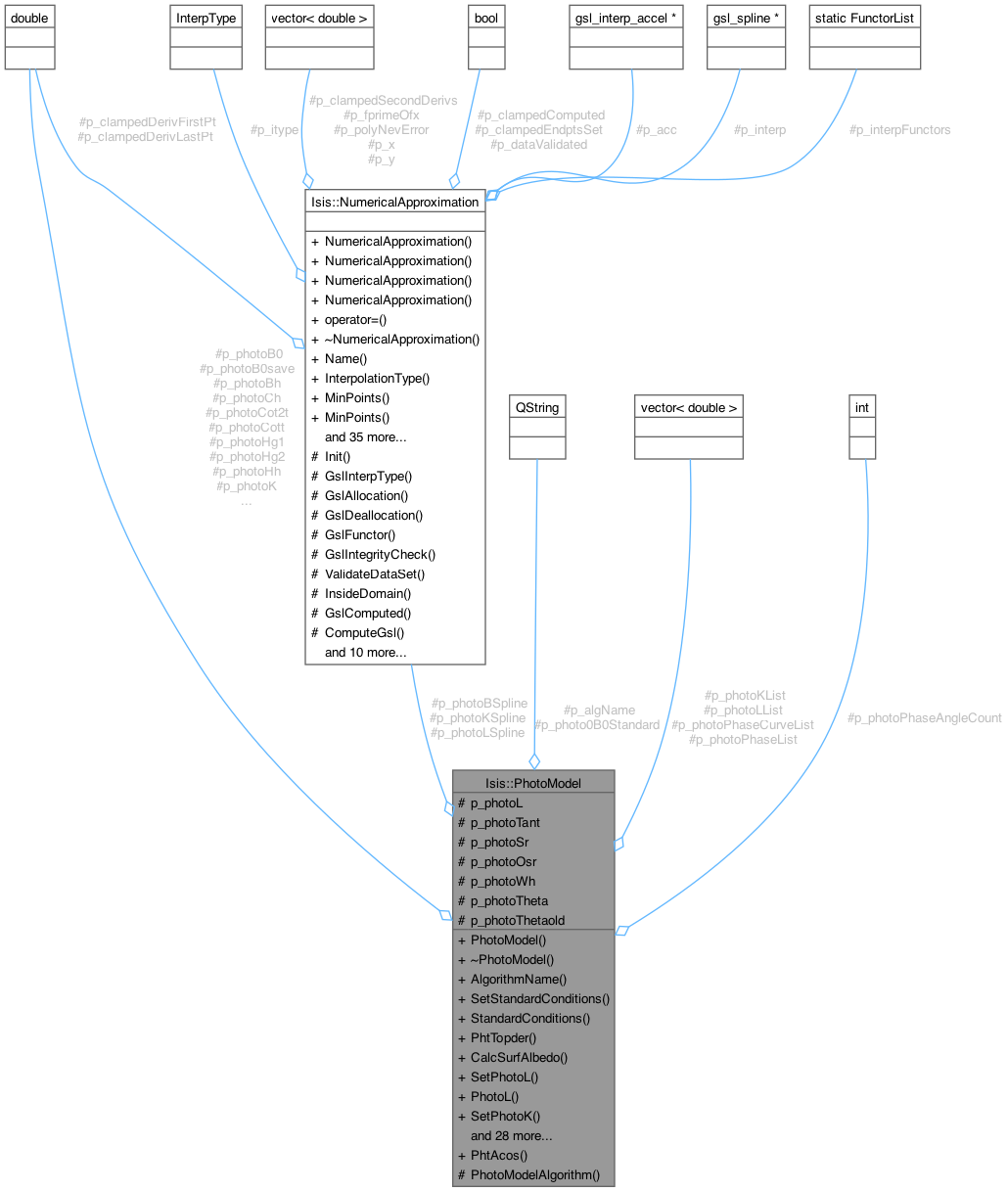

Collaboration diagram for Isis::PhotoModel:
Collaboration graph

Public Member Functions

 PhotoModel (Pvl &pvl)
 Create a PhotoModel object.

virtual ~PhotoModel ()

QString AlgorithmName () const
 Return algorithm name found in Pvl file from constructor.

virtual void SetStandardConditions (bool standard)
 Sets whether standard conditions will be used.

bool StandardConditions () const
 Returns true if standard conditions are used, i.e., if SetStandardConditions(true) has been called. This is initialized to false in the constructor.

double PhtTopder (double phase, double incidence, double emission)
 Obtain topographic derivative of an arbitrary photometric function.

double CalcSurfAlbedo (double pha, double inc, double ema)
 Calculate the surface brightness using photometric angle information.

virtual void SetPhotoL (const double l)

double PhotoL () const
 Return photometric L value.

virtual void SetPhotoK (const double k)

double PhotoK () const
 Return photometric K value.

virtual void SetPhotoHg1 (const double hg1)

double PhotoHg1 () const
 Return photometric Hg1 value.

virtual void SetPhotoHg2 (const double hg2)

double PhotoHg2 () const
 Return photometric Hg2 value.

virtual void SetPhotoBh (const double bh)

double PhotoBh () const
 Return photometric Bh value.

virtual void SetPhotoCh (const double ch)

double PhotoCh () const
 Return photometric Ch value.

virtual void SetPhotoWh (const double wh)

double PhotoWh () const
 Return photometric Wh value.

virtual void SetPhotoHh (const double hh)

double PhotoHh () const
 Return photometric Hh value.

virtual void SetPhotoB0 (const double b0)

double PhotoB0 () const
 Return photometric B0 value.

virtual void SetPhotoTheta (const double theta)

double PhotoTheta () const
 Return photometric Theta value.

virtual void SetPhoto0B0Standard (const QString &b0standard)

QString Photo0B0Standard () const
 Return photometric B0 standardization value.

double Hfunc (double u, double gamma)
 Hapke's approximation to Chandra's H function.

virtual void SetPhotoPhaseList (const QString)

virtual void SetPhotoKList (const QString)

virtual void SetPhotoLList (const QString)

virtual void SetPhotoPhaseCurveList (const QString)

std::vector< double > PhotoPhaseList () const
 Return photometric phase angle list.

std::vector< double > PhotoKList () const
 Return photometric k value list.

std::vector< double > PhotoLList () const
 Return photometric l value list.

std::vector< double > PhotoPhaseCurveList () const
 Return photometric phase curve value list.


Static Public Member Functions

static double PhtAcos (double cosang)
 Obtain arccosine of input value.


Protected Member Functions

virtual double PhotoModelAlgorithm (double phase, double incidence, double emission)=0


Protected Attributes

double p_photoL

double p_photoK

double p_photoHg1

double p_photoHg2

double p_photoBh

double p_photoCh

double p_photoCott

double p_photoCot2t

double p_photoTant

double p_photoSr

double p_photoOsr

QString p_algName

QString p_photo0B0Standard

double p_photoWh

double p_photoHh

double p_photoB0

double p_photoB0save

double p_photoTheta

double p_photoThetaold

std::vector< double > p_photoPhaseList

std::vector< double > p_photoKList

std::vector< double > p_photoLList

std::vector< double > p_photoPhaseCurveList

int p_photoPhaseAngleCount

NumericalApproximation p_photoKSpline

NumericalApproximation p_photoLSpline

NumericalApproximation p_photoBSpline


Detailed Description

Author
1998-12-21 Randy Kirk

Constructor & Destructor Documentation

◆ PhotoModel()

Isis::PhotoModel::PhotoModel ( Pvl & pvl)

Create a PhotoModel object.

Because this is a pure virtual class you can not create a PhotoModel class directly. Instead, see the PhotoModelFactory class.

Parameters
pvlA pvl object containing a valid PhotoModel specification
See also
photometricModels.doc

References _FILEINFO_, Isis::PvlObject::findObject(), Isis::PvlContainer::hasKeyword(), Isis::PvlObject::Traverse, and Isis::IException::User.

Referenced by Isis::Hapke::Hapke(), Isis::Lambert::Lambert(), Isis::LommelSeeliger::LommelSeeliger(), Isis::LunarLambert::LunarLambert(), Isis::LunarLambertEmpirical::LunarLambertEmpirical(), Isis::LunarLambertMcEwen::LunarLambertMcEwen(), Isis::Minnaert::Minnaert(), and Isis::MinnaertEmpirical::MinnaertEmpirical().

◆ ~PhotoModel()

virtual Isis::PhotoModel::~PhotoModel ( )
inlinevirtual

Member Function Documentation

◆ AlgorithmName()

QString Isis::PhotoModel::AlgorithmName ( ) const
inline

Return algorithm name found in Pvl file from constructor.

Referenced by Isis::Hapke::Hapke().

◆ CalcSurfAlbedo()

double Isis::PhotoModel::CalcSurfAlbedo ( double pha,
double inc,
double ema )

Calculate the surface brightness using photometric angle information.

Parameters
phaPhase angle
incIncidence angle
emaEmission angle
Returns
double Surface brightness calculated by the photometric function

References PhotoModelAlgorithm().

Referenced by Isis::Albedo::Albedo(), Isis::AlbedoAtm::AlbedoAtm(), Isis::NumericalAtmosApprox::InrFunc2Bint(), Isis::Mixed::Mixed(), Isis::Albedo::NormModelAlgorithm(), Isis::AlbedoAtm::NormModelAlgorithm(), Isis::Mixed::NormModelAlgorithm(), Isis::MoonAlbedo::NormModelAlgorithm(), Isis::NoNormalization::NormModelAlgorithm(), Isis::Shade::NormModelAlgorithm(), Isis::ShadeAtm::NormModelAlgorithm(), Isis::Topo::NormModelAlgorithm(), Isis::TopoAtm::NormModelAlgorithm(), PhtTopder(), and Isis::TopoAtm::TopoAtm().

◆ Hfunc()

double Isis::PhotoModel::Hfunc ( double u,
double gamma )
inline

Hapke's approximation to Chandra's H function.

Referenced by Isis::Hapke::PhotoModelAlgorithm().

◆ Photo0B0Standard()

QString Isis::PhotoModel::Photo0B0Standard ( ) const
inline

Return photometric B0 standardization value.

References p_photo0B0Standard.

◆ PhotoB0()

double Isis::PhotoModel::PhotoB0 ( ) const
inline

Return photometric B0 value.

References p_photoB0.

◆ PhotoBh()

double Isis::PhotoModel::PhotoBh ( ) const
inline

Return photometric Bh value.

References p_photoBh.

◆ PhotoCh()

double Isis::PhotoModel::PhotoCh ( ) const
inline

Return photometric Ch value.

References p_photoCh.

◆ PhotoHg1()

double Isis::PhotoModel::PhotoHg1 ( ) const
inline

Return photometric Hg1 value.

References p_photoHg1.

◆ PhotoHg2()

double Isis::PhotoModel::PhotoHg2 ( ) const
inline

Return photometric Hg2 value.

References p_photoHg2.

◆ PhotoHh()

double Isis::PhotoModel::PhotoHh ( ) const
inline

Return photometric Hh value.

References p_photoHh.

◆ PhotoK()

double Isis::PhotoModel::PhotoK ( ) const
inline

Return photometric K value.

References p_photoK.

◆ PhotoKList()

std::vector< double > Isis::PhotoModel::PhotoKList ( ) const
inline

Return photometric k value list.

References p_photoKList.

◆ PhotoL()

double Isis::PhotoModel::PhotoL ( ) const
inline

Return photometric L value.

References p_photoL.

◆ PhotoLList()

std::vector< double > Isis::PhotoModel::PhotoLList ( ) const
inline

Return photometric l value list.

References p_photoLList.

◆ PhotoModelAlgorithm()

virtual double Isis::PhotoModel::PhotoModelAlgorithm ( double phase,
double incidence,
double emission )
protectedpure virtual

Implemented in Isis::Hapke, Isis::Lambert, Isis::LommelSeeliger, Isis::LunarLambert, Isis::LunarLambertEmpirical, Isis::LunarLambertMcEwen, Isis::Minnaert, and Isis::MinnaertEmpirical.

Referenced by CalcSurfAlbedo().

◆ PhotoPhaseCurveList()

std::vector< double > Isis::PhotoModel::PhotoPhaseCurveList ( ) const
inline

Return photometric phase curve value list.

References p_photoPhaseCurveList.

◆ PhotoPhaseList()

std::vector< double > Isis::PhotoModel::PhotoPhaseList ( ) const
inline

Return photometric phase angle list.

References p_photoPhaseList.

◆ PhotoTheta()

double Isis::PhotoModel::PhotoTheta ( ) const
inline

Return photometric Theta value.

References p_photoTheta.

◆ PhotoWh()

double Isis::PhotoModel::PhotoWh ( ) const
inline

Return photometric Wh value.

References p_photoWh.

◆ PhtAcos()

double Isis::PhotoModel::PhtAcos ( double cosang)
static

Obtain arccosine of input value.

If the input value is outside of the valid range (-1 to 1), then obtain the arccosine of the closest valid value.

Parameters
cosanginput value to obtain arccosine of (in radians)
Returns
double Arccosine of cosang, if valid.
History
2008-11-05 Jeannie Walldren - This method was moved from NumericalMethods class.

Referenced by PhtTopder().

◆ PhtTopder()

double Isis::PhotoModel::PhtTopder ( double phase,
double incidence,
double emission )

Obtain topographic derivative of an arbitrary photometric function.

Parameters
phaseInput phase angle
incidenceInput incidence angle
emissionInput emission angle
Returns
double Gradient

References CalcSurfAlbedo(), PhtAcos(), and Isis::PI.

Referenced by Isis::Mixed::Mixed(), Isis::Mixed::NormModelAlgorithm(), Isis::Topo::NormModelAlgorithm(), Isis::TopoAtm::NormModelAlgorithm(), and Isis::TopoAtm::TopoAtm().

◆ SetPhoto0B0Standard()

virtual void Isis::PhotoModel::SetPhoto0B0Standard ( const QString & b0standard)
inlinevirtual

Reimplemented in Isis::Hapke.

References p_photo0B0Standard.

◆ SetPhotoB0()

virtual void Isis::PhotoModel::SetPhotoB0 ( const double b0)
inlinevirtual

Reimplemented in Isis::Hapke.

References p_photoB0.

◆ SetPhotoBh()

virtual void Isis::PhotoModel::SetPhotoBh ( const double bh)
inlinevirtual

Reimplemented in Isis::Hapke.

References p_photoBh.

◆ SetPhotoCh()

virtual void Isis::PhotoModel::SetPhotoCh ( const double ch)
inlinevirtual

Reimplemented in Isis::Hapke.

References p_photoCh.

◆ SetPhotoHg1()

virtual void Isis::PhotoModel::SetPhotoHg1 ( const double hg1)
inlinevirtual

Reimplemented in Isis::Hapke.

References p_photoHg1.

◆ SetPhotoHg2()

virtual void Isis::PhotoModel::SetPhotoHg2 ( const double hg2)
inlinevirtual

Reimplemented in Isis::Hapke.

References p_photoHg2.

◆ SetPhotoHh()

virtual void Isis::PhotoModel::SetPhotoHh ( const double hh)
inlinevirtual

Reimplemented in Isis::Hapke.

References p_photoHh.

◆ SetPhotoK()

virtual void Isis::PhotoModel::SetPhotoK ( const double k)
inlinevirtual

Reimplemented in Isis::Minnaert.

References p_photoK.

◆ SetPhotoKList()

virtual void Isis::PhotoModel::SetPhotoKList ( const QString )
inlinevirtual

Reimplemented in Isis::MinnaertEmpirical.

◆ SetPhotoL()

virtual void Isis::PhotoModel::SetPhotoL ( const double l)
inlinevirtual

Reimplemented in Isis::LunarLambert.

References p_photoL.

◆ SetPhotoLList()

virtual void Isis::PhotoModel::SetPhotoLList ( const QString )
inlinevirtual

Reimplemented in Isis::LunarLambertEmpirical.

◆ SetPhotoPhaseCurveList()

virtual void Isis::PhotoModel::SetPhotoPhaseCurveList ( const QString )
inlinevirtual

Reimplemented in Isis::LunarLambertEmpirical, and Isis::MinnaertEmpirical.

◆ SetPhotoPhaseList()

virtual void Isis::PhotoModel::SetPhotoPhaseList ( const QString )
inlinevirtual

Reimplemented in Isis::LunarLambertEmpirical, and Isis::MinnaertEmpirical.

◆ SetPhotoTheta()

virtual void Isis::PhotoModel::SetPhotoTheta ( const double theta)
inlinevirtual

Reimplemented in Isis::Hapke.

References p_photoTheta.

◆ SetPhotoWh()

virtual void Isis::PhotoModel::SetPhotoWh ( const double wh)
inlinevirtual

Reimplemented in Isis::Hapke.

References p_photoWh.

◆ SetStandardConditions()

void Isis::PhotoModel::SetStandardConditions ( bool standard)
virtual

Sets whether standard conditions will be used.

Parameters
standardTrue if standard conditions are used.

Reimplemented in Isis::Hapke.

Referenced by Isis::Albedo::Albedo(), Isis::AlbedoAtm::AlbedoAtm(), Isis::Mixed::Mixed(), Isis::Shade::NormModelAlgorithm(), Isis::ShadeAtm::NormModelAlgorithm(), Isis::Topo::NormModelAlgorithm(), Isis::Hapke::SetStandardConditions(), and Isis::TopoAtm::TopoAtm().

◆ StandardConditions()

bool Isis::PhotoModel::StandardConditions ( ) const
inline

Returns true if standard conditions are used, i.e., if SetStandardConditions(true) has been called. This is initialized to false in the constructor.

Member Data Documentation

◆ p_algName

QString Isis::PhotoModel::p_algName
protected

Referenced by Isis::Hapke::Hapke(), and Isis::Hapke::PhotoModelAlgorithm().

◆ p_photo0B0Standard

QString Isis::PhotoModel::p_photo0B0Standard
protected

Referenced by Photo0B0Standard(), Isis::Hapke::SetPhoto0B0Standard(), SetPhoto0B0Standard(), and Isis::Hapke::SetStandardConditions().

◆ p_photoB0

double Isis::PhotoModel::p_photoB0
protected

Referenced by Isis::Hapke::Hapke(), PhotoB0(), Isis::Hapke::PhotoModelAlgorithm(), Isis::Hapke::SetPhotoB0(), SetPhotoB0(), and Isis::Hapke::SetStandardConditions().

◆ p_photoB0save

double Isis::PhotoModel::p_photoB0save
protected

Referenced by Isis::Hapke::Hapke(), and Isis::Hapke::SetStandardConditions().

◆ p_photoBh

double Isis::PhotoModel::p_photoBh
protected

Referenced by PhotoBh(), Isis::Hapke::PhotoModelAlgorithm(), Isis::Hapke::SetPhotoBh(), and SetPhotoBh().

◆ p_photoBSpline

NumericalApproximation Isis::PhotoModel::p_photoBSpline
protected

Referenced by Isis::LunarLambertEmpirical::LunarLambertEmpirical(), Isis::MinnaertEmpirical::MinnaertEmpirical(), Isis::LunarLambertEmpirical::PhotoModelAlgorithm(), Isis::MinnaertEmpirical::PhotoModelAlgorithm(), Isis::LunarLambertEmpirical::~LunarLambertEmpirical(), and Isis::MinnaertEmpirical::~MinnaertEmpirical().

◆ p_photoCh

double Isis::PhotoModel::p_photoCh
protected

Referenced by PhotoCh(), Isis::Hapke::PhotoModelAlgorithm(), Isis::Hapke::SetPhotoCh(), and SetPhotoCh().

◆ p_photoCot2t

double Isis::PhotoModel::p_photoCot2t
protected

Referenced by Isis::Hapke::PhotoModelAlgorithm().

◆ p_photoCott

double Isis::PhotoModel::p_photoCott
protected

Referenced by Isis::Hapke::PhotoModelAlgorithm().

◆ p_photoHg1

double Isis::PhotoModel::p_photoHg1
protected

Referenced by Isis::Hapke::Hapke(), PhotoHg1(), Isis::Hapke::PhotoModelAlgorithm(), Isis::Hapke::SetPhotoHg1(), and SetPhotoHg1().

◆ p_photoHg2

double Isis::PhotoModel::p_photoHg2
protected

Referenced by Isis::Hapke::Hapke(), PhotoHg2(), Isis::Hapke::PhotoModelAlgorithm(), Isis::Hapke::SetPhotoHg2(), and SetPhotoHg2().

◆ p_photoHh

double Isis::PhotoModel::p_photoHh
protected

Referenced by Isis::Hapke::Hapke(), PhotoHh(), Isis::Hapke::PhotoModelAlgorithm(), Isis::Hapke::SetPhotoHh(), and SetPhotoHh().

◆ p_photoK

double Isis::PhotoModel::p_photoK
protected

Referenced by PhotoK(), Isis::Minnaert::PhotoModelAlgorithm(), Isis::Minnaert::SetPhotoK(), and SetPhotoK().

◆ p_photoKList

std::vector<double> Isis::PhotoModel::p_photoKList
protected

Referenced by Isis::MinnaertEmpirical::MinnaertEmpirical(), PhotoKList(), Isis::MinnaertEmpirical::SetPhotoKList(), Isis::MinnaertEmpirical::SetPhotoKList(), and Isis::MinnaertEmpirical::~MinnaertEmpirical().

◆ p_photoKSpline

NumericalApproximation Isis::PhotoModel::p_photoKSpline
protected

Referenced by Isis::MinnaertEmpirical::MinnaertEmpirical(), Isis::MinnaertEmpirical::PhotoModelAlgorithm(), and Isis::MinnaertEmpirical::~MinnaertEmpirical().

◆ p_photoL

double Isis::PhotoModel::p_photoL
protected

Referenced by PhotoL(), Isis::LunarLambert::PhotoModelAlgorithm(), Isis::LunarLambert::SetPhotoL(), and SetPhotoL().

◆ p_photoLList

std::vector<double> Isis::PhotoModel::p_photoLList
protected

Referenced by Isis::LunarLambertEmpirical::LunarLambertEmpirical(), PhotoLList(), Isis::LunarLambertEmpirical::SetPhotoLList(), Isis::LunarLambertEmpirical::SetPhotoLList(), and Isis::LunarLambertEmpirical::~LunarLambertEmpirical().

◆ p_photoLSpline

NumericalApproximation Isis::PhotoModel::p_photoLSpline
protected

Referenced by Isis::LunarLambertEmpirical::LunarLambertEmpirical(), Isis::LunarLambertEmpirical::PhotoModelAlgorithm(), and Isis::LunarLambertEmpirical::~LunarLambertEmpirical().

◆ p_photoOsr

double Isis::PhotoModel::p_photoOsr
protected

Referenced by Isis::Hapke::PhotoModelAlgorithm().

◆ p_photoPhaseAngleCount

int Isis::PhotoModel::p_photoPhaseAngleCount
protected

Referenced by Isis::LunarLambertEmpirical::LunarLambertEmpirical(), and Isis::MinnaertEmpirical::MinnaertEmpirical().

◆ p_photoPhaseCurveList

std::vector<double> Isis::PhotoModel::p_photoPhaseCurveList
protected

Referenced by Isis::LunarLambertEmpirical::LunarLambertEmpirical(), Isis::MinnaertEmpirical::MinnaertEmpirical(), PhotoPhaseCurveList(), Isis::LunarLambertEmpirical::SetPhotoPhaseCurveList(), Isis::LunarLambertEmpirical::SetPhotoPhaseCurveList(), Isis::MinnaertEmpirical::SetPhotoPhaseCurveList(), Isis::MinnaertEmpirical::SetPhotoPhaseCurveList(), Isis::LunarLambertEmpirical::~LunarLambertEmpirical(), and Isis::MinnaertEmpirical::~MinnaertEmpirical().

◆ p_photoPhaseList

std::vector<double> Isis::PhotoModel::p_photoPhaseList
protected

Referenced by Isis::LunarLambertEmpirical::LunarLambertEmpirical(), Isis::MinnaertEmpirical::MinnaertEmpirical(), PhotoPhaseList(), Isis::LunarLambertEmpirical::SetPhotoPhaseList(), Isis::LunarLambertEmpirical::SetPhotoPhaseList(), Isis::MinnaertEmpirical::SetPhotoPhaseList(), Isis::MinnaertEmpirical::SetPhotoPhaseList(), Isis::LunarLambertEmpirical::~LunarLambertEmpirical(), and Isis::MinnaertEmpirical::~MinnaertEmpirical().

◆ p_photoSr

double Isis::PhotoModel::p_photoSr
protected

Referenced by Isis::Hapke::PhotoModelAlgorithm().

◆ p_photoTant

double Isis::PhotoModel::p_photoTant
protected

Referenced by Isis::Hapke::PhotoModelAlgorithm().

◆ p_photoTheta

double Isis::PhotoModel::p_photoTheta
protected

Referenced by Isis::Hapke::Hapke(), Isis::Hapke::PhotoModelAlgorithm(), PhotoTheta(), Isis::Hapke::SetPhotoTheta(), and SetPhotoTheta().

◆ p_photoThetaold

double Isis::PhotoModel::p_photoThetaold
protected

Referenced by Isis::Hapke::Hapke(), Isis::Hapke::PhotoModelAlgorithm(), and Isis::Hapke::SetOldTheta().

◆ p_photoWh

double Isis::PhotoModel::p_photoWh
protected

Referenced by Isis::Hapke::Hapke(), Isis::Hapke::PhotoModelAlgorithm(), PhotoWh(), Isis::Hapke::SetPhotoWh(), and SetPhotoWh().

The documentation for this class was generated from the following files:
