An abstract implementation of the photometric function. More...

#include <PhotometricFunction.h>

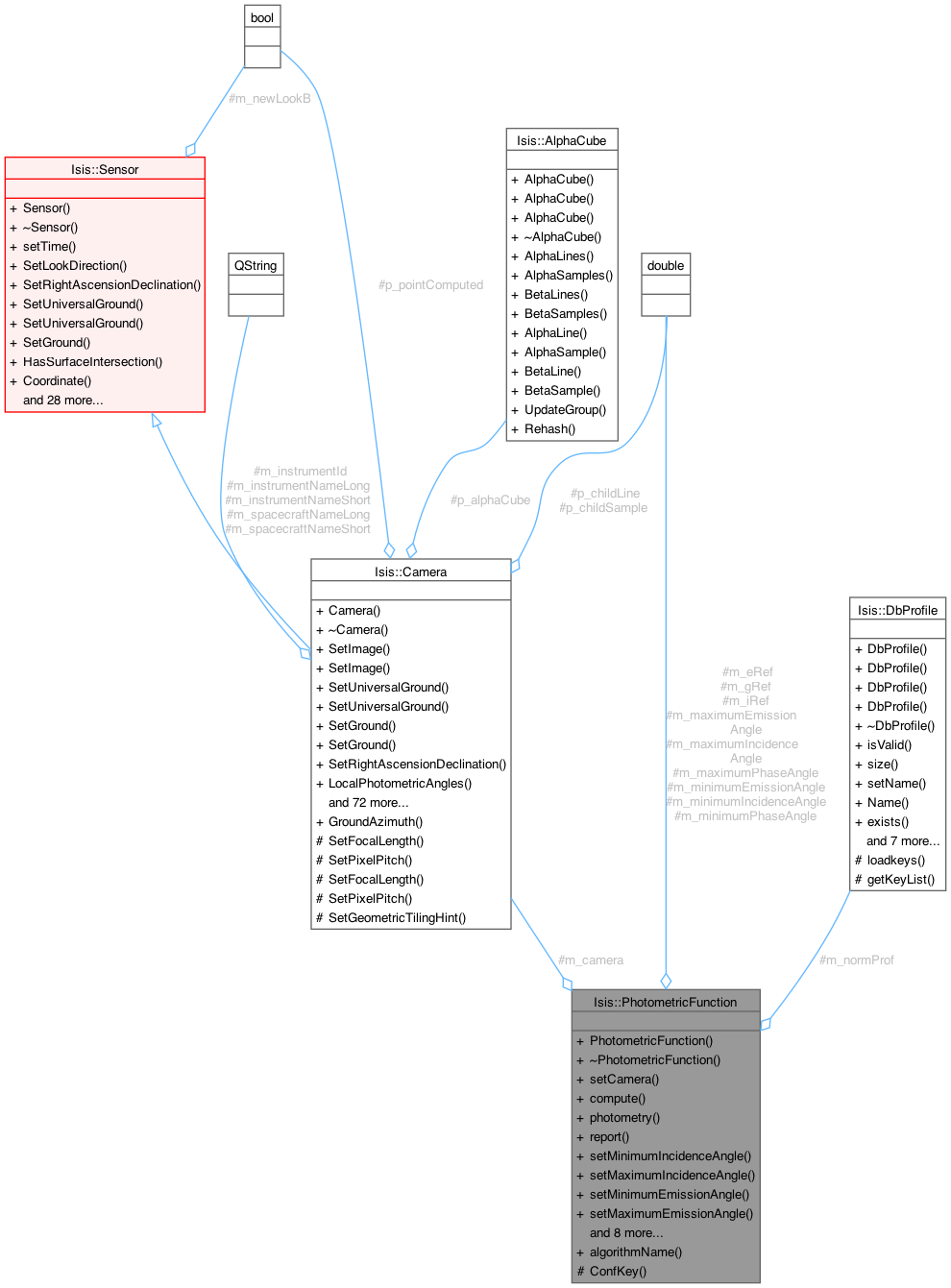

Collaboration diagram for Isis::PhotometricFunction:

Public Member Functions
	PhotometricFunction (PvlObject &pvl, Cube &cube, bool useCamera)
	Construct Photometric function from Pvl and Cube file.

virtual	~PhotometricFunction ()
	Destructor.

void	setCamera (Camera *cam)
	Set the camera used to compute photometric angles.

virtual double	compute (const double &line, const double &sample, int band=1, bool useDem=false)
	Computes Photometric function from cube attributes.

virtual double	photometry (double i, double e, double g, int band=1) const =0

virtual void	report (PvlContainer &pvl)=0

virtual void	setMinimumIncidenceAngle (double angle)
	Mutator function to set minimum incidence angle.

virtual void	setMaximumIncidenceAngle (double angle)
	Mutator function to set maximum incidence angle.

virtual void	setMinimumEmissionAngle (double angle)
	Mutator function to set minimum emission angle.

virtual void	setMaximumEmissionAngle (double angle)
	Mutator function to set maximum emission angle.

virtual void	setMinimumPhaseAngle (double angle)
	Mutator function to set minimum phase angle.

virtual void	setMaximumPhaseAngle (double angle)
	Mutator function to set maximum phase angle.

virtual double	minimumIncidenceAngle ()
	Accessor method to access minimum incidence angle.

virtual double	maximumIncidenceAngle ()
	Accessor method to access maximum incidence angle.

virtual double	minimumEmissionAngle ()
	Accessor method to access minimum emission angle.

virtual double	maximumEmissionAngle ()
	Accessor method to access maximum emission angle.

virtual double	minimumPhaseAngle ()
	Accessor method to access minimum phase angle.

virtual double	maximumPhaseAngle ()
	Accessor method to access maximum phase angle.

Static Public Member Functions
static QString	algorithmName (const PvlObject &pvl)
	Finds the name of the algorithm defined in a PVL object.

Protected Member Functions
template<typename T>
T	ConfKey (const DbProfile &conf, const QString &keyname, const T &defval, int index=0) const
	Helper template to initialize parameters.

Protected Attributes
Camera *	m_camera

double	m_iRef

double	m_eRef

double	m_gRef

double	m_minimumIncidenceAngle

double	m_maximumIncidenceAngle

double	m_minimumEmissionAngle

double	m_maximumEmissionAngle

double	m_minimumPhaseAngle

double	m_maximumPhaseAngle

DbProfile	m_normProf

Detailed Description

An abstract implementation of the photometric function.

This abstract class implements the a generic Photometric function. Child classes are expected to implement the photometry and report methods.

Author: 2016-08-15 Victor Silva

Constructor & Destructor Documentation

◆ PhotometricFunction()

Isis::PhotometricFunction::PhotometricFunction	(	PvlObject &	pvl,
		Cube &	cube,
		bool	useCamera )

Construct Photometric function from Pvl and Cube file.

Parameters

pvl	photometric parameter files
cube	Input cube file

Author: 2016-08-15 Victor Silva

References Isis::Cube::camera(), and m_camera.

◆ ~PhotometricFunction()

Isis::PhotometricFunction::~PhotometricFunction ( )

virtual

Destructor.

Member Function Documentation

◆ algorithmName()

QString Isis::PhotometricFunction::algorithmName ( const PvlObject & pvl )

static

Finds the name of the algorithm defined in a PVL object.

Parameters

pvl	The pvl to find the algorithm name in.

Returns: QString The algorithm name from the PVL object.

References Isis::PvlObject::findObject(), and Isis::PvlObject::Traverse.

◆ compute()

double Isis::PhotometricFunction::compute	(	const double &	line,
		const double &	sample,
		int	band = 1,
		bool	useDem = false )

virtual

Computes Photometric function from cube attributes.

Parameters

line	line number in cube
sample	sample number in cube
band	band number in cube
useDem	boolean to use provided Dem

Returns: double photometry calculations

Author: 2016-08-15 Victor Silva

References Isis::Angle::degrees(), m_camera, maximumEmissionAngle(), maximumIncidenceAngle(), maximumPhaseAngle(), minimumEmissionAngle(), minimumIncidenceAngle(), minimumPhaseAngle(), Isis::Null, and photometry().

◆ ConfKey()

template<typename T>

T Isis::PhotometricFunction::ConfKey	(	const DbProfile &	conf,
		const QString &	keyname,
		const T &	defval,
		int	index = 0 ) const

inlineprotected

Helper template to initialize parameters.

This template will check the existance of a keyword and extract the value if it exists to the passed parameter (type). If it doesn't exist, the default values are returned.

Parameters

conf	Parameter profile container
keyname	Name of keyword to get a value from
defval	Default value it keyword/value doesn't exist
index	Optional index of the value for keyword arrays

Returns: T The value of the keyword or the default value if the keyword is not found.

References Isis::DbProfile::count(), Isis::DbProfile::exists(), and Isis::DbProfile::value().

◆ maximumEmissionAngle()

double Isis::PhotometricFunction::maximumEmissionAngle ( )

virtual

Accessor method to access maximum emission angle.

Returns: double The maximum emission angle

Author: 2016-08-15 Victor Silva

References m_maximumEmissionAngle.

Referenced by compute().

◆ maximumIncidenceAngle()

double Isis::PhotometricFunction::maximumIncidenceAngle ( )

virtual

Accessor method to access maximum incidence angle.

Returns: double The maximum incidence angle

Author: 2016-08-15 Victor Silva

References m_maximumIncidenceAngle.

Referenced by compute().

◆ maximumPhaseAngle()

double Isis::PhotometricFunction::maximumPhaseAngle ( )

virtual

Accessor method to access maximum phase angle.

Returns: double The maximum phase angle

Author: 2016-08-15 Victor Silva

References m_maximumPhaseAngle.

Referenced by compute().

◆ minimumEmissionAngle()

double Isis::PhotometricFunction::minimumEmissionAngle ( )

virtual

Accessor method to access minimum emission angle.

Returns: double The minimum emission angle

Author: 2016-08-15 Victor Silva

References m_minimumEmissionAngle.

Referenced by compute().

◆ minimumIncidenceAngle()

double Isis::PhotometricFunction::minimumIncidenceAngle ( )

virtual

Accessor method to access minimum incidence angle.

Returns: double The minimum incidence angle

Author: 2016-08-15 Victor Silva

References m_minimumIncidenceAngle.

Referenced by compute().

◆ minimumPhaseAngle()

double Isis::PhotometricFunction::minimumPhaseAngle ( )

virtual

Accessor method to access minimum phase angle.

Returns: double The minimum phase angle

Author: 2016-08-15 Victor Silva

References m_minimumPhaseAngle.

Referenced by compute().

◆ photometry()

virtual double Isis::PhotometricFunction::photometry	(	double	i,
		double	e,
		double	g,
		int	band = 1 ) const

pure virtual

Referenced by compute().

◆ report()

virtual void Isis::PhotometricFunction::report ( PvlContainer & pvl )

pure virtual

◆ setCamera()

void Isis::PhotometricFunction::setCamera ( Camera * cam )

Set the camera used to compute photometric angles.

Parameters

cam	A pointer to the camera to be used

References m_camera.

◆ setMaximumEmissionAngle()

void Isis::PhotometricFunction::setMaximumEmissionAngle ( double angle )

virtual

Mutator function to set maximum emission angle.

Parameters

double The new maximum emission angle

Author: 2016-08-15 Victor Silva

References m_maximumEmissionAngle.

◆ setMaximumIncidenceAngle()

void Isis::PhotometricFunction::setMaximumIncidenceAngle ( double angle )

virtual

Mutator function to set maximum incidence angle.

Parameters

double the new maximum incidence angle

Author: 2016-08-15 Victor Silva

References m_maximumIncidenceAngle.

◆ setMaximumPhaseAngle()

void Isis::PhotometricFunction::setMaximumPhaseAngle ( double angle )

virtual

Mutator function to set maximum phase angle.

Parameters

double The new maximum phase angle

Author: 2016-08-15 Victor Silva

References m_maximumPhaseAngle.

◆ setMinimumEmissionAngle()

void Isis::PhotometricFunction::setMinimumEmissionAngle ( double angle )

virtual

Mutator function to set minimum emission angle.

Parameters

double The new minimum emission angle

Author: 2016-08-15 Victor Silva

References m_minimumEmissionAngle.

◆ setMinimumIncidenceAngle()

void Isis::PhotometricFunction::setMinimumIncidenceAngle ( double angle )

virtual

Mutator function to set minimum incidence angle.

Parameters

double The new minimum incidence angle

Author: 2016-08-15 Victor Silva

References m_minimumIncidenceAngle.

◆ setMinimumPhaseAngle()

void Isis::PhotometricFunction::setMinimumPhaseAngle ( double angle )

virtual

Mutator function to set minimum phase angle.

Parameters

double The new minimum phase angle

Author: 2016-08-15 Victor Silva

References m_minimumPhaseAngle.

Member Data Documentation

◆ m_camera

Camera* Isis::PhotometricFunction::m_camera

protected

Referenced by compute(), PhotometricFunction(), and setCamera().

◆ m_eRef

double Isis::PhotometricFunction::m_eRef

protected

◆ m_gRef

double Isis::PhotometricFunction::m_gRef

protected

◆ m_iRef

double Isis::PhotometricFunction::m_iRef

protected

◆ m_maximumEmissionAngle

double Isis::PhotometricFunction::m_maximumEmissionAngle

protected

Referenced by maximumEmissionAngle(), and setMaximumEmissionAngle().

◆ m_maximumIncidenceAngle

double Isis::PhotometricFunction::m_maximumIncidenceAngle

protected

Referenced by maximumIncidenceAngle(), and setMaximumIncidenceAngle().

◆ m_maximumPhaseAngle

double Isis::PhotometricFunction::m_maximumPhaseAngle

protected

Referenced by maximumPhaseAngle(), and setMaximumPhaseAngle().

◆ m_minimumEmissionAngle

double Isis::PhotometricFunction::m_minimumEmissionAngle

protected

Referenced by minimumEmissionAngle(), and setMinimumEmissionAngle().

◆ m_minimumIncidenceAngle

double Isis::PhotometricFunction::m_minimumIncidenceAngle

protected

Referenced by minimumIncidenceAngle(), and setMinimumIncidenceAngle().

◆ m_minimumPhaseAngle

double Isis::PhotometricFunction::m_minimumPhaseAngle

protected

Referenced by minimumPhaseAngle(), and setMinimumPhaseAngle().

◆ m_normProf

DbProfile Isis::PhotometricFunction::m_normProf

protected

The documentation for this class was generated from the following files:

/Users/astamile/ISIS3/isis/src/lro/objs/PhotometricFunction/PhotometricFunction.h
/Users/astamile/ISIS3/isis/src/lro/objs/PhotometricFunction/PhotometricFunction.cpp
