Isis::SerialNumber Class Reference

Serial Number composer. More...

#include <SerialNumber.h>

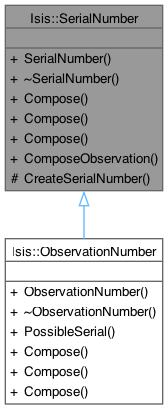

Inheritance diagram for Isis::SerialNumber:

Collaboration diagram for Isis::SerialNumber:

Public Member Functions
	SerialNumber ()
	Create an empty SerialNumber object.
virtual	~SerialNumber ()
	Destroy a SerialNumber object.

Static Public Member Functions
static QString	Compose (Pvl &label, bool def2filename=false)
	Compose a SerialNumber from a PVL.
static QString	Compose (Cube &cube, bool def2filename=false)
	Compose a SerialNumber from a Cube.
static QString	Compose (const QString &filename, bool def2filename=false)
	Compose a SerialNumber from a file.
static QString	ComposeObservation (const QString &sn, SerialNumberList &list, bool def2filename=false)
	Creates the ObservationNumber from a string representing the SerialNumber and a SerialList.

Static Protected Member Functions
static QString	CreateSerialNumber (PvlGroup &snGroup, int key)
	Create the SerialNumber string by concatenating the keywords in the label with '/' in between serialNumber groups and the number of observationKeys.

Detailed Description

Serial Number composer.

A Serial Number is a unique identification for some object such as an Isis cube. A Serial Number for a specific object must be repeatable. This class is intended to be used to create all Serial Numbers for Isis.

Author

2005-07-28 Stuart Sides

Constructor & Destructor Documentation

SerialNumber()

Isis::SerialNumber::SerialNumber

(

)

Create an empty SerialNumber object.

~SerialNumber()

Isis::SerialNumber::~SerialNumber ( )

virtual

Destroy a SerialNumber object.

Member Function Documentation

Compose() [1/3]

QString Isis::SerialNumber::Compose ( const QString & filename, bool def2filename = false )

static

Compose a SerialNumber from a file.

Parameters

filename	a filename to open
def2filename	If a serial number could not be found, try to return the filename

Returns

Calculated SerialNumber or FileName

References Compose().

Compose() [2/3]

QString Isis::SerialNumber::Compose ( Cube & cube, bool def2filename = false )

static

Compose a SerialNumber from a Cube.

Parameters

cube	An opened Isis cub
def2filename	If a serial number could not be found, try to return the filename

Returns

Calculated SerialNumber or FileName

References Compose(), and Isis::Cube::label().

Compose() [3/3]

QString Isis::SerialNumber::Compose ( Pvl & label, bool def2filename = false )

static

Compose a SerialNumber from a PVL.

Parameters

label	A pvl formatted label to be used to generate the serial number
def2filename	If a serial number could not be found, try to return the filename

Returns

Calculated SerialNumber or FileName

References CreateSerialNumber(), Isis::PvlContainer::fileName(), and Isis::FileName::name().

Referenced by Isis::SerialNumberList::add(), Compose(), Compose(), Isis::QnetFileTool::loadImage(), Isis::ControlNetTool::mouseButtonRelease(), Isis::ChipViewport::paintEvent(), Isis::StereoTool::paintViewport(), and Isis::Image::serialNumber().

ComposeObservation()

QString Isis::SerialNumber::ComposeObservation ( const QString & sn, SerialNumberList & list, bool def2filename = false )

static

Creates the ObservationNumber from a string representing the SerialNumber and a SerialList.

Parameters

sn	the string representing the SerialNumber
list	the SerialNumberList
def2filename	If a serial number could not be found, try to return the filename

Returns

Calculated SerialNumber or FileName

References Isis::ObservationNumber::Compose(), and Isis::SerialNumberList::fileName().

CreateSerialNumber()

QString Isis::SerialNumber::CreateSerialNumber ( PvlGroup & snGroup, int keys )

staticprotected

Create the SerialNumber string by concatenating the keywords in the label with '/' in between serialNumber groups and the number of observationKeys.

Parameters

snGroup	A PvlGroup containing the keywords to concatenate
keys	the number of strings to contatenate

Referenced by Isis::ObservationNumber::Compose(), and Compose().

---

The documentation for this class was generated from the following files:

• /Users/astamile/ISIS3/isis/src/base/objs/SerialNumber/SerialNumber.h
• /Users/astamile/ISIS3/isis/src/base/objs/SerialNumber/SerialNumber.cpp
