a subclass of the qisis mainwindow, tablemainwindow handles all of the table tasks. More...

#include <TableMainWindow.h>

Inheritance diagram for Isis::TableMainWindow:

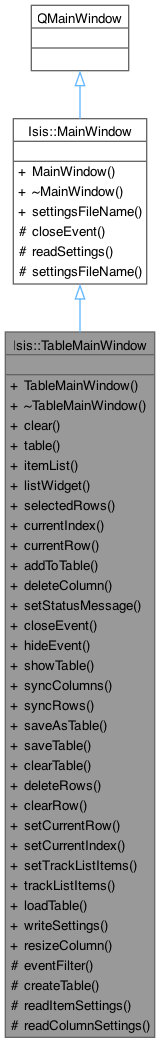

Collaboration diagram for Isis::TableMainWindow:

Public Slots
void	showTable ()
	This method checks to see if the table has been created.

void	syncColumns ()
	This method hides and shows the columns according to which items the user has selected to be view-able on the left hand side list.

void	syncRows ()
	Use this method to sync the table with the dock widget list if the table orientation is horizontal.

void	saveAsTable ()
	This method will select a file, set it as the current file and save the table.

void	saveTable ()
	This method allows the user to save the data from the table to the current file.

void	clearTable ()
	This method clears all items from each row and column.

void	deleteRows ()
	This method is called when the user selects a row or rows uses the delete button or selects the delete row menu item from the file menu.

void	clearRow (int row)
	This method clears the text of the given row.

void	setCurrentRow (int row)
	Sets the current row to row.

void	setCurrentIndex (int currentIndex)
	Sets the current index to currentIndex.

void	setTrackListItems (bool track=false)
	If this property is true, the class will keep track of the checked/unchecked items in the dock area which determines which columns are visible in the table.

bool	trackListItems ()
	Returns whether or not we should track items.

void	loadTable ()
	This method loads a text file into the table.

void	writeSettings () const
	This overriden method is called when the Tablemainwindow is closed or hidden to write the size and location settings (and dock widget settings) to a config file in the user's home directory.

void	resizeColumn (int columnIndex)

Signals
void	fileLoaded ()
	Signal emitted when a file has loaded.

Public Member Functions
	TableMainWindow (QString title, QWidget *parent=0)
	Constructs a new TableMainWindow object.

	~TableMainWindow ()

void	clear ()

QTableWidget *	table () const
	Returns the table.

QList< QListWidgetItem * >	itemList () const

QListWidget *	listWidget () const
	Returns the list widget.

int	selectedRows () const
	Returns the selected rows.

int	currentIndex () const
	Returns the current index.

int	currentRow () const
	Returns the current row.

void	addToTable (bool setOn, const QString &heading, const QString &menuText="", int insertAt=-1, Qt::Orientation o=Qt::Horizontal, QString toolTip="")
	Adds a new column to the table when a new curve is added to the plot.

void	deleteColumn (int item)
	This method deletes a column from the table.

void	setStatusMessage (QString message)
	sets the status message in the lower lefthand corner of the window.

void	closeEvent (QCloseEvent *event)

void	hideEvent (QHideEvent *event)

Static Public Member Functions
static QString	settingsFileName (QString objectTitle)

Protected Member Functions
bool	eventFilter (QObject o, QEvent e)
	This event filter is installed in the constructor.

void	createTable ()
	This creates the table main window.

void	readItemSettings (QString heading, QListWidgetItem *item, bool defaultChecked)
	This method reads the 'checked' settings on the items listed in the dock area which determine which table columns are visible.

void	readColumnSettings ()
	This method reads the columns in the table and sets their size to the appropriate size, or the size to auto based on what they were stored as.

QString	settingsFileName () const

virtual void	readSettings (QSize defaultSize=QSize())
	This method ensure that the settings get written even if the Main window was only hidden, not closed.

Detailed Description

a subclass of the qisis mainwindow, tablemainwindow handles all of the table tasks.

Author: ????-??-?? Stacy Alley

Constructor & Destructor Documentation

◆ TableMainWindow()

Isis::TableMainWindow::TableMainWindow	(	QString	title,
		QWidget *	parent = 0 )

Constructs a new TableMainWindow object.

Parameters

title
parent

References createTable(), Isis::MainWindow::MainWindow(), readColumnSettings(), and Isis::MainWindow::readSettings().

◆ ~TableMainWindow()

Isis::TableMainWindow::~TableMainWindow ( )

References writeSettings().

Member Function Documentation

◆ addToTable()

void Isis::TableMainWindow::addToTable	(	bool	setOn,
		const QString &	heading,
		const QString &	menuText = "",
		int	insertAt = -1,
		Qt::Orientation	o = Qt::Horizontal,
		QString	toolTip = "" )

Adds a new column to the table when a new curve is added to the plot.

Also adds the item to the dock area.

Parameters

setOn
heading
menuText
insertAt
o
toolTip

References readColumnSettings(), and readItemSettings().

◆ clear()

void Isis::TableMainWindow::clear ( )

References writeSettings().

Referenced by createTable().

◆ clearRow

void Isis::TableMainWindow::clearRow ( int row )

slot

This method clears the text of the given row.

Parameters

row

◆ clearTable

void Isis::TableMainWindow::clearTable ( )

slot

This method clears all items from each row and column.

Referenced by createTable(), and loadTable().

◆ closeEvent()

void Isis::TableMainWindow::closeEvent ( QCloseEvent * event )

virtual

Parameters

event

Reimplemented from Isis::MainWindow.

References Isis::MainWindow::closeEvent(), and writeSettings().

◆ createTable()

void Isis::TableMainWindow::createTable ( )

protected

This creates the table main window.

The table and docking area are created here. It also adds the two default menus to the menu bar. Programmers can add more menus to the menu bar once an instance of this class is established.

References clear(), clearTable(), deleteRows(), loadTable(), resizeColumn(), saveAsTable(), saveTable(), and syncColumns().

Referenced by showTable(), and TableMainWindow().

◆ currentIndex()

int Isis::TableMainWindow::currentIndex ( ) const

inline

Returns the current index.

Returns: int

Referenced by setCurrentIndex().

◆ currentRow()

int Isis::TableMainWindow::currentRow ( ) const

inline

Returns the current row.

Returns: int

◆ deleteColumn()

void Isis::TableMainWindow::deleteColumn ( int item )

This method deletes a column from the table.

Parameters

item

References showTable().

◆ deleteRows

void Isis::TableMainWindow::deleteRows ( )

slot

This method is called when the user selects a row or rows uses the delete button or selects the delete row menu item from the file menu.

References selectedRows().

Referenced by createTable().

◆ eventFilter()

bool Isis::TableMainWindow::eventFilter	(	QObject *	o,
		QEvent *	e )

protected

This event filter is installed in the constructor.

Parameters

o
e

Returns: bool

References writeSettings().

◆ fileLoaded

void Isis::TableMainWindow::fileLoaded ( )

signal

Signal emitted when a file has loaded.

Referenced by loadTable().

◆ hideEvent()

void Isis::TableMainWindow::hideEvent ( QHideEvent * event )

Parameters

event

◆ itemList()

QList< QListWidgetItem * > Isis::TableMainWindow::itemList ( ) const

Referenced by loadTable(), syncColumns(), syncRows(), and writeSettings().

◆ listWidget()

QListWidget * Isis::TableMainWindow::listWidget ( ) const

inline

Returns the list widget.

Returns: QListWidget*

◆ loadTable

void Isis::TableMainWindow::loadTable ( )

slot

This method loads a text file into the table.

References clearTable(), fileLoaded(), and itemList().

Referenced by createTable().

◆ readColumnSettings()

void Isis::TableMainWindow::readColumnSettings ( )

protected

This method reads the columns in the table and sets their size to the appropriate size, or the size to auto based on what they were stored as.

References Isis::MainWindow::settingsFileName().

Referenced by addToTable(), and TableMainWindow().

◆ readItemSettings()

void Isis::TableMainWindow::readItemSettings	(	QString	heading,
		QListWidgetItem *	item,
		bool	defaultChecked )

protected

This method reads the 'checked' settings on the items listed in the dock area which determine which table columns are visible.

This method is only called if p_trackItems is set to true.

Parameters

heading
item

References Isis::MainWindow::settingsFileName().

Referenced by addToTable().

◆ readSettings()

void Isis::MainWindow::readSettings ( QSize defaultSize = QSize() )

protectedvirtualinherited

This method ensure that the settings get written even if the Main window was only hidden, not closed.

Parameters

event This method is called from the constructor so that when the Main window is created, it know's it's size and location.

References settingsFileName().

Referenced by Isis::PlotWindow::PlotWindow(), Isis::TableMainWindow::TableMainWindow(), and Isis::ViewportMainWindow::ViewportMainWindow().

◆ resizeColumn

void Isis::TableMainWindow::resizeColumn ( int columnIndex )

slot

Referenced by createTable().

◆ saveAsTable

void Isis::TableMainWindow::saveAsTable ( )

slot

This method will select a file, set it as the current file and save the table.

References saveTable().

Referenced by createTable().

◆ saveTable

void Isis::TableMainWindow::saveTable ( )

slot

This method allows the user to save the data from the table to the current file.

Referenced by createTable(), and saveAsTable().

◆ selectedRows()

int Isis::TableMainWindow::selectedRows ( ) const

inline

Returns the selected rows.

Returns: int

Referenced by deleteRows().

◆ setCurrentIndex

void Isis::TableMainWindow::setCurrentIndex ( int currentIndex )

slot

Sets the current index to currentIndex.

Parameters

currentIndex

References currentIndex().

◆ setCurrentRow

void Isis::TableMainWindow::setCurrentRow ( int row )

slot

Sets the current row to row.

Parameters

row

◆ setStatusMessage()

void Isis::TableMainWindow::setStatusMessage ( QString message )

sets the status message in the lower lefthand corner of the window.

Parameters

message

◆ settingsFileName() [1/2]

QString Isis::MainWindow::settingsFileName ( ) const

protectedinherited

References _FILEINFO_, and Isis::IException::Programmer.

Referenced by Isis::TableMainWindow::readColumnSettings(), Isis::TableMainWindow::readItemSettings(), readSettings(), and Isis::TableMainWindow::writeSettings().

◆ settingsFileName() [2/2]

QString Isis::MainWindow::settingsFileName ( QString objectTitle )

staticinherited

References _FILEINFO_, and Isis::IException::Programmer.

Referenced by Isis::BlinkTool::readSettings(), and Isis::BlinkTool::writeSettings().

◆ setTrackListItems

void Isis::TableMainWindow::setTrackListItems ( bool track = false )

slot

If this property is true, the class will keep track of the checked/unchecked items in the dock area which determines which columns are visible in the table.

Parameters

track

◆ showTable

void Isis::TableMainWindow::showTable ( )

slot

This method checks to see if the table has been created.

If not it calls the createTable method before calling show.

History: 2017-10-06 Adam Goins - showTable() now calls syncColumns() after it calls this->show() so that it hides the unselected columns appropriately. Fixes #5141.

History: 2017-10-06 Adam Goins - showTable() now calls syncColumns() after it calls this->show() so that it hides the unselected columns appropriately. Fixes #5141.

References createTable(), and syncColumns().

Referenced by deleteColumn().

◆ syncColumns

void Isis::TableMainWindow::syncColumns ( )

slot

This method hides and shows the columns according to which items the user has selected to be view-able on the left hand side list.

(dock area)

References itemList().

Referenced by createTable(), and showTable().

◆ syncRows

void Isis::TableMainWindow::syncRows ( )

slot

Use this method to sync the table with the dock widget list if the table orientation is horizontal.

References itemList().

◆ table()

QTableWidget * Isis::TableMainWindow::table ( ) const

inline

Returns the table.

Returns: QTableWidget*

◆ trackListItems

bool Isis::TableMainWindow::trackListItems ( )

slot

Returns whether or not we should track items.

Returns: bool

◆ writeSettings

void Isis::TableMainWindow::writeSettings ( ) const

slot

This overriden method is called when the Tablemainwindow is closed or hidden to write the size and location settings (and dock widget settings) to a config file in the user's home directory.

References itemList(), and Isis::MainWindow::settingsFileName().

Referenced by clear(), closeEvent(), eventFilter(), and ~TableMainWindow().

The documentation for this class was generated from the following files:

/Users/astamile/ISIS3/isis/src/qisis/objs/TableMainWindow/TableMainWindow.h
/Users/astamile/ISIS3/isis/src/qisis/objs/TableMainWindow/TableMainWindow.cpp

Public Slots

Signals

Public Member Functions

Static Public Member Functions

Protected Member Functions

Detailed Description

Constructor & Destructor Documentation

◆ TableMainWindow()

◆ ~TableMainWindow()

Member Function Documentation

◆ addToTable()

◆ clear()

◆ clearRow

◆ clearTable

◆ closeEvent()

◆ createTable()

◆ currentIndex()

◆ currentRow()

◆ deleteColumn()

◆ deleteRows

◆ eventFilter()

◆ fileLoaded

◆ hideEvent()

◆ itemList()

◆ listWidget()

◆ loadTable

◆ readColumnSettings()

◆ readItemSettings()

◆ readSettings()

◆ resizeColumn

◆ saveAsTable

◆ saveTable

◆ selectedRows()

◆ setCurrentIndex

◆ setCurrentRow

◆ setStatusMessage()

◆ settingsFileName() [1/2]

◆ settingsFileName() [2/2]

◆ setTrackListItems

◆ showTable

◆ syncColumns

◆ syncRows

◆ table()

◆ trackListItems

◆ writeSettings
