Read values from MOC labels. More...

#include <MocLabels.h>

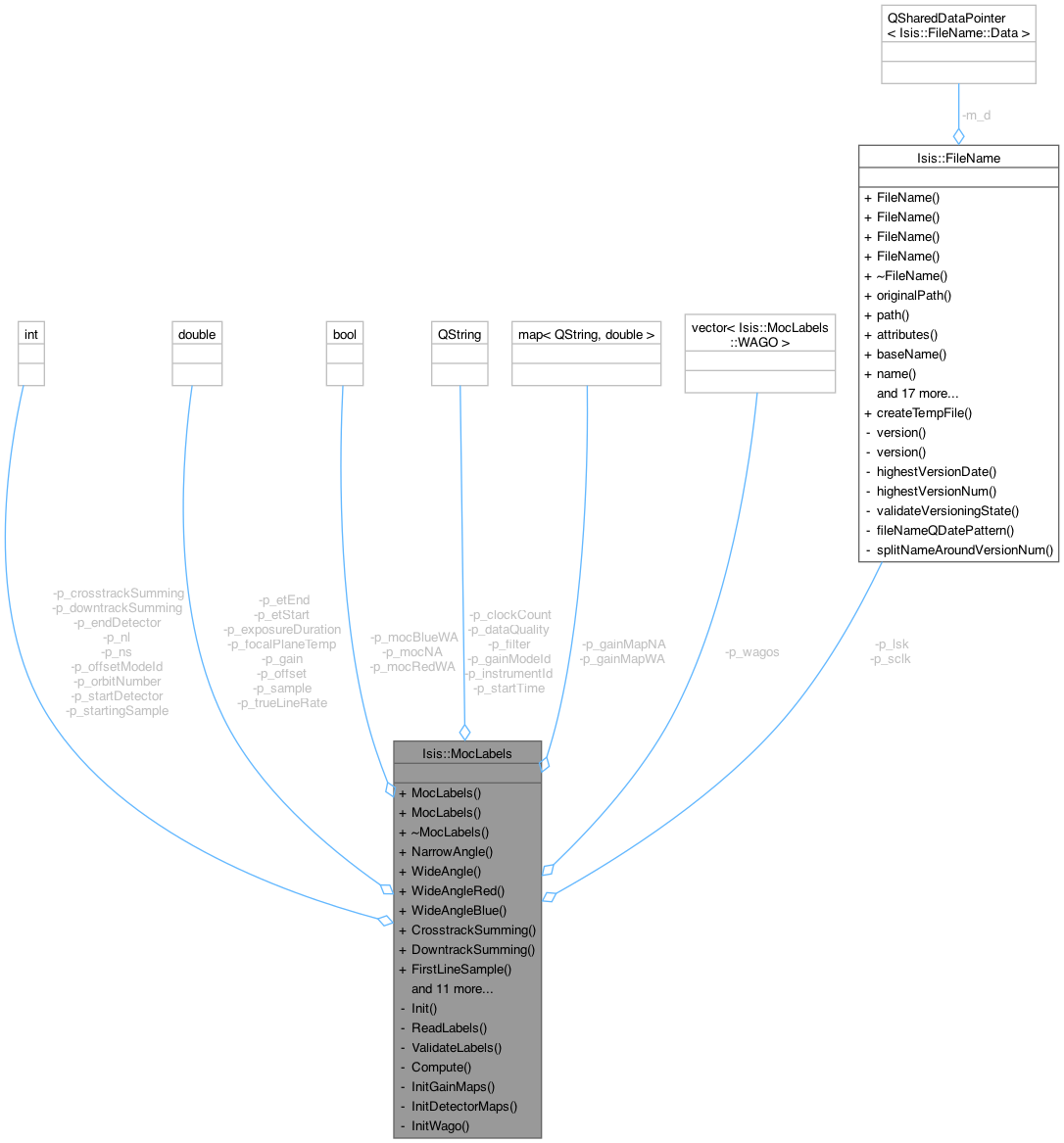

Collaboration diagram for Isis::MocLabels:

Classes
struct	WAGO

Public Member Functions
	MocLabels (Cube &cube)
	Construct MocLabels object using a Pvl object.

	MocLabels (const QString &file)
	Construct MocLabels object using the file name.

	~MocLabels ()
	Empty destructor.

bool	NarrowAngle () const
	Indicates whether the camera was narrow angle.

bool	WideAngle () const
	Indicates whether the camera was wide angle.

bool	WideAngleRed () const
	Indicates whether the camera was red wide angle.

bool	WideAngleBlue () const
	Indicates whether the camera was blue wide angle.

int	CrosstrackSumming () const
	Returns value for CrosstrackSumming from the instrument group.

int	DowntrackSumming () const
	Returns value for DowntrackSumming from the instrument group.

int	FirstLineSample () const
	Returns value for FirstLineSample from the instrument group.

double	FocalPlaneTemperature () const
	Returns value for FocalPlaneTemperature from the instrument group.

double	LineRate () const
	Returns the value for the true line rate.

double	ExposureDuration () const
	Returns the value for LineExposureDuration from the instrument group.

QString	StartTime () const
	Returns the value for StartTime from the instrument group.

int	Detectors () const
	Returns 2048 if narrow angle and 3456 if wide angle.

int	StartDetector (int sample) const
	Converts from sample to starting detector.

int	EndDetector (int sample) const
	Converts from sample to ending detector.

double	Sample (int detector) const
	Converts from detector to sample.

double	EphemerisTime (double line) const
	Returns the ephemeris time at the given line.

double	Gain (int line=1)
	Returns the true gain at a given line.

double	Offset (int line=1)
	Returns the offset at the given line.

Private Member Functions
void	Init (Cube &cube)
	General initializer.

void	ReadLabels (Cube &cube)
	Reads required keywords from the labels.

void	ValidateLabels ()
	Verifies that the labels are valid.

void	Compute ()
	Computes some constants.

void	InitGainMaps ()
	Creates a lookup of gain modes to gain values.

void	InitDetectorMaps ()
	Creates lookup table from sample to detectors and vice versa.

void	InitWago ()
	Reads the wide-angle gain/offset table and internalizes.

Private Attributes
int	p_crosstrackSumming

int	p_downtrackSumming

int	p_startingSample

int	p_orbitNumber

double	p_exposureDuration

double	p_trueLineRate

double	p_focalPlaneTemp

bool	p_mocNA

bool	p_mocRedWA

bool	p_mocBlueWA

QString	p_instrumentId

QString	p_filter

QString	p_clockCount

QString	p_gainModeId

int	p_offsetModeId

QString	p_startTime

QString	p_dataQuality

double	p_etStart

double	p_etEnd

std::map< QString, double >	p_gainMapNA

std::map< QString, double >	p_gainMapWA

double	p_gain

double	p_offset

int	p_nl

int	p_ns

int	p_startDetector [3456]

int	p_endDetector [3456]

double	p_sample [3456]

std::vector< WAGO >	p_wagos

FileName	p_lsk

FileName	p_sclk

Detailed Description

Read values from MOC labels.

Author: 2007-01-30 Author Unknown

History

2008-04-30 Steven Lambright corrected infinite loop

2008-05-29 Steven Lambright Fixed binary search indexing, bad calls to QString::_cstr() references

2008-06-18 Steven Koechle - Fixed Documentation Errors

2008-08-11 Steven Lambright - Fixed definition of WAGO, problem pointed out by "novas0x2a" (Support Board Member)

2008-11-05 Jeannie Walldren - Changed IsNarrowAngle(), IsWideAngle(), IsWideAngleBlue(), and IsWideAngleRed() to NarrowAngle(), WideAngle(), WideAngleBlue(), and WideAngleRed(), respectively. Added documentation.

2008-11-07 Jeannie Walldren - Fixed documentation

2010-01-05 Jeannie Walldren - Fixed bug in InitWago() method.

2011-05-03 Jeannie Walldren - Removed Mgs namespace wrap.

Definition at line 50 of file MocLabels.h.

Constructor & Destructor Documentation

◆ MocLabels() [1/2]

Isis::MocLabels::MocLabels ( Cube & cube )

Construct MocLabels object using a Pvl object.

Definition at line 39 of file MocLabels.cpp.

References Init().

◆ MocLabels() [2/2]

Isis::MocLabels::MocLabels ( const QString & file )

Construct MocLabels object using the file name.

Definition at line 31 of file MocLabels.cpp.

References Init().

◆ ~MocLabels()

Isis::MocLabels::~MocLabels ( )

inline

Empty destructor.

Definition at line 55 of file MocLabels.h.

Member Function Documentation

◆ Compute()

void Isis::MocLabels::Compute ( )

private

Computes some constants.

Definition at line 161 of file MocLabels.cpp.

References EphemerisTime(), InitDetectorMaps(), NarrowAngle(), and Isis::IException::Unknown.

Referenced by Init().

◆ CrosstrackSumming()

int Isis::MocLabels::CrosstrackSumming ( ) const

inline

Returns value for CrosstrackSumming from the instrument group.

Returns: int Crosstrack summing

Definition at line 92 of file MocLabels.h.

Referenced by Isis::MocWideAngleCamera::MocWideAngleCamera().

◆ Detectors()

int Isis::MocLabels::Detectors ( ) const

inline

Returns 2048 if narrow angle and 3456 if wide angle.

Returns: int Value of detectors.

Definition at line 145 of file MocLabels.h.

Referenced by InitDetectorMaps(), and Sample().

◆ DowntrackSumming()

int Isis::MocLabels::DowntrackSumming ( ) const

inline

Returns value for DowntrackSumming from the instrument group.

Returns: int Downtrack summing

Definition at line 99 of file MocLabels.h.

Referenced by Isis::MocWideAngleCamera::MocWideAngleCamera().

◆ EndDetector()

int Isis::MocLabels::EndDetector ( int sample ) const

Converts from sample to ending detector.

Parameters

sample Sample to be converted

Returns: int Converted ending detector

Definition at line 304 of file MocLabels.cpp.

References Isis::IException::Unknown.

◆ EphemerisTime()

double Isis::MocLabels::EphemerisTime ( double line ) const

Returns the ephemeris time at the given line.

Parameters

line	Line to evaluate

Returns: double Ephemeris time

Definition at line 375 of file MocLabels.cpp.

Referenced by Compute(), Gain(), and Offset().

◆ ExposureDuration()

double Isis::MocLabels::ExposureDuration ( ) const

inline

Returns the value for LineExposureDuration from the instrument group.

Returns: double Line exposure duration

Definition at line 131 of file MocLabels.h.

◆ FirstLineSample()

int Isis::MocLabels::FirstLineSample ( ) const

inline

Returns value for FirstLineSample from the instrument group.

Returns: int First line sample

Definition at line 106 of file MocLabels.h.

Referenced by Isis::MocWideAngleCamera::MocWideAngleCamera().

◆ FocalPlaneTemperature()

double Isis::MocLabels::FocalPlaneTemperature ( ) const

inline

Returns value for FocalPlaneTemperature from the instrument group.

Returns: double Focal plane temperature

Definition at line 114 of file MocLabels.h.

◆ Gain()

double Isis::MocLabels::Gain ( int line = 1 )

Returns the true gain at a given line.

Parameters

line	Line to evaluate

Returns: double True gain

Definition at line 384 of file MocLabels.cpp.

References EphemerisTime(), InitWago(), and NarrowAngle().

◆ Init()

void Isis::MocLabels::Init ( Cube & cube )

private

General initializer.

Parameters

lab	MOC label for the image

Definition at line 47 of file MocLabels.cpp.

References Compute(), InitGainMaps(), ReadLabels(), Isis::IException::Unknown, and ValidateLabels().

Referenced by MocLabels(), and MocLabels().

◆ InitDetectorMaps()

void Isis::MocLabels::InitDetectorMaps ( )

private

Creates lookup table from sample to detectors and vice versa.

Definition at line 326 of file MocLabels.cpp.

References Detectors().

Referenced by Compute().

◆ InitGainMaps()

void Isis::MocLabels::InitGainMaps ( )

private

Creates a lookup of gain modes to gain values.

These come from the MSSS calibration report.

Definition at line 247 of file MocLabels.cpp.

Referenced by Init().

◆ InitWago()

void Isis::MocLabels::InitWago ( )

private

Reads the wide-angle gain/offset table and internalizes.

History: 2010-01-05 Jeannie Walldren - Fixed bug that passed sclkKern filename into scs2e_c instead of the sclk string.

Definition at line 424 of file MocLabels.cpp.

References Isis::IString::ConvertWhiteSpace(), Isis::FileName::expanded(), Isis::FileName::highestVersion(), Isis::IString::Remove(), Isis::IString::ToDouble(), Isis::IString::Token(), Isis::IString::ToQt(), Isis::IString::Trim(), Isis::IException::Unknown, WideAngleBlue(), and WideAngleRed().

Referenced by Gain(), and Offset().

◆ LineRate()

double Isis::MocLabels::LineRate ( ) const

inline

Returns the value for the true line rate.

This is calculated by dividing the product of LineExposureDuration and the DowntrackSumming by 1000.

Returns: double Value for the true line rate

Definition at line 123 of file MocLabels.h.

Referenced by Isis::MocWideAngleCamera::MocWideAngleCamera().

◆ NarrowAngle()

bool Isis::MocLabels::NarrowAngle ( ) const

inline

Indicates whether the camera was narrow angle.

Returns: bool True if the instrument ID is MOC-NA.

Definition at line 61 of file MocLabels.h.

Referenced by Compute(), Gain(), and Offset().

◆ Offset()

double Isis::MocLabels::Offset ( int line = 1 )

Returns the offset at the given line.

Parameters

line	Line to evaluate

Returns: double Offset

Definition at line 403 of file MocLabels.cpp.

References EphemerisTime(), InitWago(), and NarrowAngle().

◆ ReadLabels()

void Isis::MocLabels::ReadLabels ( Cube & cube )

private

Reads required keywords from the labels.

Parameters

MOC	label for the image

Definition at line 65 of file MocLabels.cpp.

References Isis::AlphaCube::AlphaLines(), Isis::AlphaCube::AlphaSamples(), Isis::PvlObject::findGroup(), Isis::PvlContainer::hasKeyword(), Isis::Cube::label(), and Isis::PvlObject::Traverse.

Referenced by Init().

◆ Sample()

double Isis::MocLabels::Sample ( int detector ) const

Converts from detector to sample.

Parameters

detector Detector to be converted

Returns: double Converted sample

Definition at line 316 of file MocLabels.cpp.

References Detectors(), and Isis::IException::Unknown.

◆ StartDetector()

int Isis::MocLabels::StartDetector ( int sample ) const

Converts from sample to starting detector.

Parameters

sample Sample to be converted

Returns: int Converted start detector

Definition at line 292 of file MocLabels.cpp.

References Isis::IException::Unknown.

◆ StartTime()

QString Isis::MocLabels::StartTime ( ) const

inline

Returns the value for StartTime from the instrument group.

Returns: QString Start time

Definition at line 138 of file MocLabels.h.

◆ ValidateLabels()

void Isis::MocLabels::ValidateLabels ( )

private

Verifies that the labels are valid.

Definition at line 110 of file MocLabels.cpp.

References Isis::IException::Unknown.

Referenced by Init().

◆ WideAngle()

bool Isis::MocLabels::WideAngle ( ) const

inline

Indicates whether the camera was wide angle.

Returns: bool True if the instrument ID is MOC-WA.

Definition at line 68 of file MocLabels.h.

◆ WideAngleBlue()

bool Isis::MocLabels::WideAngleBlue ( ) const

inline

Indicates whether the camera was blue wide angle.

Returns: bool True if the instrument ID is MOC-WA and filter name is BLUE.

Definition at line 84 of file MocLabels.h.

Referenced by InitWago().

◆ WideAngleRed()

bool Isis::MocLabels::WideAngleRed ( ) const

inline

Indicates whether the camera was red wide angle.

Returns: bool True if the instrument ID is MOC-WA and filter name is RED.

Definition at line 76 of file MocLabels.h.

Referenced by InitWago(), and Isis::MocWideAngleCamera::MocWideAngleCamera().

Member Data Documentation

◆ p_clockCount

QString Isis::MocLabels::p_clockCount

private

Definition at line 173 of file MocLabels.h.

◆ p_crosstrackSumming

int Isis::MocLabels::p_crosstrackSumming

private

Definition at line 161 of file MocLabels.h.

◆ p_dataQuality

QString Isis::MocLabels::p_dataQuality

private

Definition at line 177 of file MocLabels.h.

◆ p_downtrackSumming

int Isis::MocLabels::p_downtrackSumming

private

Definition at line 162 of file MocLabels.h.

◆ p_endDetector

int Isis::MocLabels::p_endDetector[3456]

private

Definition at line 190 of file MocLabels.h.

◆ p_etEnd

double Isis::MocLabels::p_etEnd

private

Definition at line 179 of file MocLabels.h.

◆ p_etStart

double Isis::MocLabels::p_etStart

private

Definition at line 178 of file MocLabels.h.

◆ p_exposureDuration

double Isis::MocLabels::p_exposureDuration

private

Definition at line 165 of file MocLabels.h.

◆ p_filter

QString Isis::MocLabels::p_filter

private

Definition at line 172 of file MocLabels.h.

◆ p_focalPlaneTemp

double Isis::MocLabels::p_focalPlaneTemp

private

Definition at line 167 of file MocLabels.h.

◆ p_gain

double Isis::MocLabels::p_gain

private

Definition at line 184 of file MocLabels.h.

◆ p_gainMapNA

std::map<QString, double> Isis::MocLabels::p_gainMapNA

private

Definition at line 182 of file MocLabels.h.

◆ p_gainMapWA

std::map<QString, double> Isis::MocLabels::p_gainMapWA

private

Definition at line 183 of file MocLabels.h.

◆ p_gainModeId

QString Isis::MocLabels::p_gainModeId

private

Definition at line 174 of file MocLabels.h.

◆ p_instrumentId

QString Isis::MocLabels::p_instrumentId

private

Definition at line 171 of file MocLabels.h.

◆ p_lsk

FileName Isis::MocLabels::p_lsk

private

Definition at line 208 of file MocLabels.h.

◆ p_mocBlueWA

bool Isis::MocLabels::p_mocBlueWA

private

Definition at line 170 of file MocLabels.h.

◆ p_mocNA

bool Isis::MocLabels::p_mocNA

private

Definition at line 168 of file MocLabels.h.

◆ p_mocRedWA

bool Isis::MocLabels::p_mocRedWA

private

Definition at line 169 of file MocLabels.h.

◆ p_nl

int Isis::MocLabels::p_nl

private

Definition at line 187 of file MocLabels.h.

◆ p_ns

int Isis::MocLabels::p_ns

private

Definition at line 188 of file MocLabels.h.

◆ p_offset

double Isis::MocLabels::p_offset

private

Definition at line 185 of file MocLabels.h.

◆ p_offsetModeId

int Isis::MocLabels::p_offsetModeId

private

Definition at line 175 of file MocLabels.h.

◆ p_orbitNumber

int Isis::MocLabels::p_orbitNumber

private

Definition at line 164 of file MocLabels.h.

◆ p_sample

double Isis::MocLabels::p_sample[3456]

private

Definition at line 191 of file MocLabels.h.

◆ p_sclk

FileName Isis::MocLabels::p_sclk

private

Definition at line 209 of file MocLabels.h.

◆ p_startDetector

int Isis::MocLabels::p_startDetector[3456]

private

Definition at line 189 of file MocLabels.h.

◆ p_startingSample

int Isis::MocLabels::p_startingSample

private

Definition at line 163 of file MocLabels.h.

◆ p_startTime

QString Isis::MocLabels::p_startTime

private

Definition at line 176 of file MocLabels.h.

◆ p_trueLineRate

double Isis::MocLabels::p_trueLineRate

private

Definition at line 166 of file MocLabels.h.

◆ p_wagos

std::vector<WAGO> Isis::MocLabels::p_wagos

private

Definition at line 205 of file MocLabels.h.

The documentation for this class was generated from the following files:

src/mgs/objs/MocLabels/MocLabels.h
src/mgs/objs/MocLabels/MocLabels.cpp

Classes

Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ MocLabels() [1/2]

◆ MocLabels() [2/2]

◆ ~MocLabels()

Member Function Documentation

◆ Compute()

◆ CrosstrackSumming()

◆ Detectors()

◆ DowntrackSumming()

◆ EndDetector()

◆ EphemerisTime()

◆ ExposureDuration()

◆ FirstLineSample()

◆ FocalPlaneTemperature()

◆ Gain()

◆ Init()

◆ InitDetectorMaps()

◆ InitGainMaps()

◆ InitWago()

◆ LineRate()

◆ NarrowAngle()

◆ Offset()

◆ ReadLabels()

◆ Sample()

◆ StartDetector()

◆ StartTime()

◆ ValidateLabels()

◆ WideAngle()

◆ WideAngleBlue()

◆ WideAngleRed()

Member Data Documentation

◆ p_clockCount

◆ p_crosstrackSumming

◆ p_dataQuality

◆ p_downtrackSumming

◆ p_endDetector

◆ p_etEnd

◆ p_etStart

◆ p_exposureDuration

◆ p_filter

◆ p_focalPlaneTemp

◆ p_gain

◆ p_gainMapNA

◆ p_gainMapWA

◆ p_gainModeId

◆ p_instrumentId

◆ p_lsk

◆ p_mocBlueWA

◆ p_mocNA

◆ p_mocRedWA

◆ p_nl

◆ p_ns

◆ p_offset

◆ p_offsetModeId

◆ p_orbitNumber

◆ p_sample

◆ p_sclk

◆ p_startDetector

◆ p_startingSample

◆ p_startTime

◆ p_trueLineRate

◆ p_wagos
