Isis::TableRecord Class Reference

#include <TableRecord.h>

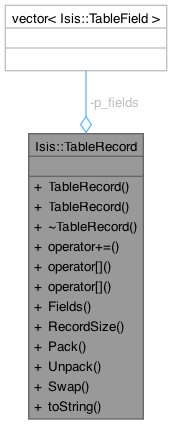

Collaboration diagram for Isis::TableRecord:

Public Member Functions
	TableRecord ()
	Constructs an empty TableRecord object. No member variables are set.
	TableRecord (std::string tableRecordStr, char fieldDelimiter, std::vector< QString > fieldNames, int numOfFieldValues)
	TableRecord constructor.
	~TableRecord ()
	Destroys the TableRecord object.
void	operator+= (Isis::TableField &field)
	Adds a TableField to a TableRecord.
TableField &	operator[] (const int field)
	Returns the TableField at the specified location in the TableRecord.
TableField &	operator[] (const QString &field)
	Returns the TableField in the record whose name corresponds to the input string.
int	Fields () const
	Returns the number of fields that are currently in the record.
int	RecordSize () const
	Returns the number of bytes per record.
void	Pack (char *buf) const
	Writes record information into the binary buffer.
void	Unpack (const char *buf)
	Reads record information from the binary buffer.
void	Swap (char *buf) const
	Swaps bytes of the buffer, depending on the TableField::Type.

Static Public Member Functions
static QString	toString (TableRecord record, QString fieldDelimiter=",", bool fieldNames=false, bool endLine=true)

Private Attributes
std::vector< TableField >	p_fields
	Vector of TableFields in the record.

Detailed Description

Author

2004-09-01 Jeff Anderson

History

2005-03-18 Elizabeth Ribelin - Added documentation to class

2007-05-28 Steven Lambright - Added 4 byte float capablilities.

2008-06-19 Christopher Austin - Fixed the Packing of text TableFields

2008-06-25 Christopher Austin - Fixed the swapping of text

2012-10-04 Jeannie Backer Changed references to TableField methods in implementation and unitTest files to lower camel case. Added and ordered includes. Moved method implementation to cpp. Fixed header definition statement. Fixed indentation of history entries. Ordered methods in cpp file. Improved test coverage in all categories. Added padding to control statements. References #1169.

2015-10-04 Jeannie Backer Improved coding standards. References #1178

Todo

Finish class documentation

Definition at line 38 of file TableRecord.h.

Constructor & Destructor Documentation

TableRecord() [1/2]

Isis::TableRecord::TableRecord

(

)

Constructs an empty TableRecord object. No member variables are set.

Definition at line 22 of file TableRecord.cpp.

TableRecord() [2/2]

Isis::TableRecord::TableRecord	(	std::string	tableRecordStr,
		char	fieldDelimiter,
		std::vector< QString >	fieldNames,
		int	numOfFieldValues )

TableRecord constructor.

Parameters

tableRecordStr	Table record string
fieldDelimiter	The delimiter to separate fields with
fieldNames	Table header names
numOfFieldValues	Number of fields (rows)

Definition at line 33 of file TableRecord.cpp.

References Isis::TableField::Double, and operator+=().

~TableRecord()

Isis::TableRecord::~TableRecord

(

)

Destroys the TableRecord object.

Definition at line 49 of file TableRecord.cpp.

Member Function Documentation

Fields()

int Isis::TableRecord::Fields

(

)

const

Returns the number of fields that are currently in the record.

Returns

The number of fields in the record

Definition at line 102 of file TableRecord.cpp.

References p_fields.

Referenced by Isis::DawnVirCamera::DawnVirCamera(), Isis::ImportPdsTable::extractBinary(), Isis::DawnVirCamera::getPointingTable(), Isis::RosettaVirtisCamera::getPointingTable(), Isis::SpicePosition::LoadCache(), Isis::SpiceRotation::LoadCache(), Isis::ExportPdsTable::Pack(), Pack(), Isis::RosettaVirtisCamera::RosettaVirtisCamera(), Swap(), Isis::Table::Table(), and Unpack().

operator+=()

void Isis::TableRecord::operator+=

(

Isis::TableField &

field

)

Adds a TableField to a TableRecord.

Parameters

field

- TableField to be added to the record

Definition at line 58 of file TableRecord.cpp.

References p_fields.

Referenced by TableRecord().

operator[]() [1/2]

Isis::TableField & Isis::TableRecord::operator[]

(

const int

field

)

Returns the TableField at the specified location in the TableRecord.

Parameters

field

Index of desired field

Returns

The TableField at specified location in the record

Definition at line 69 of file TableRecord.cpp.

References p_fields.

operator[]() [2/2]

TableField & Isis::TableRecord::operator[]

(

const QString &

field

)

Returns the TableField in the record whose name corresponds to the input string.

Parameters

field

The name of desired TableField

Returns

The specified TableField

Exceptions

Isis::IException::Programmer

- The field does not exist in the record

Definition at line 84 of file TableRecord.cpp.

References p_fields, Isis::IException::Programmer, and Isis::IString::UpCase().

Pack()

void Isis::TableRecord::Pack

(

char *

buf

)

const

Writes record information into the binary buffer.

Parameters

buf	Buffer to fill with binary record information.

Exceptions

Isis::IException::Programmer

- Invalid field type

Definition at line 124 of file TableRecord.cpp.

References Fields(), Isis::TableField::isDouble(), Isis::TableField::isInteger(), Isis::TableField::isReal(), Isis::TableField::isText(), p_fields, Isis::IException::Programmer, and Isis::TableField::size().

Referenced by Isis::Table::operator+=(), and Isis::Table::Update().

RecordSize()

int Isis::TableRecord::RecordSize

(

)

const

Returns the number of bytes per record.

Returns

Number of bytes per record

Definition at line 111 of file TableRecord.cpp.

References p_fields.

Referenced by Isis::ExportPdsTable::exportTable(), and Isis::Table::operator+=().

Swap()

void Isis::TableRecord::Swap

(

char *

buf

)

const

Swaps bytes of the buffer, depending on the TableField::Type.

Parameters

buf	Buffer containing record values to be swapped.

Exceptions

Isis::iException::Programmer

- Invalid field type

Definition at line 192 of file TableRecord.cpp.

References Isis::TableField::bytes(), Fields(), Isis::TableField::isDouble(), Isis::TableField::isInteger(), Isis::TableField::isReal(), Isis::TableField::isText(), p_fields, Isis::IException::Programmer, and Isis::TableField::size().

toString()

QString Isis::TableRecord::toString ( TableRecord record, QString fieldDelimiter = ",", bool fieldNames = false, bool endLine = true )

static

Definition at line 254 of file TableRecord.cpp.

Unpack()

void Isis::TableRecord::Unpack

(

const char *

buf

)

Reads record information from the binary buffer.

Parameters

buf	Buffer from which to read record field values.

Definition at line 176 of file TableRecord.cpp.

References Isis::TableField::bytes(), Fields(), and p_fields.

Member Data Documentation

p_fields

std::vector<TableField> Isis::TableRecord::p_fields

private

Vector of TableFields in the record.

Definition at line 60 of file TableRecord.h.

Referenced by Fields(), operator+=(), operator[](), operator[](), Pack(), RecordSize(), Swap(), and Unpack().

---

The documentation for this class was generated from the following files:

• src/base/objs/TableRecord/TableRecord.h
• src/base/objs/TableRecord/TableRecord.cpp
