Isis 3 Programmer Reference
Isis::Workspace Class Reference

#include <Workspace.h>

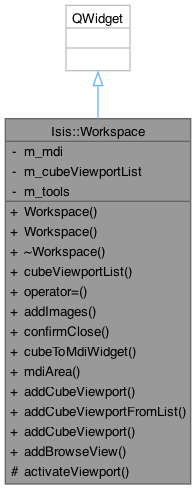

Inheritance diagram for Isis::Workspace:
Inheritance graph
Collaboration diagram for Isis::Workspace:
Collaboration graph

Public Slots

void addCubeViewport (QString cubename)
 Method adds the name of a cube into Workspace as a CubeViewport.

void addCubeViewportFromList (QString cubelist)
 Method adds cubes into Workspace as a CubeViewport from a list of cubes.

MdiCubeViewportaddCubeViewport (Cube *cube)
 Method adds a cube into the Workspace as a CubeViewport.

void addBrowseView (QString cube)
 Method is called to add a Cube from BrowseView.


Signals

void cubeViewportAdded (MdiCubeViewport *)
 Signal triggered when a Cube is added to the Workspace.

void cubeViewportActivated (MdiCubeViewport *)
 Signal triggered when a Cube is activated in the Workspace.


Public Member Functions

 Workspace (bool selfContained, QWidget *parent=0)
 Constructor for Workspace.

 Workspace (const Workspace &other)
 Constructor for Workspace.

virtual ~Workspace ()
 Deconstructor.

QVector< MdiCubeViewport * > * cubeViewportList ()
 This method returns a Vector of MdiCubeViewports.

Workspaceoperator= (Workspace other)
 Is equal to comparsion.

void addImages (ImageList *images)
 Adds a list of Images to a viewport.

bool confirmClose ()
 Confirms that the user wishes toc lose the Workspace.

QWidgetcubeToMdiWidget (Cube *cube)
 Converts a cube to an MdiWidget.

QMdiArea * mdiArea ()
 This method returns the QMdiArea.


Protected Slots

void activateViewport (QMdiSubWindow *w)
 This method activates the Viewport.


Private Attributes

QPointer< QMdiArea > m_mdi
 The mdi area.

QVector< MdiCubeViewport * > * m_cubeViewportList
 List of cube viewports.

ToolListm_tools
 List of all of the tools.


Detailed Description

Author
????-??-?? Jeff Anderson
History

2007-03-21 Tracie Sucharski - Changed call from fitScale to fitScaleMinDimension so that the minimum cube dimension is displayed in its entirety.

2008-05-27 Noah Hilt - Now allows cubes to be opened with additional arguments read by the CubeAttributeInput class, specifically to open certain bands as well as open 3 bands in RGB mode.

2008-12-04 Jeannie Walldren - Fixed bug in addCubeViewport(cubename). Added exception catch to addCubeViewport(cube) to close the CubeViewport from the ViewportMainWindow if it cannot be shown.

2009-03-27 Noah Hilt, Steven Lambright - Changed parent class from QWorkspace to QMdiArea since QWorkspace is now an obsolete class. Also changed how CubeViewports are created.

2010-04-08 Steven Lambright and Eric Hyer - Added progress bar

2010-06-26 Eric Hyer - Now uses MdiCubeViewport instead of CubeViewport. Also fixed include issues.

2010-11-18 Eric Hyer - addBrowseView now deletes the last viewport in the subWindowList instead of the first one

2011-09-19 Steven Lambright - Fixed addBrowseView to actually close the old viewports instead of hiding them. Fixes #418

2012-05-29 Steven Lambright - Now utilizes ViewportMdiSubWindow instead of QMdiSubWindow. References #854.

2012-09-18 Steven Lambright - Added the selfContained option to the constructor. This allows us to show a work space without handling the tool and status areas externally. No longer inherits from QMdiArea because of the need to place widgets around the mdi area.

2015-05-13 Ian Humphrey - Modified addCubeViewport(QString) to handle any exceptions that are thrown within the slot. This prevents undefined behavior when an exception is not handled within a connected slot. References #2210.

2016-09-08 Tracie Sucharski - Changed imageToMdiWidget to cubeToMdiWidget. Workspace deals with cubes. Since Image contains a cube, simply pass in cube instead of Image. This was done to handle the new IPCE container class, Shape, which also contains a cube, but not an Image.

2017-09-11 Adam Goins - Added the ability to accept cubelists under any file format. Fixes #5099.

2018-04-13 Christopher Combs - Added .lbl files to the list of single-cube file-extensions to check before reading a cube list in addCubeViewport. Fixes #5350.

2018-09-12 Adam Goins - Modified logic to attempt to open the file as a cube or detached label first, if that fails attempt to open it as a cube list and if that fails, throw an error to the user. This allows cubes and cube lists to be saved under any extension and opened. Fixes #5439, Fixes #5476.

Definition at line 78 of file Workspace.h.

Constructor & Destructor Documentation

◆ Workspace() [1/2]

Isis::Workspace::Workspace ( bool selfContained,
QWidget * parent = 0 )

Constructor for Workspace.

Workspace constructor.

Parameters
selfContainedif this Workspace should be self contained or note
parentThe parent QWidget, defaults to 0
parent

Definition at line 58 of file Workspace.cpp.

References Isis::Tool::activate(), activateViewport(), Isis::Tool::addTo(), Isis::Tool::addToActive(), Isis::Tool::addToPermanent(), m_cubeViewportList, m_mdi, m_tools, and Isis::Tool::menuName().

Referenced by operator=(), and Workspace().

◆ Workspace() [2/2]

Isis::Workspace::Workspace ( const Workspace & other)

Constructor for Workspace.

Parameters
otherThe other Workspace to load from.

Definition at line 202 of file Workspace.cpp.

References m_cubeViewportList, and Workspace().

◆ ~Workspace()

Isis::Workspace::~Workspace ( )
virtual

Deconstructor.

Definition at line 208 of file Workspace.cpp.

References m_cubeViewportList, and m_tools.

Member Function Documentation

◆ activateViewport

void Isis::Workspace::activateViewport ( QMdiSubWindow * w)
protectedslot

This method activates the Viewport.

This gets called when a window is activated or the workspace loses focus.

Parameters
wThe subwindow to activate
w

Definition at line 222 of file Workspace.cpp.

References cubeViewportActivated(), and m_mdi.

Referenced by Workspace().

◆ addBrowseView

void Isis::Workspace::addBrowseView ( QString cube)
slot

Method is called to add a Cube from BrowseView.

Parameters
cubeThe cube being browsed

Definition at line 490 of file Workspace.cpp.

References addCubeViewport(), and m_mdi.

◆ addCubeViewport [1/2]

MdiCubeViewport * Isis::Workspace::addCubeViewport ( Cube * cube)
slot

Method adds a cube into the Workspace as a CubeViewport.

Add a cubeViewport to the workspace.

Parameters
cubeThe cube to be added into the Workspace.
cube(Cube *) cube information
History

2007-04-13 Tracie Sucharski - Load entire image instead of fitting smallest dimension.

2008-05-27 Noah Hilt - Now returns a MdiCubeViewport in order for the addCubeViewport(QString cubename) method to modify the MdiCubeViewport.

2008-08-20 Stacy Alley - Changed the setScale call to match the zoomTool's fit in view

2008-12-04 Jeannie Walldren - Added try/catch to close the MdiCubeViewport if showCube() is not successful.

Definition at line 464 of file Workspace.cpp.

References cubeViewportAdded(), Isis::Cube::fileName(), m_mdi, Isis::IException::Programmer, and Isis::ViewportMdiSubWindow::viewport().

◆ addCubeViewport [2/2]

void Isis::Workspace::addCubeViewport ( QString filename)
slot

Method adds the name of a cube into Workspace as a CubeViewport.

Add a cubeViewport to the workspace, open the cube.

Parameters
cubenameThe cube to be added to the Workspace
cubename(QString) cubename
History

2006-06-12 Tracie Sucharski, Clear errors after catching when attempting to open cube.

2007-02-13 Tracie Sucharski, Open cube read, not read/write. Opening read/write was done to accomodate the EditTool. EditTool will now reopen the cube read/write.

2008-05-27 Noah Hilt, When opening a cube now if a user specifies extra arguments to the cube name, the cube will be opened using a CubeAttributeInput specifically for the number and index of bands to be opened. Additionally, if a cube is opened with 3 bands it will be opened in RGB mode with red, green, and blue set to the 3 bands respectively.

2008-12-04 Jeannie Walldren - Removed "delete cube" since this was causing a segfault and this deallocation is already taking place in addCubeViewport(cube).

2015-05-13 Ian Humphrey - Caught exception now handled by sending a QMessageBox to the Workspace. This prevents undefined behavior caused by not handling an exception within a connected slot.

2017-08-17 Adam Goins - Added the ability for this method to receive a cubelist file as input to qview, parse out the .cub files from the cubelist and then attempt to add each one into their own viewport.

2017-10-12 Kristin Berry - Reverted to using relative instead of full file paths, as this caused errors when working with cubelists that contained relative paths. Fixes # 5177

2018-09-12 Adam Goins - Modified logic to attempt to open the file as a cube or detached label first, if that fails attempt to open it as a cube list and if that fails, throw an error to the user. This allows cubes and cube lists to be saved under any extension and opened. Fixes #5439, Fixes #5476.

Definition at line 339 of file Workspace.cpp.

References addCubeViewport(), addCubeViewportFromList(), Isis::CubeAttributeInput::bands(), Isis::Cube::open(), Isis::Cube::setVirtualBands(), Isis::IString::ToInteger(), Isis::IException::toString(), and Isis::IException::User.

Referenced by addBrowseView(), addCubeViewport(), addCubeViewportFromList(), and addImages().

◆ addCubeViewportFromList

void Isis::Workspace::addCubeViewportFromList ( QString cubelist)
slot

Method adds cubes into Workspace as a CubeViewport from a list of cubes.

Parameters
cubenameThe name of the cube list file.
History
2018-09-12 Adam Goins - Added this method to attempt to open a file as a cube list. It's called by addCubeViewport() when that method attempts to open a file as a cube but fails. Fixes #5439, Fixes #5476.

Definition at line 391 of file Workspace.cpp.

References addCubeViewport(), Isis::CubeAttributeInput::bands(), Isis::Cube::open(), Isis::Cube::setVirtualBands(), Isis::IString::ToInteger(), and Isis::IException::User.

Referenced by addCubeViewport().

◆ addImages()

void Isis::Workspace::addImages ( ImageList * images)

Adds a list of Images to a viewport.

Parameters
imagesThe ImageList of images to add to the Workspace

Definition at line 260 of file Workspace.cpp.

References addCubeViewport(), and Isis::Image::cube().

◆ confirmClose()

bool Isis::Workspace::confirmClose ( )

Confirms that the user wishes toc lose the Workspace.

Returns
True of False if the user wishes to close the Workspace

Definition at line 267 of file Workspace.cpp.

References cubeViewportList().

◆ cubeToMdiWidget()

QWidget * Isis::Workspace::cubeToMdiWidget ( Cube * cube)

Converts a cube to an MdiWidget.

Parameters
cubeThe cube to reference
Returns
QWidget The widget associated with the cube

Definition at line 280 of file Workspace.cpp.

References Isis::CubeViewport::cube(), and m_cubeViewportList.

◆ cubeViewportActivated

void Isis::Workspace::cubeViewportActivated ( MdiCubeViewport * )
signal

Signal triggered when a Cube is activated in the Workspace.

Referenced by activateViewport().

◆ cubeViewportAdded

void Isis::Workspace::cubeViewportAdded ( MdiCubeViewport * )
signal

Signal triggered when a Cube is added to the Workspace.

Referenced by addCubeViewport().

◆ cubeViewportList()

QVector< MdiCubeViewport * > * Isis::Workspace::cubeViewportList ( )

This method returns a Vector of MdiCubeViewports.

Repopulates the list of MdiCubeViewports and returns a pointer to this list.

Returns
QVector a vector of MdiCubeViewports

Ownership is not given to the caller.

Returns
std::vector<MdiCubeViewport*>*

Definition at line 238 of file Workspace.cpp.

References m_cubeViewportList, and m_mdi.

Referenced by confirmClose().

◆ mdiArea()

QMdiArea * Isis::Workspace::mdiArea ( )

This method returns the QMdiArea.

Returns
QMdiArea the Area of the mdi

Definition at line 295 of file Workspace.cpp.

References m_mdi.

Referenced by Isis::FileTool::addTo(), and Isis::WindowTool::addTo().

◆ operator=()

Workspace & Isis::Workspace::operator= ( Workspace other)

Is equal to comparsion.

Parameters
otherThe Workspace to compare against
Returns
bool True of False if they're equal to eachother .

Definition at line 250 of file Workspace.cpp.

References m_cubeViewportList, and Workspace().

Member Data Documentation

◆ m_cubeViewportList

QVector< MdiCubeViewport * >* Isis::Workspace::m_cubeViewportList
private

List of cube viewports.

Definition at line 204 of file Workspace.h.

Referenced by cubeToMdiWidget(), cubeViewportList(), operator=(), Workspace(), Workspace(), and ~Workspace().

◆ m_mdi

QPointer<QMdiArea> Isis::Workspace::m_mdi
private

The mdi area.

Definition at line 202 of file Workspace.h.

Referenced by activateViewport(), addBrowseView(), addCubeViewport(), cubeViewportList(), mdiArea(), and Workspace().

◆ m_tools

ToolList* Isis::Workspace::m_tools
private

List of all of the tools.

Definition at line 206 of file Workspace.h.

Referenced by Workspace(), and ~Workspace().


The documentation for this class was generated from the following files:
