ISIS Documentation

viknobutter

Final step of Viking Orbiter Level 1 image clean-up

This program will perform the final level 1 clean up processing sequence on a Viking Orbiter PDS image to remove butterflies from the image.

Categories


Related Objects and Documents

Applications


History

Elizabeth Miller2005-12-28 Original version
Elizabeth Miller2006-05-16 Added Examples
Jai Rideout2011-02-15 Now uses Pipeline to execute chain of applications.

Parameters

Files

The cube to be cleaned. The cube will be ran through a series of filters to remove butterflies from the image.
Type cube
File Mode input
Filter *.cub

The resultant cube containing the cleaned data.
Type cube
File Mode output
Filter *.cub

Options

Option to remove or leave intermediate cube files made by the application
Type boolean
Default TRUE

Example 1

Input Viking Image to have butterflies removed

This example shows the viknobutter application in action. It removes all butterflies from the image.

Command Line

Input a viking image to remove butterflies from and give it an output file name.
viknobutter from=../IN/temp.cub to=OUT/out.cub

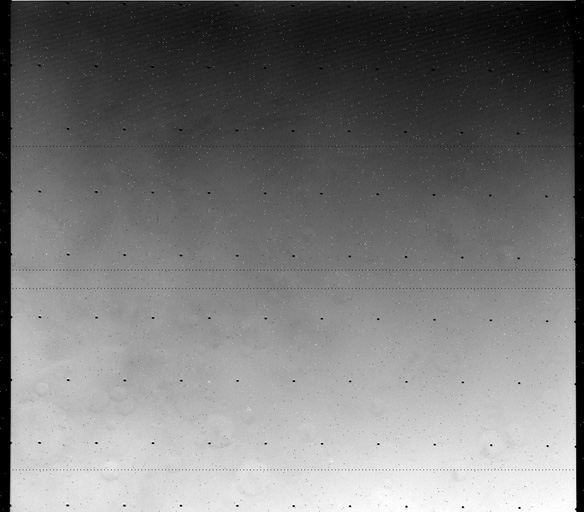

Input Image

Input Viking Image

Viking Image to Remove Butterflies from

Input Viking Image

Parameter Name: FROM

This is the input viking image prior to the removal of butterflies.

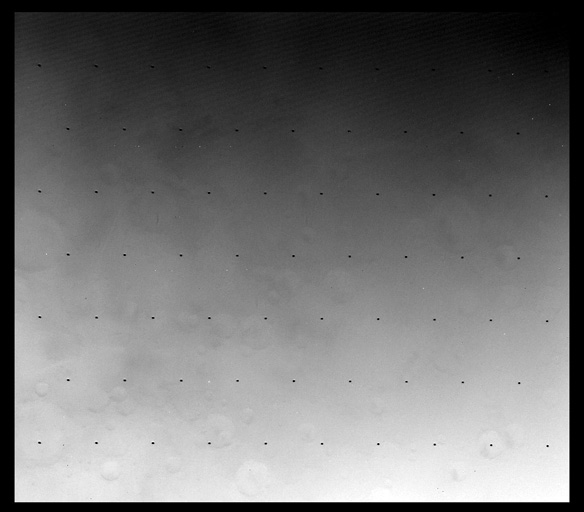

Output Image

Output Viking Image after running the viknobutter application.

Output Image

Output Viking Image after running the viknobutter application.

Parameter Name: TO

This is the viking image after the viknobutter application has been run.
