vikclean
Clean-up of Viking Orbiter Level 1 images
This program will perform the level 1 processing sequence on a Viking
Orbiter PDS image, including the cleanup of salt and pepper noise, the removal of
reseaus and tracks, and the removal of butterflies from the image.
Categories
Related Objects and Documents
Applications
History
| Elizabeth Miller | 2005-12-06 | Original version |
| Elizabeth Miller | 2006-05-16 | Added example |
| Travis Addair | 2009-06-10 | Refactored application to use Pipelines |
Parameters
Files
The cube to be cleaned. The cube will be run through a series of
filters to remove salt and pepper noise, tracks, and reseaus.
| Type | cube |
|---|---|
| File Mode | input |
| Filter | *.cub |
The resultant cube containing the clean data.
| Type | cube |
|---|---|
| File Mode | output |
| Filter | *.cub |
Options
Option to remove or leave intermediate cube files made by the application
| Type | boolean |
|---|---|
| Default | TRUE |
This number will be used in the remrx step of the clean up. It is the number of
lines to remove around each reseau.
| Type | integer |
|---|---|
| Default | 9 |
This number will be used in the remrx step of the clean up. It is the number of
samples to remove around each reseau.
| Type | integer |
|---|---|
| Default | 9 |
Example 1
Input Viking Image to be cleaned
This example shows the vikclean application in action. It removes all salt and pepper noise, along with reseaus,
tracks, and butterfiles.
Command Line
Input a viking image to clean and give it an output file name.
vikclean from=../IN/temp.cub to=OUT/out.cub

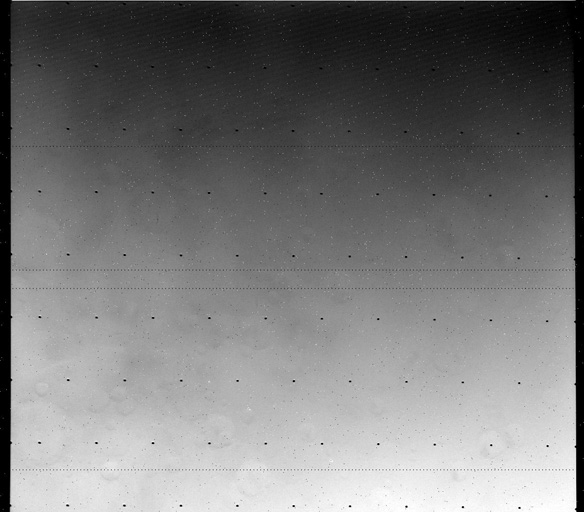

Input Image
Viking Image to Clean
Input Viking Image
Parameter Name:
FROM
This is the input viking image prior to cleaning.
Output Image
Cleaned Viking Image
Output Viking Image after the cleaning process application.
Parameter Name:
TO
This is the viking image after the cleaning sequence has taken place.
