viknopepper
Pepper noise Clean-up of Viking Orbiter Level 1 images
This program will perform the middle portion of the level 1 processing sequence on a Viking
Orbiter PDS image, the cleanup of pepper noise in the image.
Categories
Related Objects and Documents
Applications
History
| Elizabeth Ribelin | 2006-05-03 | Original version |
| Elizabeth Miller | 2006-05-16 | Added examples |
| Jai Rideout | 2011-02-10 | Now uses Pipeline to execute chain of applications. |
Parameters
Files
The cube to be cleaned. The cube will be ran through a series of filters to
remove pepper noise.
| Type | cube |
|---|---|
| File Mode | input |
| Filter | *.cub |
The resultant cube containing the cleaned data.
| Type | cube |
|---|---|
| File Mode | output |
| Filter | *.cub |
Option
Option to remove or leave intermediate cube files made by the application
| Type | boolean |
|---|---|
| Default | TRUE |
Example 1
Input Viking Image to have pepper noise removed
This example shows the viknopepper application in action. It removes all pepper noise.
Command Line
Input a viking image to remove the pepper noise from and give it an output file name.
viknopepper from=../IN/temp.cub to=OUT/out.cub

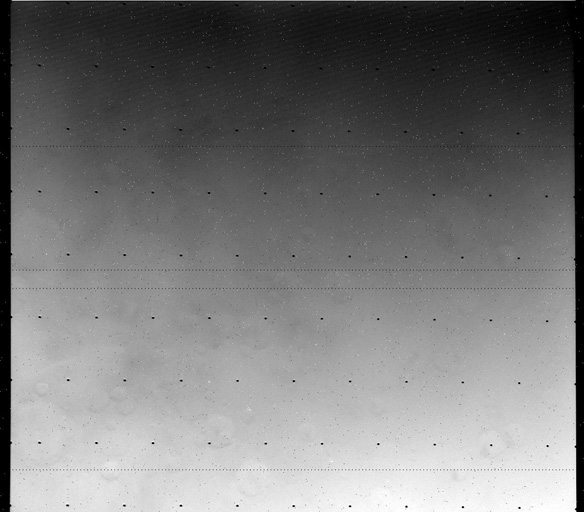

Input Image
Viking Image to Remove Pepper Noise from
Input Viking Image
Parameter Name:
FROM
This is the input viking image prior to the removal of black noise.

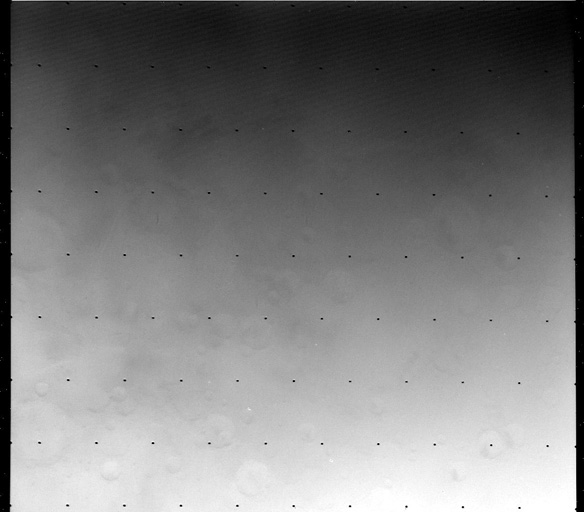

Output Image
Output Image
Output Viking Image after running the viknopepper application.
Parameter Name:
TO
This is the viking image after the viknopepper application has been run.
