Bullet Target Shape for planetary bodies. More...

#include <BulletTargetShape.h>

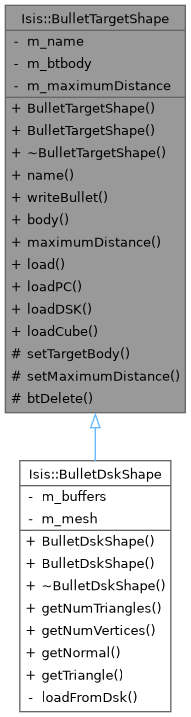

Inheritance diagram for Isis::BulletTargetShape:

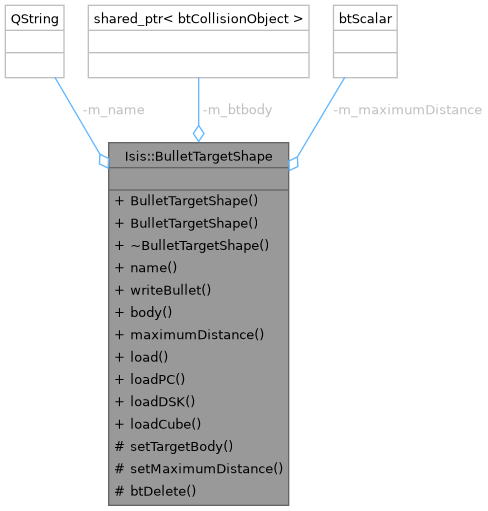

Collaboration diagram for Isis::BulletTargetShape:

Public Member Functions
	BulletTargetShape ()
	Default empty constructor.

	BulletTargetShape (btCollisionObject *btbody, const QString &name="")
	Constructs a BulletTargetShape for a given a Bullet object.

virtual	~BulletTargetShape ()
	Desctructor.

QString	name () const
	Return name of the target shape.

void	writeBullet (const QString &btName) const
	Write a serialized version of the target shape to a Bullet file.

btCollisionObject *	body () const
	Return a pointer to the Bullet target object/shape.

btScalar	maximumDistance () const

Static Public Member Functions
static BulletTargetShape *	load (const QString &dem, const Pvl *conf=0)
	Load a DEM file into the target shape.

static BulletTargetShape *	loadPC (const QString &dem, const Pvl *conf=0)
	Load a point cloud type DEM in Bullet.

static BulletTargetShape *	loadDSK (const QString &dem, const Pvl *conf=0)
	Load a DSK in Bullet.

static BulletTargetShape *	loadCube (const QString &dem, const Pvl *conf=0)
	Load an ISIS cube type DEM in Bullet.

Protected Member Functions
void	setTargetBody (btCollisionObject *body)
	Set the Bullet shape object to this object instance.

void	setMaximumDistance ()
	Calculate and save the maximum distance across the body.

Static Protected Member Functions
static void	btDelete (btCollisionObject *btbody)

Private Attributes
QString	m_name

std::shared_ptr< btCollisionObject >	m_btbody
	!

btScalar	m_maximumDistance
	!

Detailed Description

Bullet Target Shape for planetary bodies.

This class contains the in memory representation of a body for use with the Bullet library. For each type of file that can be used to create a bullet target body, this class should be extended to manage that type of file.

Note this object takes ownership of the btCollisionObject parameter as well as the underlying btCollisionShape pointer (which is also deleted when the object body pointer is deleted.)

Author: 2017-03-17 Kris Becker

History: 2017-03-17 Kris Becker Original Version

Definition at line 37 of file BulletTargetShape.h.

Constructor & Destructor Documentation

◆ BulletTargetShape() [1/2]

Isis::BulletTargetShape::BulletTargetShape ( )

Default empty constructor.

The filename defaults to an empty string and the maximum distance defaults to 0.

Definition at line 28 of file BulletTargetShape.cpp.

References m_maximumDistance.

Referenced by load(), loadCube(), loadDSK(), and loadPC().

◆ BulletTargetShape() [2/2]

Isis::BulletTargetShape::BulletTargetShape	(	btCollisionObject *	btbody,
		const QString &	name = "" )

Constructs a BulletTargetShape for a given a Bullet object.

Parameters

btbody	The Bullet collision object to contain.
name	The name of the object.

Definition at line 38 of file BulletTargetShape.cpp.

References m_btbody, name(), and setMaximumDistance().

◆ ~BulletTargetShape()

Isis::BulletTargetShape::~BulletTargetShape ( )

virtual

Desctructor.

Definition at line 48 of file BulletTargetShape.cpp.

Member Function Documentation

◆ body()

btCollisionObject * Isis::BulletTargetShape::body ( ) const

Return a pointer to the Bullet target object/shape.

Returns: btCollisionObject A target to the Bullet collision object.

Definition at line 151 of file BulletTargetShape.cpp.

References m_btbody.

Referenced by Isis::BulletWorldManager::addTarget(), and setTargetBody().

◆ btDelete()

void Isis::BulletTargetShape::btDelete ( btCollisionObject * btbody )

staticprotected

Definition at line 168 of file BulletTargetShape.cpp.

◆ load()

BulletTargetShape * Isis::BulletTargetShape::load	(	const QString &	dem,
		const Pvl *	conf = 0 )

static

Load a DEM file into the target shape.

Parameters

dem	The DEM file to load.
conf	PVL config for the DEM load. Currently unused.

Returns: BulletTargetShape A target shape containing the DEM

Definition at line 85 of file BulletTargetShape.cpp.

References BulletTargetShape(), loadCube(), loadDSK(), and loadPC().

Referenced by Isis::BulletShapeModel::BulletShapeModel(), and Isis::ShapeModelFactory::create().

◆ loadCube()

BulletTargetShape * Isis::BulletTargetShape::loadCube	(	const QString &	dem,
		const Pvl *	conf = 0 )

static

Load an ISIS cube type DEM in Bullet.

Note: Currently not implemented

Parameters

dem	The DEM file to load.
conf	PVL config for the DEM load. Currently unused.

Returns: BulletTargetShape A target shape containing the DEM

Definition at line 131 of file BulletTargetShape.cpp.

References BulletTargetShape().

Referenced by load().

◆ loadDSK()

BulletTargetShape * Isis::BulletTargetShape::loadDSK	(	const QString &	dem,
		const Pvl *	conf = 0 )

static

Load a DSK in Bullet.

Parameters

dem	The DEM file to load.
conf	PVL config for the DEM load. Currently unused.

Returns: BulletTargetShape A target shape containing the DEM

Definition at line 118 of file BulletTargetShape.cpp.

References BulletTargetShape().

Referenced by load().

◆ loadPC()

BulletTargetShape * Isis::BulletTargetShape::loadPC	(	const QString &	dem,
		const Pvl *	conf = 0 )

static

Load a point cloud type DEM in Bullet.

Note: Currently not implemented

Parameters

dem	The DEM file to load.
conf	PVL config for the DEM load. Currently unused.

Returns: BulletTargetShape A target shape containing the DEM

Definition at line 106 of file BulletTargetShape.cpp.

References BulletTargetShape().

Referenced by load().

◆ maximumDistance()

btScalar Isis::BulletTargetShape::maximumDistance ( ) const

Definition at line 164 of file BulletTargetShape.cpp.

◆ name()

QString Isis::BulletTargetShape::name ( ) const

Return name of the target shape.

Returns: QString The target name

Definition at line 72 of file BulletTargetShape.cpp.

Referenced by Isis::BulletShapeModel::BulletShapeModel(), BulletTargetShape(), and Isis::BulletWorldManager::getTarget().

◆ setMaximumDistance()

void Isis::BulletTargetShape::setMaximumDistance ( )

protected

Calculate and save the maximum distance across the body.

This is calculated as the distance from the x, y, z minimum to x, y, z maximum.

Definition at line 55 of file BulletTargetShape.cpp.

References m_btbody, and m_maximumDistance.

Referenced by Isis::BulletDskShape::BulletDskShape(), BulletTargetShape(), and setTargetBody().

◆ setTargetBody()

void Isis::BulletTargetShape::setTargetBody ( btCollisionObject * body )

protected

Set the Bullet shape object to this object instance.

Definition at line 157 of file BulletTargetShape.cpp.

References body(), m_btbody, and setMaximumDistance().

Referenced by Isis::BulletDskShape::loadFromDsk().

◆ writeBullet()

void Isis::BulletTargetShape::writeBullet ( const QString & btName ) const

Write a serialized version of the target shape to a Bullet file.

Parameters

btName The name of the file to write the target shape to.

Note: Currently not implemented

Definition at line 142 of file BulletTargetShape.cpp.

Member Data Documentation

◆ m_btbody

std::shared_ptr<btCollisionObject> Isis::BulletTargetShape::m_btbody

private

!

The name of the body

Definition at line 63 of file BulletTargetShape.h.

Referenced by body(), BulletTargetShape(), setMaximumDistance(), and setTargetBody().

◆ m_maximumDistance

btScalar Isis::BulletTargetShape::m_maximumDistance

private

!

The Bullet collision object for the body

Definition at line 65 of file BulletTargetShape.h.

Referenced by BulletTargetShape(), and setMaximumDistance().

◆ m_name

QString Isis::BulletTargetShape::m_name

private

Definition at line 62 of file BulletTargetShape.h.

The documentation for this class was generated from the following files:

src/base/objs/BulletTargetShape/BulletTargetShape.h
src/base/objs/BulletTargetShape/BulletTargetShape.cpp
