This represents an ISIS control net in a project-based GUI interface. More...

#include <Control.h>

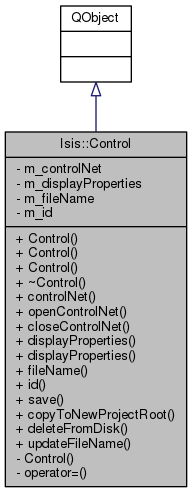

Inheritance diagram for Isis::Control:

Collaboration diagram for Isis::Control:

Classes
class	XmlHandler
	Nested class used to write the Control object information to an XML file for the purpose of saving and restoring the state of the project. More...

Public Slots
void	updateFileName (Project *)
	Change the on-disk file name for this control to be where the control ought to be in the given project. More...

Public Member Functions
	Control (QString cnetFileName, QObject *parent=0)
	Create a Control from control net located on disk. More...

	Control (ControlNet controlNet, QString cnetFileName, QObject parent=0)
	Create a Control from a control network that has already been created and read from disk. More...

	Control (FileName cnetFolder, XmlStackedHandlerReader xmlReader, QObject parent=0)
	Construct this control from XML. More...

	~Control ()
	Destroys Control object. More...

ControlNet *	controlNet ()
	Open and return a pointer to the ControlNet for this Control. More...

void	openControlNet ()
	Sets the ControlNet from the control net file name provided in the constructor. More...

void	closeControlNet ()
	Cleans up the ControlNet pointer. More...

ControlDisplayProperties *	displayProperties ()
	Access a pointer to the display properties for the control network. More...

const ControlDisplayProperties *	displayProperties () const
	Access a const pointer to the display properties for the control network. More...

QString	fileName () const
	Access the name of the control network file associated with this Control. More...

QString	id () const
	Access the unique ID associated with this Control. More...

void	save (QXmlStreamWriter &stream, const Project *project, FileName newProjectRoot) const
	Method to write this Control object's member data to an XML stream. More...

void	copyToNewProjectRoot (const Project *project, FileName newProjectRoot)
	Copies the files of the given Project to the given location. More...

void	deleteFromDisk ()
	Delete the control net from disk. More...

Private Member Functions
	Control (const Control &other)

Control &	operator= (const Control &rhs)

Private Attributes
ControlNet *	m_controlNet
	A pointer to the ControlNet object associated with this Control object. More...

ControlDisplayProperties *	m_displayProperties
	Contains the display properties for this Control object. More...

QString	m_fileName
	File name of the control net associated with this control. More...

QUuid *	m_id
	A unique ID for this Control. More...

Detailed Description

This represents an ISIS control net in a project-based GUI interface.

This encapsulates ideas about a control net such as it's filename and display properties.

Author: 2012-06-12 Ken Edmundson and Tracie Sucharski

History:

2012-08-02 Kimberly Oyama - Added comments to some of the methods and member variables.

2012-09-11 Tracie Sucharski - Added new constructor that takes a ControlNet *.

2015-10-14 Jeffrey Covington - Declared Control * as a Qt metatype for use with QVariant. References #3949

2016-06-02 Jeannie Backer - Updated documentation. Fixes #3949

Definition at line 57 of file Control.h.

Constructor & Destructor Documentation

Isis::Control::Control	(	QString	cNetFileName,
		QObject *	parent = `0`
	)

explicit

Create a Control from control net located on disk.

Parameters

cNetFileName	The name of the control net on disk
parent	The Qt-relationship parent

Definition at line 27 of file Control.cpp.

References m_controlNet, m_displayProperties, m_fileName, m_id, and openControlNet().

Isis::Control::Control	(	ControlNet *	controlNet,
		QString	cnetFileName,
		QObject *	parent = `0`
	)

explicit

Create a Control from a control network that has already been created and read from disk.

Parameters

controlNet	The actual control network
cnetFileName	The name of the control net on disk
parent	The Qt-relationship parent

Definition at line 50 of file Control.cpp.

References controlNet(), m_controlNet, m_displayProperties, m_fileName, and m_id.

Isis::Control::Control	(	FileName	cnetFolder,
		XmlStackedHandlerReader *	xmlReader,
		QObject *	parent = `0`
	)

Construct this control from XML.

Parameters

cnetFolder	Location of control xml
xmlReader	An XML reader that's up to an <control> tag.
parent	The Qt-relationship parent

Definition at line 72 of file Control.cpp.

References m_controlNet, m_displayProperties, and m_id.

Isis::Control::~Control ( )

Destroys Control object.

Definition at line 85 of file Control.cpp.

References m_controlNet, m_displayProperties, and m_id.

Member Function Documentation

void Isis::Control::closeControlNet ( )

Cleans up the ControlNet pointer.

This method should be called once there is no more need for this network because the OS will limit how many of these can be open.

Definition at line 138 of file Control.cpp.

References m_controlNet.

Referenced by updateFileName().

ControlNet * Isis::Control::controlNet ( )

Open and return a pointer to the ControlNet for this Control.

See Also: openControlNet()

Returns: ControlNet* Pointer to the ControlNet object associated with this Control.

Definition at line 106 of file Control.cpp.

References m_controlNet, and openControlNet().

Referenced by Isis::Directory::addCnetEditorView(), Isis::ExportControlNetWorkOrder::asyncRedo(), Control(), copyToNewProjectRoot(), Isis::CubeDnView::CubeDnView(), Isis::SetActiveControlWorkOrder::execute(), Isis::MosaicControlNetTool::openControlNet(), and Isis::ControlPointEditWidget::setControl().

void Isis::Control::copyToNewProjectRoot	(	const Project *	project,
		FileName	newProjectRoot
	)

Copies the files of the given Project to the given location.

Parameters

project	A pointer to the Project.
newProjectRoot	The name of the new root directory where the project will be copied.

Definition at line 193 of file Control.cpp.

References Isis::Project::cnetRoot(), controlNet(), m_fileName, Isis::Project::projectRoot(), and Isis::ControlNet::Write().

Referenced by Isis::ControlList::CopyControlDataFunctor::operator()().

void Isis::Control::deleteFromDisk ( )

Delete the control net from disk.

The control net will no longer be accessible until you call updateFileName().

Exceptions

IException::Io "Could not remove file."

Definition at line 210 of file Control.cpp.

References _FILEINFO_, Isis::IException::Io, and m_fileName.

Referenced by Isis::ControlList::deleteFromDisk().

ControlDisplayProperties * Isis::Control::displayProperties ( )

Access a pointer to the display properties for the control network.

Returns: ControlDisplayProperties * A pointer to the display properties.

Definition at line 151 of file Control.cpp.

References m_displayProperties.

Referenced by Isis::Directory::addCnetEditorView(), and Isis::ExportControlNetWorkOrder::execute().

const ControlDisplayProperties * Isis::Control::displayProperties ( ) const

Access a const pointer to the display properties for the control network.

Returns: ControlDisplayProperties * A pointer to the display properties.

Definition at line 161 of file Control.cpp.

References m_displayProperties.

QString Isis::Control::fileName ( ) const

Access the name of the control network file associated with this Control.

Returns: QString The file name of the control network.

Definition at line 171 of file Control.cpp.

References m_fileName.

Referenced by Isis::Project::addControl(), Isis::BundleAdjust::BundleAdjust(), Isis::ExportControlNetWorkOrder::execute(), Isis::MosaicControlNetTool::openControlNet(), Isis::ControlPointEditWidget::setControl(), Isis::ProjectItem::setControl(), and Isis::Control::XmlHandler::startElement().

QString Isis::Control::id ( ) const

Access the unique ID associated with this Control.

Returns: QString The Control ID.

Definition at line 181 of file Control.cpp.

References m_id.

Referenced by Isis::Project::addControl(), and Isis::ExportControlNetWorkOrder::execute().

void Isis::Control::openControlNet ( )

Sets the ControlNet from the control net file name provided in the constructor.

Exceptions

IException::Programmer "Error opening control net."

Definition at line 121 of file Control.cpp.

References _FILEINFO_, m_controlNet, m_fileName, and Isis::IException::Programmer.

Referenced by Control(), and controlNet().

void Isis::Control::save	(	QXmlStreamWriter &	stream,
		const Project *	project,
		FileName	newProjectRoot
	)		const

Method to write this Control object's member data to an XML stream.

Parameters

stream	The stream to which the Control will be saved.
project	The Project to which this Control will be added.
newProjectRoot	The location of the project root directory.

Definition at line 248 of file Control.cpp.

References m_displayProperties, m_fileName, and m_id.

Referenced by Isis::ControlList::save().

void Isis::Control::updateFileName ( Project * project )

slot

Change the on-disk file name for this control to be where the control ought to be in the given project.

Parameters

project The project that this control is stored in

Definition at line 230 of file Control.cpp.

References closeControlNet(), Isis::Project::cnetRoot(), and m_fileName.
