The main project for cnetsuite. More...

#include <Project.h>

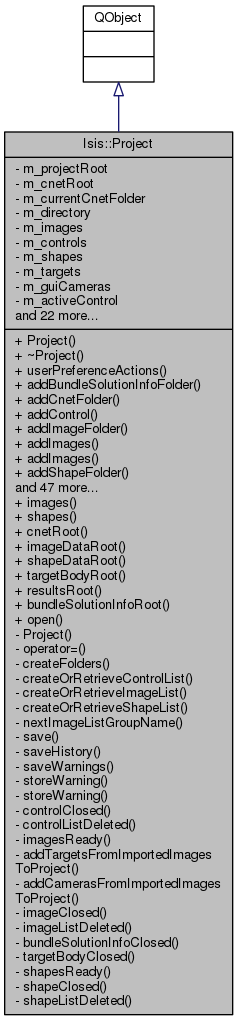

Inheritance diagram for Isis::Project:

Collaboration diagram for Isis::Project:

Classes
class	XmlHandler

Public Slots
void	open (QString)
	Open the project at the given path. More...

Signals
void	controlListAdded (ControlList *controls)
	apparently not used? More...

void	controlAdded (Control *control)
	Emitted when new Control added to Project receivers: ProjectTreeWidget. More...

void	imagesAdded (ImageList *images)
	Emitted when new images are available. More...

void	shapesAdded (ShapeList *shapes)
	Emitted when new shape model images are available. More...

void	bundleSolutionInfoAdded (BundleSolutionInfo *bundleSolutionInfo)
	Emitted when new BundleSolutionInfo available from jigsaw receivers: ProjectTreeWidget (TODO: should this be the Directory?) More...

void	targetsAdded (TargetBodyList *targets)
	Emitted when new TargetBody objects added to project receivers: Directory. More...

void	guiCamerasAdded (GuiCameraList *targets)
	Emitted when new GuiCamera objects added to project receivers: Directory. More...

void	nameChanged (QString newName)
	Emitted when project name is changed receivers: ProjectTreeWidget. More...

void	projectLoaded (Project *)
	Emitted when project loaded receivers: CNetSuiteMainWindow, Directory, HistoryTreeWidget. More...

void	projectRelocated (Project *)
	Emitted when project location moved receivers: Control, BundleSolutionInfo, Image, TargetBody. More...

void	workOrderStarting (WorkOrder *)

void	workOrderFinished (WorkOrder *)

Public Member Functions
	Project (Directory &directory, QObject *parent=0)
	Create a new Project. More...

	~Project ()
	Clean up the project. More...

QList< QAction * >	userPreferenceActions ()
	Get a list of configuration/settings actions related to reading images into this Project. More...

QDir	addBundleSolutionInfoFolder (QString folder)
	Create and return the name of a folder for placing BundleSolutionInfo. More...

QDir	addCnetFolder (QString prefix)
	Create and return the name of a folder for placing control networks. More...

void	addControl (Control *control)
	Add the given Control's to the current project. More...

QDir	addImageFolder (QString prefix)
	Create and return the name of a folder for placing images. More...

void	addImages (QStringList imageFiles)
	Read the given cube file names as Images and add them to the project. More...

void	addImages (ImageList newImages)

QDir	addShapeFolder (QString prefix)
	Create and return the name of a folder for placing shape models. More...

void	addShapes (QStringList shapeFiles)
	Read the given shape model cube file names as Images and add them to the project. More...

void	addShapes (ShapeList newShapes)

void	addBundleSolutionInfo (BundleSolutionInfo *bundleSolutionInfo)
	Add the given BundleSolutionInfo to the current project. More...

void	loadBundleSolutionInfo (BundleSolutionInfo *bundleSolutionInfo)

Control *	control (QString id)

Directory *	directory () const
	Returns the directory associated with this Project. More...

Image *	image (QString id)

ImageList *	imageList (QString name)

Shape *	shape (QString id)

ShapeList *	shapeList (QString name)

bool	isTemporaryProject () const

WorkOrder *	lastNotUndoneWorkOrder ()

const WorkOrder *	lastNotUndoneWorkOrder () const

QString	name () const
	Get the project's GUI name. More...

QMutex *	mutex ()
	Return mutex used for Naif calls. More...

QString	projectRoot () const
	Get the top-level folder of the project. More...

void	setName (QString newName)
	Change the project's name (GUI only, doesn't affect location on disk). More...

QUndoStack *	undoStack ()

void	waitForImageReaderFinished ()

void	waitForShapeReaderFinished ()

QList< WorkOrder * >	workOrderHistory ()
	Get the entire list of work orders that have executed. More...

void	setActiveControl (Control *)
	Set the Active Control (control network) More...

Control *	activeControl ()
	Return the Active Control (control network) More...

void	setActiveImageList (ImageList *)
	Set the Active ImageList. More...

ImageList *	activeImageList ()
	Returns the active ImageList. More...

QString	cnetRoot () const
	Get where control networks ought to be stored inside the project. More...

QList< ControlList * >	controls ()

ControlList *	controlList (QString name)

QString	imageDataRoot () const
	Accessor for the root directory of the image data. More...

QList< ImageList * >	images ()

QString	shapeDataRoot () const
	Accessor for the root directory of the shape model data. More...

QList< ShapeList * >	shapes ()

QString	targetBodyRoot () const
	Accessor for the root directory of the target body data. More...

TargetBodyList	targetBodies ()

QString	resultsRoot () const
	Accessor for the root directory of the results data. More...

QString	bundleSolutionInfoRoot () const
	Accessor for the root directory of the results data. More...

QList< BundleSolutionInfo * >	bundleSolutionInfo ()

void	deleteAllProjectFiles ()
	Delete all of the files, that this project stores, from disk. More...

void	relocateProjectRoot (QString newRoot)
	This is called when the project is moved. More...

BundleSettings *	bundleSettings ()

QProgressBar *	progress ()

void	removeImages (ImageList &imageList)

void	save ()

void	save (FileName newPath, bool verifyPathDoesntExist=true)

void	addToProject (WorkOrder *)
	Run the work order and stores it in the project. More...

template<typename Data >
void	warn (QString text, Data relevantData)

void	warn (QString text)

Static Public Member Functions
static QStringList	images (QStringList)
	Verify that the input fileNames are image files. More...

static QStringList	shapes (QStringList)

static QString	cnetRoot (QString projectRoot)
	Appends the root directory name 'cnets' to the project. More...

static QString	imageDataRoot (QString projectRoot)
	Appends the root directory name 'images' to the project . More...

static QString	shapeDataRoot (QString projectRoot)
	Appends the root directory name 'shapes' to the project . More...

static QString	targetBodyRoot (QString projectRoot)
	Appends the root directory name 'targets' to the project . More...

static QString	resultsRoot (QString projectRoot)
	Appends the root directory name 'results' to the project. More...

static QString	bundleSolutionInfoRoot (QString projectRoot)
	Appends the root directory name 'bundle' to the project results directory. More...

Private Slots
void	controlClosed (QObject *control)
	A control is being deleted from the project. More...

void	controlListDeleted (QObject *controlList)
	An control list is being deleted from the project. More...

void	imagesReady (ImageList)

void	addTargetsFromImportedImagesToProject (ImageList *imageList)

void	addCamerasFromImportedImagesToProject (ImageList *imageList)

void	imageClosed (QObject *image)
	An image is being deleted from the project. More...

void	imageListDeleted (QObject *imageList)
	An image list is being deleted from the project. More...

void	bundleSolutionInfoClosed (QObject *bundleSolutionInfo)
	A BundleSolutionInfo object is being deleted from the project. More...

void	targetBodyClosed (QObject *targetBodyObj)
	A target body is being deleted from the project. More...

void	shapesReady (ShapeList shapes)

void	shapeClosed (QObject *shape)
	A shape model is being deleted from the project. More...

void	shapeListDeleted (QObject *shapeList)
	A shape model list is being deleted from the project. More...

Private Member Functions
	Project (const Project &other)

Project &	operator= (const Project &rhs)

void	createFolders ()
	This creates the project root, image root, and control net root directories. More...

ControlList *	createOrRetrieveControlList (QString name)

ImageList *	createOrRetrieveImageList (QString name)

ShapeList *	createOrRetrieveShapeList (QString name)

QString	nextImageListGroupName ()

void	save (QXmlStreamWriter &stream, FileName newProjectRoot) const
	Converts the project settings into XML. More...

void	saveHistory (QXmlStreamWriter &stream) const
	Serialize the work orders into the given XML. More...

void	saveWarnings (QXmlStreamWriter &stream) const
	Serialize the warnings into the given XML. More...

void	storeWarning (QString text)

void	storeWarning (QString text, const ImageList &relevantData)

Private Attributes
QDir *	m_projectRoot

QDir *	m_cnetRoot

QDir	m_currentCnetFolder

QPointer< Directory >	m_directory

QList< ImageList * > *	m_images

QList< ControlList * > *	m_controls

QList< ShapeList * > *	m_shapes

TargetBodyList *	m_targets

GuiCameraList *	m_guiCameras

QPointer< Control >	m_activeControl

QPointer< ImageList >	m_activeImageList

QList< BundleSolutionInfo * > *	m_bundleSolutionInfo

BundleSettings *	m_bundleSettings

QMap< QString, Control * > *	m_idToControlMap
	This variable will probably go away when we add the bundle results object because it will be under: BundleSolutionInfo BundleResults CorrelationMatrix. More...

QMap< QString, Image * > *	m_idToImageMap

QMap< QString, Shape * > *	m_idToShapeMap

QMap< QString, BundleSolutionInfo * > *	m_idToBundleSolutionInfoMap

QMap< QString, TargetBody * > *	m_idToTargetBodyMap

QMap< QString, GuiCamera * > *	m_idToGuiCameraMap

QString	m_name

QStringList *	m_warnings

QList< QPointer< WorkOrder > > *	m_workOrderHistory

QPointer< ImageReader >	m_imageReader

bool	m_isTemporaryProject

int	m_numImagesCurrentlyReading

QMutex *	m_mutex

QMutex *	m_imageReadingMutex

int	m_numShapesCurrentlyReading

QMutex *	m_shapeMutex

QPointer< ShapeReader >	m_shapeReader

QMutex *	m_shapeReadingMutex

QUndoStack	m_undoStack

Detailed Description

The main project for cnetsuite.

Author: 2012-??-?? ???

History:

2012-07-27 Kimberly Oyama - Added comments to some of the methods.

2012-09-04 Tracie Sucharski - Renamed addCNets to addCnets, controlNetRoot to cnetRoot, networkLoaded to cnetLoaded. Added new method, addCnetFolder.

2012-09-11 Tracie Sucharski - Added mutex accessor method.

2012-09-12 Tracie Sucharski - Implemented ControlList instead of QList<Control *>, re-ordered some methods to match header order.

2012-09-12 Steven Lambright - Renamed imageList() to createOrRetrieveImageList(), added imageList() and image().

2012-09-17 Steven Lambright - Reduced the time complexity of image() to log(n) from n/2. This method is often called n times.

2012-09-17 Steven Lambright - Added crash detection/cleanup. Prompt is coded but disabled (we'll find a good wording or handle recovery better when we don't expect so many crashes during development).

2012-10-29 Steven Lambright and Stuart Sides - Added isTemporaryProject(). This is useful for the import images to know if it should prompt the user to save their project.

2013-05-14 Jeannie Backer - Used return status of c++ system() in the constructor to verify that the call was successful.

2014-07-14 Kimberly Oyama - Updated to better meet programming standards. Added support for correlation matrix.

2015-02-20 Jeannie Backer - Replaced BundleResults references with BundleSolutionInfo and BundleStatistics references with BundleResults due to class name changes.

2015-09-03 Jeannie Backer - Removed svn merge conflict comment lines. Removed call to save BundleSolutionInfo as an xml file. Added hdf5 preliminary serialization calls. Some ISIS coding standards improvements.

2015-10-14 Jeffrey Covington - Declared Project * as a Qt metatype for use with QVariant.

2016-06-23 Tracie Sucharski - Added a member variable for active control network and active image list, along with accessor methods.

2016-07-06 Tracie Sucharski - Changed the ImageReader to require footprints, because ImageReader class was changed so that footprints are no longer created if not required.

2016-07-06 Tracie Sucharski - Add import shape models to project.

2016-11-09 Tyler Wilson - Added try-catch blocks around reader.parse calls in the open function, so that warnings/errors are output to the warnings tab of the GUI instead of causing the application to exit. Fixes #4488.

Definition at line 105 of file Project.h.

Constructor & Destructor Documentation

Isis::Project::Project	(	Directory &	directory,
		QObject *	parent = `0`
	)

Create a new Project.

This creates a project on disk at /tmp/username_appname_pid.

Definition at line 73 of file Project.cpp.

References _FILEINFO_, createFolders(), directory(), imagesAdded(), m_idToControlMap, Isis::IException::Programmer, Isis::toString(), and Isis::Environment::userName().

Isis::Project::~Project ( )

Clean up the project.

This will bring the Project back to a safe on-disk state.

Definition at line 219 of file Project.cpp.

References deleteAllProjectFiles(), m_idToControlMap, and Isis::WorkOrder::modifiesDiskState().

Member Function Documentation

Control * Isis::Project::activeControl ( )

Return the Active Control (control network)

Returns the active control (control network) for views which need to operate on the same control, ie. Footprint2dView, CubeDnView, ControlPointEditView.

History:: 2016-06-23 Tracie Sucharski - Original version.

Definition at line 1182 of file Project.cpp.

Referenced by Isis::CubeDnView::CubeDnView(), Isis::SetActiveControlWorkOrder::execute(), Isis::SetActiveControlWorkOrder::isExecutable(), and Isis::MosaicControlNetTool::openControlNet().

ImageList * Isis::Project::activeImageList ( )

Returns the active ImageList.

Returns the active ImageList for views which need to operate on the same list of images, ie. Footprint2dView, CubeDnView, ControlPointEditView.

History:: 2016-06-23 Tracie Sucharski - Original version.

Definition at line 1210 of file Project.cpp.

void Isis::Project::addBundleSolutionInfo ( BundleSolutionInfo * bundleSolutionInfo )

Add the given BundleSolutionInfo to the current project.

This will cause the BundleSolutionInfo to be saved/restored from disk, Project-related GUIs to display the BundleSolutionInfo, and enable access to the BundleSolutionInfo given access to the project.

Definition at line 789 of file Project.cpp.

References addBundleSolutionInfoFolder(), Isis::BundleSolutionInfo::bundleSettings(), bundleSolutionInfoClosed(), Isis::BundleSolutionInfo::createH5File(), projectRelocated(), and Isis::BundleSolutionInfo::runTime().

Referenced by Isis::JigsawDialog::bundleFinished().

QDir Isis::Project::addBundleSolutionInfoFolder ( QString folder )

Create and return the name of a folder for placing BundleSolutionInfo.

TODO: don't know if sentence below is accurate. This can be called from multiple threads, but should only be called by one thread at a time.

Definition at line 594 of file Project.cpp.

References _FILEINFO_, bundleSolutionInfoRoot(), and Isis::IException::Io.

Referenced by addBundleSolutionInfo().

QDir Isis::Project::addCnetFolder ( QString prefix )

Create and return the name of a folder for placing control networks.

This can be called from multiple threads, but should only be called by one thread at a time.

Definition at line 614 of file Project.cpp.

References _FILEINFO_, cnetRoot(), and Isis::IException::Io.

Referenced by Isis::ImportControlNetWorkOrder::syncRedo().

void Isis::Project::addControl ( Control * control )

Add the given Control's to the current project.

This will cause the controls to be saved/restored from disk, Project-related GUIs to display the control, and enable access to the controls given access to the project.

Definition at line 646 of file Project.cpp.

References controlAdded(), controlClosed(), Isis::Control::fileName(), Isis::Control::id(), and projectRelocated().

QDir Isis::Project::addImageFolder ( QString prefix )

Create and return the name of a folder for placing images.

This can be called from multiple threads, but should only be called by one thread at a time.

Definition at line 686 of file Project.cpp.

References _FILEINFO_, imageDataRoot(), and Isis::IException::Io.

Referenced by Isis::ImportImagesWorkOrder::importConfirmedImages().

void Isis::Project::addImages ( QStringList imageFiles )

Read the given cube file names as Images and add them to the project.

Definition at line 714 of file Project.cpp.

Referenced by Isis::ImportImagesWorkOrder::postSyncRedo().

QDir Isis::Project::addShapeFolder ( QString prefix )

Create and return the name of a folder for placing shape models.

This can be called from multiple threads, but should only be called by one thread at a time.

Definition at line 736 of file Project.cpp.

References _FILEINFO_, Isis::IException::Io, and shapeDataRoot().

Referenced by Isis::ImportShapesWorkOrder::importConfirmedShapes().

void Isis::Project::addShapes ( QStringList shapeFiles )

Read the given shape model cube file names as Images and add them to the project.

Definition at line 764 of file Project.cpp.

Referenced by Isis::ImportShapesWorkOrder::postSyncRedo().

void Isis::Project::addToProject ( WorkOrder * workOrder )

Run the work order and stores it in the project.

If WorkOrder::execute() returns true then the work order's redo is called. This takes ownership of workOrder.

The order of events is: 1) WorkOrder::execute() 2) emit workOrderStarting() 3) WorkOrder::redo() [optional - see WorkOrder]

Parameters

workOrder The work order to be executed. This work order must not already be in the project.

Definition at line 1546 of file Project.cpp.

References Isis::WorkOrder::createsCleanState(), Isis::WorkOrder::execute(), Isis::WorkOrder::previous(), Isis::WorkOrder::setNext(), and Isis::WorkOrder::setPrevious().

Referenced by Isis::WorkOrder::addCloneToProject().

void Isis::Project::bundleSolutionInfoAdded ( BundleSolutionInfo * bundleSolutionInfo )

signal

Emitted when new BundleSolutionInfo available from jigsaw receivers: ProjectTreeWidget (TODO: should this be the Directory?)

void Isis::Project::bundleSolutionInfoClosed ( QObject * bundleSolutionInfo )

privateslot

A BundleSolutionInfo object is being deleted from the project.

Definition at line 1802 of file Project.cpp.

Referenced by addBundleSolutionInfo().

QString Isis::Project::bundleSolutionInfoRoot ( QString projectRoot )

static

Appends the root directory name 'bundle' to the project results directory.

Returns: The path to the root directory of bundle results data.

Definition at line 1360 of file Project.cpp.

QString Isis::Project::bundleSolutionInfoRoot ( ) const

Accessor for the root directory of the results data.

Returns: The path to the root directory of the results data.

Definition at line 1370 of file Project.cpp.

Referenced by addBundleSolutionInfoFolder(), createFolders(), and open().

QString Isis::Project::cnetRoot ( QString projectRoot )

static

Appends the root directory name 'cnets' to the project.

Returns: The path to the root directory of the cnet data.

Definition at line 1220 of file Project.cpp.

Referenced by Isis::Control::copyToNewProjectRoot(), Isis::ControlList::deleteFromDisk(), Isis::Control::updateFileName(), and Isis::BundleSolutionInfo::updateFileName().

QString Isis::Project::cnetRoot ( ) const

Get where control networks ought to be stored inside the project.

This is a full path.

Returns: The path to the root directory of the cnet data.

Definition at line 1230 of file Project.cpp.

Referenced by addCnetFolder(), createFolders(), deleteAllProjectFiles(), and Isis::ControlList::save().

void Isis::Project::controlAdded ( Control * control )

signal

Emitted when new Control added to Project receivers: ProjectTreeWidget.

Referenced by addControl().

void Isis::Project::controlClosed ( QObject * control )

privateslot

A control is being deleted from the project.

Definition at line 1761 of file Project.cpp.

References m_idToControlMap, and Isis::ControlList::removeAt().

Referenced by addControl().

void Isis::Project::controlListAdded ( ControlList * controls )

signal

apparently not used?

Emitted when new ControlList added to Project receivers: ProjectTreeWidget

void Isis::Project::controlListDeleted ( QObject * controlList )

privateslot

An control list is being deleted from the project.

Definition at line 1780 of file Project.cpp.

void Isis::Project::createFolders ( )

private

This creates the project root, image root, and control net root directories.

Definition at line 335 of file Project.cpp.

References _FILEINFO_, bundleSolutionInfoRoot(), cnetRoot(), imageDataRoot(), Isis::IException::Io, resultsRoot(), and shapeDataRoot().

Referenced by Project().

void Isis::Project::deleteAllProjectFiles ( )

Delete all of the files, that this project stores, from disk.

Definition at line 1378 of file Project.cpp.

References cnetRoot(), Isis::ImageList::deleteFromDisk(), imageDataRoot(), resultsRoot(), and shapeDataRoot().

Referenced by ~Project().

Directory * Isis::Project::directory ( ) const

Returns the directory associated with this Project.

The directory is not part of the project so a non-const pointer is returned and this is okay.

Returns: The Directory that was used to create this Project.

Definition at line 824 of file Project.cpp.

Referenced by Isis::WorkOrder::directory(), Isis::MatrixViewWorkOrder::execute(), Isis::ImageFileListViewWorkOrder::execute(), Isis::CubeDnViewWorkOrder::execute(), Isis::Footprint2DViewWorkOrder::execute(), Isis::SensorGetInfoWorkOrder::isExecutable(), Isis::TargetGetInfoWorkOrder::isExecutable(), open(), Project(), Isis::CnetEditorViewWorkOrder::syncRedo(), Isis::RemoveImagesWorkOrder::syncRedo(), Isis::MatrixViewWorkOrder::syncRedo(), Isis::ImageFileListViewWorkOrder::syncRedo(), Isis::SensorGetInfoWorkOrder::syncRedo(), Isis::TargetGetInfoWorkOrder::syncRedo(), Isis::CubeDnViewWorkOrder::syncRedo(), Isis::Footprint2DViewWorkOrder::syncRedo(), Isis::CnetEditorViewWorkOrder::syncUndo(), Isis::MatrixViewWorkOrder::syncUndo(), Isis::ImageFileListViewWorkOrder::syncUndo(), and Isis::Footprint2DViewWorkOrder::syncUndo().

void Isis::Project::guiCamerasAdded ( GuiCameraList * targets )

signal

Emitted when new GuiCamera objects added to project receivers: Directory.

void Isis::Project::imageClosed ( QObject * image )

privateslot

An image is being deleted from the project.

Definition at line 1730 of file Project.cpp.

References Isis::ImageList::removeAt().

QString Isis::Project::imageDataRoot ( QString projectRoot )

static

Appends the root directory name 'images' to the project .

Returns: The path to the root directory of the image data.

Definition at line 1260 of file Project.cpp.

Referenced by Isis::ImageList::deleteFromDisk(), and Isis::Image::updateFileName().

QString Isis::Project::imageDataRoot ( ) const

Accessor for the root directory of the image data.

Returns: The path to the root directory of the image data.

Definition at line 1270 of file Project.cpp.

Referenced by addImageFolder(), Isis::Image::copyToNewProjectRoot(), createFolders(), deleteAllProjectFiles(), and Isis::ImageList::save().

void Isis::Project::imageListDeleted ( QObject * imageList )

privateslot

An image list is being deleted from the project.

Definition at line 1750 of file Project.cpp.

QStringList Isis::Project::images ( QStringList fileNames )

static

Verify that the input fileNames are image files.

Parameters

fileNames names of files on disk

Returns: the files that are images.

Definition at line 561 of file Project.cpp.

Referenced by Isis::ImportImagesWorkOrder::asyncUndo(), Isis::ImportImagesWorkOrder::postSyncUndo(), and Isis::ProjectItem::ProjectItem().

void Isis::Project::imagesAdded ( ImageList * images )

signal

Emitted when new images are available.

receivers: Directory, Project, WorkOrder

Referenced by Project().

QMutex * Isis::Project::mutex ( )

Return mutex used for Naif calls.

This method is thread-safe.

Author: 2012-09-11 Tracie Sucharski

Returns: QMutex*

Definition at line 1079 of file Project.cpp.

QString Isis::Project::name ( ) const

Get the project's GUI name.

Definition at line 1050 of file Project.cpp.

Referenced by Isis::RenameProjectWorkOrder::execute(), and Isis::ProjectItem::setProject().

void Isis::Project::nameChanged ( QString newName )

signal

Emitted when project name is changed receivers: ProjectTreeWidget.

Referenced by setName().

void Isis::Project::open ( QString projectPathStr )

slot

Open the project at the given path.

Parameters

The	path to the project folder

History:: Tyler Wilson - Added try-catch blocks around all reader.parse calls. The exception information is not piped to the Warnings tab in the GUI instead of the command line, and the application starts instead of executing prematurely. Fixes #4488.

Definition at line 838 of file Project.cpp.

References _FILEINFO_, bundleSolutionInfoRoot(), directory(), Isis::IException::Io, projectLoaded(), Isis::Directory::showWarning(), and Isis::IException::toString().

Referenced by Isis::OpenProjectWorkOrder::execute(), and Isis::OpenRecentProjectWorkOrder::execute().

void Isis::Project::projectLoaded ( Project * )

signal

Emitted when project loaded receivers: CNetSuiteMainWindow, Directory, HistoryTreeWidget.

Referenced by open().

void Isis::Project::projectRelocated ( Project * )

signal

Emitted when project location moved receivers: Control, BundleSolutionInfo, Image, TargetBody.

Referenced by addBundleSolutionInfo(), addControl(), and relocateProjectRoot().

QString Isis::Project::projectRoot ( ) const

Get the top-level folder of the project.

This is where the project is opened from/saved to.

Definition at line 1087 of file Project.cpp.

Referenced by Isis::Control::copyToNewProjectRoot(), Isis::Shape::copyToNewProjectRoot(), Isis::Image::copyToNewProjectRoot(), and Isis::Directory::updateRecentProjects().

void Isis::Project::relocateProjectRoot ( QString newProjectRoot )

This is called when the project is moved.

Parameters

newProjectRoot The new root directory for the project.

Definition at line 1413 of file Project.cpp.

References projectRelocated().

QString Isis::Project::resultsRoot ( QString projectRoot )

static

Appends the root directory name 'results' to the project.

Returns: The path to the root directory of bundleresults data.

Definition at line 1335 of file Project.cpp.

QString Isis::Project::resultsRoot ( ) const

Accessor for the root directory of the results data.

Returns: The path to the root directory of the results data.

Definition at line 1345 of file Project.cpp.

Referenced by createFolders(), and deleteAllProjectFiles().

void Isis::Project::save	(	QXmlStreamWriter &	stream,
		FileName	newProjectRoot
	)		const

private

Converts the project settings into XML.

The format of the project settings is:

  <project>
    <controlNets>
      <controlNet name="...">
    </controlNets>
  </project>

Definition at line 434 of file Project.cpp.

void Isis::Project::saveHistory ( QXmlStreamWriter & stream ) const

private

Serialize the work orders into the given XML.

The format of the history xml is:

  <history>
    <workOrder>
       ...
    </workOrder>
    <workOrder>
       ...
    </workOrder>
  </history>

Definition at line 518 of file Project.cpp.

References Isis::WorkOrder::save().

void Isis::Project::saveWarnings ( QXmlStreamWriter & stream ) const

private

Serialize the warnings into the given XML.

The format of the warnings xml is:

  <warnings>
    <warning text="...">
    <warning text="...">
  </warnings>

Definition at line 541 of file Project.cpp.

void Isis::Project::setActiveControl ( Control * control )

Set the Active Control (control network)

Set the active control (control network) for views which need to operate on the same control, ie. Footprint2dView, CubeDnView, ControlPointEditView.

History:: 2016-06-23 Tracie Sucharski - Original version.

Definition at line 1168 of file Project.cpp.

Referenced by Isis::SetActiveControlWorkOrder::execute().

void Isis::Project::setActiveImageList ( ImageList * imageList )

Set the Active ImageList.

Set the active ImageList for views which need to operate on the same list of images, ie. Footprint2dView, CubeDnView, ControlPointEditView.

History:: 2016-06-23 Tracie Sucharski - Original version.

Definition at line 1196 of file Project.cpp.

Referenced by Isis::SetActiveImageListWorkOrder::execute().

void Isis::Project::setName ( QString newName )

Change the project's name (GUI only, doesn't affect location on disk).

Definition at line 1095 of file Project.cpp.

References nameChanged().

Referenced by Isis::RenameProjectWorkOrder::syncRedo(), and Isis::RenameProjectWorkOrder::syncUndo().

void Isis::Project::shapeClosed ( QObject * shape )

privateslot

A shape model is being deleted from the project.

Definition at line 1884 of file Project.cpp.

References Isis::ShapeList::removeAt().

QString Isis::Project::shapeDataRoot ( QString projectRoot )

static

Appends the root directory name 'shapes' to the project .

Returns: The path to the root directory of the shape models data.

Definition at line 1280 of file Project.cpp.

Referenced by Isis::ShapeList::deleteFromDisk(), and Isis::Shape::updateFileName().

QString Isis::Project::shapeDataRoot ( ) const

Accessor for the root directory of the shape model data.

Returns: The path to the root directory of the shape model data.

Definition at line 1290 of file Project.cpp.

Referenced by addShapeFolder(), Isis::Shape::copyToNewProjectRoot(), createFolders(), deleteAllProjectFiles(), and Isis::ShapeList::save().

void Isis::Project::shapeListDeleted ( QObject * shapeList )

privateslot

A shape model list is being deleted from the project.

Definition at line 1791 of file Project.cpp.

void Isis::Project::shapesAdded ( ShapeList * shapes )

signal

Emitted when new shape model images are available.

receivers: Directory, Project, WorkOrder

void Isis::Project::targetBodyClosed ( QObject * targetBodyObj )

privateslot

A target body is being deleted from the project.

TODO: should prevent deleting a target body if there are currently images in the project with this target?

Definition at line 1828 of file Project.cpp.

QString Isis::Project::targetBodyRoot ( QString projectRoot )

static

Appends the root directory name 'targets' to the project .

Returns: The path to the root directory of the target body data.

Definition at line 1310 of file Project.cpp.

QString Isis::Project::targetBodyRoot ( ) const

Accessor for the root directory of the target body data.

Returns: The path to the root directory of the target body data.

Definition at line 1320 of file Project.cpp.

void Isis::Project::targetsAdded ( TargetBodyList * targets )

signal

Emitted when new TargetBody objects added to project receivers: Directory.

QList< QAction * > Isis::Project::userPreferenceActions ( )

Get a list of configuration/settings actions related to reading images into this Project.

These are things like default opacity, default filled, etc.

Definition at line 583 of file Project.cpp.

References Isis::ImageDisplayProperties::FootprintViewProperties.

QList< WorkOrder * > Isis::Project::workOrderHistory ( )

Get the entire list of work orders that have executed.

Definition at line 1149 of file Project.cpp.

Referenced by Isis::HistoryTreeWidget::showHistory().

Member Data Documentation

QMap<QString, Control *>* Isis::Project::m_idToControlMap

private

This variable will probably go away when we add the bundle results object because it will be under: BundleSolutionInfo BundleResults CorrelationMatrix.

Definition at line 349 of file Project.h.

Referenced by controlClosed(), Project(), and ~Project().

The documentation for this class was generated from the following files:

src/qisis/objs/Project/Project.h
src/qisis/objs/Project/Project.cpp

Classes

Public Slots

Signals

Public Member Functions

Static Public Member Functions

Private Slots

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
