View for editing a single ControlPoint. More...

#include <ControlPointEditView.h>

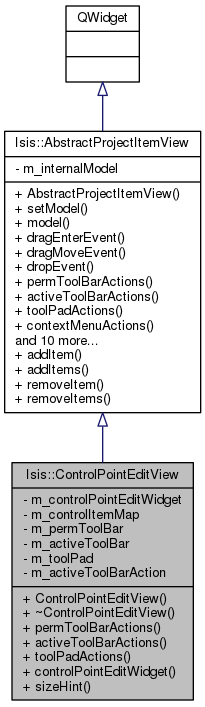

Inheritance diagram for Isis::ControlPointEditView:

Collaboration diagram for Isis::ControlPointEditView:

Public Slots
virtual void	addItem (ProjectItem *item)
	Adds an item to the view. More...

virtual void	addItems (QList< ProjectItem * > items)
	Adds several items to the view. More...

virtual void	removeItem (ProjectItem *item)
	Removes an item to the view. More...

virtual void	removeItems (QList< ProjectItem * > items)
	Removes several items from the view. More...

Public Member Functions
	ControlPointEditView (Directory directory, QWidget parent=0)
	Constructor. More...

	~ControlPointEditView ()
	Destructor. More...

virtual QList< QAction * >	permToolBarActions ()
	Returns a list of actions for the permanent tool bar. More...

virtual QList< QAction * >	activeToolBarActions ()
	Returns a list of actions for the active tool bar. More...

virtual QList< QAction * >	toolPadActions ()
	Returns a list of actions for the tool pad. More...

ControlPointEditWidget *	controlPointEditWidget () const
	Returns the ControlPointEditWidget. More...

QSize	sizeHint () const
	Returns the suggested size for the widget. More...

virtual void	setModel (ProjectItemModel *model)
	Sets the model used by the view. More...

virtual ProjectItemModel *	model ()
	Returns the model used by the view. More...

virtual void	dragEnterEvent (QDragEnterEvent *event)
	Accepts the drag enter event if the internal model can accept the mime data. More...

virtual void	dragMoveEvent (QDragMoveEvent *event)
	Accepts the drag event if the internal model can accept the mime data. More...

virtual void	dropEvent (QDropEvent *event)
	Drops the data into the internal model if it can accept the data. More...

virtual QList< QAction * >	contextMenuActions ()
	Returns a list of actions appropriate for a context menu. More...

virtual QList< QAction * >	fileMenuActions ()
	Returns a list of actions appropriate for a file menu. More...

virtual QList< QAction * >	projectMenuActions ()
	Returns a list of actions appropriate for a project menu. More...

virtual QList< QAction * >	editMenuActions ()
	Returns a list of actions appropriate for an edit menu. More...

virtual QList< QAction * >	viewMenuActions ()
	Returns a list of actions appropriate for a view menu. More...

virtual QList< QAction * >	settingsMenuActions ()
	Returns a list of actions appropriate for a settings menu. More...

virtual QList< QAction * >	helpMenuActions ()
	Returns a list of actions appropriate for a help menu. More...

virtual ProjectItem *	currentItem ()
	Returns the current item of the model. More...

virtual QList< ProjectItem * >	selectedItems ()
	Return the selected items of the model. More...

virtual ProjectItemModel *	internalModel ()
	Returns the internal model of the view. More...

virtual void	setInternalModel (ProjectItemModel *model)
	Sets the internal model of the view. More...

Private Attributes
ControlPointEditWidget *	m_controlPointEditWidget

QMap< Control , ProjectItem >	m_controlItemMap
	Maps control net to project item. More...

QToolBar *	m_permToolBar
	The permanent tool bar. More...

QToolBar *	m_activeToolBar
	The active tool bar. More...

ToolPad *	m_toolPad
	The tool pad. More...

QWidgetAction *	m_activeToolBarAction
	Stores the active tool bar. More...

Detailed Description

View for editing a single ControlPoint.

Author: 2016-04-06 Tracie Sucharski

History:: 2016-09-30 Tracie Sucharski - Pass in directory to constructor, so that we can query for shapes and other data from the project.

Definition at line 48 of file ControlPointEditView.h.

Constructor & Destructor Documentation

Isis::ControlPointEditView::ControlPointEditView	(	Directory *	directory,
		QWidget *	parent = `0`
	)

Constructor.

Definition at line 46 of file ControlPointEditView.cpp.

References m_activeToolBar, m_activeToolBarAction, m_permToolBar, and m_toolPad.

Isis::ControlPointEditView::~ControlPointEditView ( )

Destructor.

Definition at line 97 of file ControlPointEditView.cpp.

References m_activeToolBar, m_permToolBar, and m_toolPad.

Member Function Documentation

QList< QAction * > Isis::ControlPointEditView::activeToolBarActions ( )

virtual

Returns a list of actions for the active tool bar.

Returns: (QList<QAction *>) The actions

Reimplemented from Isis::AbstractProjectItemView.

Definition at line 144 of file ControlPointEditView.cpp.

References m_activeToolBarAction.

void Isis::AbstractProjectItemView::addItem ( ProjectItem * item )

virtualslotinherited

Adds an item to the view.

The item must be part of the view's model. This method can be overriden in a subclass to filter out unneeded items.

Parameters

[in] item (ProjectItem *) The item to add.

Definition at line 273 of file AbstractProjectItemView.cpp.

References Isis::AbstractProjectItemView::internalModel().

Referenced by Isis::CubeDnView::addItem(), and Isis::AbstractProjectItemView::addItems().

void Isis::AbstractProjectItemView::addItems ( QList< ProjectItem * > items )

virtualslotinherited

Adds several items to the view.

The items must be a part of the view's model.

Parameters

[in] items (QList<ProjectItem *>) The items to add.

Definition at line 287 of file AbstractProjectItemView.cpp.

References Isis::AbstractProjectItemView::addItem().

Referenced by Isis::CubeDnViewWorkOrder::syncRedo(), and Isis::Footprint2DViewWorkOrder::syncRedo().

QList< QAction * > Isis::AbstractProjectItemView::contextMenuActions ( )

virtualinherited

Returns a list of actions appropriate for a context menu.

Returns: QList<QAction *> The actions

Definition at line 181 of file AbstractProjectItemView.cpp.

ControlPointEditWidget * Isis::ControlPointEditView::controlPointEditWidget ( ) const

Returns the ControlPointEditWidget.

Returns: (ControlPointEditWidget *) The ControlPointEditWidget used to display the footprints.

Definition at line 114 of file ControlPointEditView.cpp.

ProjectItem * Isis::AbstractProjectItemView::currentItem ( )

virtualinherited

Returns the current item of the model.

Returns: ProjectItem * The item

Definition at line 251 of file AbstractProjectItemView.cpp.

References Isis::ProjectItemModel::currentItem(), and Isis::AbstractProjectItemView::model().

void Isis::AbstractProjectItemView::dragEnterEvent ( QDragEnterEvent * event )

virtualinherited

Accepts the drag enter event if the internal model can accept the mime data.

Parameters

[in] event (QDragEnterEvent *) The drag event

Definition at line 106 of file AbstractProjectItemView.cpp.

References Isis::AbstractProjectItemView::internalModel().

Referenced by Isis::Footprint2DView::eventFilter().

void Isis::AbstractProjectItemView::dragMoveEvent ( QDragMoveEvent * event )

virtualinherited

Accepts the drag event if the internal model can accept the mime data.

Parameters

[in] event (QDragMoveEvent *) The drag event

Definition at line 121 of file AbstractProjectItemView.cpp.

References Isis::AbstractProjectItemView::internalModel().

Referenced by Isis::Footprint2DView::eventFilter().

void Isis::AbstractProjectItemView::dropEvent ( QDropEvent * event )

virtualinherited

Drops the data into the internal model if it can accept the data.

Parameters

[in] event (QDropEvent *) The drop event

Definition at line 135 of file AbstractProjectItemView.cpp.

References Isis::AbstractProjectItemView::internalModel().

Referenced by Isis::Footprint2DView::eventFilter().

QList< QAction * > Isis::AbstractProjectItemView::editMenuActions ( )

virtualinherited

Returns a list of actions appropriate for an edit menu.

Returns: QList<QAction *> The actions

Reimplemented in Isis::CubeDnView.

Definition at line 211 of file AbstractProjectItemView.cpp.

QList< QAction * > Isis::AbstractProjectItemView::fileMenuActions ( )

virtualinherited

Returns a list of actions appropriate for a file menu.

Returns: QList<QAction *> The actions

Reimplemented in Isis::CubeDnView.

Definition at line 191 of file AbstractProjectItemView.cpp.

QList< QAction * > Isis::AbstractProjectItemView::helpMenuActions ( )

virtualinherited

Returns a list of actions appropriate for a help menu.

Returns: QList<QAction *> The actions

Reimplemented in Isis::CubeDnView.

Definition at line 241 of file AbstractProjectItemView.cpp.

ProjectItemModel * Isis::AbstractProjectItemView::internalModel ( )

virtualinherited

Returns the internal model of the view.

By default it is a proxy model.

Returns: ProjectItemModel * The internal model

Definition at line 95 of file AbstractProjectItemView.cpp.

References Isis::AbstractProjectItemView::m_internalModel.

Referenced by Isis::AbstractProjectItemView::addItem(), Isis::CubeDnView::CubeDnView(), Isis::AbstractProjectItemView::dragEnterEvent(), Isis::AbstractProjectItemView::dragMoveEvent(), Isis::AbstractProjectItemView::dropEvent(), Isis::Footprint2DView::Footprint2DView(), Isis::AbstractProjectItemView::model(), Isis::CubeDnView::onCubeViewportActivated(), Isis::CubeDnView::onCubeViewportDeleted(), Isis::CubeDnView::onCurrentChanged(), Isis::Footprint2DView::onQueueSelectionChanged(), Isis::ProjectItemTreeView::ProjectItemTreeView(), Isis::AbstractProjectItemView::removeItem(), Isis::ProjectItemTreeView::setInternalModel(), and Isis::AbstractProjectItemView::setModel().

ProjectItemModel * Isis::AbstractProjectItemView::model ( )

virtualinherited

Returns the model used by the view.

If the internal model is a proxy model, it returns the source model.

Returns: ProjectItemModel * The model.

Definition at line 70 of file AbstractProjectItemView.cpp.

References Isis::AbstractProjectItemView::internalModel().

Referenced by Isis::AbstractProjectItemView::currentItem(), Isis::AbstractProjectItemView::selectedItems(), and Isis::AbstractProjectItemView::setInternalModel().

QList< QAction * > Isis::ControlPointEditView::permToolBarActions ( )

virtual

Returns a list of actions for the permanent tool bar.

Returns: (QList<QAction *>) The actions

Reimplemented from Isis::AbstractProjectItemView.

Definition at line 134 of file ControlPointEditView.cpp.

References m_permToolBar.

QList< QAction * > Isis::AbstractProjectItemView::projectMenuActions ( )

virtualinherited

Returns a list of actions appropriate for a project menu.

Returns: QList<QAction *> The actions

Reimplemented in Isis::CubeDnView.

Definition at line 201 of file AbstractProjectItemView.cpp.

void Isis::AbstractProjectItemView::removeItem ( ProjectItem * item )

virtualslotinherited

Removes an item to the view.

The item must be part of the view's model. This method can be overriden in a subclass to filter out unneeded items.

Parameters

[in] item (ProjectItem *) The item to remove.

Definition at line 301 of file AbstractProjectItemView.cpp.

References Isis::AbstractProjectItemView::internalModel().

Referenced by Isis::AbstractProjectItemView::removeItems().

void Isis::AbstractProjectItemView::removeItems ( QList< ProjectItem * > items )

virtualslotinherited

Removes several items from the view.

The items must be a part of the view's model.

Parameters

[in] items (QList<ProjectItem *>) The items to remove.

Definition at line 316 of file AbstractProjectItemView.cpp.

References Isis::AbstractProjectItemView::removeItem().

QList< ProjectItem * > Isis::AbstractProjectItemView::selectedItems ( )

virtualinherited

Return the selected items of the model.

Returns: QList<ProjectItem *> The items

Definition at line 261 of file AbstractProjectItemView.cpp.

References Isis::AbstractProjectItemView::model(), and Isis::ProjectItemModel::selectedItems().

void Isis::AbstractProjectItemView::setInternalModel ( ProjectItemModel * model )

virtualinherited

Sets the internal model of the view.

Parameters

[in] model (ProjectItemModel *) The new internal model

Reimplemented in Isis::ProjectItemTreeView.

Definition at line 84 of file AbstractProjectItemView.cpp.

References Isis::AbstractProjectItemView::m_internalModel, and Isis::AbstractProjectItemView::model().

Referenced by Isis::ProjectItemTreeView::setInternalModel().

void Isis::AbstractProjectItemView::setModel ( ProjectItemModel * model )

virtualinherited

Sets the model used by the view.

If the internal model is a proxy model, it sets the source model.

Parameters

[in] model (ProjectItemModel *) The new model

Definition at line 56 of file AbstractProjectItemView.cpp.

References Isis::AbstractProjectItemView::internalModel().

Referenced by Isis::Directory::addCubeDnView(), Isis::Directory::addFootprint2DView(), and Isis::Directory::addProjectItemTreeView().

QList< QAction * > Isis::AbstractProjectItemView::settingsMenuActions ( )

virtualinherited

Returns a list of actions appropriate for a settings menu.

Returns: QList<QAction *> The actions

Reimplemented in Isis::CubeDnView.

Definition at line 231 of file AbstractProjectItemView.cpp.

QSize Isis::ControlPointEditView::sizeHint ( ) const

Returns the suggested size for the widget.

Returns: (QSize) The size

Definition at line 124 of file ControlPointEditView.cpp.

QList< QAction * > Isis::ControlPointEditView::toolPadActions ( )

virtual

Returns a list of actions for the tool pad.

Returns: (QList<QAction *>) The actions

Reimplemented from Isis::AbstractProjectItemView.

Definition at line 156 of file ControlPointEditView.cpp.

References m_toolPad.

QList< QAction * > Isis::AbstractProjectItemView::viewMenuActions ( )

virtualinherited

Returns a list of actions appropriate for a view menu.

Returns: QList<QAction *> The actions

Reimplemented in Isis::CubeDnView.

Definition at line 221 of file AbstractProjectItemView.cpp.

Member Data Documentation

QToolBar* Isis::ControlPointEditView::m_activeToolBar

private

The active tool bar.

Definition at line 76 of file ControlPointEditView.h.

Referenced by ControlPointEditView(), and ~ControlPointEditView().

QWidgetAction* Isis::ControlPointEditView::m_activeToolBarAction

private

Stores the active tool bar.

Definition at line 79 of file ControlPointEditView.h.

Referenced by activeToolBarActions(), and ControlPointEditView().

QMap<Control *, ProjectItem *> Isis::ControlPointEditView::m_controlItemMap

private

Maps control net to project item.

Definition at line 73 of file ControlPointEditView.h.

QToolBar* Isis::ControlPointEditView::m_permToolBar

private

The permanent tool bar.

Definition at line 75 of file ControlPointEditView.h.

Referenced by ControlPointEditView(), permToolBarActions(), and ~ControlPointEditView().

ToolPad* Isis::ControlPointEditView::m_toolPad

private

The tool pad.

Definition at line 77 of file ControlPointEditView.h.

Referenced by ControlPointEditView(), toolPadActions(), and ~ControlPointEditView().

The documentation for this class was generated from the following files:

src/qisis/objs/ControlPointEditView/ControlPointEditView.h
src/qisis/objs/ControlPointEditView/ControlPointEditView.cpp

Public Slots

Public Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
