Isis::ProjectItemModel Class Reference

Provides access to data stored in a Project through Qt's model-view framework. More...

#include <ProjectItemModel.h>

Inheritance diagram for Isis::ProjectItemModel:
Inheritance graph

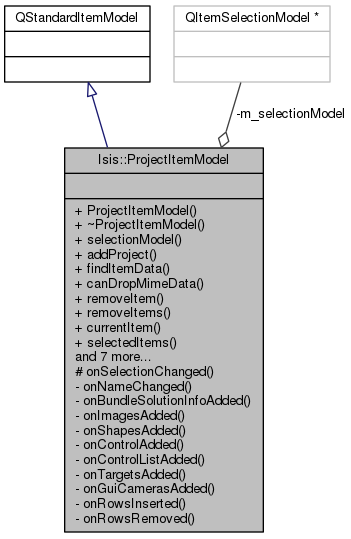

Collaboration diagram for Isis::ProjectItemModel:
Collaboration graph

Signals

void itemAdded (ProjectItem *)
 This signal is emitted when a ProjectItem is added to the model. More...

void itemRemoved (ProjectItem *)


Public Member Functions

 ProjectItemModel (QObject *parent=0)
 Constructs an empty model. More...

 ~ProjectItemModel ()
 Destructs the model. More...

QItemSelectionModel * selectionModel ()
 Returns the internal selection model. More...

ProjectItemaddProject (Project *project)
 Adds a Project to the model. More...

ProjectItemfindItemData (const QVariant &data, int role=Qt::UserRole+1)
 Returns the first item found that contains the given data in the given role or a null pointer if no item is found. More...

virtual bool canDropMimeData (const QMimeData *data, Qt::DropAction action, int row, int column, const QModelIndex &parent) const
 You cannot drop mime data into the ProjectItemModel. More...

virtual void removeItem (ProjectItem *item)
 Removes an item and its children from the model. More...

virtual void removeItems (QList< ProjectItem * > items)
 Removes a list of items and their children from the model. More...

ProjectItemcurrentItem ()
 Returns the current item of the internal selection model. More...

QList< ProjectItem * > selectedItems ()
 Returns a list of the selected items of the internal selection model. More...

void appendRow (ProjectItem *item)
 Appends a top-level item to the model. More...

QModelIndex indexFromItem (const ProjectItem *item)
 Returns the QModelIndex corresponding to a given ProjectItem. More...

void insertRow (int row, ProjectItem *item)
 Inserts a top-level item at the given row. More...

ProjectItemitem (int row)
 Returns the top-level item at the given row. More...

ProjectItemitemFromIndex (const QModelIndex &index)
 Returns the ProjectItem corresponding to a given QModelIndex. More...

void setItem (int row, ProjectItem *item)
 Sets the item at the top-level row. More...

ProjectItemtakeItem (int row)
 Removes the top-level row and returns the removed item. More...


Protected Slots

void onSelectionChanged (const QItemSelection &selected, const QItemSelection &deselected)
 Slot to connect to the selectionChanged() signal from a selection model. More...


Private Slots

void onNameChanged (QString newName)
 Slot to connect to the nameChanged() signal from a Project. More...

void onBundleSolutionInfoAdded (BundleSolutionInfo *bundleSolutionInfo)
 Slot to connect to the bundleSolutionInfoAdded() signal from a project. More...

void onImagesAdded (ImageList *images)
 Slot to connect to the imagesAdded() signal from a Project. More...

void onShapesAdded (ShapeList *shapes)
 Slot to connect to the shapesAdded() signal from a Project. More...

void onControlAdded (Control *control)
 Slot to connect to the controlAdded() signal from a project. More...

void onControlListAdded (ControlList *controlList)
 Slot to connect to the controlListAdded() signal from a Project. More...

void onTargetsAdded (TargetBodyList *targets)
 Slot to connect to the targetsAdded() signal from a Project. More...

void onGuiCamerasAdded (GuiCameraList *cameras)
 Slot to connect to the guiCamerasAdded() signal from a Project. More...

void onRowsInserted (const QModelIndex &parent, int start, int end)
 Slot to connect to the rowsInserted() signal from QAbstractItemModel. More...

void onRowsRemoved (const QModelIndex &parent, int start, int end)
 Slot to connect to the rowsAboutToBeRemoved() signal from QAbstractItemModel. More...


Private Attributes

QItemSelectionModel * m_selectionModel
 The internal selection model. More...


Detailed Description

Provides access to data stored in a Project through Qt's model-view framework.

Items corresponding to data are organized in a tree structure. Data can be accessed through a ProjectItem or through a QModelIndex. Views associated with the model can access it either through the model directly or through a ProjectItemProxyModel.

Top-level items can be accessed through the item() method using the row where the item is stored. Children of items can be accessed through the child() method on the parent item. The data stored in an item can be accessed as a QVariant using the data() method of the item or through the various convenience methods in ProjectItem. Alternatively, the data in an item can be accessed with its corresponding QModelIndex and the model's data() method. It should be noted that the data() method in the model and the data() method of ProjectItem require a Qt::ItemDataRole interpreted as an int. Data stored in the model that correspond to Isis classes are stored as Qt::UserRole + 1.

Top-level items should be added to the model using the appendRow() or the insertRow() method. To add child items to a parent item the appendRow() or insertRow() methods of the parent item should be used.

The model keeps track of selected items and the current item using an internal QItemSelectionModel.

Views that only need access to a subset of the items or the items organized in a different way should use a ProjectItemProxyModel.

* Image *image = new Image("example.cub");
* ProjectItem *item = new ProjectItem(image);
* model->appendRow(item);
*
Author
2015-10-21 Jeffrey Covington
History:

2015-10-21 Jeffrey Covington - Original version.

2016-01-13 Jeffrey Covington - Added canDropMimeData() method.

2016-06-27 Ian Humphrey - Added documentation to canDropMimeData(), checked coding standards. Fixes #4006.

2016-07-18 Tracie Sucharski - Added Project Item slots for adding shape models.

2016-08-25 Adam Paquette - Updated documentation. Fixes #4299.

Definition at line 94 of file ProjectItemModel.h.

Constructor & Destructor Documentation

Isis::ProjectItemModel::ProjectItemModel ( QObject parent = 0)

Constructs an empty model.

Parameters
[in]parent(QObject *) The parent.

Definition at line 51 of file ProjectItemModel.cpp.

References m_selectionModel, onRowsInserted(), onRowsRemoved(), and onSelectionChanged().

Isis::ProjectItemModel::~ProjectItemModel ( )

Destructs the model.

Definition at line 69 of file ProjectItemModel.cpp.

Member Function Documentation

ProjectItem * Isis::ProjectItemModel::addProject ( Project project)

Adds a Project to the model.

An item is created that corresponds to the Project as well as children items that correspond to various parts of the Project.

Parameters
[in]project(Project *) The Project to be added.
Returns
ProjectItem* The new item that corresponds to the Project.

Definition at line 114 of file ProjectItemModel.cpp.

References appendRow(), onBundleSolutionInfoAdded(), onControlAdded(), onControlListAdded(), onGuiCamerasAdded(), onImagesAdded(), onNameChanged(), onShapesAdded(), and onTargetsAdded().

void Isis::ProjectItemModel::appendRow ( ProjectItem item)

Appends a top-level item to the model.

Parameters
[in]item(ProjectItem *) The item to append.

Definition at line 230 of file ProjectItemModel.cpp.

Referenced by Isis::ProjectItemProxyModel::addChild(), and addProject().

bool Isis::ProjectItemModel::canDropMimeData ( const QMimeData *  data,
Qt::DropAction  action,
int  row,
int  column,
const QModelIndex &  parent
) const
virtual

You cannot drop mime data into the ProjectItemModel.

See Also
ProjectItemProxyModel
Parameters
data(const QMimeData *) The data to drop
action(Qt::DropAction) The drop action
row(int) ???
column(int) ???
parent(const QModelIndex &) The index of the data's parent
Returns
bool False

Reimplemented in Isis::ProjectItemProxyModel.

Definition at line 87 of file ProjectItemModel.cpp.

ProjectItem * Isis::ProjectItemModel::currentItem ( )

Returns the current item of the internal selection model.

Returns
ProjectItem* The current item.

Definition at line 144 of file ProjectItemModel.cpp.

References itemFromIndex(), and selectionModel().

Referenced by Isis::AbstractProjectItemView::currentItem(), and Isis::RemoveImagesWorkOrder::syncRedo().

ProjectItem * Isis::ProjectItemModel::findItemData ( const QVariant &  data,
int  role = Qt::UserRole+1
)

Returns the first item found that contains the given data in the given role or a null pointer if no item is found.

Parameters
data(const QVariant &) The data contained in the item.
data(int) The role of the data (see Qt::ItemDataRole).
Returns
ProjectItem* First project item found.

Definition at line 176 of file ProjectItemModel.cpp.

References Isis::ProjectItem::findItemData(), and item().

QModelIndex Isis::ProjectItemModel::indexFromItem ( const ProjectItem item)

Returns the QModelIndex corresponding to a given ProjectItem.

Parameters
[in]item(const ProjectItem *) The item.
Returns
QModelIndex The index of the item.

Definition at line 242 of file ProjectItemModel.cpp.

void Isis::ProjectItemModel::insertRow ( int  row,
ProjectItem item
)

Inserts a top-level item at the given row.

Parameters
[in]row(int) The row where the item will be inserted.
[in]item(ProjectItem *) The item to insert.

Definition at line 253 of file ProjectItemModel.cpp.

ProjectItem * Isis::ProjectItemModel::item ( int  row)

Returns the top-level item at the given row.

Parameters
[in]row(int) The row of the item.
Returns
ProjectItem* The item at the row.

Definition at line 265 of file ProjectItemModel.cpp.

Referenced by Isis::ProjectItemProxyModel::addItems(), findItemData(), onBundleSolutionInfoAdded(), onControlAdded(), onControlListAdded(), onGuiCamerasAdded(), onImagesAdded(), onNameChanged(), onRowsInserted(), onRowsRemoved(), onSelectionChanged(), onShapesAdded(), onTargetsAdded(), and removeItems().

void Isis::ProjectItemModel::itemAdded ( ProjectItem )
signal

This signal is emitted when a ProjectItem is added to the model.

Referenced by onRowsInserted().

ProjectItem * Isis::ProjectItemModel::itemFromIndex ( const QModelIndex &  index)

Returns the ProjectItem corresponding to a given QModelIndex.

Parameters
[in]index(const QModelIndex &) The index of the item.
Returns
ProjectItem* The item.

Definition at line 277 of file ProjectItemModel.cpp.

Referenced by currentItem(), Isis::ProjectItemProxyModel::mapIndexFromSource(), Isis::ProjectItemProxyModel::mapIndexToSource(), Isis::CubeDnView::onCurrentChanged(), onRowsInserted(), onRowsRemoved(), onSelectionChanged(), and selectedItems().

void Isis::ProjectItemModel::onBundleSolutionInfoAdded ( BundleSolutionInfo bundleSolutionInfo)
privateslot

Slot to connect to the bundleSolutionInfoAdded() signal from a project.

Adds a ProjectItem that corresponds to the BundleSolutionInfo to the model. The item is added to the item named "Results" of the item that corresponds to the Project that sent the signal.

Parameters
[in]bundleSolutionInfo(BundleSolutionInfo *) The BundleSolutionInfo added to the Project.

Definition at line 343 of file ProjectItemModel.cpp.

References Isis::ProjectItem::appendRow(), Isis::ProjectItem::child(), item(), and Isis::ProjectItem::project().

Referenced by addProject().

void Isis::ProjectItemModel::onControlAdded ( Control control)
privateslot

Slot to connect to the controlAdded() signal from a project.

Adds a ProjectItem that corresponds to the Control to the model. The item is added to the item that corresponds to the control's ControlList.

Parameters
[in]control(Control *) The Control added to the Project.

Definition at line 372 of file ProjectItemModel.cpp.

References Isis::ProjectItem::appendRow(), Isis::ProjectItem::child(), Isis::ProjectItem::controlList(), item(), and Isis::ProjectItem::project().

Referenced by addProject().

void Isis::ProjectItemModel::onControlListAdded ( ControlList controlList)
privateslot

Slot to connect to the controlListAdded() signal from a Project.

Adds a ProjectItem that corresponds to the ControlList to the model. The item is added to the item named "Control Networks" of the item that corresponds to the Project that sent the signal.

Parameters
[in]controlList(ControlList *) The ControlList added to the Project.

Definition at line 410 of file ProjectItemModel.cpp.

References Isis::ProjectItem::appendRow(), Isis::ProjectItem::child(), item(), and Isis::ProjectItem::project().

Referenced by addProject().

void Isis::ProjectItemModel::onGuiCamerasAdded ( GuiCameraList cameras)
privateslot

Slot to connect to the guiCamerasAdded() signal from a Project.

Adds items that correspond to the cameras to the model. The items are added to the item named "Sensors" of the item that corresponds to the Project that sent the signal.

Parameters
[in]cameras(GuiCameraList *) The GuiCameraList of the Project.

Definition at line 537 of file ProjectItemModel.cpp.

References Isis::ProjectItem::appendRow(), Isis::ProjectItem::child(), Isis::ProjectItem::guiCamera(), item(), and Isis::ProjectItem::project().

Referenced by addProject().

void Isis::ProjectItemModel::onImagesAdded ( ImageList imageList)
privateslot

Slot to connect to the imagesAdded() signal from a Project.

Adds a ProjectItem that corresponds to the ImageList to the model. The item is added to the item named "Images" of the item that corresponds to the Project that sent the signal.

Parameters
[in]imageList(ImageList *) The ImageList added to the Project.

Definition at line 439 of file ProjectItemModel.cpp.

References Isis::ProjectItem::appendRow(), Isis::ProjectItem::child(), item(), and Isis::ProjectItem::project().

Referenced by addProject().

void Isis::ProjectItemModel::onNameChanged ( QString  newName)
privateslot

Slot to connect to the nameChanged() signal from a Project.

Sets the name of the ProjectItem that corresponds with the Project.

Parameters
[in]newName(QString) The new name of the project

Definition at line 317 of file ProjectItemModel.cpp.

References item(), and Isis::ProjectItem::project().

Referenced by addProject().

void Isis::ProjectItemModel::onRowsInserted ( const QModelIndex &  parent,
int  start,
int  end
)
privateslot

Slot to connect to the rowsInserted() signal from QAbstractItemModel.

Emits a corresponding itemAdded() signal for each row inserted.

Parameters
[in]parent(const QModelIndex &) The parent index where rows were inserted.
[in]start(int) The first row inserted (inclusive).
[in]end(int) The last row inserted (inclusive).

Definition at line 615 of file ProjectItemModel.cpp.

References item(), itemAdded(), and itemFromIndex().

Referenced by ProjectItemModel().

void Isis::ProjectItemModel::onRowsRemoved ( const QModelIndex &  parent,
int  start,
int  end
)
privateslot

Slot to connect to the rowsAboutToBeRemoved() signal from QAbstractItemModel.

Emits a corresponding itemRemoved() signal for each row inserted.

Parameters
[in]parent(const QModelIndex &) The parent index where rows are to be removed.
[in]start(int) The first row to be removed (inclusive).
[in]end(int) The last row to be removed (inclusive).

Definition at line 633 of file ProjectItemModel.cpp.

References item(), and itemFromIndex().

Referenced by ProjectItemModel().

void Isis::ProjectItemModel::onSelectionChanged ( const QItemSelection &  selected,
const QItemSelection &  deselected
)
protectedslot

Slot to connect to the selectionChanged() signal from a selection model.

Updates other factors in the model that rely on selected items but do not directly correspond with the selection model. Currently changes the selected property of Images that correspond with selected or deselected items.

Parameters
[in]selected(const QItemSelection &) The selected items.
[in]deselected(const QItemSelection &) The deselected items.

Definition at line 579 of file ProjectItemModel.cpp.

References Isis::Image::displayProperties(), Isis::ProjectItem::image(), Isis::ProjectItem::isImage(), item(), itemFromIndex(), selectedItems(), and Isis::ImageDisplayProperties::setSelected().

Referenced by ProjectItemModel().

void Isis::ProjectItemModel::onShapesAdded ( ShapeList shapes)
privateslot

Slot to connect to the shapesAdded() signal from a Project.

Adds a ProjectItem that corresponds to the ShapeList to the model. The item is added to the item named "Shape Models" of the item that corresponds to the Project that sent the signal.

Parameters
[in]shapes(ShapeList *) The ShapeList added to the Project.

Definition at line 469 of file ProjectItemModel.cpp.

References Isis::ProjectItem::appendRow(), Isis::ProjectItem::child(), item(), and Isis::ProjectItem::project().

Referenced by addProject().

void Isis::ProjectItemModel::onTargetsAdded ( TargetBodyList targets)
privateslot

Slot to connect to the targetsAdded() signal from a Project.

Adds items that correspond to the target bodies to the model. The items are added to the item named "Target Body" of the item that corresponds to the Project that sent the signal.

Parameters
[in]targets(TargetBodyList *) The TargetBodyList of the Project.

Definition at line 497 of file ProjectItemModel.cpp.

References Isis::ProjectItem::appendRow(), Isis::ProjectItem::child(), item(), Isis::ProjectItem::project(), and Isis::ProjectItem::targetBody().

Referenced by addProject().

void Isis::ProjectItemModel::removeItem ( ProjectItem item)
virtual

Removes an item and its children from the model.

Parameters
[in]item(ProjectItem *) The item to be removed.

Reimplemented in Isis::ProjectItemProxyModel.

Definition at line 197 of file ProjectItemModel.cpp.

References Isis::ProjectItem::parent().

Referenced by Isis::ProjectItemProxyModel::removeItem(), removeItems(), and Isis::RemoveImagesWorkOrder::syncRedo().

void Isis::ProjectItemModel::removeItems ( QList< ProjectItem * >  items)
virtual

Removes a list of items and their children from the model.

Parameters
[in]item(ProjectItem *) The items to be removed.

Definition at line 218 of file ProjectItemModel.cpp.

References item(), and removeItem().

QList< ProjectItem * > Isis::ProjectItemModel::selectedItems ( )

Returns a list of the selected items of the internal selection model.

Returns
QList<ProjectItem*> The list of selected items.

Definition at line 154 of file ProjectItemModel.cpp.

References itemFromIndex(), and selectionModel().

Referenced by Isis::ProjectItemProxyModel::dropMimeData(), onSelectionChanged(), Isis::AbstractProjectItemView::selectedItems(), Isis::CubeDnViewWorkOrder::syncRedo(), and Isis::Footprint2DViewWorkOrder::syncRedo().

void Isis::ProjectItemModel::setItem ( int  row,
ProjectItem item
)

Sets the item at the top-level row.

Parameters
[in]row(int) The row where the item will be set.
[in]item(ProjectItem *) The item to set the row to.

Definition at line 288 of file ProjectItemModel.cpp.

ProjectItem * Isis::ProjectItemModel::takeItem ( int  row)

Removes the top-level row and returns the removed item.

Parameters
[in]row(int) The row of the item to remove.
Returns
ProjectItem* The removed item.

Definition at line 300 of file ProjectItemModel.cpp.

Member Data Documentation

QItemSelectionModel* Isis::ProjectItemModel::m_selectionModel
private

The internal selection model.

Definition at line 150 of file ProjectItemModel.h.

Referenced by ProjectItemModel(), and selectionModel().


The documentation for this class was generated from the following files:

U.S. Department of the Interior | U.S. Geological Survey
ISIS | Privacy & Disclaimers | Astrogeology Research Program
To contact us, please post comments and questions on the ISIS Support Center
File Modified: 07/13/2023 00:08:46
