Convert between undistorted focal plane and ground coordinates. More...

#include <VimsSkyMap.h>

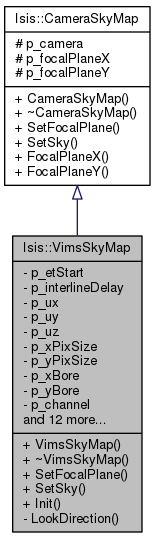

Inheritance diagram for Isis::VimsSkyMap:

Collaboration diagram for Isis::VimsSkyMap:

Public Member Functions
	VimsSkyMap (Camera *parent, Pvl &lab)
	Constructs the VimsSkyMap object. More...

virtual	~VimsSkyMap ()
	Destroys the VimsSkyMap object. More...

virtual bool	SetFocalPlane (const double ux, const double uy, const double uz)
	Compute ground position from focal plane coordinate. More...

virtual bool	SetSky (const double ra, const double dec)
	Sets the sky position to the given ra and dec. More...

void	Init (Pvl &lab)
	Initialize vims sky model. More...

double	FocalPlaneX () const
	Return undistorted focal plane x. More...

double	FocalPlaneY () const
	Return undistorted focal plane y. More...

Protected Attributes
Camera *	p_camera

double	p_focalPlaneX

double	p_focalPlaneY

Private Member Functions
void	LookDirection (double v[3])
	Determines the look direction in the camera coordinate system. More...

Private Attributes
SpiceDouble	p_etStart
	Start ephemeris time. More...

double	p_interlineDelay
	InterlineDelayDuration keyword value from the instrument group of the labels, divided by 1000. More...

double	p_ux
	Distorted focal plane x, in millimeters. More...

double	p_uy
	Distorted focal plane y, in millimeters. More...

double	p_uz
	Distorted focal plane z, in millimeters. More...

double	p_xPixSize
	X pixel size. More...

double	p_yPixSize
	Y pixel size. More...

double	p_xBore
	X boresight. More...

double	p_yBore
	Y boresight. More...

QString	p_channel
	Channel keyword value from the instrument group of the labels. More...

double	p_visExp
	VIS exposure duration, divided by 1000. More...

double	p_irExp
	IR exposure duration, divided by 1000. More...

int	p_swathWidth
	SwathWidth keyword value from the instrument group of the labels. More...

int	p_swathLength
	SwathLength keyword value from the instrument group of the labels. More...

int	p_camSampOffset
	Sample offset. More...

int	p_camLineOffset
	Line offset. More...

double	p_minRa
	Minimum right ascension. More...

double	p_maxRa
	Maximum right ascension. More...

double	p_minDec
	Minimum declination. More...

double	p_maxDec
	Maximum declination. More...

double	p_raMap [64][64]
	Right ascension map. More...

double	p_decMap [64][64]
	Declination map. More...

Detailed Description

Convert between undistorted focal plane and ground coordinates.

This base class is used to convert between undistorted focal plane coordinates (x/y) in millimeters and ground coordinates lat/lon. This class handles the case of framing cameras.

See Also: Camera; VimsCamera

Author: 2006-04-05 Tracie Sucharski

History:

2006-04-05 Tracie Sucharski - Original version

2009-04-06 Steven Lambright - Fixed problem that caused double deletion of sky map / ground map.

2011-02-09 Steven Lambright - Major changes to camera classes.

2011-05-03 Jeannie Walldren - Updated documentation. Removed Cassini namespace wrap inside Isis namespace.

2012-07-06 Debbie A. Cook, Updated Spice members to be more compliant with Isis coding standards. References #972.

2013-11-18 Tracie Sucharski - Added LookDirection method to calculate unit vectors so that old unit vector files are no longer needed.

2016-08-28 Kelvin Rodriguez - Removed unused member variables to squash warnings in clang. Part of porting to OS X 10.11

Definition at line 60 of file VimsSkyMap.h.

Constructor & Destructor Documentation

Isis::VimsSkyMap::VimsSkyMap	(	Camera *	parent,
		Pvl &	lab
	)

Constructs the VimsSkyMap object.

Parameters

parent	A pointer to the parent Camera object
lab	Pvl labels for the image

Definition at line 48 of file VimsSkyMap.cpp.

virtual Isis::VimsSkyMap::~VimsSkyMap ( )

inlinevirtual

Destroys the VimsSkyMap object.

Definition at line 65 of file VimsSkyMap.h.

Member Function Documentation

double Isis::CameraSkyMap::FocalPlaneX ( ) const

inlineinherited

Return undistorted focal plane x.

Definition at line 60 of file CameraSkyMap.h.

Referenced by Isis::Camera::SetRightAscensionDeclination().

double Isis::CameraSkyMap::FocalPlaneY ( ) const

inlineinherited

Return undistorted focal plane y.

Definition at line 65 of file CameraSkyMap.h.

Referenced by Isis::Camera::SetRightAscensionDeclination().

void Isis::VimsSkyMap::Init ( Pvl & lab )

Initialize vims sky model.

Parameters

[in] lab (Pvl &) Cube Pvl label

Exceptions

iException::Io	- "Cannot process NYQUIST(undersampled) mode "
iException::Io	- "Can't open unit vector file"

History:

2007-04-16 Tracie Sucharski - Look for unit vectors in the proper directory.

2007-04-18 Tracie Sucharski, The inaccuracy of the 15 Mhz clock (exposure , interline_delay) is already taken care of in the labels values, so remove the adjustment from the code (exp * 1.01725). *Reference: email from John Ivens 11/27/2006.

Definition at line 69 of file VimsSkyMap.cpp.

References _FILEINFO_, Isis::Sensor::Declination(), Isis::iTime::Et(), Isis::PvlObject::findGroup(), Isis::Spice::getClockTime(), Isis::Camera::IgnoreProjection(), p_camLineOffset, p_camSampOffset, p_channel, p_decMap, p_etStart, p_interlineDelay, p_irExp, p_maxDec, p_maxRa, p_minDec, p_minRa, p_raMap, p_swathLength, p_swathWidth, p_visExp, p_xBore, p_xPixSize, p_yBore, p_yPixSize, Isis::Camera::ParentLines(), Isis::Camera::ParentSamples(), Isis::IException::Programmer, Isis::Sensor::RightAscension(), Isis::Camera::SetImage(), Isis::Sensor::setTime(), Isis::toDouble(), and Isis::PvlObject::Traverse.

void Isis::VimsSkyMap::LookDirection ( double v[3] )

private

Determines the look direction in the camera coordinate system.

Parameters

[out] v Look direction vector in camera coordinates

This method will compute the look direction vector in the camera coordinate system. This code was converted from Rick McCloskey's point_tbl c code.

History:

2008-01-03 Tracie Sucharski - Converted Rick'scode rather than using the unitVector files from Rick.

2013-11-18 Tracie Sucharski - Added this method to VimsSkyMap,so that old unitVector files are no longer needed.

Definition at line 383 of file VimsSkyMap.cpp.

References Isis::HALFPI(), p_camLineOffset, p_camSampOffset, p_ux, p_uy, p_xBore, p_xPixSize, p_yBore, and p_yPixSize.

Referenced by SetFocalPlane().

bool Isis::VimsSkyMap::SetFocalPlane	(	const double	ux,
		const double	uy,
		const double	uz
	)

virtual

Compute ground position from focal plane coordinate.

This method will compute the ground position given an undistorted focal plane coordinate. Note that the latitude/longitude value can be obtained from the camera class passed into the constructor.

Parameters

ux	distorted focal plane x in millimeters
uy	distorted focal plane y in millimeters
uz	distorted focal plane z in millimeters

Returns: conversion was successful

Reimplemented from Isis::CameraSkyMap.

Definition at line 212 of file VimsSkyMap.cpp.

References LookDirection(), p_channel, p_etStart, p_interlineDelay, p_irExp, p_swathWidth, p_ux, p_uy, p_uz, p_visExp, Isis::Camera::ParentLines(), Isis::Camera::ParentSamples(), Isis::Sensor::SetLookDirection(), and Isis::Sensor::setTime().

bool Isis::VimsSkyMap::SetSky	(	const double	ra,
		const double	dec
	)

virtual

Sets the sky position to the given ra and dec.

Parameters

ra	the right ascension
dec	the declination

Returns: set sky was successful

Reimplemented from Isis::CameraSkyMap.

Definition at line 258 of file VimsSkyMap.cpp.

References Isis::LeastSquares::AddKnown(), Isis::LeastSquares::Evaluate(), Isis::Camera::IgnoreProjection(), Isis::LeastSquares::Knowns(), p_decMap, p_maxDec, p_maxRa, p_raMap, Isis::Camera::ParentLines(), Isis::Camera::ParentSamples(), Isis::Camera::SetImage(), and Isis::LeastSquares::Solve().

Member Data Documentation

int Isis::VimsSkyMap::p_camLineOffset

private

Line offset.

Definition at line 101 of file VimsSkyMap.h.

Referenced by Init(), and LookDirection().

int Isis::VimsSkyMap::p_camSampOffset

private

Sample offset.

Definition at line 100 of file VimsSkyMap.h.

Referenced by Init(), and LookDirection().

QString Isis::VimsSkyMap::p_channel

private

Channel keyword value from the instrument group of the labels.

Possible values are IR or VIS

Definition at line 92 of file VimsSkyMap.h.

Referenced by Init(), and SetFocalPlane().

double Isis::VimsSkyMap::p_decMap[64][64]

private

Declination map.

Definition at line 108 of file VimsSkyMap.h.

Referenced by Init(), and SetSky().

SpiceDouble Isis::VimsSkyMap::p_etStart

private

Start ephemeris time.

Definition at line 79 of file VimsSkyMap.h.

Referenced by Init(), and SetFocalPlane().

double Isis::VimsSkyMap::p_interlineDelay

private

InterlineDelayDuration keyword value from the instrument group of the labels, divided by 1000.

Definition at line 81 of file VimsSkyMap.h.

Referenced by Init(), and SetFocalPlane().

double Isis::VimsSkyMap::p_irExp

private

IR exposure duration, divided by 1000.

Definition at line 95 of file VimsSkyMap.h.

Referenced by Init(), and SetFocalPlane().

double Isis::VimsSkyMap::p_maxDec

private

Maximum declination.

Definition at line 106 of file VimsSkyMap.h.

Referenced by Init(), and SetSky().

double Isis::VimsSkyMap::p_maxRa

private

Maximum right ascension.

Definition at line 104 of file VimsSkyMap.h.

Referenced by Init(), and SetSky().

double Isis::VimsSkyMap::p_minDec

private

Minimum declination.

Definition at line 105 of file VimsSkyMap.h.

Referenced by Init().

double Isis::VimsSkyMap::p_minRa

private

Minimum right ascension.

Definition at line 103 of file VimsSkyMap.h.

Referenced by Init().

double Isis::VimsSkyMap::p_raMap[64][64]

private

Right ascension map.

Definition at line 107 of file VimsSkyMap.h.

Referenced by Init(), and SetSky().

int Isis::VimsSkyMap::p_swathLength

private

SwathLength keyword value from the instrument group of the labels.

This will be image size unless occultation image

Definition at line 98 of file VimsSkyMap.h.

Referenced by Init().

int Isis::VimsSkyMap::p_swathWidth

private

SwathWidth keyword value from the instrument group of the labels.

This will be image size unless occultation image

Definition at line 96 of file VimsSkyMap.h.

Referenced by Init(), and SetFocalPlane().

double Isis::VimsSkyMap::p_ux

private

Distorted focal plane x, in millimeters.

Definition at line 83 of file VimsSkyMap.h.

Referenced by LookDirection(), and SetFocalPlane().

double Isis::VimsSkyMap::p_uy

private

Distorted focal plane y, in millimeters.

Definition at line 84 of file VimsSkyMap.h.

Referenced by LookDirection(), and SetFocalPlane().

double Isis::VimsSkyMap::p_uz

private

Distorted focal plane z, in millimeters.

Definition at line 85 of file VimsSkyMap.h.

Referenced by SetFocalPlane().

double Isis::VimsSkyMap::p_visExp

private

VIS exposure duration, divided by 1000.

Definition at line 94 of file VimsSkyMap.h.

Referenced by Init(), and SetFocalPlane().

double Isis::VimsSkyMap::p_xBore

private

X boresight.

Definition at line 89 of file VimsSkyMap.h.

Referenced by Init(), and LookDirection().

double Isis::VimsSkyMap::p_xPixSize

private

X pixel size.

Definition at line 87 of file VimsSkyMap.h.

Referenced by Init(), and LookDirection().

double Isis::VimsSkyMap::p_yBore

private

Y boresight.

Definition at line 90 of file VimsSkyMap.h.

Referenced by Init(), and LookDirection().

double Isis::VimsSkyMap::p_yPixSize

private

Y pixel size.

Definition at line 88 of file VimsSkyMap.h.

Referenced by Init(), and LookDirection().

The documentation for this class was generated from the following files:

src/cassini/objs/VimsCamera/VimsSkyMap.h
src/cassini/objs/VimsCamera/VimsSkyMap.cpp
