Create cube polygons, read/write polygons to blobs. More...

#include <ImagePolygon.h>

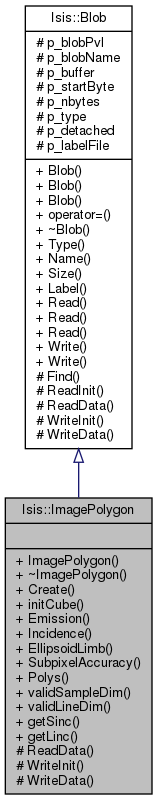

Inheritance diagram for Isis::ImagePolygon:

Collaboration diagram for Isis::ImagePolygon:

Public Member Functions
	ImagePolygon ()
	Constructs a Polygon object, setting the polygon name. More...

	~ImagePolygon ()
	Destroys the Polygon object. More...

void	Create (Cube &cube, int sinc=1, int linc=1, int ss=1, int sl=1, int ns=0, int nl=0, int band=1, bool increasePrecision=false)
	Create a Polygon from given cube. More...

Camera *	initCube (Cube &cube, int ss=1, int sl=1, int ns=0, int nl=0, int band=1)
	Create a Polygon from given cube. More...

void	Emission (double emission)
	Set the maximum emission angle ( light refleted to camera ) More...

void	Incidence (double incidence)
	Set the maximum incidence angle ( light contacting the planet ) More...

void	EllipsoidLimb (bool ellip)
	If a limb is detected, use un ellipsoid shape model if true. More...

void	SubpixelAccuracy (int div)
	The subpixel accuracy to use. More...

geos::geom::MultiPolygon *	Polys ()
	Return a geos Multipolygon. More...

double	validSampleDim ()
	Retuns the maximum valid sample width of the cube set with either initCube() or Create() More...

double	validLineDim ()
	Retuns the maximum valid line width of the cube set with either initCube() or Create() More...

int	getSinc () const
	Return the sample increment used the create this polygon. More...

int	getLinc () const
	Return the line increment used the create this polygon. More...

QString	Type () const
	Accessor method that returns a string containing the Blob type. More...

QString	Name () const
	Accessor method that returns a string containing the Blob name. More...

int	Size () const
	Accessor method that returns the number of bytes in the blob data. More...

PvlObject &	Label ()
	Accessor method that returns a PvlObject containing the Blob label. More...

void	Read (const QString &file)
	This method reads Pvl values from a specified file. More...

void	Read (const QString &file, const Pvl &pvlLabels)
	This method reads the given a file and labels. More...

virtual void	Read (const Pvl &pvl, std::istream &is)
	This method reads the Blob data from an open input file stream. More...

void	Write (const QString &file)
	Write the blob data out to a file. More...

void	Write (Pvl &pvl, std::fstream &stm, const QString &detachedFileName="")
	Write the blob data out to a Pvl object. More...

Protected Member Functions
void	ReadData (std::istream &is)
	Reads Multipolygon from cube blob. More...

void	WriteInit ()
	Initializes for writing polygon to cube blob. More...

void	WriteData (std::fstream &os)
	Writes polygon to cube blob. More...

void	Find (const Pvl &pvl)
	This method searches the given Pvl for the Blob by the Blob's type and name. More...

virtual void	ReadInit ()
	This virtual method for classes that inherit Blob. More...

Protected Attributes
PvlObject	p_blobPvl
	Pvl Blob object. More...

QString	p_blobName
	Name of the Blob object. More...

char *	p_buffer
	Buffer blob data is stored in. More...

BigInt	p_startByte
	Byte blob data starts at in buffer. More...

int	p_nbytes
	Size of blob data (in bytes) More...

QString	p_type
	Type of data stored in the buffer. More...

QString	p_detached
	Used for reading detached blobs. More...

QString	p_labelFile
	The file containing the labels. More...

Detailed Description

Create cube polygons, read/write polygons to blobs.

This class creates polygons defining an image boundary, reads the polygon from a cube blob, and writes a polygon to a cube blob. The GEOS (Geometry Engine Open Source) package is used to create and manipulate the polygons. See http://geos.refractions.net for information about this package.

Author: 2005-11-22 Tracie Sucharski

Constructor & Destructor Documentation

◆ ImagePolygon()

Isis::ImagePolygon::ImagePolygon ( )

Constructs a Polygon object, setting the polygon name.

◆ ~ImagePolygon()

Isis::ImagePolygon::~ImagePolygon ( )

Destroys the Polygon object.

Member Function Documentation

◆ Create()

void Isis::ImagePolygon::Create	(	Cube &	cube,
		int	sinc = `1`,
		int	linc = `1`,
		int	ss = `1`,
		int	sl = `1`,
		int	ns = `0`,
		int	nl = `0`,
		int	band = `1`,
		bool	increasePrecision = `false`
	)

Create a Polygon from given cube.

Parameters

[in]	cube	(Cube &) Cube used to create polygon
[in]	sinc	(Default=1) (in) Pixel increment to define the granularity of the resulting polygon in the sample direction
[in]	linc	(Default=1) (in) Pixel increment to define the granularity of the resulting polygon in the line direction
[in]	ss	(Default=1) (in) Starting sample number
[in]	sl	(Default=1) (in) Starting Line number
[in]	ns	(Default=0) (in) Number of samples used to create the polygon. Default of 0 will cause ns to be set to the number of samples in the cube.
[in]	nl	(Default=0) (in) Number of lines used to create the polygon. Default of 0 will cause nl to be set to the number of lines in the cube.
[in]	band	(Default=1) (in) Image band number
	increasePrecision	Iteratively refine sinc and linc (defaults to false)

History:

2008-04-28 Tracie Sucharski, When calculating p_pixInc, set to 1 if values calculated is 0.

2008-12-30 Tracie Sucharski - If ground map returns pole make sure it is actually on the image.

2009-05-28 Stuart Sides - Added the quality argument.

References _FILEINFO_, Isis::Camera::BasicMapping(), Isis::UniversalGroundMap::Camera(), Isis::Cube::fileName(), Isis::Sensor::IgnoreElevationModel(), initCube(), Isis::IException::print(), and Isis::IException::User.

◆ EllipsoidLimb()

void Isis::ImagePolygon::EllipsoidLimb ( bool ellip )

inline

If a limb is detected, use un ellipsoid shape model if true.

If false, use the default (spiceinit defined) shape model.

Parameters

ellip True to use ellipsoid on limb images

◆ Emission()

void Isis::ImagePolygon::Emission ( double emission )

inline

Set the maximum emission angle ( light refleted to camera )

Parameters

emission The maximum valid emission angle

◆ Find()

void Isis::Blob::Find ( const Pvl & pvl )

protectedinherited

This method searches the given Pvl for the Blob by the Blob's type and name.

If found, the start byte, number of bytes are read from the Pvl. Also, if a keyword label pointer is found, the filename for the detached blob is stored and the pointer is removed from the blob pvl.

Parameters

pvl	The Pvl to be searched

References _FILEINFO_, Isis::PvlContainer::isNamed(), Isis::PvlObject::object(), Isis::PvlObject::objects(), and Isis::FileName::path().

◆ getLinc()

int Isis::ImagePolygon::getLinc ( ) const

inline

Return the line increment used the create this polygon.

◆ getSinc()

int Isis::ImagePolygon::getSinc ( ) const

inline

Return the sample increment used the create this polygon.

◆ Incidence()

void Isis::ImagePolygon::Incidence ( double incidence )

inline

Set the maximum incidence angle ( light contacting the planet )

Parameters

incidence The maximum valid incidence angle

◆ initCube()

Camera * Isis::ImagePolygon::initCube	(	Cube &	cube,
		int	ss = `1`,
		int	sl = `1`,
		int	ns = `0`,
		int	nl = `0`,
		int	band = `1`
	)

Create a Polygon from given cube.

Parameters

[in]	cube	(Cube &) Cube used to create polygon
[in]	ss	(Default=1) (in) Starting sample number
[in]	sl	(Default=1) (in) Starting Line number
[in]	ns	(Default=0) (in) Number of samples used to create the polygon. Default of 0 will cause ns to be set to the number of samples in the cube.
[in]	nl	(Default=0) (in) Number of lines used to create the polygon. Default of 0 will cause nl to be set to the number of lines in the cube.
[in]	band	(Default=1) (in) Image band number

References _FILEINFO_, Isis::IException::append(), Isis::UniversalGroundMap::Camera(), Isis::Cube::camera(), Isis::Cube::fileName(), Isis::Camera::HasProjection(), Isis::Sensor::IgnoreElevationModel(), Isis::Cube::lineCount(), Isis::Cube::pixelType(), Isis::Cube::projection(), Isis::Cube::sampleCount(), Isis::UniversalGroundMap::SetBand(), and Isis::IException::User.

Referenced by Create().

◆ Label()

PvlObject & Isis::Blob::Label ( )

inherited

Accessor method that returns a PvlObject containing the Blob label.

Returns: PvlObject The label of the blob.

Referenced by Isis::SpiceRotation::CacheLabel(), Isis::SpicePosition::LoadCache(), and Isis::SpiceRotation::LoadCache().

◆ Name()

QString Isis::Blob::Name ( ) const

inherited

Accessor method that returns a string containing the Blob name.

Returns: string The name of the blob.

Referenced by Isis::Shape::isFootprintable(), Isis::Image::isFootprintable(), Isis::SpicePosition::LoadCache(), and Isis::Cube::write().

◆ Polys()

geos::geom::MultiPolygon* Isis::ImagePolygon::Polys ( )

inline

Return a geos Multipolygon.

Referenced by Isis::ImageOverlapSet::FindImageOverlaps(), and Isis::UniversalGroundMap::GroundRange().

◆ Read() [1/3]

void Isis::Blob::Read ( const QString & file )

inherited

This method reads Pvl values from a specified file.

Parameters

file	The filename to read from.

Exceptions

iException::Io	- Unable to open file
iException::Pvl	- Invalid label format

References _FILEINFO_, and Isis::Pvl::read().

Referenced by Isis::History::History(), Isis::OriginalLabel::OriginalLabel(), Isis::OriginalXmlLabel::OriginalXmlLabel(), Isis::History::Read(), Isis::Cube::read(), and Isis::Table::Table().

◆ Read() [2/3]

void Isis::Blob::Read	(	const QString &	file,
		const Pvl &	pvlLabels
	)

inherited

This method reads the given a file and labels.

Parameters

file	The filename to read from.
pvlLabels	A Pvl containing the label information.

Exceptions

iException::Io - Unable to open file

References _FILEINFO_, and Isis::Message::FileOpen().

◆ Read() [3/3]

void Isis::Blob::Read	(	const Pvl &	pvl,
		std::istream &	istm
	)

virtualinherited

This method reads the Blob data from an open input file stream.

Parameters

pvl	A Pvl containing the label information.
istm	The input file stream containing the blob data to be read.

Exceptions

iException::Io - Unable to open file

Reimplemented in Isis::History.

References _FILEINFO_, and Isis::Message::FileOpen().

◆ ReadData()

void Isis::ImagePolygon::ReadData ( std::istream & is )

protectedvirtual

Reads Multipolygon from cube blob.

Parameters

[in] is (std::fstream) Input stream to read from

throws Isis::IException::Io - Error reading data from stream

Reimplemented from Isis::Blob.

References _FILEINFO_, Isis::globalFactory, Isis::IException::Io, Isis::PolygonTools::MakeMultiPolygon(), Isis::Blob::p_blobName, Isis::Blob::p_nbytes, Isis::Blob::p_startByte, and Isis::Blob::p_type.

◆ ReadInit()

void Isis::Blob::ReadInit ( )

protectedvirtualinherited

This virtual method for classes that inherit Blob.

It is not defined in the Blob class.

Reimplemented in Isis::Table.

◆ Size()

int Isis::Blob::Size ( ) const

inherited

Accessor method that returns the number of bytes in the blob data.

Returns: int Number of bytes in the blob data.

◆ SubpixelAccuracy()

void Isis::ImagePolygon::SubpixelAccuracy ( int div )

inline

The subpixel accuracy to use.

This accuracy is the number of binary steps to take to find the subpixel accuracy. A higher number provided gives more accurate results at the cost of runtime.

ImagePolygon's constructor sets a default value of 50

Parameters

div	The subpixel accuracy to use

◆ Type()

QString Isis::Blob::Type ( ) const

inherited

Accessor method that returns a string containing the Blob type.

Returns: string Type of blob.

Referenced by Isis::Shape::isFootprintable(), Isis::Image::isFootprintable(), and Isis::Cube::write().

◆ validLineDim()

double Isis::ImagePolygon::validLineDim ( )

Retuns the maximum valid line width of the cube set with either initCube() or Create()

◆ validSampleDim()

double Isis::ImagePolygon::validSampleDim ( )

Retuns the maximum valid sample width of the cube set with either initCube() or Create()

◆ Write() [1/2]

void Isis::Blob::Write ( const QString & file )

inherited

Write the blob data out to a file.

Parameters

file	The filename to write to.

Exceptions

IException::Io	- Unable to open file
IException::Io	- Error preparing to write data to file
IException::Io	- Error creating file

References _FILEINFO_, Isis::PvlObject::addObject(), Isis::PvlObject::findObject(), Isis::toString(), and Isis::Pvl::write().

Referenced by Isis::Cube::write().

◆ Write() [2/2]

void Isis::Blob::Write	(	Pvl &	pvl,
		std::fstream &	stm,
		const QString &	detachedFileName = `""`
	)

inherited

Write the blob data out to a Pvl object.

Parameters

pvl	The pvl object to update
stm	stream to write data to
detachedFileName	If the stream is detached from the labels give the name of the file

References Isis::PvlObject::addObject(), Isis::PvlContainer::name(), Isis::PvlObject::object(), Isis::PvlObject::objects(), and Isis::toString().

◆ WriteData()

void Isis::ImagePolygon::WriteData ( std::fstream & os )

protectedvirtual

Writes polygon to cube blob.

Parameters

[in] os (std::fstream &) Output steam blob data will be written to

Exceptions

Isis::iException::Io - Error writing data to stream

Reimplemented from Isis::Blob.

References Isis::Blob::p_nbytes.

◆ WriteInit()

void Isis::ImagePolygon::WriteInit ( )

protectedvirtual

Initializes for writing polygon to cube blob.

Reimplemented from Isis::Blob.

References _FILEINFO_, Isis::Blob::p_nbytes, and Isis::IException::Programmer.

Member Data Documentation

◆ p_blobName

QString Isis::Blob::p_blobName

protectedinherited

Name of the Blob object.

Referenced by Isis::Blob::Blob(), Isis::Table::operator+=(), Isis::Blob::operator=(), Isis::Table::ReadData(), and ReadData().

◆ p_blobPvl

PvlObject Isis::Blob::p_blobPvl

protectedinherited

Pvl Blob object.

Referenced by Isis::Blob::Blob(), Isis::Blob::operator=(), Isis::OriginalXmlLabel::OriginalXmlLabel(), Isis::Table::ReadInit(), Isis::Table::Table(), Isis::OriginalXmlLabel::WriteInit(), and Isis::Table::WriteInit().

◆ p_buffer

char* Isis::Blob::p_buffer

protectedinherited

Buffer blob data is stored in.

Referenced by Isis::Blob::Blob(), Isis::GisBlob::GisBlob(), Isis::Blob::operator=(), Isis::OriginalXmlLabel::ReadData(), Isis::History::ReturnHist(), Isis::OriginalLabel::ReturnLabels(), Isis::GisBlob::setPolygon(), Isis::History::WriteInit(), and Isis::OriginalLabel::WriteInit().

◆ p_detached

QString Isis::Blob::p_detached

protectedinherited

Used for reading detached blobs.

Referenced by Isis::Blob::Blob(), and Isis::Blob::operator=().

◆ p_labelFile

QString Isis::Blob::p_labelFile

protectedinherited

The file containing the labels.

Referenced by Isis::Blob::Blob(), and Isis::Blob::operator=().

◆ p_nbytes

int Isis::Blob::p_nbytes

protectedinherited

Size of blob data (in bytes)

Referenced by Isis::Blob::Blob(), Isis::GisBlob::GisBlob(), Isis::Blob::operator=(), Isis::OriginalXmlLabel::ReadData(), ReadData(), Isis::History::ReturnHist(), Isis::OriginalLabel::ReturnLabels(), Isis::GisBlob::setPolygon(), WriteData(), Isis::OriginalXmlLabel::WriteInit(), Isis::OriginalLabel::WriteInit(), Isis::History::WriteInit(), Isis::Table::WriteInit(), and WriteInit().

◆ p_startByte

BigInt Isis::Blob::p_startByte

protectedinherited

Byte blob data starts at in buffer.

Referenced by Isis::Blob::Blob(), Isis::Blob::operator=(), Isis::Table::ReadData(), and ReadData().

◆ p_type

QString Isis::Blob::p_type

protectedinherited

Type of data stored in the buffer.

Referenced by Isis::Blob::Blob(), Isis::Blob::operator=(), and ReadData().

The documentation for this class was generated from the following files:

/usgs/pkgs/isis3.9.0_docs/ISIS3/isis/src/base/objs/ImagePolygon/ImagePolygon.h
/usgs/pkgs/isis3.9.0_docs/ISIS3/isis/src/base/objs/ImagePolygon/ImagePolygon.cpp

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ ImagePolygon()

◆ ~ImagePolygon()

Member Function Documentation

◆ Create()

◆ EllipsoidLimb()

◆ Emission()

◆ Find()

◆ getLinc()

◆ getSinc()

◆ Incidence()

◆ initCube()

◆ Label()

◆ Name()

◆ Polys()

◆ Read() [1/3]

◆ Read() [2/3]

◆ Read() [3/3]

◆ ReadData()

◆ ReadInit()

◆ Size()

◆ SubpixelAccuracy()

◆ Type()

◆ validLineDim()

◆ validSampleDim()

◆ Write() [1/2]

◆ Write() [2/2]

◆ WriteData()

◆ WriteInit()

Member Data Documentation

◆ p_blobName

◆ p_blobPvl

◆ p_buffer

◆ p_detached

◆ p_labelFile

◆ p_nbytes

◆ p_startByte

◆ p_type
