A container class for statistical results from a BundleAdjust solution. More...

#include <BundleResults.h>

Inheritance diagram for Isis::BundleResults:

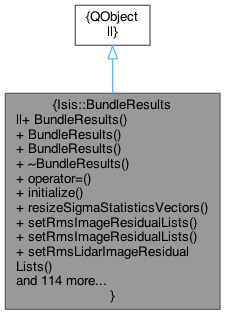

Collaboration diagram for Isis::BundleResults:

Public Member Functions
	BundleResults (QObject *parent=0)
	Constructs a BundleResults object. More...

	BundleResults (Project project, XmlStackedHandlerReader xmlReader, QObject *parent=0)
	Construct this BundleResults object from XML. More...

	BundleResults (const BundleResults &src)
	Copy constructor for BundleResults. More...

	~BundleResults ()
	Destroys this BundleResults object. More...

BundleResults &	operator= (const BundleResults &src)
	Assignment operator for BundleResults. More...

void	initialize ()
	Initializes the BundleResults to a default state where all numeric members are set to 0 or another default value, all QString members are set to empty, all QVectors and QLists are cleared, and all other members are set to NULL. More...

void	resizeSigmaStatisticsVectors (int numberImages)
	Resizes all image sigma vectors. More...

void	setRmsImageResidualLists (QList< Statistics > rmsImageLineResiduals, QList< Statistics > rmsImageSampleResiduals, QList< Statistics > rmsImageResiduals)
	Sets the root mean square image residual Statistics lists. More...

void	setRmsImageResidualLists (QVector< Statistics > rmsImageLineResiduals, QVector< Statistics > rmsImageSampleResiduals, QVector< Statistics > rmsImageResiduals)

void	setRmsLidarImageResidualLists (QList< Statistics > rmsLidarImageLineResiduals, QList< Statistics > rmsLidarImageSampleResiduals, QList< Statistics > rmsLidarImageResiduals)
	Sets the root mean square lidar image residual Statistics lists. More...

void	setSigmaCoord1Range (Distance minCoord1Dist, Distance maxCoord1Dist, QString minCoord1PointId, QString maxCoord1PointId)
	Sets the min and max sigma distances and point ids for coordinate 1. More...

void	setSigmaCoord2Range (Distance minCoord2Dist, Distance maxCoord2Dist, QString minCoord2PointId, QString maxCoord2PointId)
	Sets the min and max sigma distances and point ids for coordinate 2. More...

void	setSigmaCoord3Range (Distance minCoord3Dist, Distance maxCoord3Dist, QString minCoord3PointId, QString maxCoord3PointId)
	Sets the min and max sigma distances and point ids for coordinate 3. More...

void	setRmsFromSigmaStatistics (double rmsFromSigmaCoord1Stats, double rmsFromSigmaCoord2Stats, double rmsFromSigmaCoord3Stats)
	Sets the root mean square values of the adjusted sigmas for all three coordinates. More...

void	maximumLikelihoodSetUp (QList< QPair< MaximumLikelihoodWFunctions::Model, double > > modelsWithQuantiles)
	This method steps up the maximum likelihood estimation solution. More...

void	printMaximumLikelihoodTierInformation ()
	Prints out information about which tier the solution is in and the status of the residuals. More...

void	initializeResidualsProbabilityDistribution (unsigned int nodes=20)
	Initializes or resets the cumulative probability distribution of residuals used for reporting. More...

void	initializeProbabilityDistribution (unsigned int nodes=20)
	Initializes or resets the cumulative probability distribution of \|R^2 residuals\|. More...

void	addResidualsProbabilityDistributionObservation (double obsValue)
	Adds an observation to the cumulative probability distribution of residuals used for reporting. More...

void	addProbabilityDistributionObservation (double obsValue)
	Adds an observation to the cumulative probability distribution of \|R^2 residuals\|. More...

void	addProbabilityDistributionObservation (double obsValue, bool residuals)

void	incrementMaximumLikelihoodModelIndex ()
	Increases the value that indicates which stage the maximum likelihood adjustment is currently on. More...

void	incrementFixedPoints ()
	Increase the number of 'fixed' (ground) points. More...

int	numberFixedPoints () const
	Returns the number of 'fixed' (ground) points. More...

void	incrementHeldImages ()
	Increases the number of 'held' images. More...

int	numberHeldImages () const
	Returns the number of 'held' images. More...

void	incrementIgnoredPoints ()
	Increase the number of ignored points. More...

int	numberIgnoredPoints () const
	Returns the number of ignored points. More...

void	setRejectionLimit (double rejectionLimit)
	Sets the rejection limit. More...

void	setRmsXYResiduals (double rx, double ry, double rxy)
	Sets the root mean square of the x and y residuals. More...

void	setNumberRejectedObservations (int numberObservations)
	Sets the number of rejected observations. More...

void	setNumberImageObservations (int numberObservations)
	Sets the number of photogrammetric image observations. More...

void	setNumberLidarImageObservations (int numberLidarObservations)
	Sets the number of lidar observations. More...

void	setNumberObservations (int numberObservations)
	Sets the number of observations. More...

void	setNumberImageParameters (int numberParameters)
	Sets the number of image parameters. More...

void	setNumberConstrainedPointParameters (int numberParameters)
	Set number of contrained point parameters. More...

void	setNumberConstrainedLidarPointParameters (int numberParameters)
	Set number of contrained point parameters. More...

void	resetNumberConstrainedPointParameters ()
	Resets the number of contrained point parameters to 0. More...

void	incrementNumberConstrainedPointParameters (int incrementAmount)
	Increase the number of contrained point parameters. More...

void	resetNumberConstrainedImageParameters ()
	Resets the number of constrained image parameters to 0. More...

void	incrementNumberConstrainedImageParameters (int incrementAmount)
	Increase the number of constrained image parameters. More...

void	resetNumberConstrainedTargetParameters ()
	Resets the number of constrained target parameters to 0. More...

void	incrementNumberConstrainedTargetParameters (int incrementAmount)
	Increases the number of constrained target parameters. More...

void	setNumberLidarRangeConstraints (int numberLidarRangeConstraints)
	Sets the total number of lidar range constraints. More...

void	setNumberUnknownParameters (int numberParameters)
	Sets the total number of parameters to solve for. More...

void	computeDegreesOfFreedom ()
	Computes the degrees of freedom of the bundle adjustment and stores it internally. More...

void	computeSigma0 (double dvtpv, BundleSettings::ConvergenceCriteria criteria)
	Computes the sigma0 and stores it internally. More...

void	setDegreesOfFreedom (double degreesOfFreedom)
	Sets the degrees of freedom. More...

void	setSigma0 (double sigma0)
	Sets the sigma0. More...

void	setElapsedTime (double time)
	Sets the elapsed time for the bundle adjustment. More...

void	setElapsedTimeErrorProp (double time)
	Sets the elapsed time for error propegation. More...

void	setConverged (bool converged)
	Sets if the bundle adjustment converged. More...

void	setBundleControlPoints (QVector< BundleControlPointQsp > controlPoints)
	Sets the bundle control point vector. More...

void	setBundleLidarPoints (QVector< BundleLidarControlPointQsp > lidarPoints)
	Sets the bundle lidar point vector. More...

void	setOutputControlNet (ControlNetQsp outNet)
	Sets the output ControlNet. More...

void	setOutputLidarData (LidarDataQsp outLidarData)
	Sets the output LidarData object. More...

void	setIterations (int iterations)
	Sets the number of iterations taken by the BundleAdjust. More...

void	setObservations (BundleObservationVector observations)
	Sets the vector of BundleObservations. More...

QList< Statistics >	rmsImageSampleResiduals () const
	Returns the list of RMS image sample residuals statistics. More...

QList< Statistics >	rmsImageLineResiduals () const
	Returns the list of RMS image line residuals statistics. More...

QList< Statistics >	rmsImageResiduals () const
	Returns the list of RMS image residuals statistics. More...

QList< Statistics >	rmsLidarImageSampleResiduals () const
	Returns the list of RMS image lidar sample residuals statistics. More...

QList< Statistics >	rmsLidarImageLineResiduals () const
	Returns the list of RMS image lidar line residuals statistics. More...

QList< Statistics >	rmsLidarImageResiduals () const
	Returns the list of RMS image lidar residuals statistics. More...

QVector< Statistics >	rmsImageXSigmas () const
	Returns the list of RMS image x sigma statistics. More...

QVector< Statistics >	rmsImageYSigmas () const
	Returns the list of RMS image y sigma statistics. More...

QVector< Statistics >	rmsImageZSigmas () const
	Returns the list of RMS image z sigma statistics. More...

QVector< Statistics >	rmsImageRASigmas () const
	Returns the list of RMS image right ascension sigma statistics. More...

QVector< Statistics >	rmsImageDECSigmas () const
	Returns the list of RMS image declination sigma statistics. More...

QVector< Statistics >	rmsImageTWISTSigmas () const
	Returns the list of RMS image twist sigma statistics. More...

SurfacePoint::CoordinateType	coordTypeReports ()

Distance	minSigmaCoord1Distance () const
	Returns the minimum sigma distance for coordinate 1. More...

Distance	maxSigmaCoord1Distance () const
	Returns the maximum sigma distance for coordinate 1. More...

Distance	minSigmaCoord2Distance () const
	Returns the minimum sigma distance for coordinate 2. More...

Distance	maxSigmaCoord2Distance () const
	Returns the maximum sigma distance for coordinate 2. More...

Distance	minSigmaCoord3Distance () const
	Returns the minimum sigma distance for coordinate 3. More...

Distance	maxSigmaCoord3Distance () const
	Returns the maximum sigma distance for coordinate 3. More...

QString	maxSigmaCoord1PointId () const
	Returns the maximum sigma point id for coordinate 1. More...

QString	minSigmaCoord1PointId () const
	Returns the minimum sigma point id for coordinate 1. More...

QString	minSigmaCoord2PointId () const
	Returns the minimum sigma point id for coordinate 2. More...

QString	maxSigmaCoord2PointId () const
	Returns the maximum sigma point id for coordinate 2. More...

QString	minSigmaCoord3PointId () const
	Returns the minimum sigma point id for coordinate 3. More...

QString	maxSigmaCoord3PointId () const
	Returns the maximum sigma point id for coordinate 3. More...

double	sigmaCoord1StatisticsRms () const
	Returns the RMS of the adjusted sigmas for coordinate 1. More...

double	sigmaCoord2StatisticsRms () const
	Returns the RMS of the adjusted sigmas for coordinate 2. More...

double	sigmaCoord3StatisticsRms () const
	Returns the RMS of the adjusted sigmas for coordinate 3. More...

double	rmsRx () const
	Returns the RMS of the x residuals. More...

double	rmsRy () const
	Returns the RMS of the y residuals. More...

double	rmsRxy () const
	Returns the RMS of the x and y residuals. More...

double	rejectionLimit () const
	Returns the rejection limit. More...

int	numberRejectedObservations () const
	Returns the number of observation that were rejected. More...

int	numberObservations () const
	Returns the number of observations. More...

int	numberImageObservations () const
	Returns the number of observations. More...

int	numberLidarImageObservations () const
	Returns the number of lidar observations. More...

int	numberImageParameters () const
	Returns the total number of image parameters. More...

int	numberConstrainedPointParameters () const
	Returns the number of constrained point parameters. More...

int	numberConstrainedImageParameters () const
	Returns the number of constrained image parameters. More...

int	numberConstrainedTargetParameters () const
	Return the number of constrained target parameters. More...

int	numberLidarRangeConstraintEquations () const
	Return the number of lidar range constraint equations. More...

int	numberUnknownParameters () const
	Returns the number of unknown parameters. More...

int	degreesOfFreedom () const
	Returns the degrees of freedom. More...

double	sigma0 () const
	Returns the Sigma0 of the bundle adjustment. More...

double	elapsedTime () const
	Returns the elapsed time for the bundle adjustment. More...

double	elapsedTimeErrorProp () const
	Returns the elapsed time for error propagation. More...

bool	converged () const
	Returns whether or not the bundle adjustment converged. More...

QVector< BundleControlPointQsp > &	bundleControlPoints ()
	Returns a reference to the BundleControlPoint vector. More...

QVector< BundleLidarControlPointQsp > &	bundleLidarControlPoints ()
	Returns a reference to the BundleLidarControlPoint vector. More...

ControlNetQsp	outputControlNet () const
	Returns a shared pointer to the output control network. More...

LidarDataQsp	outputLidarData () const
	Returns a shared pointer to the output LidarData object. More...

int	iterations () const
	Returns the number of iterations taken by the BundleAdjust. More...

const BundleObservationVector &	observations () const
	Returns a reference to the observations used by the BundleAdjust. More...

int	numberMaximumLikelihoodModels () const
	Returns how many maximum likelihood models were used in the bundle adjustment. More...

int	maximumLikelihoodModelIndex () const
	Returns which step the bundle adjustment is on. More...

StatCumProbDistDynCalc	cumulativeProbabilityDistribution () const
	Returns the cumulative probability distribution of the \|R^2 residuals\|. More...

StatCumProbDistDynCalc	residualsCumulativeProbabilityDistribution () const
	Returns the cumulative probability distribution of the residuals used for reporting. More...

double	maximumLikelihoodMedianR2Residuals () const
	Returns the median of the \|R^2 residuals\|. More...

MaximumLikelihoodWFunctions	maximumLikelihoodModelWFunc (int modelIndex) const
	Returns the maximum likelihood model at the given index. More...

double	maximumLikelihoodModelQuantile (int modelIndex) const
	Returns the quantile of the maximum likelihood model at the given index. More...

QList< QPair< MaximumLikelihoodWFunctions, double > >	maximumLikelihoodModels () const

bool	setNumberHeldImages (SerialNumberList pHeldSnList, SerialNumberList *pSnList)

CorrelationMatrix	correlationMatrix () const
	Returns the Correlation Matrix. More...

void	setCorrMatCovFileName (FileName name)
	Set the covariance file name for the matrix used to calculate the correlation matrix. More...

void	setCorrMatImgsAndParams (QMap< QString, QStringList > imgsAndParams)
	Set the images and their associated parameters of the correlation matrix. More...

void	save (QXmlStreamWriter &stream, const Project *project) const
	Saves the BundleResults object to an XML file. More...

Detailed Description

A container class for statistical results from a BundleAdjust solution.

Author: 2014-07-01 Jeannie Backer

Constructor & Destructor Documentation

◆ BundleResults() [1/3]

Isis::BundleResults::BundleResults ( QObject * parent = 0 )

Constructs a BundleResults object.

Parameters

parent The Qt-relationship parent.

References initialize(), and initializeResidualsProbabilityDistribution().

◆ BundleResults() [2/3]

Isis::BundleResults::BundleResults	(	Project *	project,
		XmlStackedHandlerReader *	xmlReader,
		QObject *	parent = `0`
	)

Construct this BundleResults object from XML.

Parameters

bundleSettingsFolder	Where the settings XML for this bundle adjustment resides - /work/.../projectRoot/images/import1
xmlReader	An XML reader that's up to a <bundleSettings> tag.
parent	The Qt-relationship parent.

References initialize(), and Isis::XmlStackedHandlerReader::pushContentHandler().

◆ BundleResults() [3/3]

Isis::BundleResults::BundleResults ( const BundleResults & src )

Copy constructor for BundleResults.

Creates this BundleResults object as a copy of another BundleResults object.

Parameters

src	The other BundleResults object to be copied.

◆ ~BundleResults()

Isis::BundleResults::~BundleResults ( )

Destroys this BundleResults object.

Member Function Documentation

◆ addProbabilityDistributionObservation() [1/2]

void Isis::BundleResults::addProbabilityDistributionObservation ( double observationValue )

Adds an observation to the cumulative probability distribution of |R^2 residuals|.

Parameters

observationValue The value of the added observation.

References Isis::StatCumProbDistDynCalc::addObs().

◆ addProbabilityDistributionObservation() [2/2]

void Isis::BundleResults::addProbabilityDistributionObservation	(	double	obsValue,
		bool	residuals
	)

◆ addResidualsProbabilityDistributionObservation()

void Isis::BundleResults::addResidualsProbabilityDistributionObservation ( double observationValue )

Adds an observation to the cumulative probability distribution of residuals used for reporting.

Parameters

observationValue The value of the added observation.

References Isis::StatCumProbDistDynCalc::addObs().

◆ bundleControlPoints()

QVector< BundleControlPointQsp > & Isis::BundleResults::bundleControlPoints ( )

Returns a reference to the BundleControlPoint vector.

Returns: QVector<BundleControlPointQsp>& The BundleControlPoint vector.

Referenced by Isis::BundleSolutionInfo::outputPointsCSV(), Isis::BundleSolutionInfo::outputResiduals(), and Isis::BundleSolutionInfo::outputText().

◆ bundleLidarControlPoints()

QVector< BundleLidarControlPointQsp > & Isis::BundleResults::bundleLidarControlPoints ( )

Returns a reference to the BundleLidarControlPoint vector.

Returns: QVector<BundleLidarControlPointQsp>& The BundleLidarControlPoint vector.

Referenced by Isis::BundleSolutionInfo::outputLidarCSV(), Isis::BundleSolutionInfo::outputResiduals(), and Isis::BundleSolutionInfo::outputText().

◆ computeDegreesOfFreedom()

void Isis::BundleResults::computeDegreesOfFreedom ( )

Computes the degrees of freedom of the bundle adjustment and stores it internally.

Referenced by computeSigma0().

◆ computeSigma0()

void Isis::BundleResults::computeSigma0	(	double	dvtpv,
		BundleSettings::ConvergenceCriteria	criteria
	)

Computes the sigma0 and stores it internally.

Sigma0 is the standard deviation of an observation of unit weight. Sigma0^2 is the variance of an observation of unit weight (also reference variance or variance factor).

Sigma0^2 = vtpv/degrees of freedom.

Parameters

dvtpv	The weighted sum of the squares of the residuals. Computed by V transpose * P * V, where V is the vector of residuals and P is the weight matrix.
criteria	The convergence criteria for the bundle adjustment.

Exceptions

IException::Io "Computed degrees of freedom is invalid."

References _FILEINFO_, computeDegreesOfFreedom(), Isis::IException::Io, Isis::BundleSettings::ParameterCorrections, and Isis::toString().

Referenced by Isis::BundleAdjust::solveCholesky().

◆ converged()

bool Isis::BundleResults::converged ( ) const

Returns whether or not the bundle adjustment converged.

Returns: bool If the bundle adjustment converged.

Referenced by Isis::BundleAdjust::isConverged(), Isis::BundleSolutionInfo::outputImagesCSV(), Isis::BundleSolutionInfo::outputText(), save(), setConverged(), and Isis::BundleAdjust::solveCholesky().

◆ coordTypeReports()

SurfacePoint::CoordinateType Isis::BundleResults::coordTypeReports ( )

References Isis::SurfacePoint::Latitudinal, and outputControlNet().

◆ correlationMatrix()

CorrelationMatrix Isis::BundleResults::correlationMatrix ( ) const

Returns the Correlation Matrix.

Returns: CorrelationMatrix The correlation matrix.

Exceptions

IException::Unknown "Correlation matrix for this bundle is NULL."

References _FILEINFO_, and Isis::IException::Unknown.

Referenced by save(), setCorrMatCovFileName(), and setCorrMatImgsAndParams().

◆ cumulativeProbabilityDistribution()

StatCumProbDistDynCalc Isis::BundleResults::cumulativeProbabilityDistribution ( ) const

Returns the cumulative probability distribution of the |R^2 residuals|.

Returns: StatCumProbDistDynCalc The cumulative probability distribution of the |R^2 residuals|.

◆ degreesOfFreedom()

int Isis::BundleResults::degreesOfFreedom ( ) const

Returns the degrees of freedom.

Returns: int the degrees of freedom.

Referenced by Isis::BundleSolutionInfo::outputHeader(), save(), setDegreesOfFreedom(), and Isis::BundleAdjust::solveCholesky().

◆ elapsedTime()

double Isis::BundleResults::elapsedTime ( ) const

Returns the elapsed time for the bundle adjustment.

Returns: double The elapsed time for the bundle adjustment.

Referenced by Isis::BundleSolutionInfo::outputHeader(), and save().

◆ elapsedTimeErrorProp()

double Isis::BundleResults::elapsedTimeErrorProp ( ) const

Returns the elapsed time for error propagation.

Returns: double The elapsed time for error propagation.

Referenced by Isis::BundleSolutionInfo::outputHeader(), and save().

◆ incrementFixedPoints()

void Isis::BundleResults::incrementFixedPoints ( )

Increase the number of 'fixed' (ground) points.

◆ incrementHeldImages()

void Isis::BundleResults::incrementHeldImages ( )

Increases the number of 'held' images.

◆ incrementIgnoredPoints()

void Isis::BundleResults::incrementIgnoredPoints ( )

Increase the number of ignored points.

◆ incrementMaximumLikelihoodModelIndex()

void Isis::BundleResults::incrementMaximumLikelihoodModelIndex ( )

Increases the value that indicates which stage the maximum likelihood adjustment is currently on.

Referenced by Isis::BundleAdjust::solveCholesky().

◆ incrementNumberConstrainedImageParameters()

void Isis::BundleResults::incrementNumberConstrainedImageParameters ( int incrementAmount )

Increase the number of constrained image parameters.

Parameters

incrementAmount The amount to increase by.

◆ incrementNumberConstrainedPointParameters()

void Isis::BundleResults::incrementNumberConstrainedPointParameters ( int incrementAmount )

Increase the number of contrained point parameters.

Parameters

incrementAmount The amount to increase by.

◆ incrementNumberConstrainedTargetParameters()

void Isis::BundleResults::incrementNumberConstrainedTargetParameters ( int incrementAmount )

Increases the number of constrained target parameters.

Parameters

incrementAmount The amount to increase by.

◆ initialize()

void Isis::BundleResults::initialize ( )

Initializes the BundleResults to a default state where all numeric members are set to 0 or another default value, all QString members are set to empty, all QVectors and QLists are cleared, and all other members are set to NULL.

References Isis::Distance::setMeters().

Referenced by BundleResults().

◆ initializeProbabilityDistribution()

void Isis::BundleResults::initializeProbabilityDistribution ( unsigned int nodes = 20 )

Initializes or resets the cumulative probability distribution of |R^2 residuals|.

Parameters

nodes The number of quantiles in the cumulative probability distribution.

References Isis::StatCumProbDistDynCalc::setQuantiles().

Referenced by maximumLikelihoodSetUp(), and printMaximumLikelihoodTierInformation().

◆ initializeResidualsProbabilityDistribution()

void Isis::BundleResults::initializeResidualsProbabilityDistribution ( unsigned int nodes = 20 )

Initializes or resets the cumulative probability distribution of residuals used for reporting.

Parameters

nodes The number of quantiles in the cumulative probability distribution.

References Isis::StatCumProbDistDynCalc::setQuantiles().

Referenced by BundleResults(), maximumLikelihoodSetUp(), and Isis::BundleAdjust::solveCholesky().

◆ iterations()

int Isis::BundleResults::iterations ( ) const

Returns the number of iterations taken by the BundleAdjust.

Returns: int The number of iterations.

Referenced by Isis::BundleSolutionInfo::outputHeader(), save(), and setIterations().

◆ maximumLikelihoodMedianR2Residuals()

double Isis::BundleResults::maximumLikelihoodMedianR2Residuals ( ) const

Returns the median of the |R^2 residuals|.

Returns: double The median of the |R^2 residuals|.

Referenced by save().

◆ maximumLikelihoodModelIndex()

int Isis::BundleResults::maximumLikelihoodModelIndex ( ) const

Returns which step the bundle adjustment is on.

Returns: int The maximum likelihood model that the bundle adjustment is currently using.

Referenced by save(), and Isis::BundleAdjust::solveCholesky().

◆ maximumLikelihoodModelQuantile()

double Isis::BundleResults::maximumLikelihoodModelQuantile ( int modelIndex ) const

Returns the quantile of the maximum likelihood model at the given index.

Parameters

modelIndex The index of the maximum likelihood model whose quantile will be returned.

Returns: double The quantile of the desired maximum likelihood model.

Referenced by Isis::BundleSolutionInfo::outputHeader().

◆ maximumLikelihoodModels()

QList< QPair< MaximumLikelihoodWFunctions, double > > Isis::BundleResults::maximumLikelihoodModels ( ) const

◆ maximumLikelihoodModelWFunc()

MaximumLikelihoodWFunctions Isis::BundleResults::maximumLikelihoodModelWFunc ( int modelIndex ) const

Returns the maximum likelihood model at the given index.

Parameters

modelIndex The index of the maximum likelihood model to be returned.

Returns: MaximumLikelihoodWFunctions The maximum likelihood model at the input index.

Referenced by Isis::BundleSolutionInfo::outputHeader().

◆ maximumLikelihoodSetUp()

void Isis::BundleResults::maximumLikelihoodSetUp ( QList< QPair< MaximumLikelihoodWFunctions::Model, double > > modelsWithQuantiles )

This method steps up the maximum likelihood estimation solution.

Up to three successive solutions models are available.

Parameters

modelsWithQuantiles The maixmum likelihood models and their quantiles. If empty, then maximum likelihood estimation will not be used.

References initializeProbabilityDistribution(), and initializeResidualsProbabilityDistribution().

◆ maxSigmaCoord1Distance()

Distance Isis::BundleResults::maxSigmaCoord1Distance ( ) const

Returns the maximum sigma distance for coordinate 1.

Returns: Distance The maximum sigma Coord1.

Referenced by Isis::BundleSolutionInfo::outputText(), and save().

◆ maxSigmaCoord1PointId()

QString Isis::BundleResults::maxSigmaCoord1PointId ( ) const

Returns the maximum sigma point id for coordinate 1.

Returns: @QString The maximum sigma Coord1 point id.

Referenced by Isis::BundleSolutionInfo::outputText(), and save().

◆ maxSigmaCoord2Distance()

Distance Isis::BundleResults::maxSigmaCoord2Distance ( ) const

Returns the maximum sigma distance for coordinate 2.

Returns: Distance The maximum sigma Coord2.

Referenced by Isis::BundleSolutionInfo::outputText(), and save().

◆ maxSigmaCoord2PointId()

QString Isis::BundleResults::maxSigmaCoord2PointId ( ) const

Returns the maximum sigma point id for coordinate 2.

Returns: @QString The maximum sigma Coord2 point id.

Referenced by Isis::BundleSolutionInfo::outputText(), and save().

◆ maxSigmaCoord3Distance()

Distance Isis::BundleResults::maxSigmaCoord3Distance ( ) const

Returns the maximum sigma distance for coordinate 3.

Returns: Distance The maximum sigma Coord3.

Referenced by Isis::BundleSolutionInfo::outputText(), and save().

◆ maxSigmaCoord3PointId()

QString Isis::BundleResults::maxSigmaCoord3PointId ( ) const

Returns the maximum sigma point id for coordinate 3.

Returns: @QString The maximum sigma Coord3 point id.

Referenced by Isis::BundleSolutionInfo::outputText(), and save().

◆ minSigmaCoord1Distance()

Distance Isis::BundleResults::minSigmaCoord1Distance ( ) const

Returns the minimum sigma distance for coordinate 1.

Returns: Distance The minimum sigma for Coord1.

Referenced by Isis::BundleSolutionInfo::outputText(), and save().

◆ minSigmaCoord1PointId()

QString Isis::BundleResults::minSigmaCoord1PointId ( ) const

Returns the minimum sigma point id for coordinate 1.

Returns: @QString The minimum sigma Coord1 point id.

Referenced by Isis::BundleSolutionInfo::outputText(), and save().

◆ minSigmaCoord2Distance()

Distance Isis::BundleResults::minSigmaCoord2Distance ( ) const

Returns the minimum sigma distance for coordinate 2.

Returns: Distance The minimum sigma Coord2.

Referenced by Isis::BundleSolutionInfo::outputText(), and save().

◆ minSigmaCoord2PointId()

QString Isis::BundleResults::minSigmaCoord2PointId ( ) const

Returns the minimum sigma point id for coordinate 2.

Returns: @QString The minimum sigma longitude point id.

Referenced by Isis::BundleSolutionInfo::outputText(), and save().

◆ minSigmaCoord3Distance()

Distance Isis::BundleResults::minSigmaCoord3Distance ( ) const

Returns the minimum sigma distance for coordinate 3.

Returns: Distance The minimum sigma Coord3.

Referenced by Isis::BundleSolutionInfo::outputText(), and save().

◆ minSigmaCoord3PointId()

QString Isis::BundleResults::minSigmaCoord3PointId ( ) const

Returns the minimum sigma point id for coordinate 3.

Returns: @QString The minimum sigma Coord3 point id.

Referenced by Isis::BundleSolutionInfo::outputText(), and save().

◆ numberConstrainedImageParameters()

int Isis::BundleResults::numberConstrainedImageParameters ( ) const

Returns the number of constrained image parameters.

Returns: int The number of constrained image parameters.

Referenced by Isis::BundleSolutionInfo::outputHeader(), and save().

◆ numberConstrainedPointParameters()

int Isis::BundleResults::numberConstrainedPointParameters ( ) const

Returns the number of constrained point parameters.

Returns: int The number of constrained point parameters.

Referenced by Isis::BundleSolutionInfo::outputHeader(), save(), and Isis::BundleAdjust::solveCholesky().

◆ numberConstrainedTargetParameters()

int Isis::BundleResults::numberConstrainedTargetParameters ( ) const

Return the number of constrained target parameters.

Returns: int The number of constrained target parameters.

Referenced by Isis::BundleSolutionInfo::outputHeader(), and save().

◆ numberFixedPoints()

int Isis::BundleResults::numberFixedPoints ( ) const

Returns the number of 'fixed' (ground) points.

Returns: int The number of fixed points.

Referenced by save().

◆ numberHeldImages()

int Isis::BundleResults::numberHeldImages ( ) const

Returns the number of 'held' images.

Returns: int The number of held images.

Referenced by save().

◆ numberIgnoredPoints()

int Isis::BundleResults::numberIgnoredPoints ( ) const

Returns the number of ignored points.

Returns: int The number of ignored points.

Referenced by save().

◆ numberImageObservations()

int Isis::BundleResults::numberImageObservations ( ) const

Returns the number of observations.

Returns: int The number of observations.

Referenced by save().

◆ numberImageParameters()

int Isis::BundleResults::numberImageParameters ( ) const

Returns the total number of image parameters.

Returns: int The total number of image parameters.

Referenced by save().

◆ numberLidarImageObservations()

int Isis::BundleResults::numberLidarImageObservations ( ) const

Returns the number of lidar observations.

Returns: int The number of lidar observations.

Referenced by save().

◆ numberLidarRangeConstraintEquations()

int Isis::BundleResults::numberLidarRangeConstraintEquations ( ) const

Return the number of lidar range constraint equations.

Returns: int The number of lidar range constraint equations.

Referenced by Isis::BundleSolutionInfo::outputHeader(), and save().

◆ numberMaximumLikelihoodModels()

int Isis::BundleResults::numberMaximumLikelihoodModels ( ) const

Returns how many maximum likelihood models were used in the bundle adjustment.

Returns: int The number fo maximum likelihood models.

Referenced by printMaximumLikelihoodTierInformation(), save(), and Isis::BundleAdjust::solveCholesky().

◆ numberObservations()

int Isis::BundleResults::numberObservations ( ) const

Returns the number of observations.

Returns: int The number of observations.

Referenced by Isis::BundleSolutionInfo::outputHeader(), save(), setNumberImageObservations(), setNumberObservations(), and Isis::BundleAdjust::solveCholesky().

◆ numberRejectedObservations()

int Isis::BundleResults::numberRejectedObservations ( ) const

Returns the number of observation that were rejected.

Returns: int The number of rejected observations.

Referenced by Isis::BundleSolutionInfo::outputHeader(), save(), and setNumberRejectedObservations().

◆ numberUnknownParameters()

int Isis::BundleResults::numberUnknownParameters ( ) const

Returns the number of unknown parameters.

Returns: int The number of unknown parameters.

Referenced by Isis::BundleSolutionInfo::outputHeader(), save(), and Isis::BundleAdjust::solveCholesky().

◆ observations()

const BundleObservationVector & Isis::BundleResults::observations ( ) const

Returns a reference to the observations used by the BundleAdjust.

Returns: BundleObservationVector& A reference to the observation vector.

Referenced by Isis::BundleSolutionInfo::outputHeader(), Isis::BundleSolutionInfo::outputImagesCSV(), Isis::BundleSolutionInfo::outputText(), and setObservations().

◆ operator=()

BundleResults & Isis::BundleResults::operator= ( const BundleResults & src )

Assignment operator for BundleResults.

Overwrites this BundleResults object with another BundleResults object.

Parameters

src	The other BundleResults object to be copied from.

◆ outputControlNet()

ControlNetQsp Isis::BundleResults::outputControlNet ( ) const

Returns a shared pointer to the output control network.

Returns: ControlNetQsp A shared pointer to the output control network.

Exceptions

IException::Programmer "Output Control Network has not been set."

References _FILEINFO_, and Isis::IException::Programmer.

Referenced by coordTypeReports(), Isis::BundleSolutionInfo::outputHeader(), and save().

◆ outputLidarData()

LidarDataQsp Isis::BundleResults::outputLidarData ( ) const

Returns a shared pointer to the output LidarData object.

Returns: LidarDataQsp A shared pointer to the output LidarData object.

Exceptions

IException::Programmer "Output LidarData object has not been set."

Referenced by Isis::BundleSolutionInfo::outputHeader().

◆ printMaximumLikelihoodTierInformation()

void Isis::BundleResults::printMaximumLikelihoodTierInformation ( )

Prints out information about which tier the solution is in and the status of the residuals.

References initializeProbabilityDistribution(), numberMaximumLikelihoodModels(), and Isis::StatCumProbDistDynCalc::value().

Referenced by Isis::BundleAdjust::solveCholesky().

◆ rejectionLimit()

double Isis::BundleResults::rejectionLimit ( ) const

Returns the rejection limit.

Returns: double The rejection limit.

Referenced by save(), and setRejectionLimit().

◆ resetNumberConstrainedImageParameters()

void Isis::BundleResults::resetNumberConstrainedImageParameters ( )

Resets the number of constrained image parameters to 0.

◆ resetNumberConstrainedPointParameters()

void Isis::BundleResults::resetNumberConstrainedPointParameters ( )

Resets the number of contrained point parameters to 0.

◆ resetNumberConstrainedTargetParameters()

void Isis::BundleResults::resetNumberConstrainedTargetParameters ( )

Resets the number of constrained target parameters to 0.

◆ residualsCumulativeProbabilityDistribution()

StatCumProbDistDynCalc Isis::BundleResults::residualsCumulativeProbabilityDistribution ( ) const

Returns the cumulative probability distribution of the residuals used for reporting.

Returns: StatCumProbDistDynCalc the cumulative probability distribution of the residuals.

Referenced by Isis::BundleSolutionInfo::outputHeader().

◆ resizeSigmaStatisticsVectors()

void Isis::BundleResults::resizeSigmaStatisticsVectors ( int numberImages )

Resizes all image sigma vectors.

Parameters

numberImages The new size for the image sigma vectors.

◆ rmsImageDECSigmas()

QVector< Statistics > Isis::BundleResults::rmsImageDECSigmas ( ) const

Returns the list of RMS image declination sigma statistics.

Returns: QList<Statistics> The RMS image declination sigma statistics.

Referenced by save().

◆ rmsImageLineResiduals()

QList< Statistics > Isis::BundleResults::rmsImageLineResiduals ( ) const

Returns the list of RMS image line residuals statistics.

Returns: QList<Statistics> The RMS image line residual statistics.

Referenced by Isis::BundleSolutionInfo::outputImagesCSV(), save(), and setRmsImageResidualLists().

◆ rmsImageRASigmas()

QVector< Statistics > Isis::BundleResults::rmsImageRASigmas ( ) const

Returns the list of RMS image right ascension sigma statistics.

Returns: QList<Statistics> The RMS image right ascension sigma statistics.

Referenced by save().

◆ rmsImageResiduals()

QList< Statistics > Isis::BundleResults::rmsImageResiduals ( ) const

Returns the list of RMS image residuals statistics.

Returns: QList<Statistics> The RMS image residual statistics.

Referenced by Isis::BundleSolutionInfo::outputImagesCSV(), save(), and setRmsImageResidualLists().

◆ rmsImageSampleResiduals()

QList< Statistics > Isis::BundleResults::rmsImageSampleResiduals ( ) const

Returns the list of RMS image sample residuals statistics.

Returns: QList<Statistics> The RMS image sample residual statistics.

Referenced by Isis::BundleSolutionInfo::outputImagesCSV(), save(), and setRmsImageResidualLists().

◆ rmsImageTWISTSigmas()

QVector< Statistics > Isis::BundleResults::rmsImageTWISTSigmas ( ) const

Returns the list of RMS image twist sigma statistics.

Returns: QList<Statistics> The RMS image twist sigma statistics.

Referenced by save().

◆ rmsImageXSigmas()

QVector< Statistics > Isis::BundleResults::rmsImageXSigmas ( ) const

Returns the list of RMS image x sigma statistics.

Returns: QList<Statistics> The RMS image x sigma statistics.

Referenced by save().

◆ rmsImageYSigmas()

QVector< Statistics > Isis::BundleResults::rmsImageYSigmas ( ) const

Returns the list of RMS image y sigma statistics.

Returns: QList<Statistics> The RMS image y sigma statistics.

Referenced by save().

◆ rmsImageZSigmas()

QVector< Statistics > Isis::BundleResults::rmsImageZSigmas ( ) const

Returns the list of RMS image z sigma statistics.

Returns: QList<Statistics> The RMS image z sigma statistics.

Referenced by save().

◆ rmsLidarImageLineResiduals()

QList< Statistics > Isis::BundleResults::rmsLidarImageLineResiduals ( ) const

Returns the list of RMS image lidar line residuals statistics.

Returns: QList<Statistics> The RMS image lidar line residual statistics.

Referenced by save(), and setRmsLidarImageResidualLists().

◆ rmsLidarImageResiduals()

QList< Statistics > Isis::BundleResults::rmsLidarImageResiduals ( ) const

Returns the list of RMS image lidar residuals statistics.

Returns: QList<Statistics> The RMS image lidar residual statistics.

Referenced by save(), and setRmsLidarImageResidualLists().

◆ rmsLidarImageSampleResiduals()

QList< Statistics > Isis::BundleResults::rmsLidarImageSampleResiduals ( ) const

Returns the list of RMS image lidar sample residuals statistics.

Returns: QList<Statistics> The RMS image lidar sample residual statistics.

Referenced by save(), and setRmsLidarImageResidualLists().

◆ rmsRx()

double Isis::BundleResults::rmsRx ( ) const

Returns the RMS of the x residuals.

Returns: double The RMS of the x residuals.

Referenced by save().

◆ rmsRxy()

double Isis::BundleResults::rmsRxy ( ) const

Returns the RMS of the x and y residuals.

Returns: double The RMS of the x and y residuals.

Referenced by save().

◆ rmsRy()

double Isis::BundleResults::rmsRy ( ) const

Returns the RMS of the y residuals.

Returns: double The RMS of the y residuals.

Referenced by save().

◆ save()

void Isis::BundleResults::save	(	QXmlStreamWriter &	stream,
		const Project *	project
	)		const

Saves the BundleResults object to an XML file.

Parameters

stream	The QXMLStreamWriter that will be used to write out the XML file.
project	The project that the BundleResults object belongs to.

References _FILEINFO_, converged(), correlationMatrix(), degreesOfFreedom(), elapsedTime(), elapsedTimeErrorProp(), iterations(), Isis::SurfacePoint::Latitudinal, maximumLikelihoodMedianR2Residuals(), maximumLikelihoodModelIndex(), maxSigmaCoord1Distance(), maxSigmaCoord1PointId(), maxSigmaCoord2Distance(), maxSigmaCoord2PointId(), maxSigmaCoord3Distance(), maxSigmaCoord3PointId(), minSigmaCoord1Distance(), minSigmaCoord1PointId(), minSigmaCoord2Distance(), minSigmaCoord2PointId(), minSigmaCoord3Distance(), minSigmaCoord3PointId(), Isis::MaximumLikelihoodWFunctions::modelToString(), numberConstrainedImageParameters(), numberConstrainedPointParameters(), numberConstrainedTargetParameters(), numberFixedPoints(), numberHeldImages(), numberIgnoredPoints(), numberImageObservations(), numberImageParameters(), numberLidarImageObservations(), numberLidarRangeConstraintEquations(), numberMaximumLikelihoodModels(), numberObservations(), numberRejectedObservations(), numberUnknownParameters(), outputControlNet(), Isis::IException::Programmer, Isis::SurfacePoint::Rectangular, rejectionLimit(), rmsImageDECSigmas(), rmsImageLineResiduals(), rmsImageRASigmas(), rmsImageResiduals(), rmsImageSampleResiduals(), rmsImageTWISTSigmas(), rmsImageXSigmas(), rmsImageYSigmas(), rmsImageZSigmas(), rmsLidarImageLineResiduals(), rmsLidarImageResiduals(), rmsLidarImageSampleResiduals(), rmsRx(), rmsRxy(), rmsRy(), sigma0(), sigmaCoord1StatisticsRms(), sigmaCoord2StatisticsRms(), sigmaCoord3StatisticsRms(), and Isis::toString().

Referenced by Isis::BundleSolutionInfo::save().

◆ setBundleControlPoints()

void Isis::BundleResults::setBundleControlPoints ( QVector< BundleControlPointQsp > controlPoints )

Sets the bundle control point vector.

Parameters

controlPoints The vector of BundleControlPointQsps.

Referenced by Isis::BundleAdjust::solveCholesky().

◆ setBundleLidarPoints()

void Isis::BundleResults::setBundleLidarPoints ( QVector< BundleLidarControlPointQsp > lidarPoints )

Sets the bundle lidar point vector.

Parameters

lidarPoints Vector of BundleLidarControlPointQsps.

Referenced by Isis::BundleAdjust::solveCholesky().

◆ setConverged()

void Isis::BundleResults::setConverged ( bool converged )

Sets if the bundle adjustment converged.

Parameters

converged If the bundle adjustment converged.

References converged().

Referenced by Isis::BundleAdjust::solveCholesky().

◆ setCorrMatCovFileName()

void Isis::BundleResults::setCorrMatCovFileName ( FileName name )

Set the covariance file name for the matrix used to calculate the correlation matrix.

Parameters

name	The name of the file used to store the covariance matrix.

References correlationMatrix(), and Isis::CorrelationMatrix::setCovarianceFileName().

◆ setCorrMatImgsAndParams()

void Isis::BundleResults::setCorrMatImgsAndParams ( QMap< QString, QStringList > imgsAndParams )

Set the images and their associated parameters of the correlation matrix.

Parameters

imgsAndParams The QMap with all the images and parameters used for this bundle.

References correlationMatrix(), and Isis::CorrelationMatrix::setImagesAndParameters().

Referenced by Isis::BundleSolutionInfo::outputText().

◆ setDegreesOfFreedom()

void Isis::BundleResults::setDegreesOfFreedom ( double degreesOfFreedom )

Sets the degrees of freedom.

Parameters

degreesOfFreedom The degrees of freedom.

References degreesOfFreedom().

◆ setElapsedTime()

void Isis::BundleResults::setElapsedTime ( double time )

Sets the elapsed time for the bundle adjustment.

Parameters

time	The elapsed time.

Referenced by Isis::BundleAdjust::solveCholesky().

◆ setElapsedTimeErrorProp()

void Isis::BundleResults::setElapsedTimeErrorProp ( double time )

Sets the elapsed time for error propegation.

Parameters

time	The elapsed time.

Referenced by Isis::BundleAdjust::solveCholesky().

◆ setIterations()

void Isis::BundleResults::setIterations ( int iterations )

Sets the number of iterations taken by the BundleAdjust.

Parameters

iterations The number of iterations.

References iterations().

Referenced by Isis::BundleAdjust::solveCholesky().

◆ setNumberConstrainedLidarPointParameters()

void Isis::BundleResults::setNumberConstrainedLidarPointParameters ( int numberParameters )

Set number of contrained point parameters.

Parameters

numberParameters Number of contrained point parameters.

◆ setNumberConstrainedPointParameters()

void Isis::BundleResults::setNumberConstrainedPointParameters ( int numberParameters )

Set number of contrained point parameters.

Parameters

numberParameters Number of contrained point parameters.

◆ setNumberHeldImages()

bool Isis::BundleResults::setNumberHeldImages	(	SerialNumberList	pHeldSnList,
		SerialNumberList *	pSnList
	)

◆ setNumberImageObservations()

void Isis::BundleResults::setNumberImageObservations ( int numberObservations )

Sets the number of photogrammetric image observations.

Note in this terminology an image measurement contributes two observations to the adjustment (i.e. sample/line).

So, the number of observations divided by 2 should equal the number of image measures.

Parameters

numberObservations The number of photogrammetric image observations.

References numberObservations().

◆ setNumberImageParameters()

void Isis::BundleResults::setNumberImageParameters ( int numberParameters )

Sets the number of image parameters.

Parameters

numberParameters The number of image parameters.

◆ setNumberLidarImageObservations()

void Isis::BundleResults::setNumberLidarImageObservations ( int numberLidarObservations )

Sets the number of lidar observations.

Parameters

numberLidarObservations The number of lidar observations.

◆ setNumberLidarRangeConstraints()

void Isis::BundleResults::setNumberLidarRangeConstraints ( int numberLidarRangeConstraints )

Sets the total number of lidar range constraints.

Parameters

numberLidarRangeConstraints The total number of lidar range constraints.

◆ setNumberObservations()

void Isis::BundleResults::setNumberObservations ( int numberObservations )

Sets the number of observations.

Parameters

numberObservations The number of observations.

References numberObservations().

◆ setNumberRejectedObservations()

void Isis::BundleResults::setNumberRejectedObservations ( int numberRejectedObservations )

Sets the number of rejected observations.

Parameters

numberRejectedObservations The number of rejected observations.

References numberRejectedObservations().

◆ setNumberUnknownParameters()

void Isis::BundleResults::setNumberUnknownParameters ( int numberParameters )

Sets the total number of parameters to solve for.

Parameters

numberParameters The number of parameters to solve for.

◆ setObservations()

void Isis::BundleResults::setObservations ( BundleObservationVector observations )

Sets the vector of BundleObservations.

Parameters

observations The vector of BundleObservations.

References observations().

Referenced by Isis::BundleAdjust::solveCholesky().

◆ setOutputControlNet()

void Isis::BundleResults::setOutputControlNet ( ControlNetQsp outNet )

Sets the output ControlNet.

Parameters

outNet A QSharedPointer to the output ControlNet.

Referenced by Isis::BundleAdjust::BundleAdjust().

◆ setOutputLidarData()

void Isis::BundleResults::setOutputLidarData ( LidarDataQsp outLidarData )

Sets the output LidarData object.

Parameters

outLidarData A QSharedPointer to the output LidarData object.

Referenced by Isis::BundleAdjust::BundleAdjust().

◆ setRejectionLimit()

void Isis::BundleResults::setRejectionLimit ( double rejectionLimit )

Sets the rejection limit.

Parameters

rejectionLimit The rejection limit.

References rejectionLimit().

◆ setRmsFromSigmaStatistics()

void Isis::BundleResults::setRmsFromSigmaStatistics	(	double	rmsFromSigmaCoord1Stats,
		double	rmsFromSigmaCoord2Stats,
		double	rmsFromSigmaCoord3Stats
	)

Sets the root mean square values of the adjusted sigmas for all three coordinates.

Parameters

rmsFromSigmaCoord1Stats	The new RMS value of the adjusted coord1 sigmas.
rmsFromSigmaCoord2Stats	The new RMS value of the adjusted coord2 sigmas.
rmsFromSigmaCoord3Stats	The new RMS value of the adjusted coord3 sigmas.

◆ setRmsImageResidualLists() [1/2]

void Isis::BundleResults::setRmsImageResidualLists	(	QList< Statistics >	rmsImageLineResiduals,
		QList< Statistics >	rmsImageSampleResiduals,
		QList< Statistics >	rmsImageResiduals
	)

Sets the root mean square image residual Statistics lists.

Parameters

rmsImageLineResiduals	The new image line residuals list.
rmsImageSampleResiduals	The new image sample residuals list.
rmsImageResiduals	The new image residuals list.

References rmsImageLineResiduals(), rmsImageResiduals(), and rmsImageSampleResiduals().

◆ setRmsImageResidualLists() [2/2]

void Isis::BundleResults::setRmsImageResidualLists	(	QVector< Statistics >	rmsImageLineResiduals,
		QVector< Statistics >	rmsImageSampleResiduals,
		QVector< Statistics >	rmsImageResiduals
	)

◆ setRmsLidarImageResidualLists()

void Isis::BundleResults::setRmsLidarImageResidualLists	(	QList< Statistics >	rmsLidarImageLineResiduals,
		QList< Statistics >	rmsLidarImageSampleResiduals,
		QList< Statistics >	rmsLidarImageResiduals
	)

Sets the root mean square lidar image residual Statistics lists.

Parameters

rmsLidarImageLineResiduals	The new image line residuals list.
rmsLidarImageSampleResiduals	The new image sample residuals list.
rmsLidarImageResiduals	The new image residuals list.

References rmsLidarImageLineResiduals(), rmsLidarImageResiduals(), and rmsLidarImageSampleResiduals().

◆ setRmsXYResiduals()

void Isis::BundleResults::setRmsXYResiduals	(	double	rx,
		double	ry,
		double	rxy
	)

Sets the root mean square of the x and y residuals.

Parameters

rx	The RMS value of the x residuals.
ry	The RMS value of the y residuals.
rxy	The RMS value of both the x and y residuals.

◆ setSigma0()

void Isis::BundleResults::setSigma0 ( double sigma0 )

Sets the sigma0.

Parameters

sigma0 The sigma0.

References sigma0().

◆ setSigmaCoord1Range()

void Isis::BundleResults::setSigmaCoord1Range	(	Distance	minCoord1Dist,
		Distance	maxCoord1Dist,
		QString	minCoord1PointId,
		QString	maxCoord1PointId
	)

Sets the min and max sigma distances and point ids for coordinate 1.

Parameters

minLatDist	The new minimum sigma latitude distance.
maxLatDist	The new maximum sigma latitude distance.
minLatPointId	The new minimum sigma latitude point id.
maxLatPointId	The new maximum sigma latitude point id.

◆ setSigmaCoord2Range()

void Isis::BundleResults::setSigmaCoord2Range	(	Distance	minCoord2Dist,
		Distance	maxCoord2Dist,
		QString	minCoord2PointId,
		QString	maxCoord2PointId
	)

Sets the min and max sigma distances and point ids for coordinate 2.

Parameters

minLonDist	The new minimum sigma longitude distance.
maxLonDist	The new maximum sigma longitude distance.
minLonPointId	The new minimum sigma longitude point id.
maxLonPointId	The new maximum sigma longitude point id.

◆ setSigmaCoord3Range()

void Isis::BundleResults::setSigmaCoord3Range	(	Distance	minCoord3Dist,
		Distance	maxCoord3Dist,
		QString	minCoord3PointId,
		QString	maxCoord3PointId
	)

Sets the min and max sigma distances and point ids for coordinate 3.

Parameters

minRadDist	The new minimum sigma radius distance.
maxRadDist	The new maximum sigma radius distance.
minRadPointId	The new minimum sigma radius point id.
maxRadPointId	The new maximum sigma radius point id.

◆ sigma0()

double Isis::BundleResults::sigma0 ( ) const

Returns the Sigma0 of the bundle adjustment.

Returns: double The Sigma0.

Referenced by Isis::BundleSolutionInfo::outputHeader(), save(), setSigma0(), and Isis::BundleAdjust::solveCholesky().

◆ sigmaCoord1StatisticsRms()

double Isis::BundleResults::sigmaCoord1StatisticsRms ( ) const

Returns the RMS of the adjusted sigmas for coordinate 1.

Returns: double The RMS of the adjusted Coord1 sigmas.

Referenced by Isis::JigsawRunWidget::notifyThreadFinished(), Isis::BundleSolutionInfo::outputText(), and save().

◆ sigmaCoord2StatisticsRms()

double Isis::BundleResults::sigmaCoord2StatisticsRms ( ) const

Returns the RMS of the adjusted sigmas for coordinate 2.

Returns: double The RMS of the adjusted Coord2 sigmas.

Referenced by Isis::JigsawRunWidget::notifyThreadFinished(), Isis::BundleSolutionInfo::outputText(), and save().

◆ sigmaCoord3StatisticsRms()

double Isis::BundleResults::sigmaCoord3StatisticsRms ( ) const

Returns the RMS of the adjusted sigmas for coordinate 3.

Returns: double The RMS of the adjusted Coord3 sigmas.

Referenced by Isis::JigsawRunWidget::notifyThreadFinished(), Isis::BundleSolutionInfo::outputText(), and save().

The documentation for this class was generated from the following files:

/Users/arsanders/repos/ISIS3/isis/src/control/objs/BundleResults/BundleResults.h
/Users/arsanders/repos/ISIS3/isis/src/control/objs/BundleResults/BundleResults.cpp

Public Member Functions

Detailed Description

Constructor & Destructor Documentation

◆ BundleResults() [1/3]

◆ BundleResults() [2/3]

◆ BundleResults() [3/3]

◆ ~BundleResults()

Member Function Documentation

◆ addProbabilityDistributionObservation() [1/2]

◆ addProbabilityDistributionObservation() [2/2]

◆ addResidualsProbabilityDistributionObservation()

◆ bundleControlPoints()

◆ bundleLidarControlPoints()

◆ computeDegreesOfFreedom()

◆ computeSigma0()

◆ converged()

◆ coordTypeReports()

◆ correlationMatrix()

◆ cumulativeProbabilityDistribution()

◆ degreesOfFreedom()

◆ elapsedTime()

◆ elapsedTimeErrorProp()

◆ incrementFixedPoints()

◆ incrementHeldImages()

◆ incrementIgnoredPoints()

◆ incrementMaximumLikelihoodModelIndex()

◆ incrementNumberConstrainedImageParameters()

◆ incrementNumberConstrainedPointParameters()

◆ incrementNumberConstrainedTargetParameters()

◆ initialize()

◆ initializeProbabilityDistribution()

◆ initializeResidualsProbabilityDistribution()

◆ iterations()

◆ maximumLikelihoodMedianR2Residuals()

◆ maximumLikelihoodModelIndex()

◆ maximumLikelihoodModelQuantile()

◆ maximumLikelihoodModels()

◆ maximumLikelihoodModelWFunc()

◆ maximumLikelihoodSetUp()

◆ maxSigmaCoord1Distance()

◆ maxSigmaCoord1PointId()

◆ maxSigmaCoord2Distance()

◆ maxSigmaCoord2PointId()

◆ maxSigmaCoord3Distance()

◆ maxSigmaCoord3PointId()

◆ minSigmaCoord1Distance()

◆ minSigmaCoord1PointId()

◆ minSigmaCoord2Distance()

◆ minSigmaCoord2PointId()

◆ minSigmaCoord3Distance()

◆ minSigmaCoord3PointId()

◆ numberConstrainedImageParameters()

◆ numberConstrainedPointParameters()

◆ numberConstrainedTargetParameters()

◆ numberFixedPoints()

◆ numberHeldImages()

◆ numberIgnoredPoints()

◆ numberImageObservations()

◆ numberImageParameters()

◆ numberLidarImageObservations()

◆ numberLidarRangeConstraintEquations()

◆ numberMaximumLikelihoodModels()

◆ numberObservations()

◆ numberRejectedObservations()

◆ numberUnknownParameters()

◆ observations()

◆ operator=()

◆ outputControlNet()

◆ outputLidarData()

◆ printMaximumLikelihoodTierInformation()

◆ rejectionLimit()

◆ resetNumberConstrainedImageParameters()

◆ resetNumberConstrainedPointParameters()

◆ resetNumberConstrainedTargetParameters()

◆ residualsCumulativeProbabilityDistribution()

◆ resizeSigmaStatisticsVectors()

◆ rmsImageDECSigmas()

◆ rmsImageLineResiduals()

◆ rmsImageRASigmas()

◆ rmsImageResiduals()
